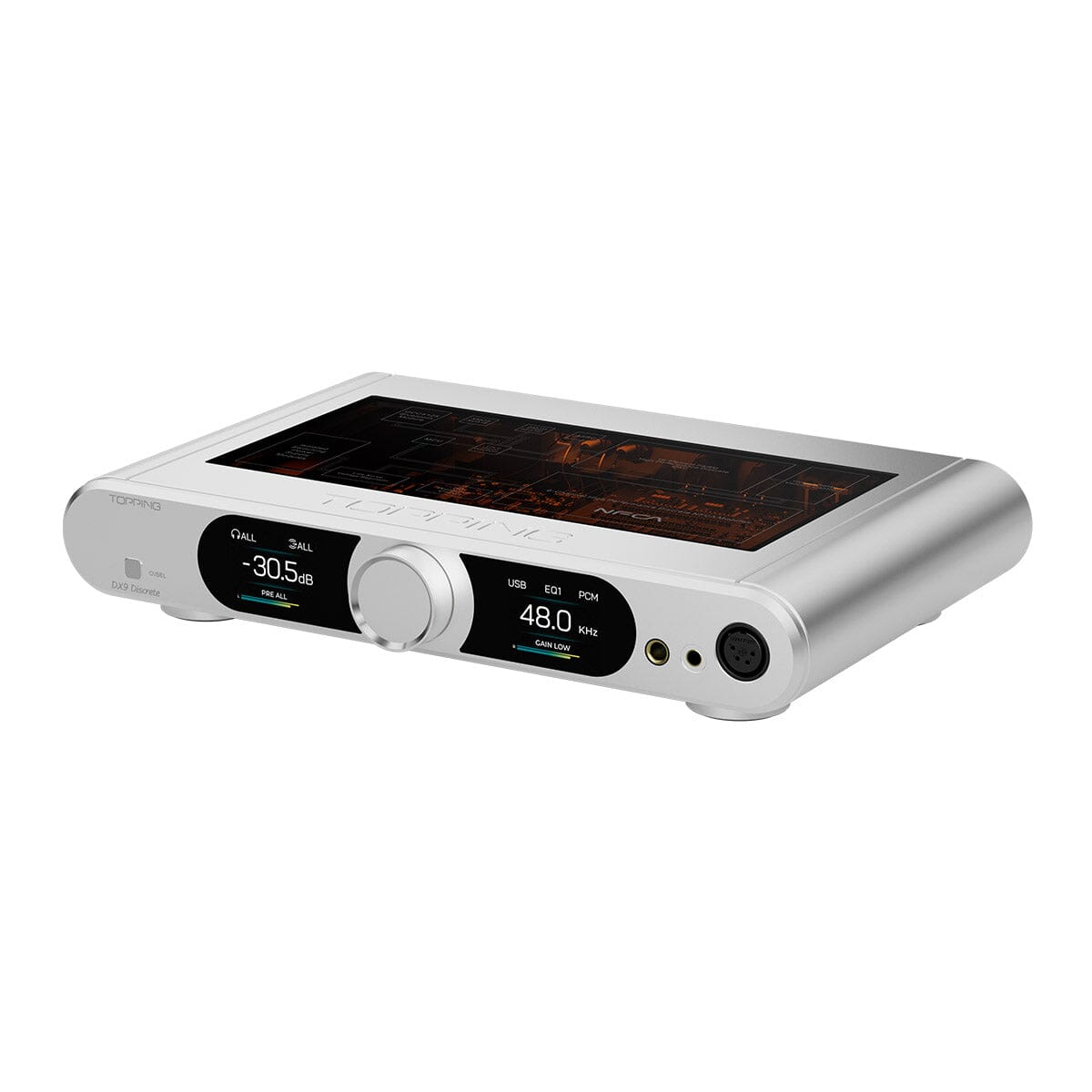

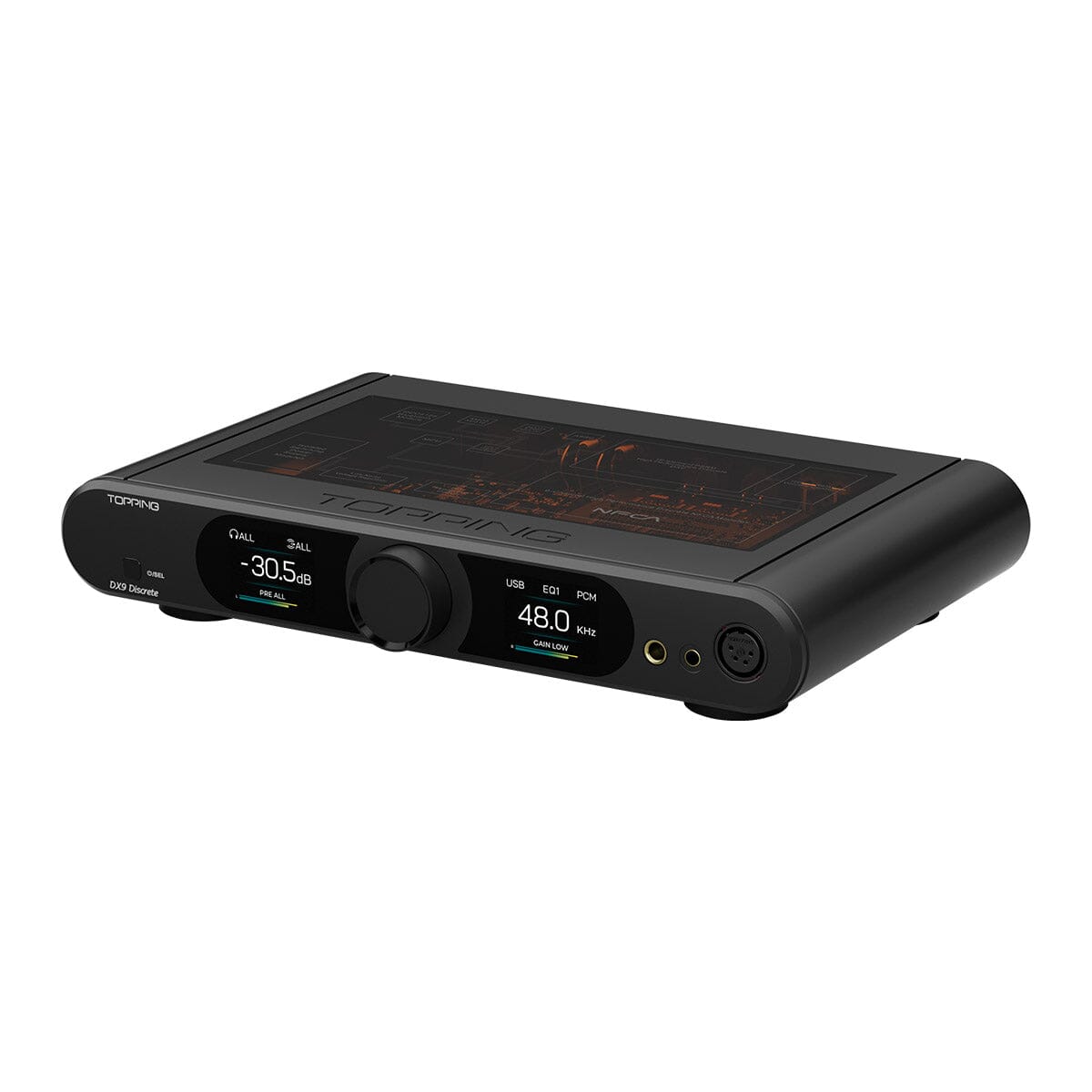

TOPPING DX9 Discrete Fully Balanced DAC & Headphone AMP

Features:-

>High-End Fully Discrete Balanced DAC & Headphone Amplifier.

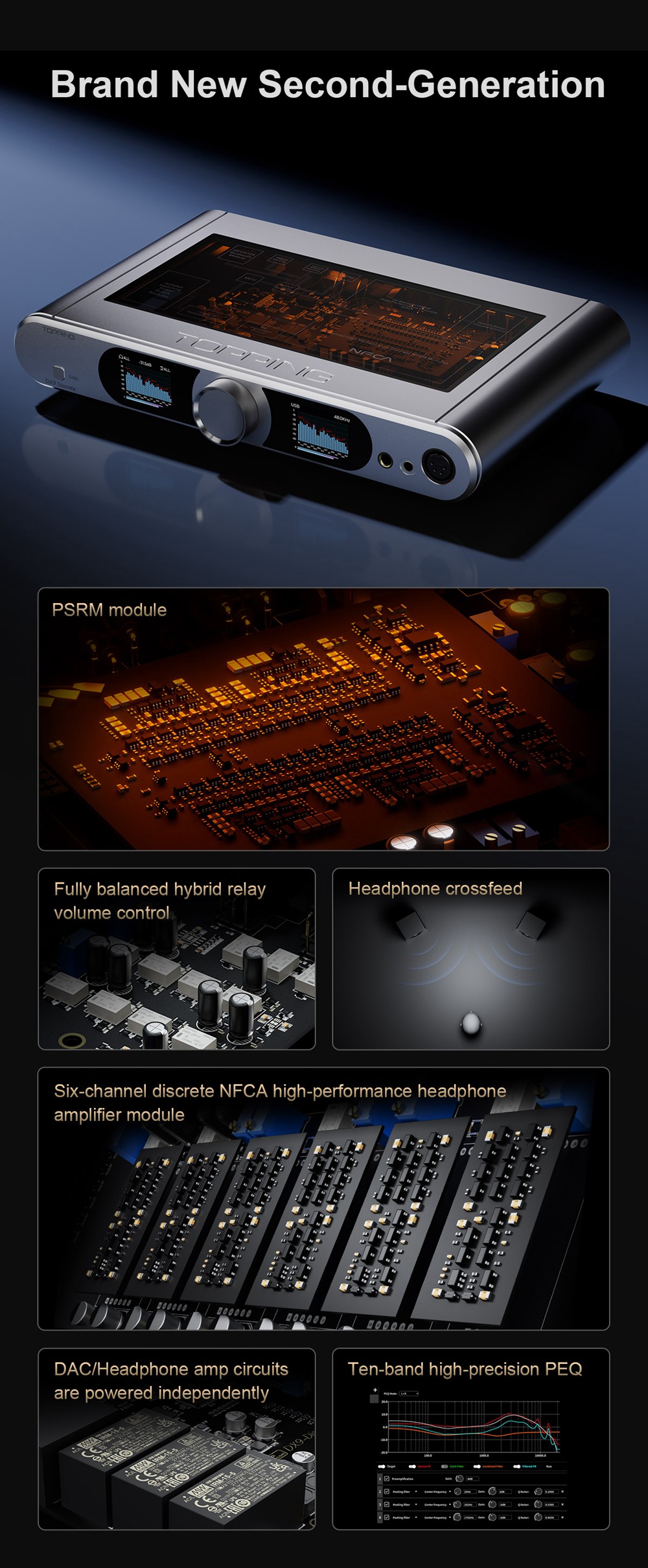

>Self-Developed Second-Generation 16-Element PSRM Module.

>Fully-Balanced Hybrid Relay Volume Control.

>Six-Channel Discrete NFCA High-Performance Headphone Amplifier Module.

>Super-Strong Output Thrust(Over 7W Per Channel).

>Ultra-Low Jitter Clock Architecture.

>Independent Power to DAC & Amp Circuits.

>Ten-Band High-Precision PEQ.

>Ultra-Low THD+N Performance(<0.00006%).

>Headphone Crossfeed.

>Qualcomm QCC5125 Bluetooth Chipset.

>Bluetooth V5.1 Connectivity For Signal Input.

>High-Definition Wireless Protocol Support(LDAC, AptX HD, AptX Adaptive, etc.)

>Comprehensive List of Inputs and Outputs.

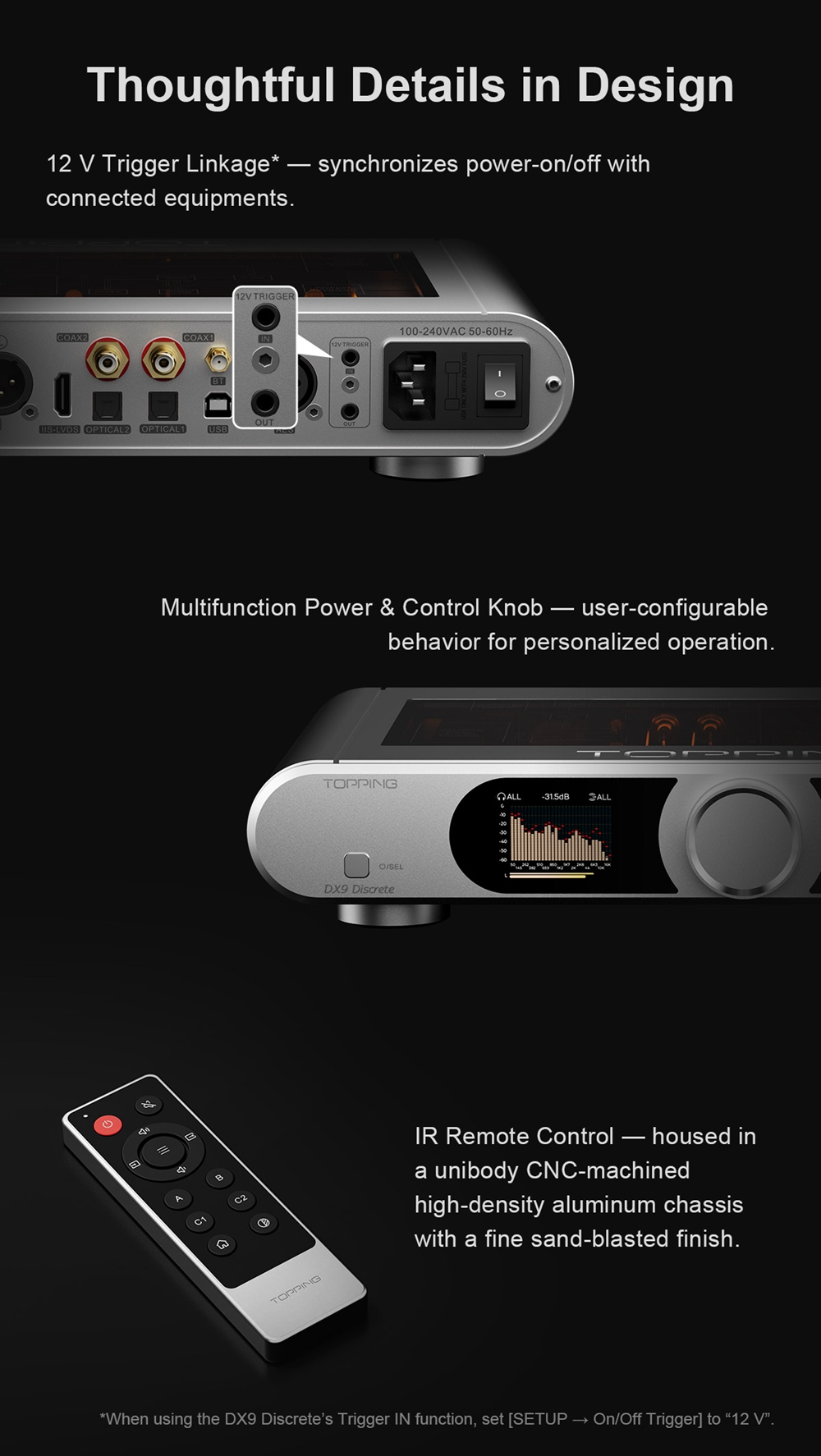

>Multi-Function Knob and IR Remote Control.

>All-in-One Desktop Solution.

Topping DX9 Discrete is a brand new high-end all-in-one desktop DAC/Amp that embodies the brand’s relentless pursuit of premium, high-fidelity sound reproduction. It combines a brand-new self-developed 16-element 1-bit PSRM DAC architecture with a fully discrete NFCA headphone amplifier section. The DX9 Discrete is designed for purists and serious enthusiasts who seek an all-in-one DAC, Headphone Amp, and Pre-AMP device with an ultra-clean, dynamic, and transparent sound profile. It completely redefines your music listening experience with its true reference-grade sound quality. Topping DX9 Discrete also has a fully-balanced hybrid relay volume control that helps you achieve precise volume adjustment. The DX9 Discrete also features a ten-band PEQ which helps you customize the output to your liking. Bring home the DX9 Discrete today and upgrade your setup with the ultimate performer!!

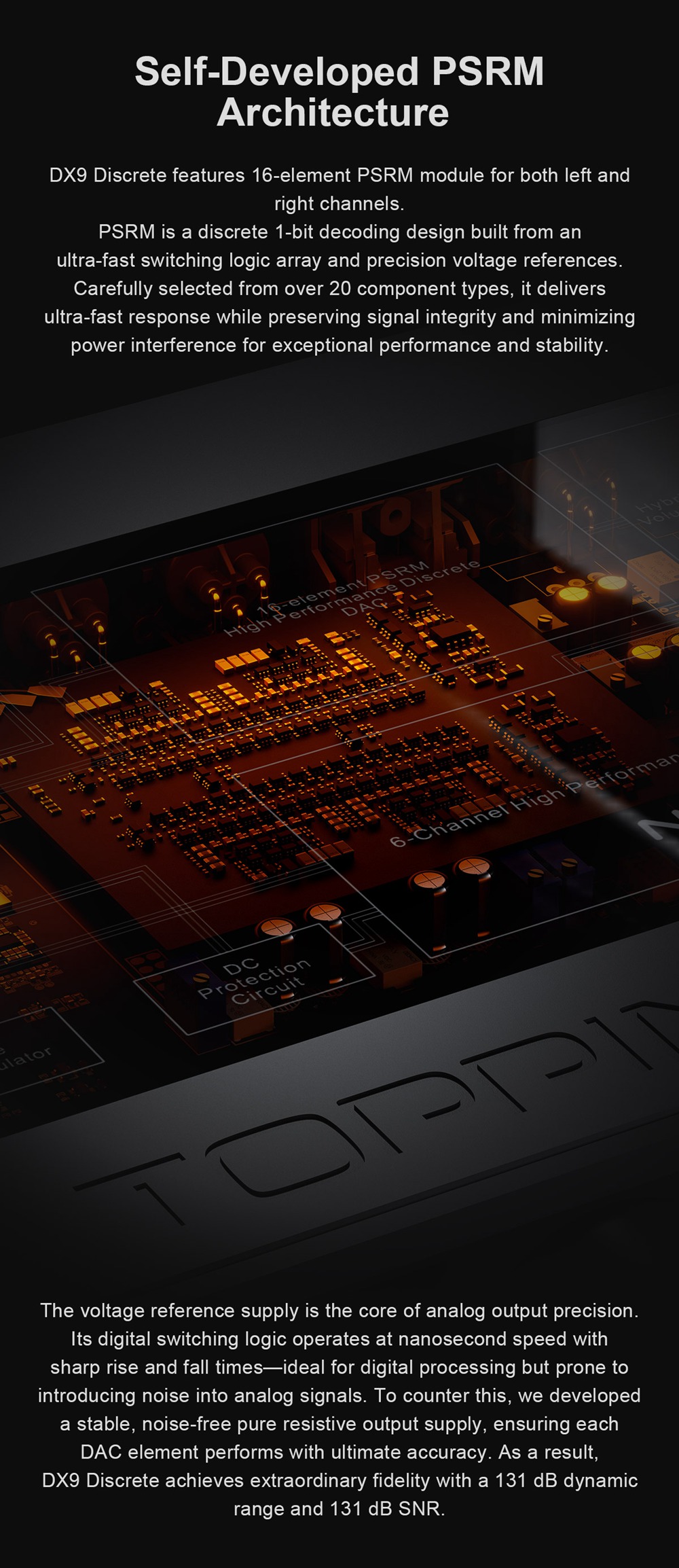

Self-Developed 1-Bit Discrete DAC:-

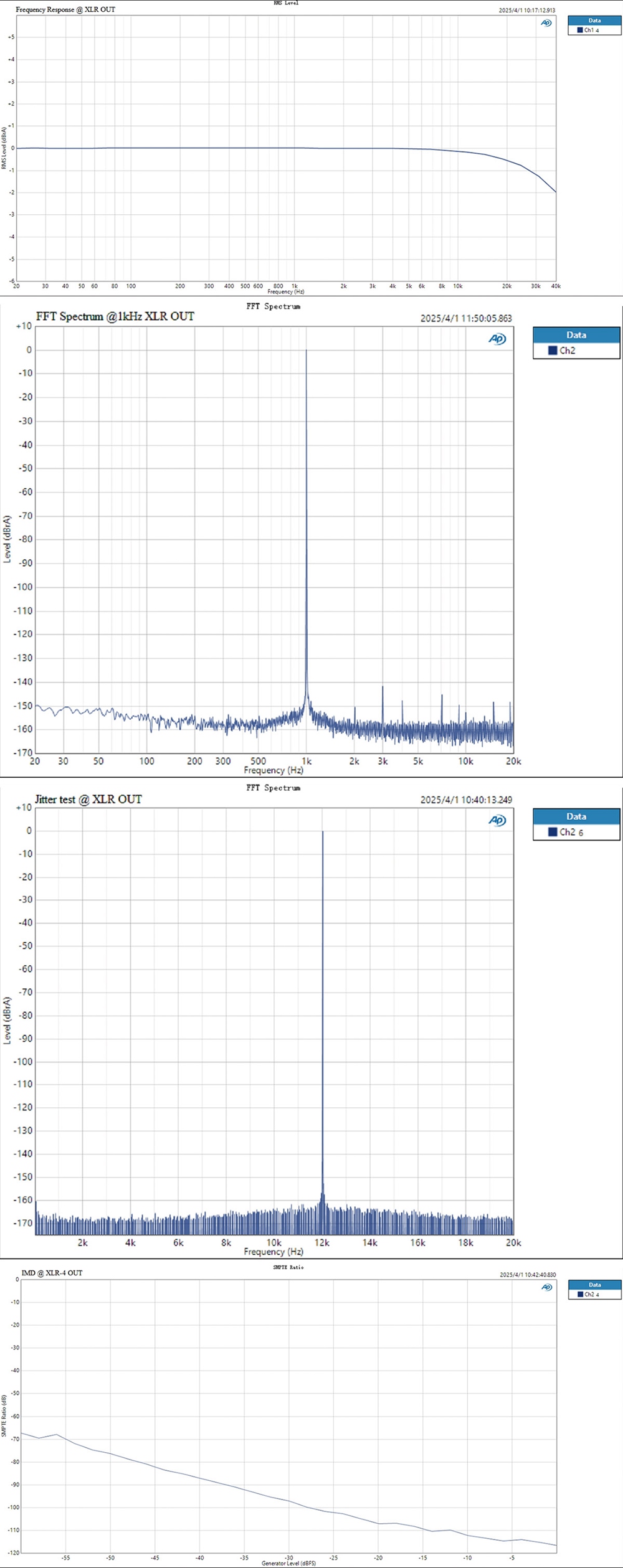

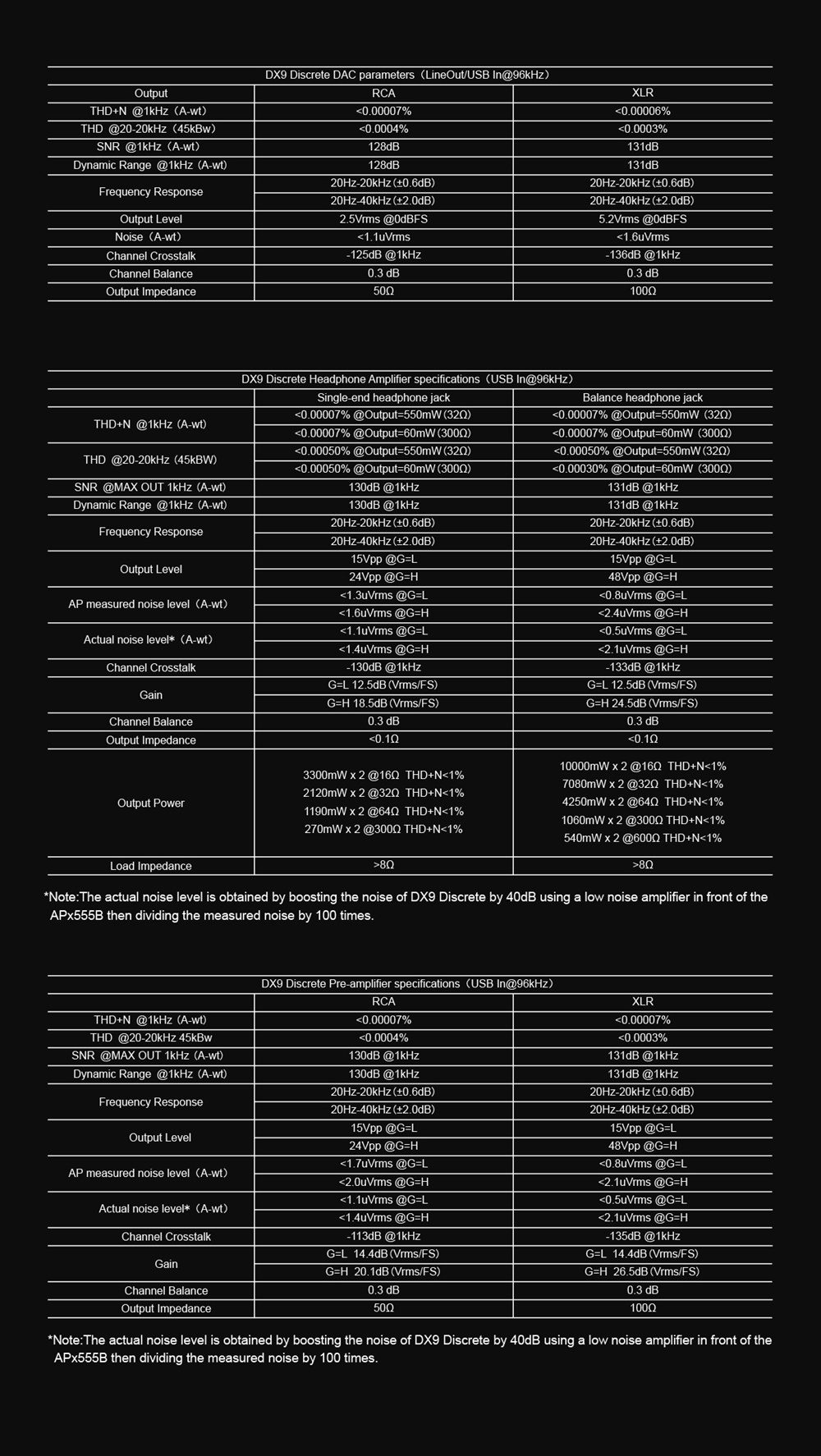

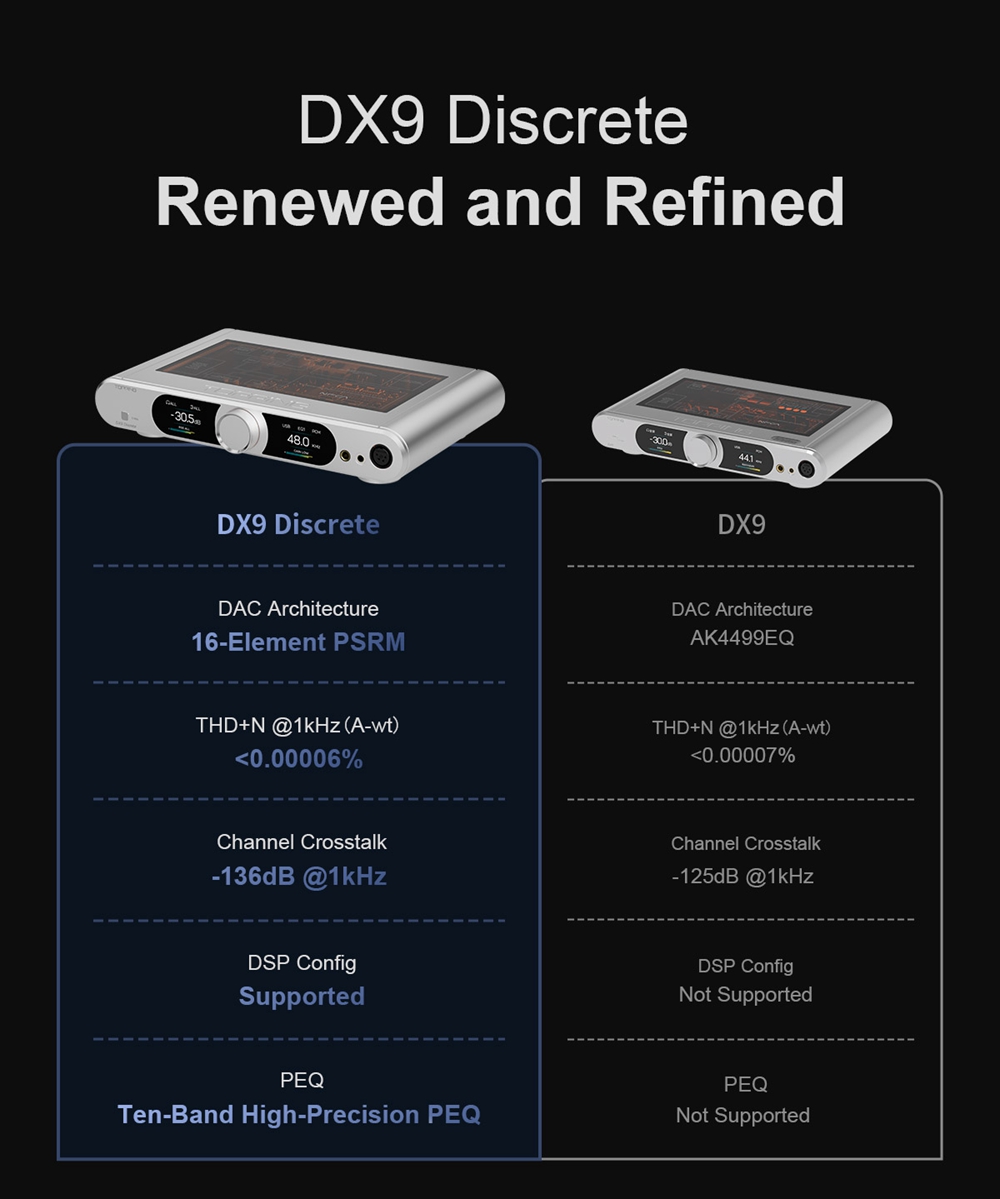

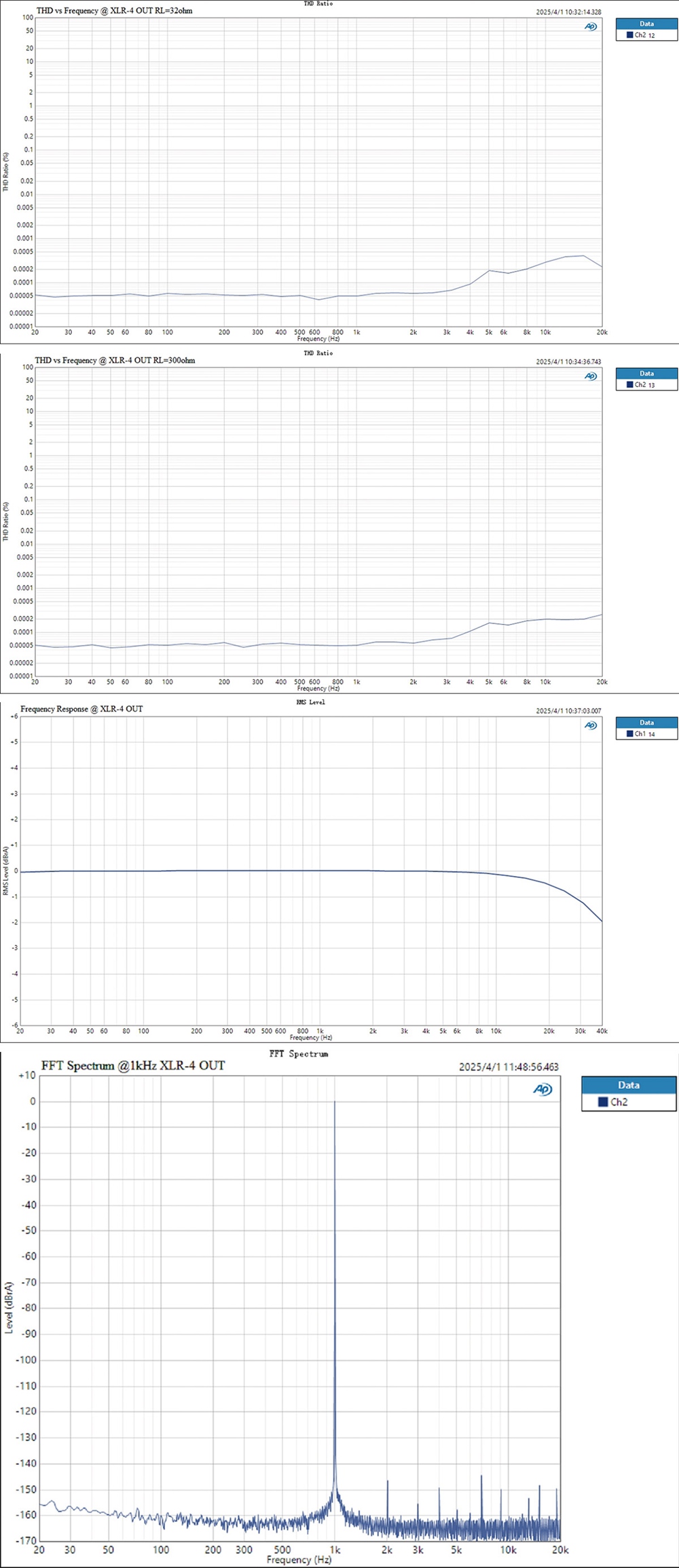

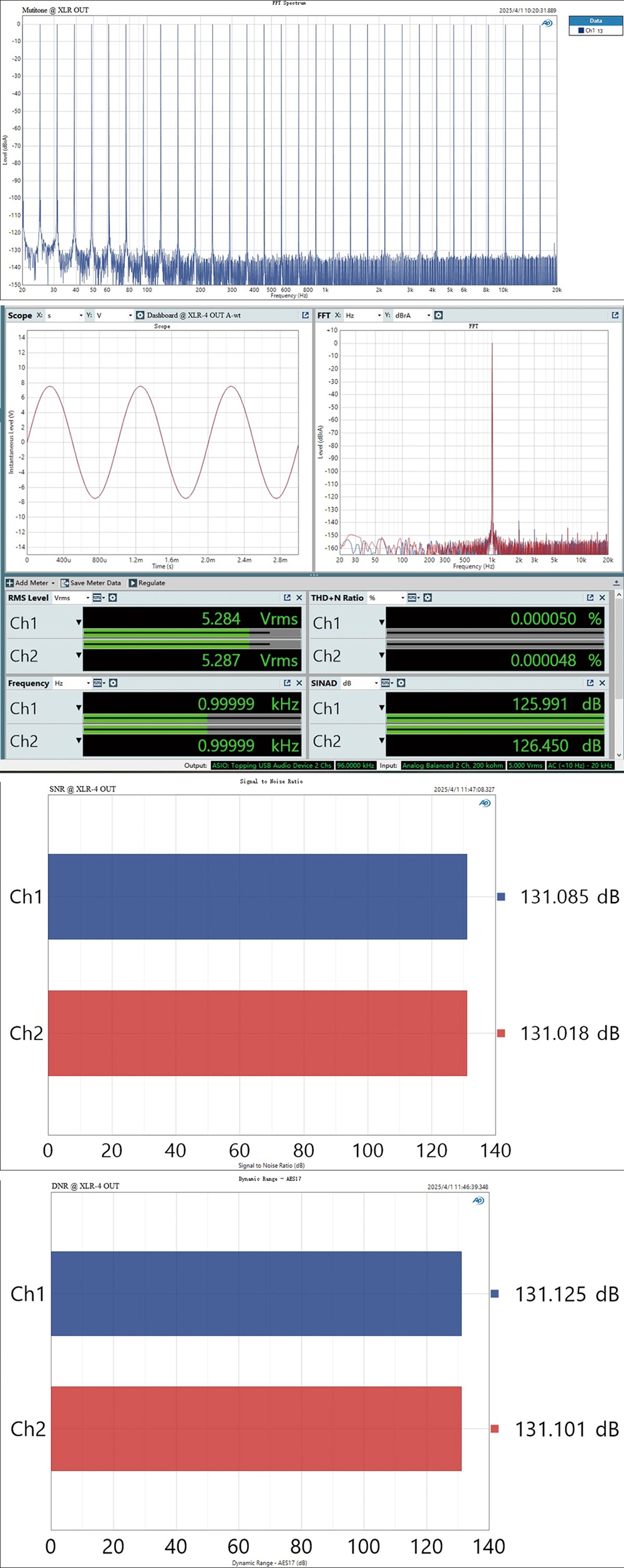

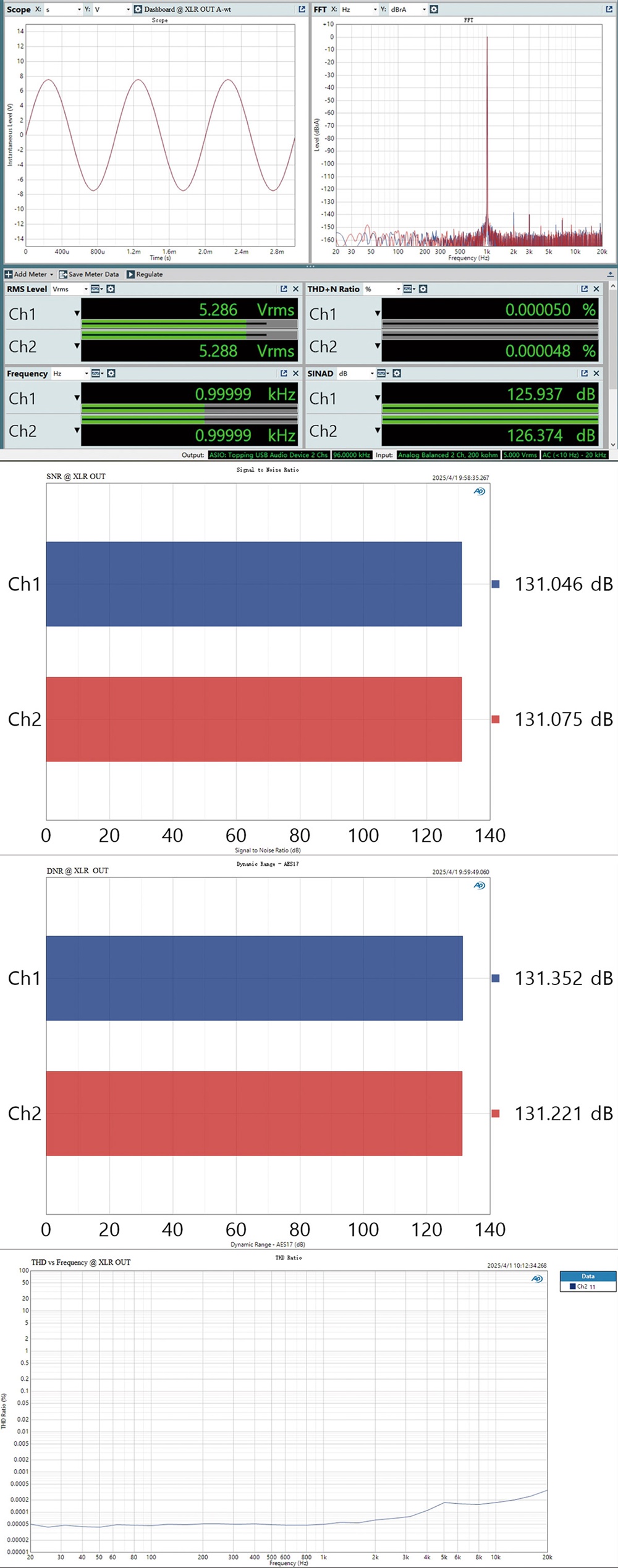

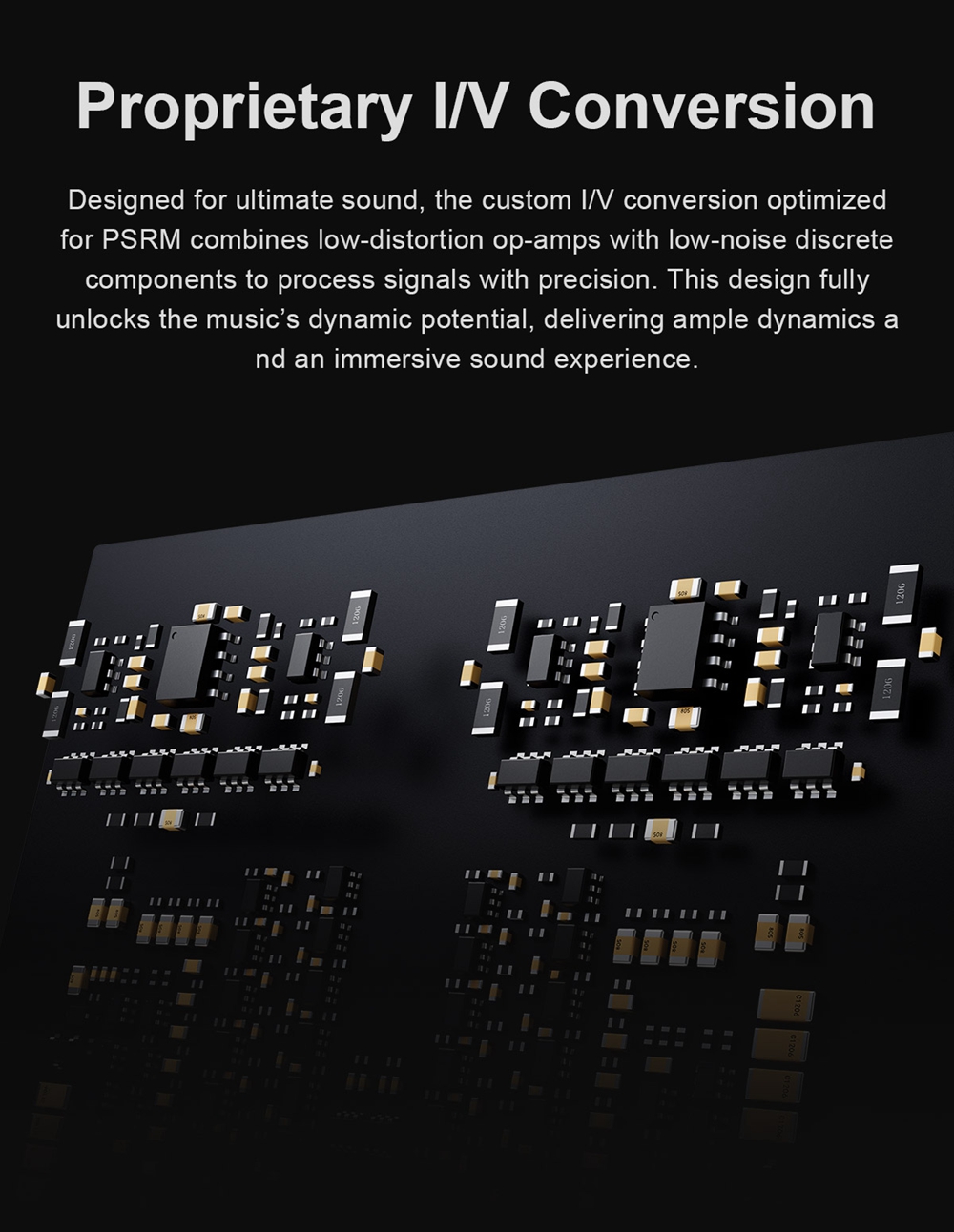

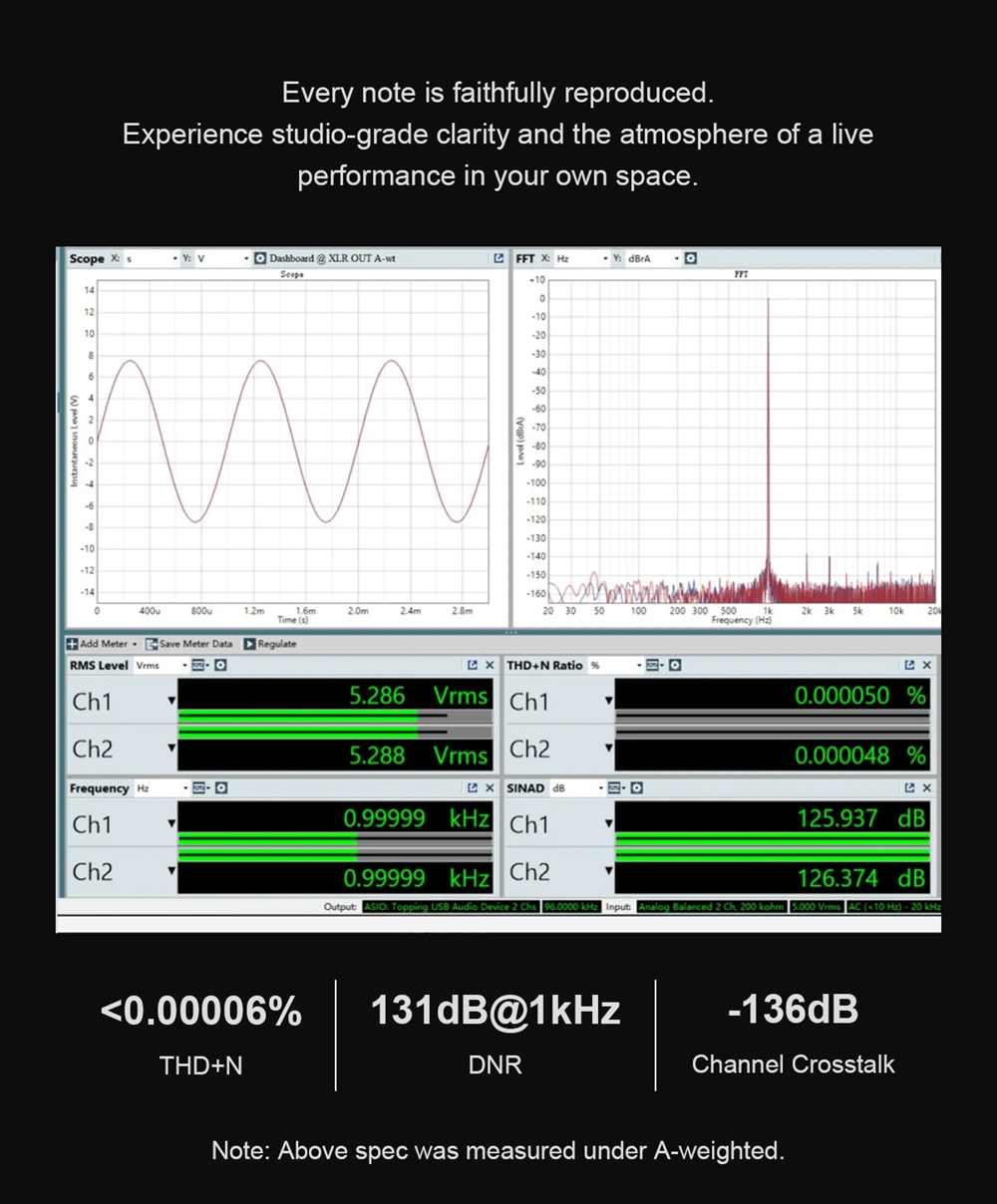

Topping DX9 Discrete drops the standard delta-sigma DACs and opts their own self-developed 16-element PSRM 1-bit discrete DAC. This architecture is professionally designed using top-quality components to ensure a true high-fidelity sound experience. It helps the DX9 Discrete achieve an astonishing 131dB SNR, <0.00006% THD+N, and supreme dynamic range across a wide frequency response range.

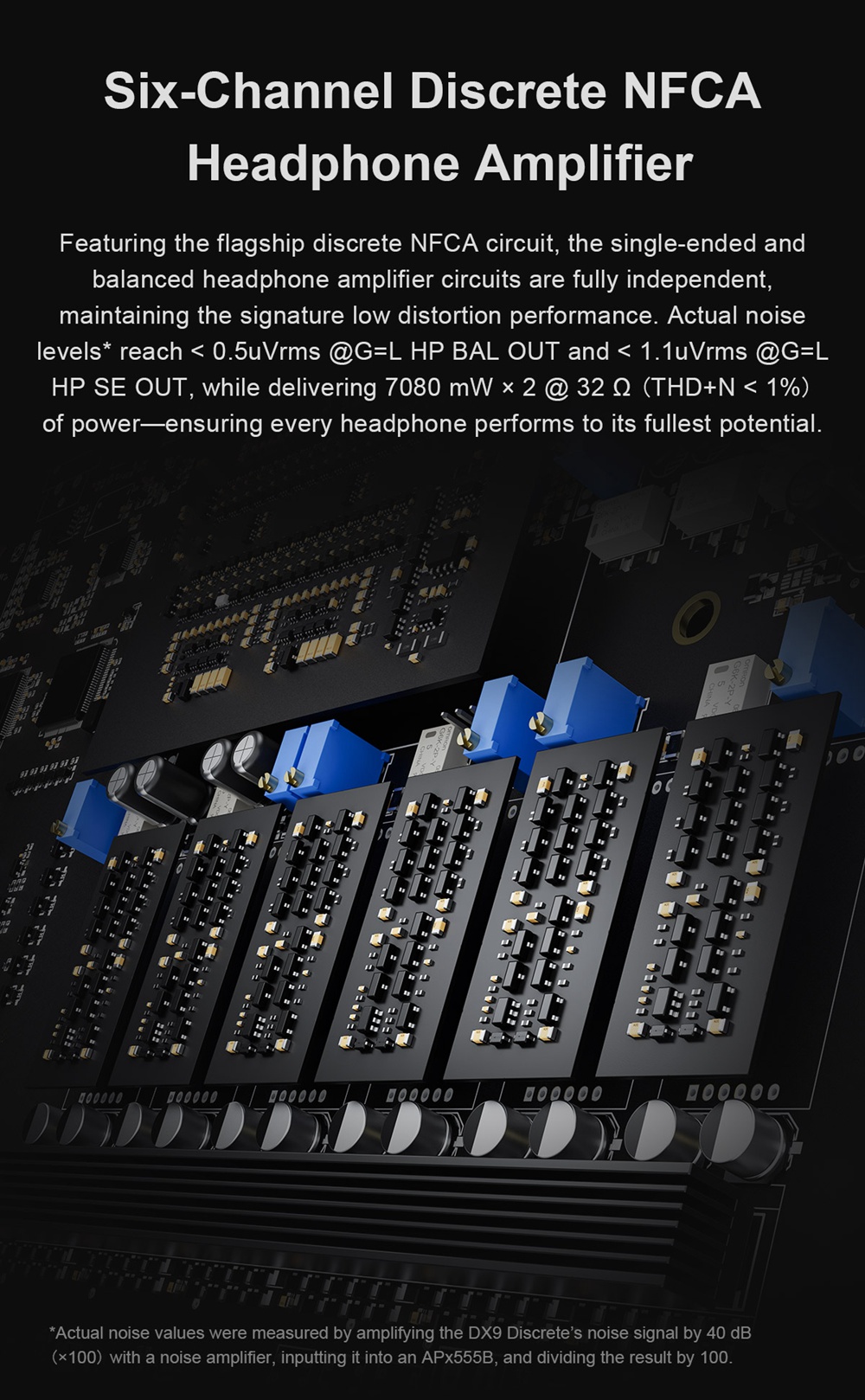

Clean, Powerful, Advanced Discrete NFCA Amplifier:-

Topping DX9 Discrete features an advanced Discrete fully-balanced NFCA amplification section. It’s a six-channel NFCA module which features 39-transistors per amplification module. Topping DX9 delivers a strong output thrust which drives demanding cans with ease. It delivers up to 7,080mW x2 output at 32Ω impedance while maintaining an ultra-low 0.5µVrms noise floor. Whether you drive sensitive IEMs, or a high-impedance, low-sensitivity headphones, the Topping DX9 Discrete works like a charm.

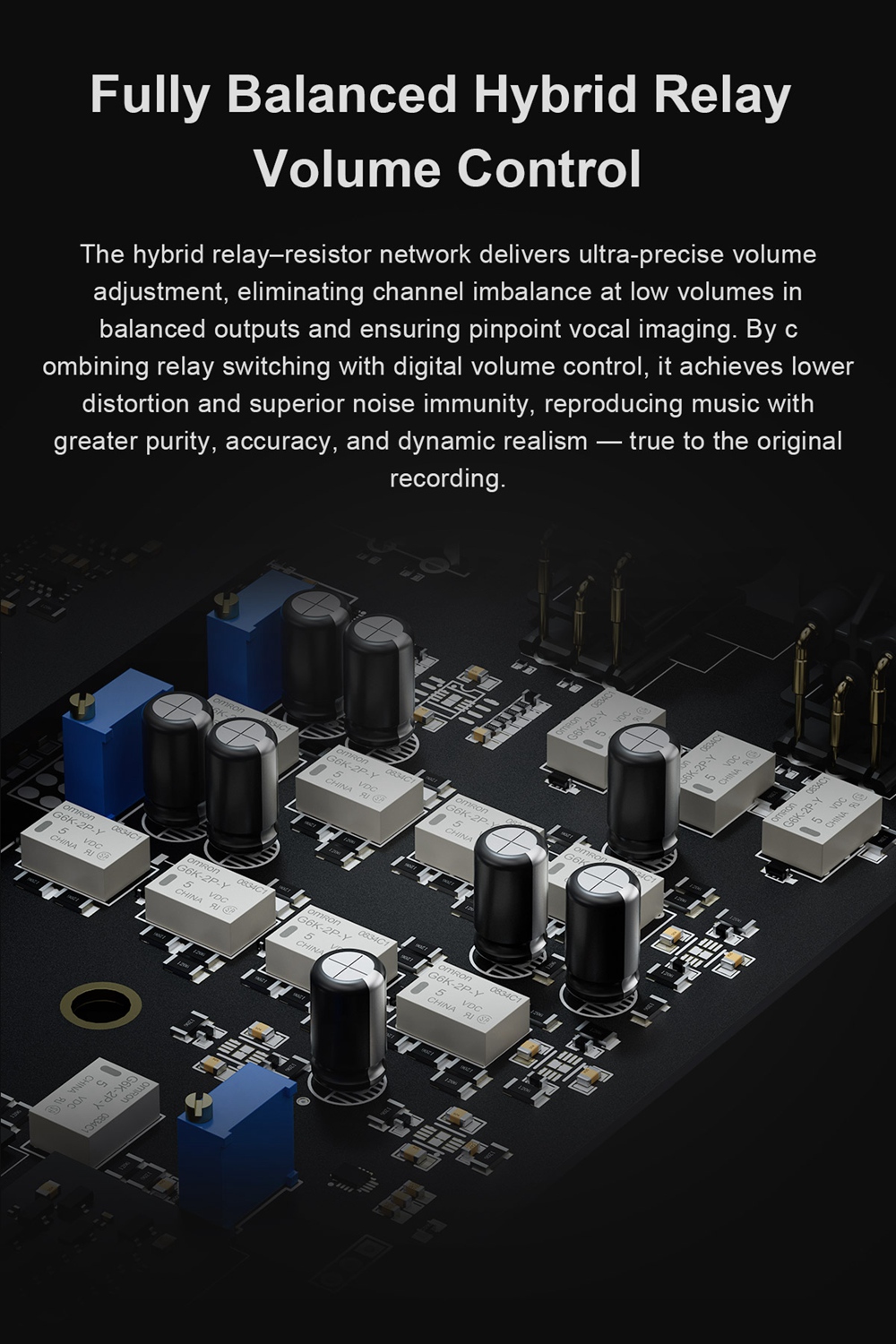

Precise Volume Adjustment with Hybrid Relay Volume Control:-

Topping DX9 Discrete incorporates a hybrid relay volume control which helps in precise control over the volume adjustment. It’s a digitally governed relay-resistor network volume adjustment that grants micro-level adjustment accuracy. It maintains signal purity and proper balance in channel matching at every listening level. This ultra-precise volume control makes the DX9 an ideal solution for both, high-sensitivity IEMs as well as low-sensitivity, high-impedance headphones.

Control Your Output With Ten-Band PEQ:-

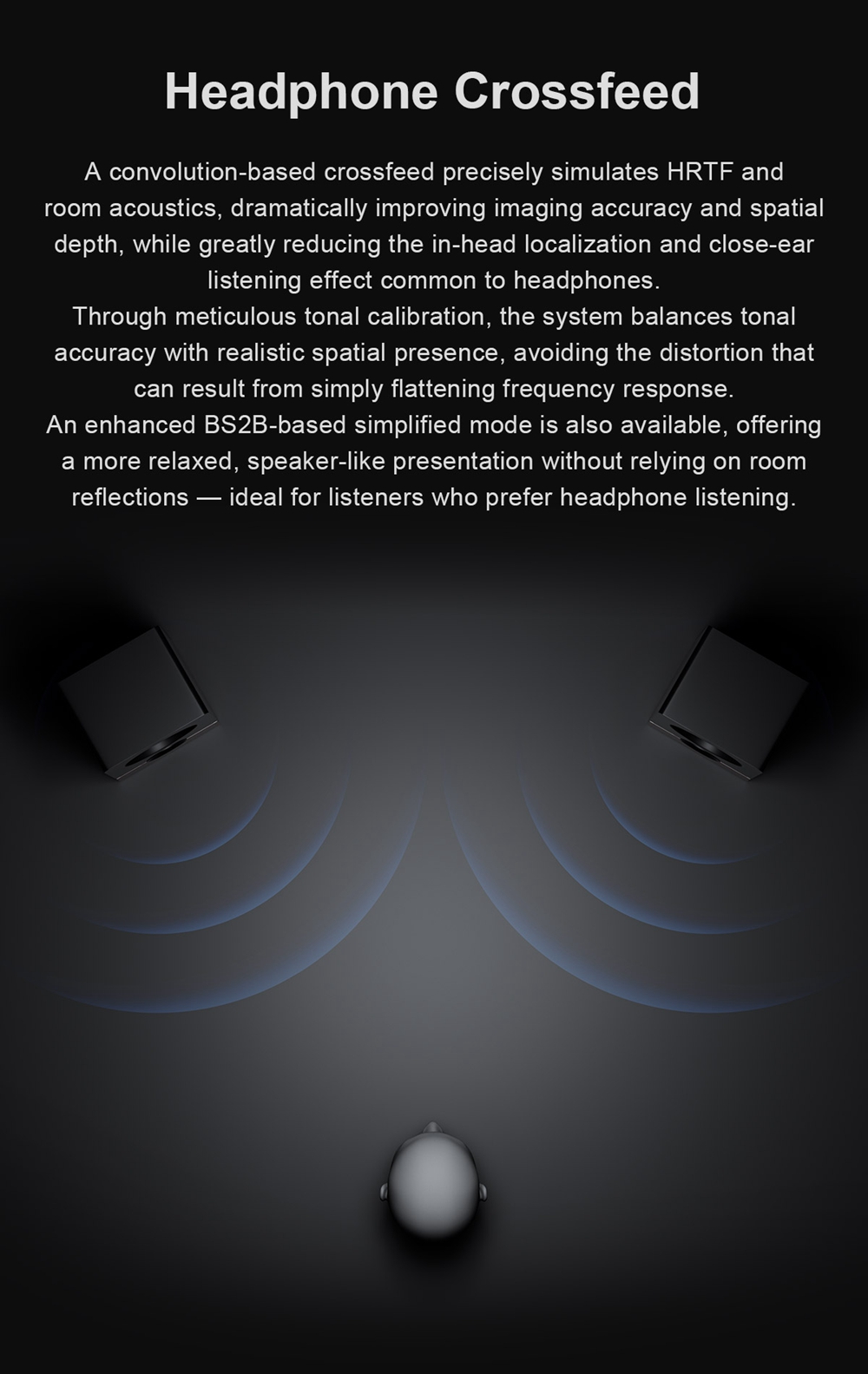

Topping DX9 Discrete features a dynamic 10-band parametric equalizer that helps you customize the output to your liking. This PEQ helps you individually adjust different frequency sections, adjust their gain, and also the Q-Factor. We also have Headphone crossed technology that brings speaker-like massive staging to create a more immersive and engaging sound profile with your headphones.

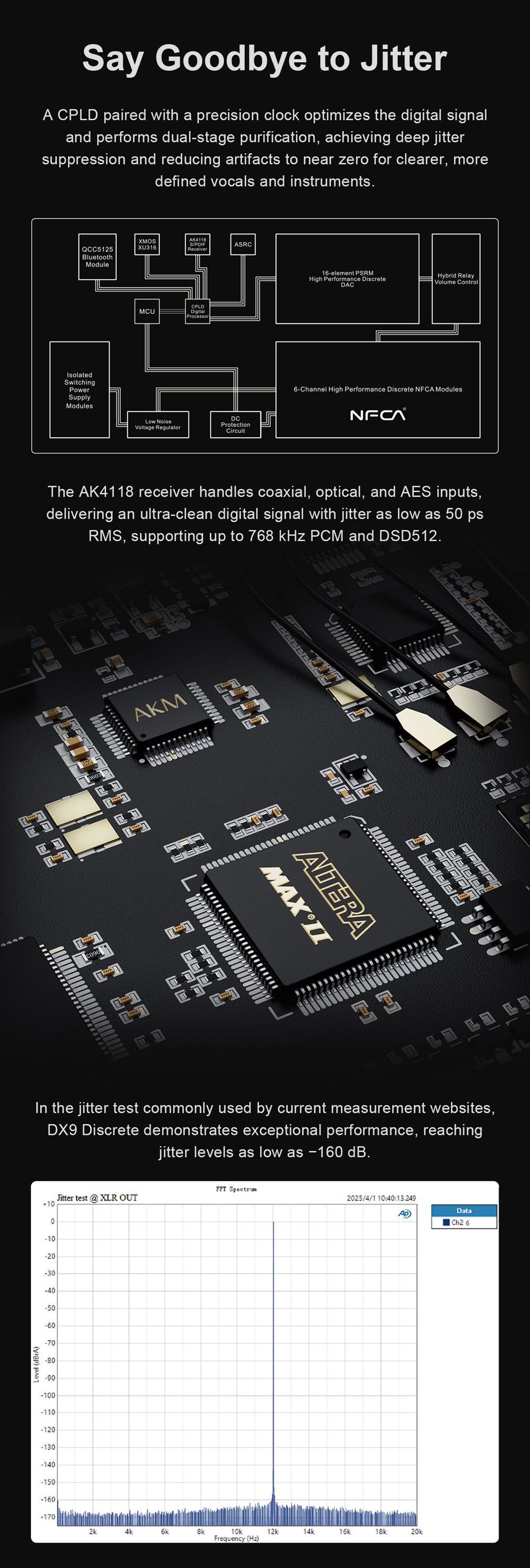

Dual-Stage Low-Jitter Clock:-

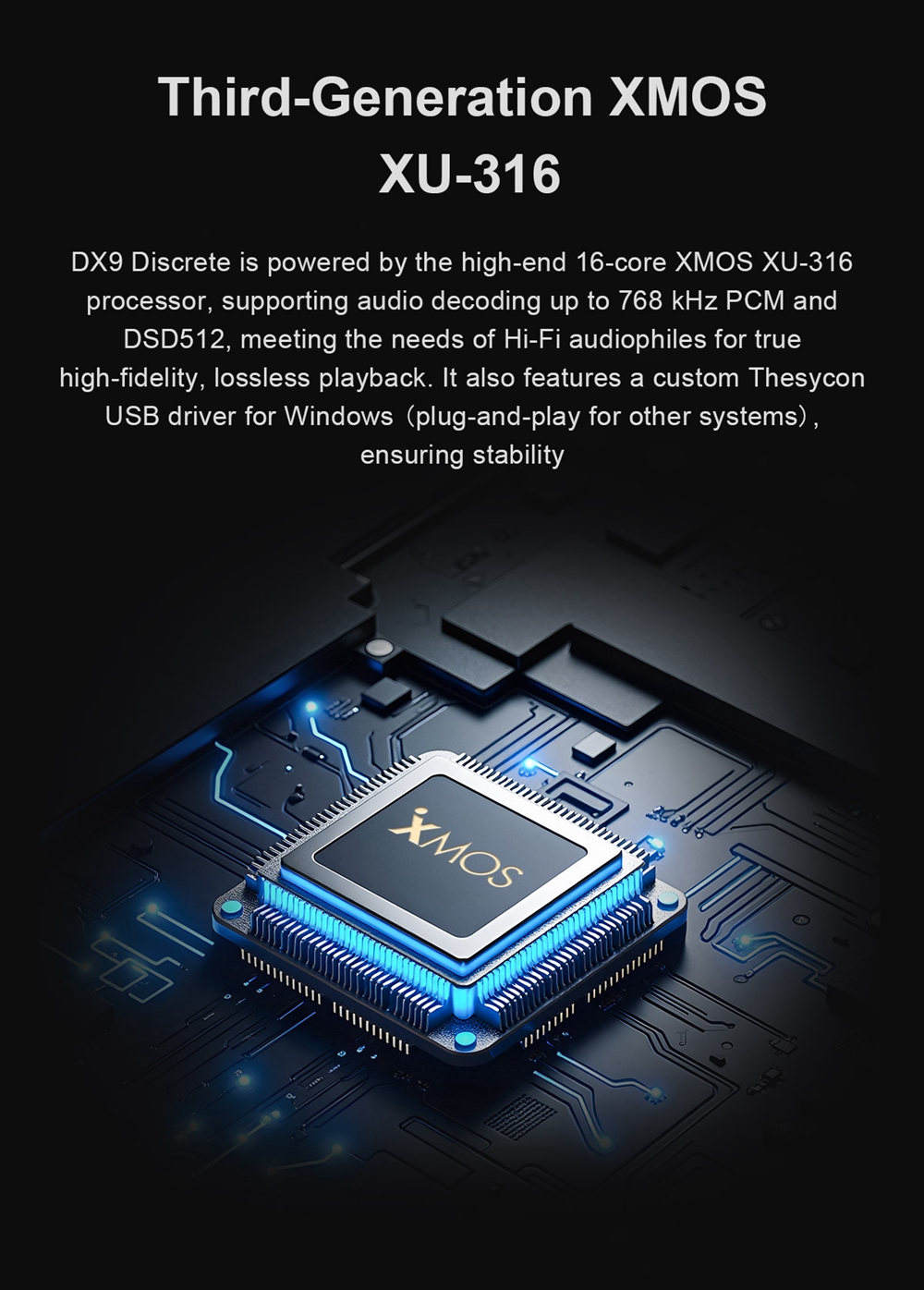

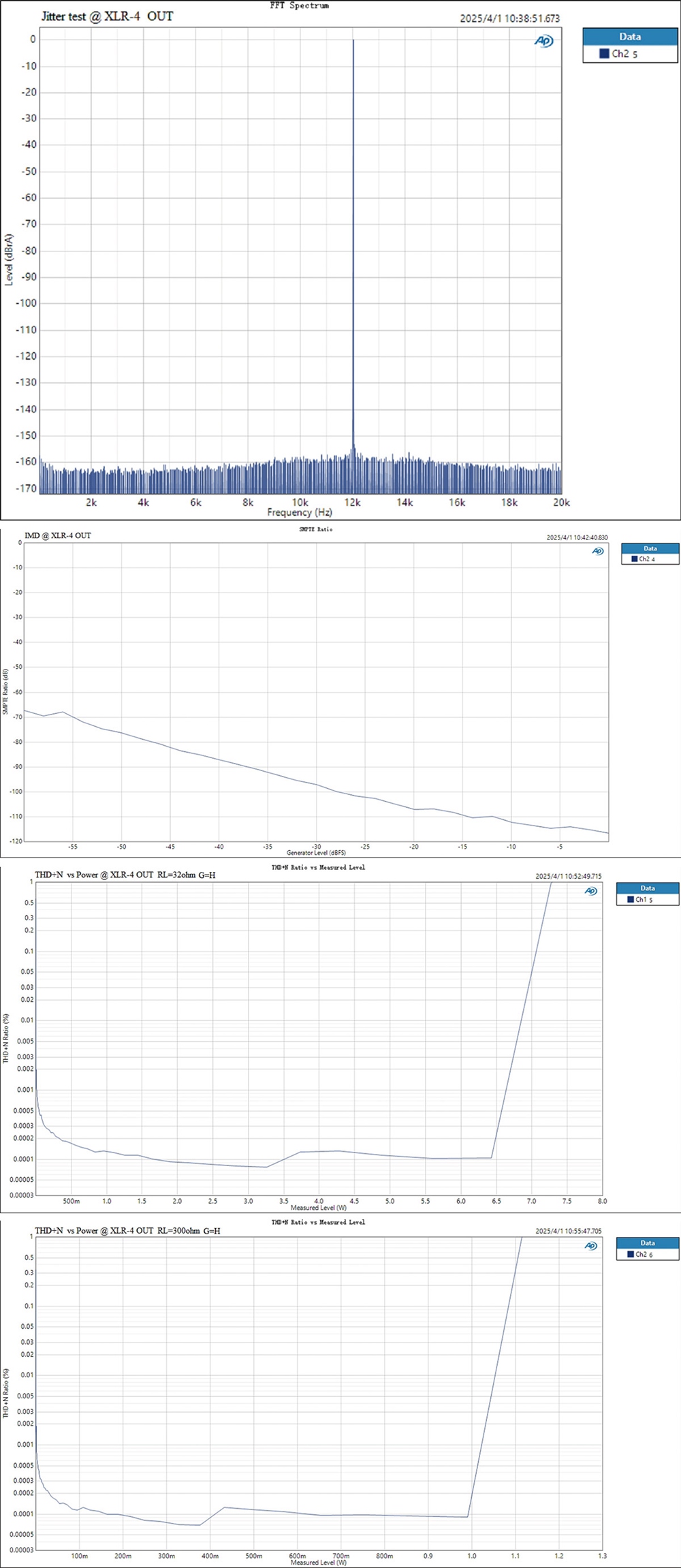

Topping has featured CPLD Clock processor and AK4118 digital receiver on the DX9 Discrete. It maintains ultra-low jitter and enables high-fidelity sound reproduction on the device. With advanced XMOS XU316 USB processor, and this ultra-low jitter clock architecture, the DX9 Discrete ensures high-resolution 32-bit/768kHz PCM and native DSD512 audio signal processing with stable synchronization.

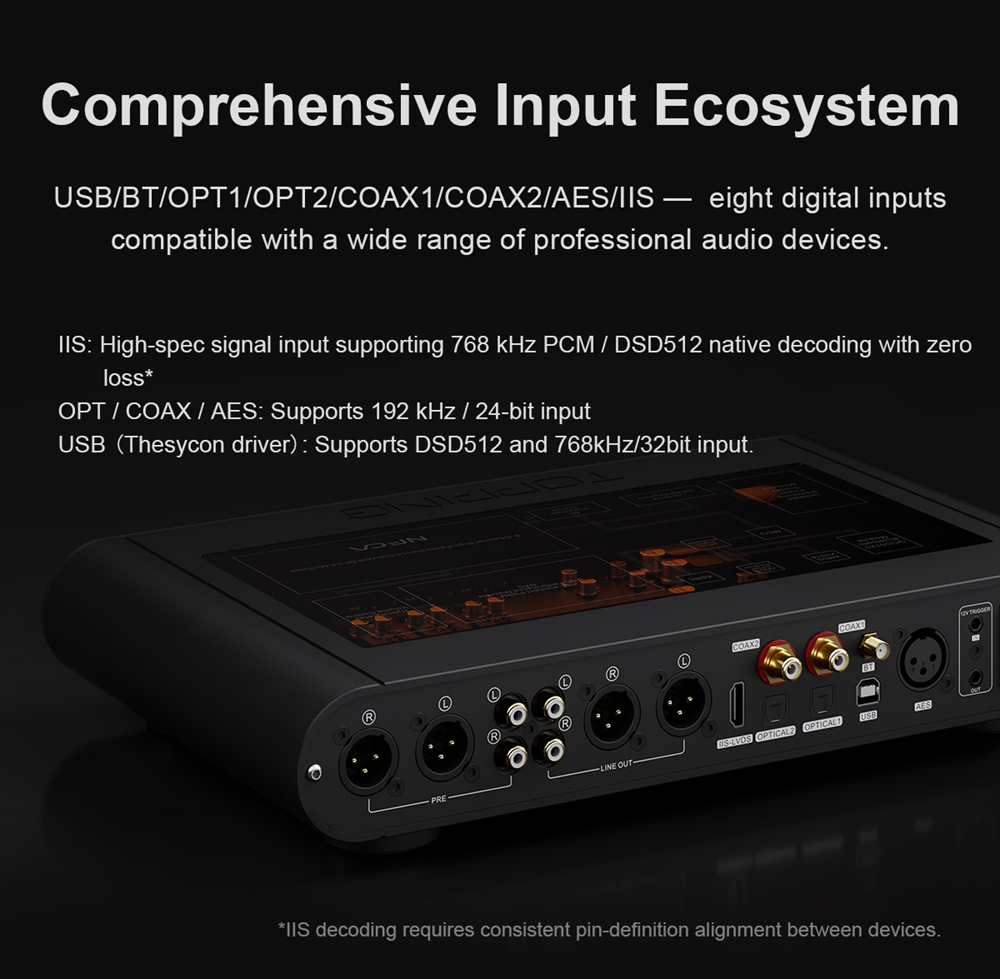

Connect As You Like, Use As You Like:-

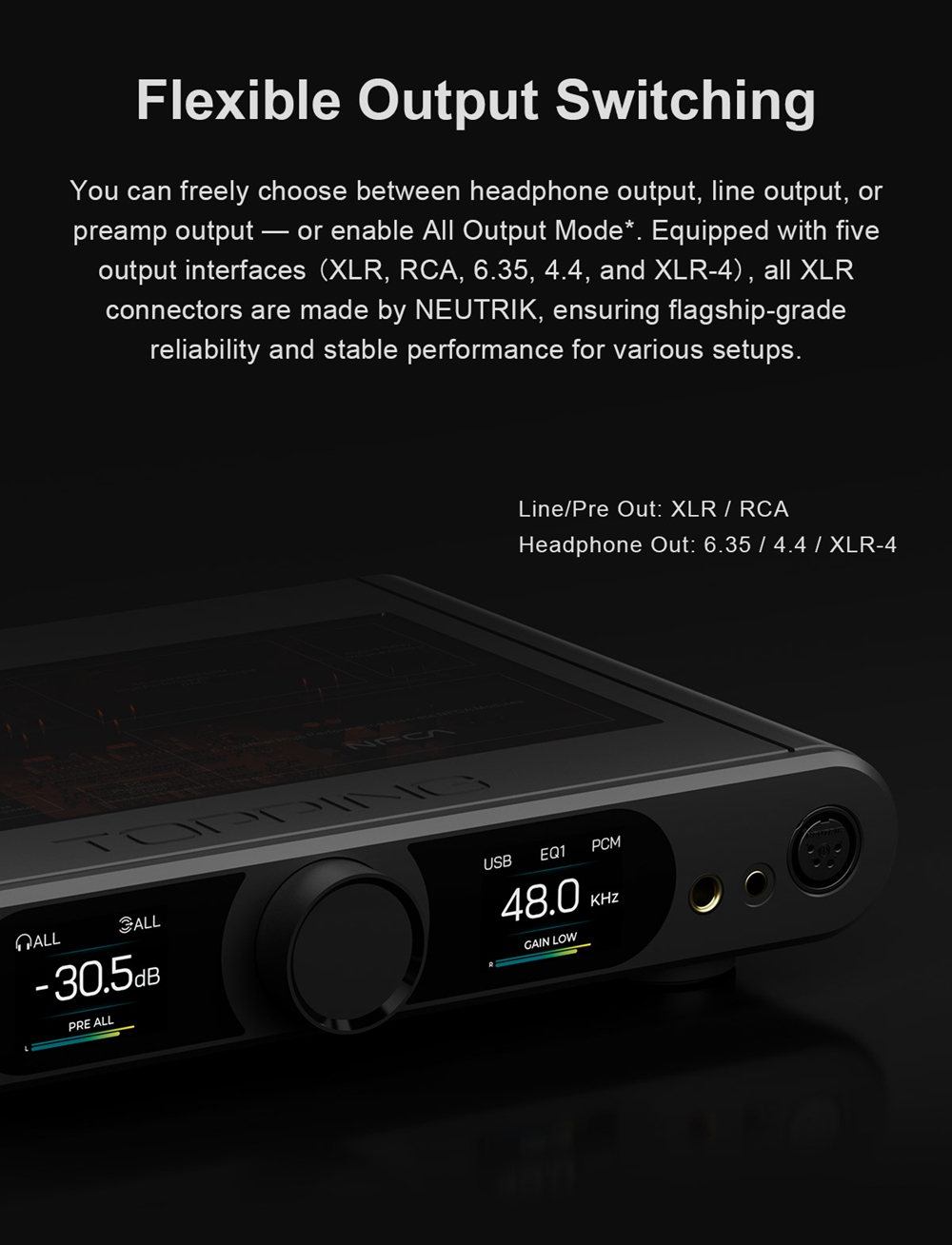

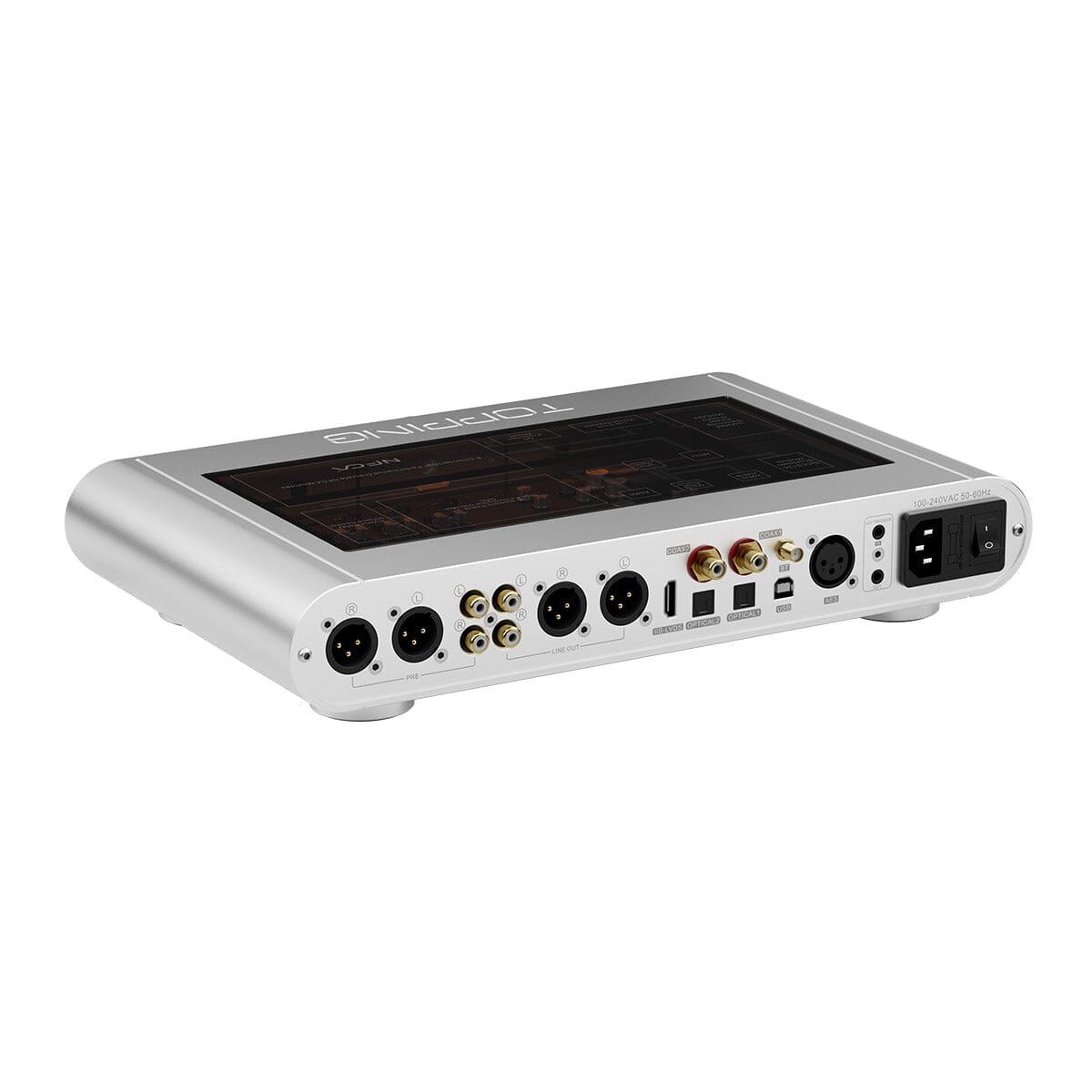

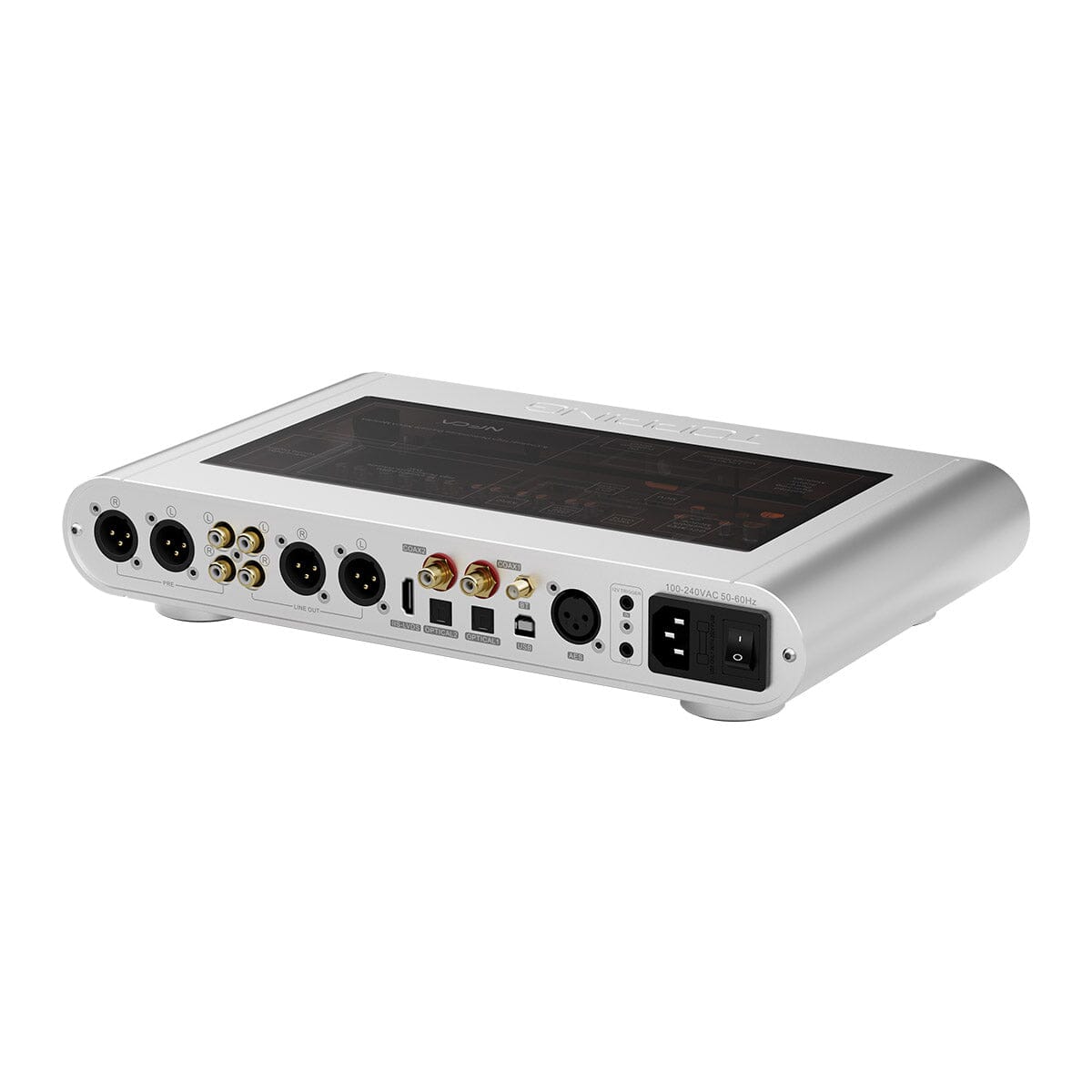

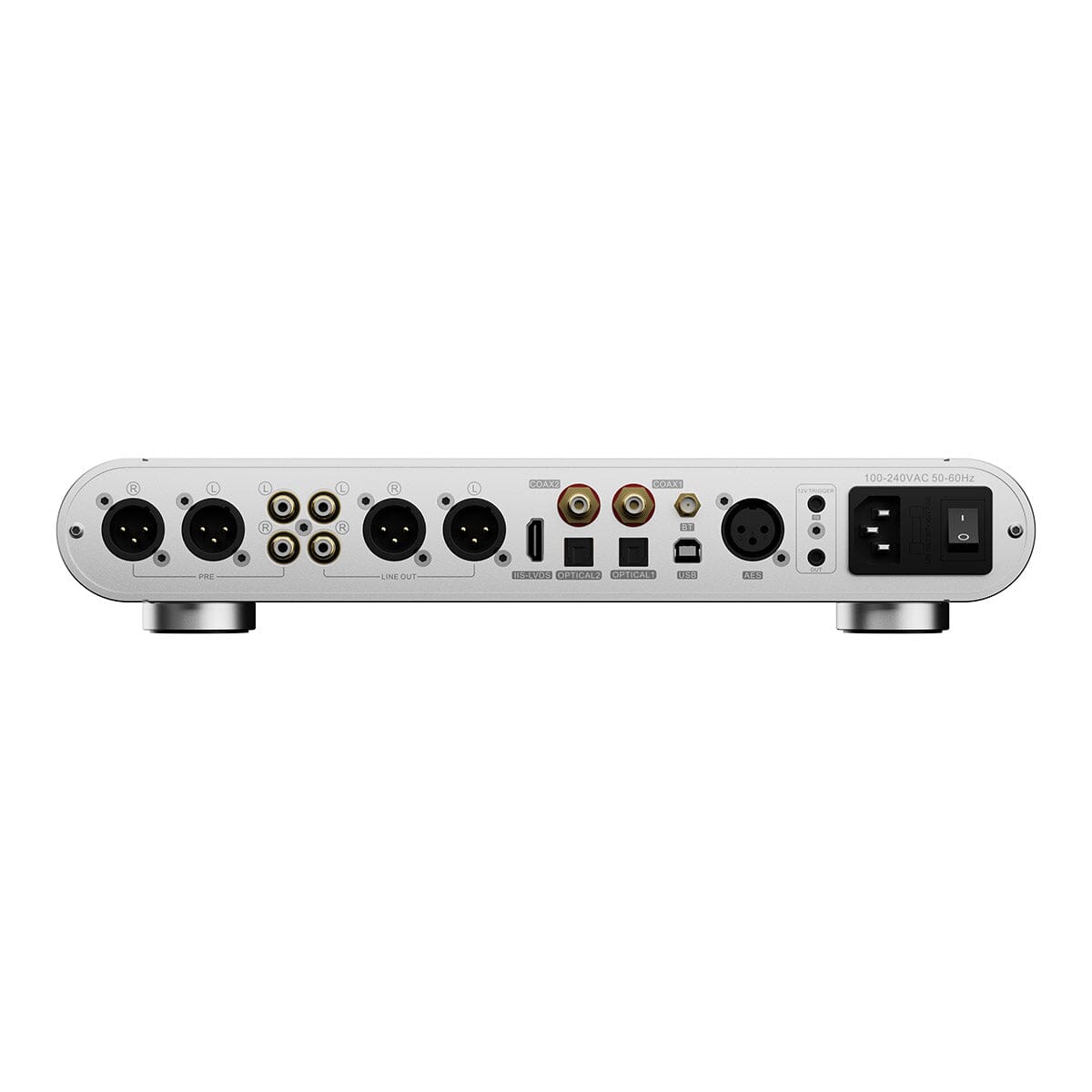

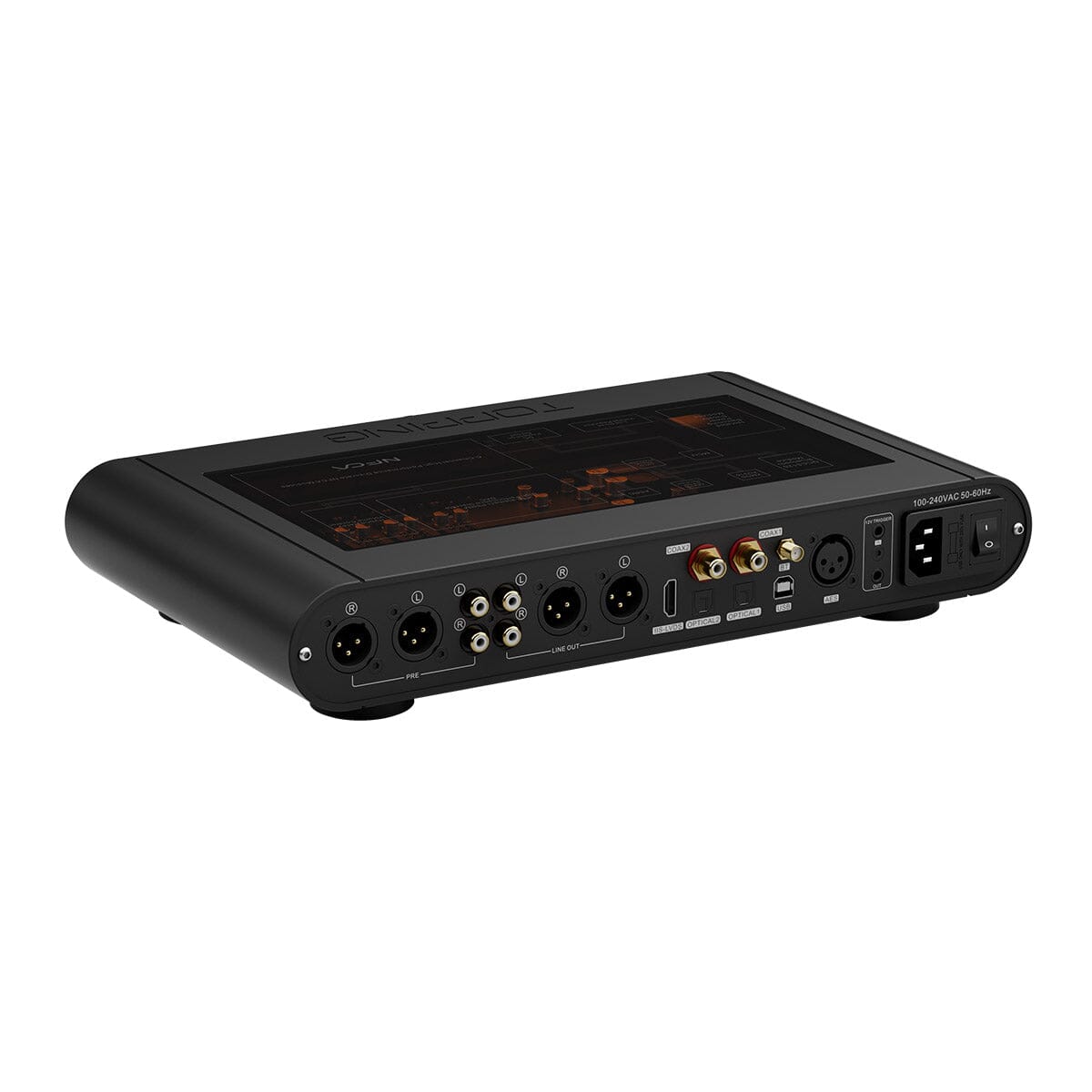

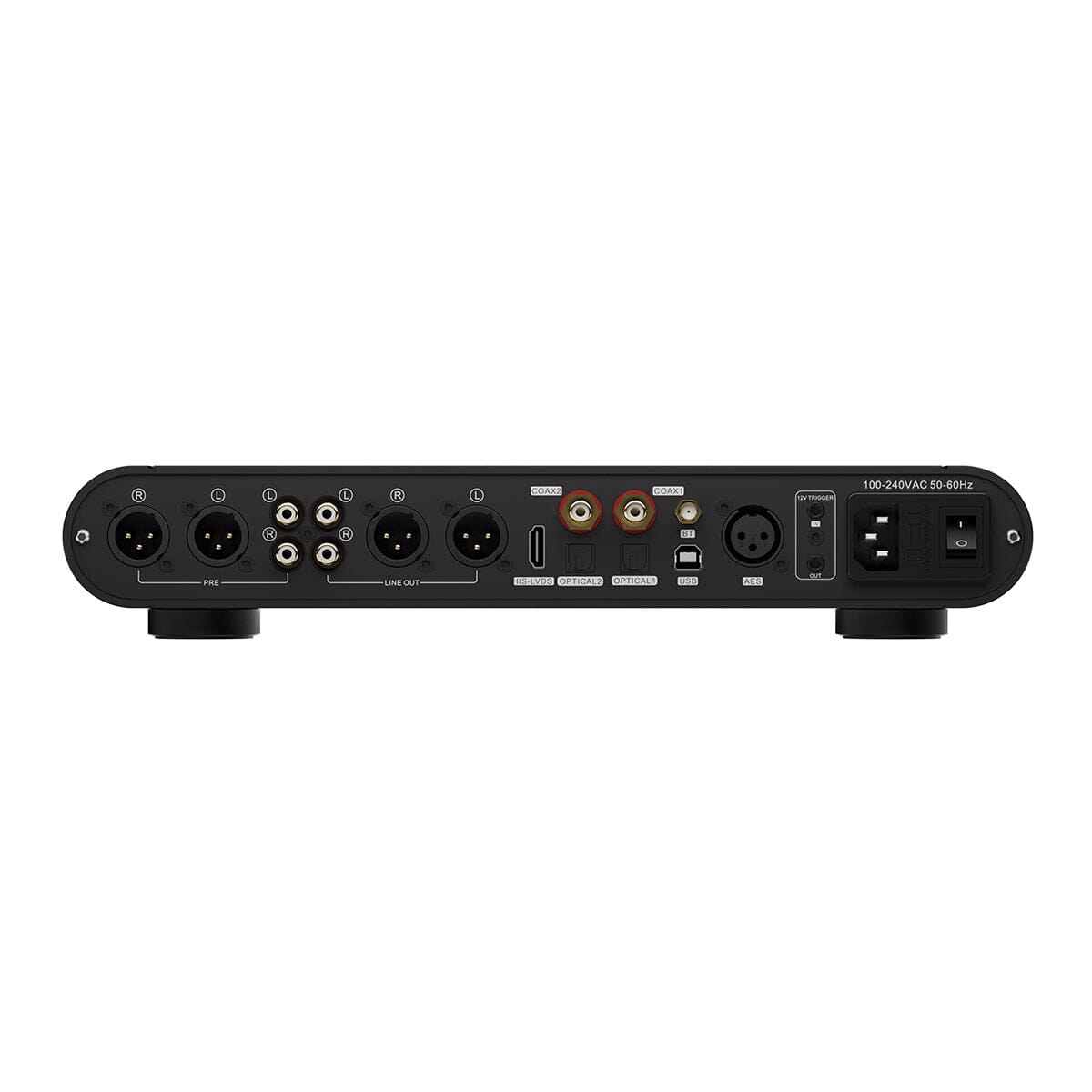

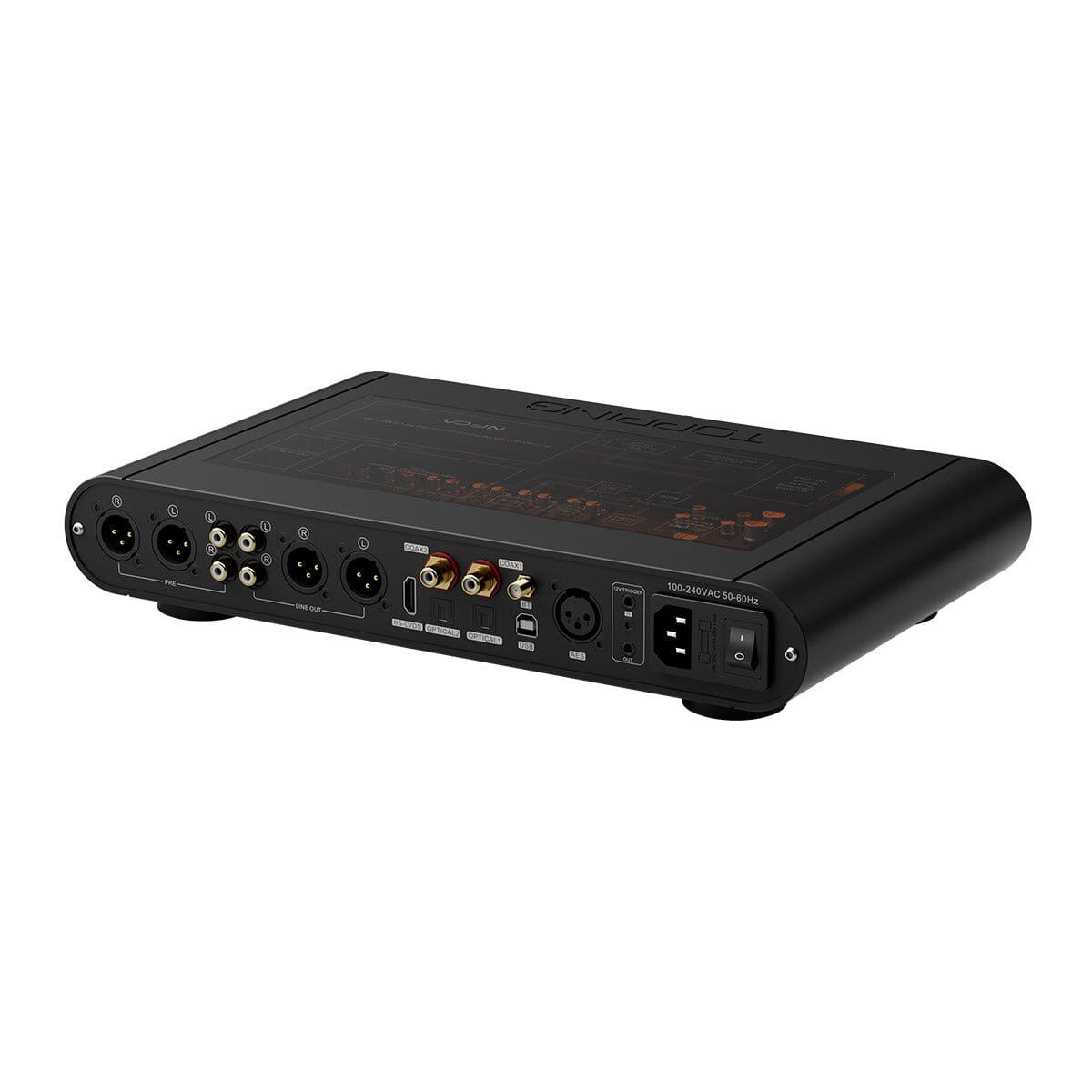

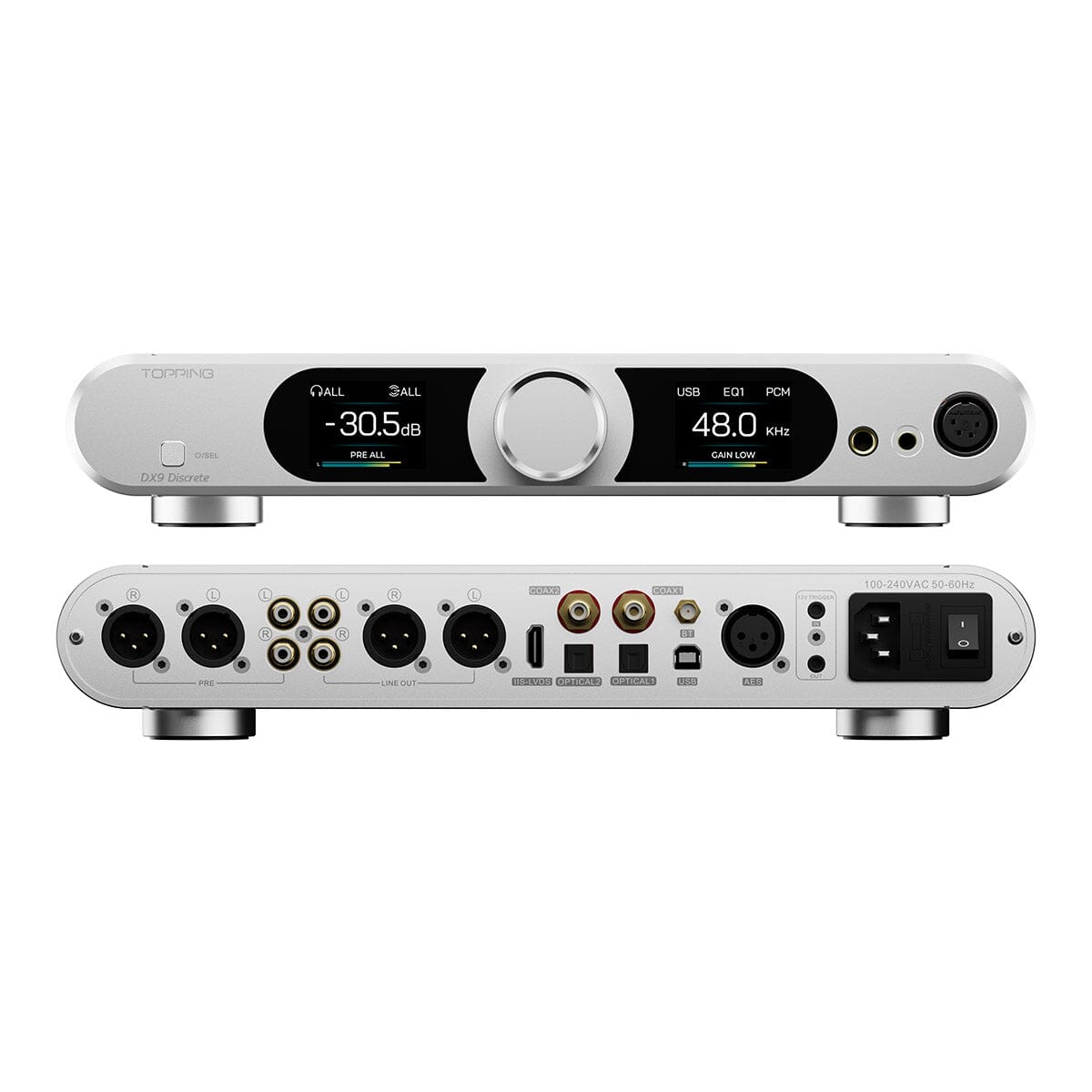

Topping DX9 Discrete is a neat, versatile device that fits into multiple scenarios. It’s a complete device that can act as a DAC only, as a complete DAC/AMP, or as a pre-amp only. It features USB, AES, IIS, dual Optical, dual Coaxial ports for signal input. The DX9 Discrete also employs advanced Qualcomm chipset that enables wireless Bluetooth V5.1 connectivity with LDAC, AptX HD, etc. protocols for advanced wireless signal input. As for output, we have XLR, RCA line-out/pre-out ports, 4.4mm, 6.35mm, and 4-pin XLR headphone output ports.

Astonishing Build Quality:-

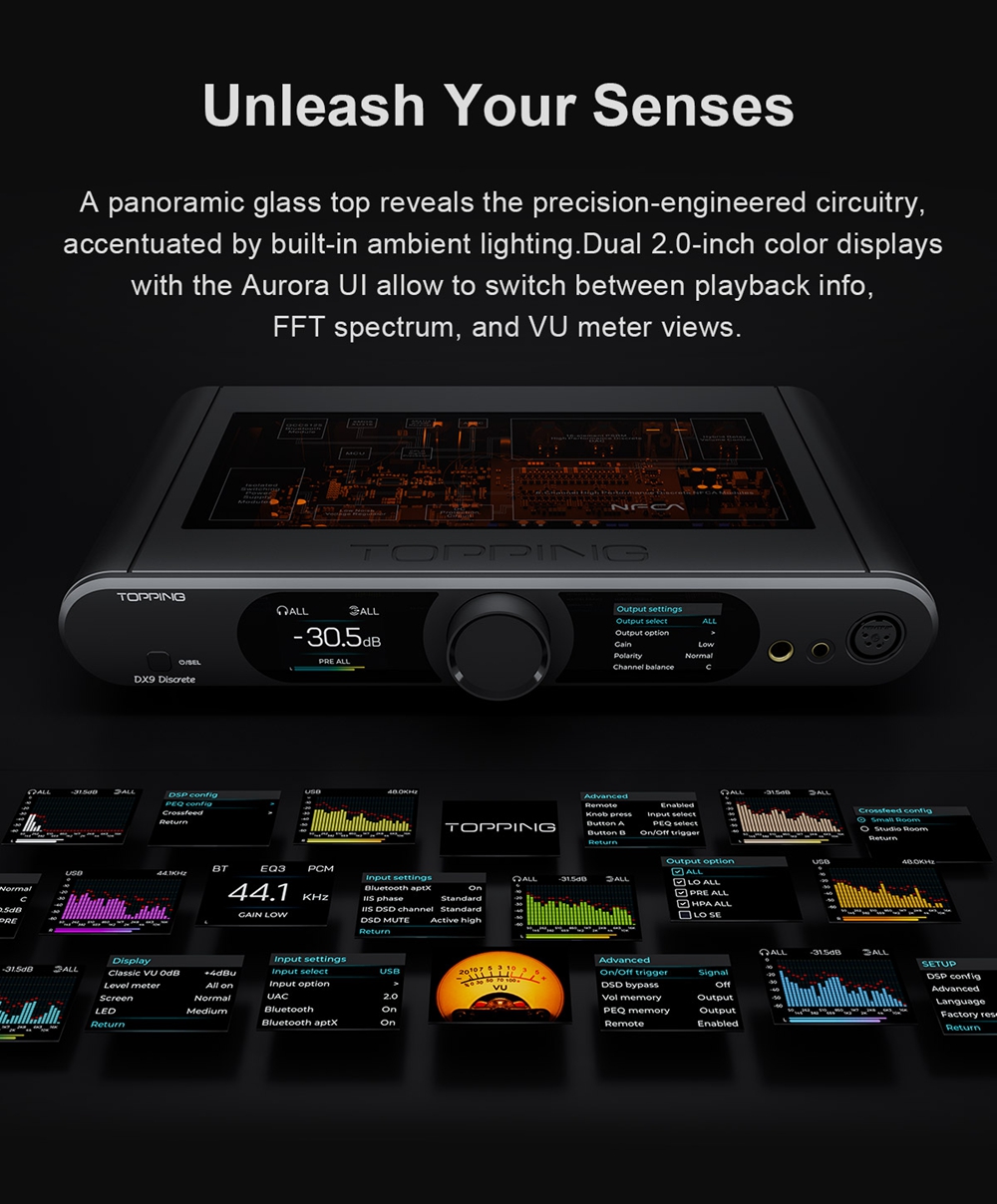

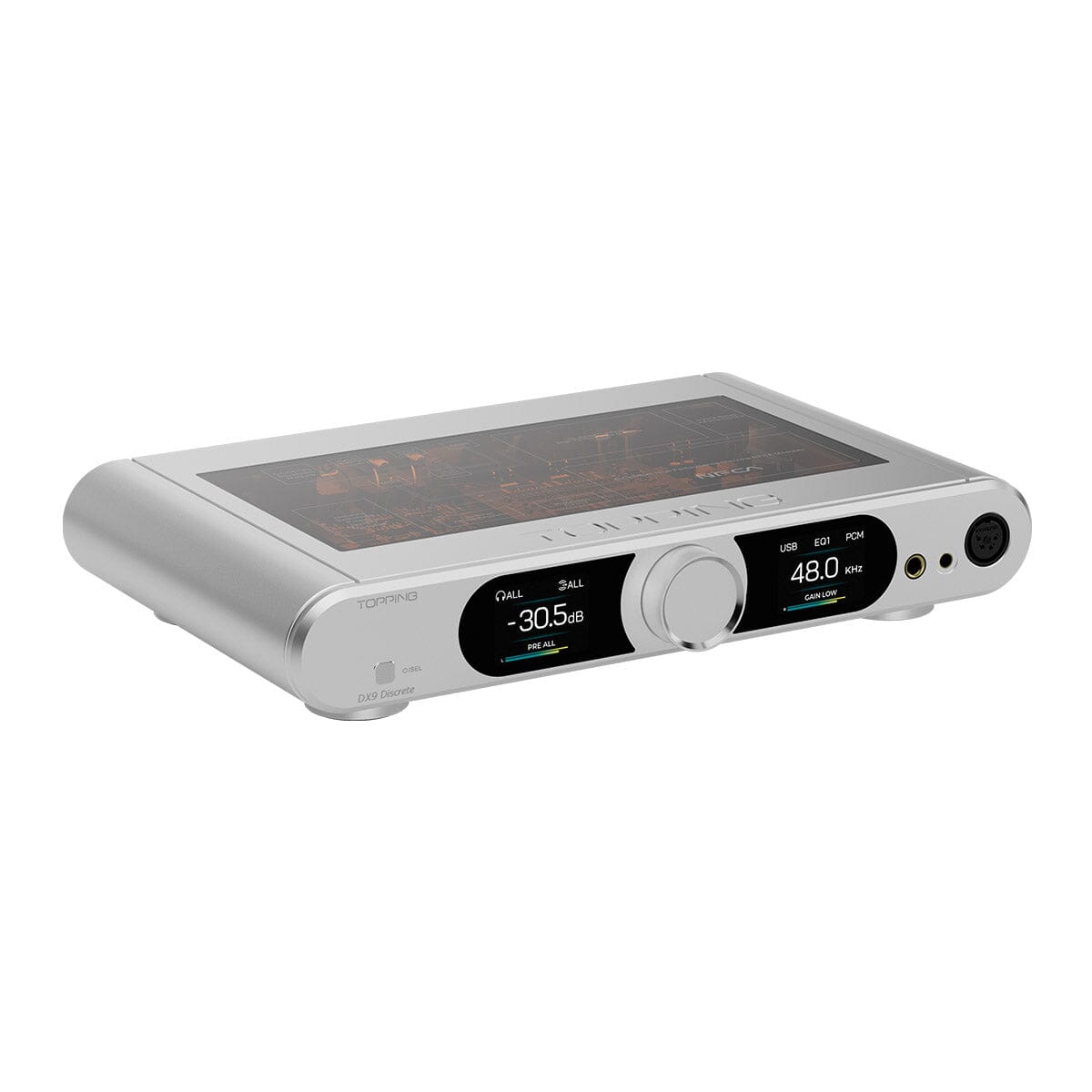

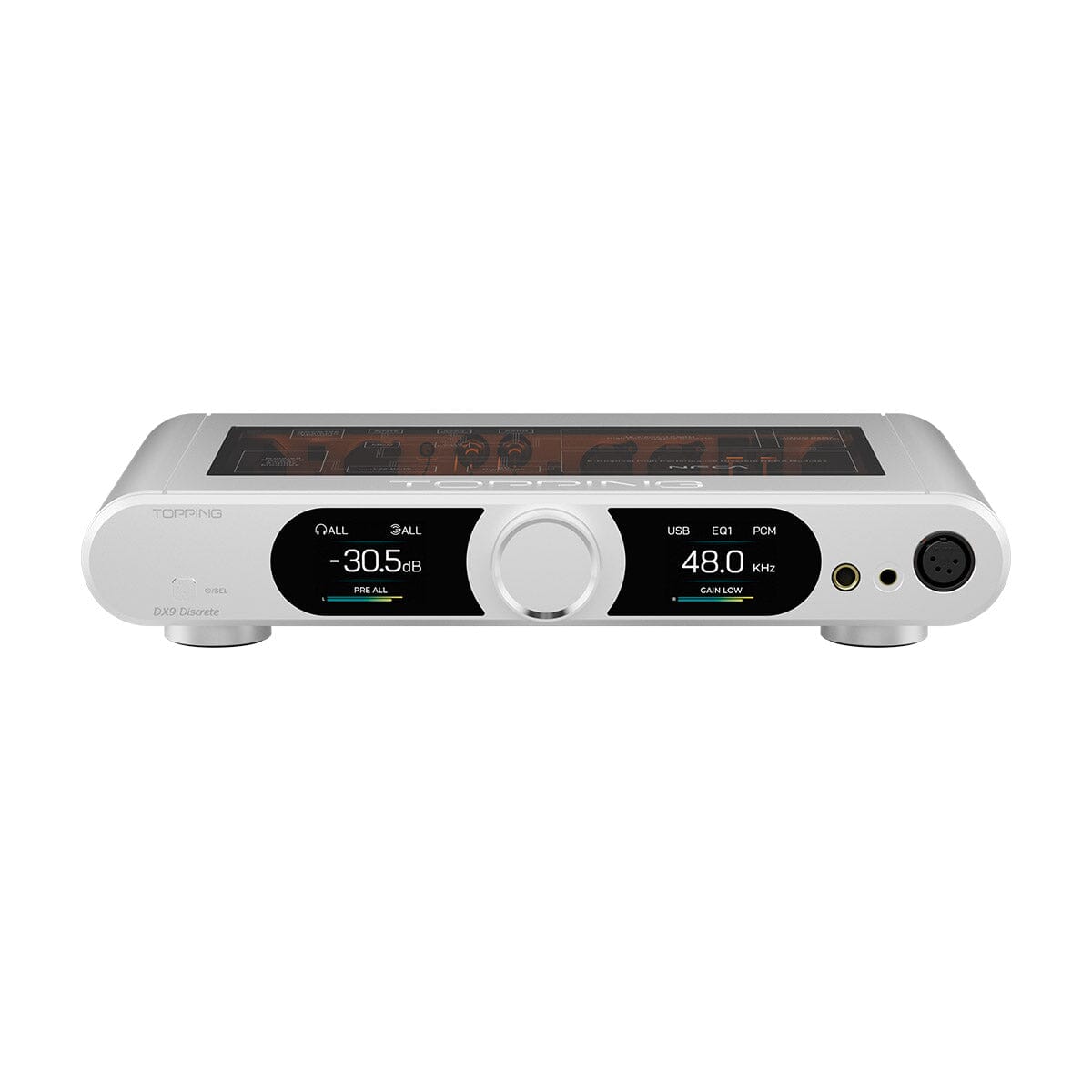

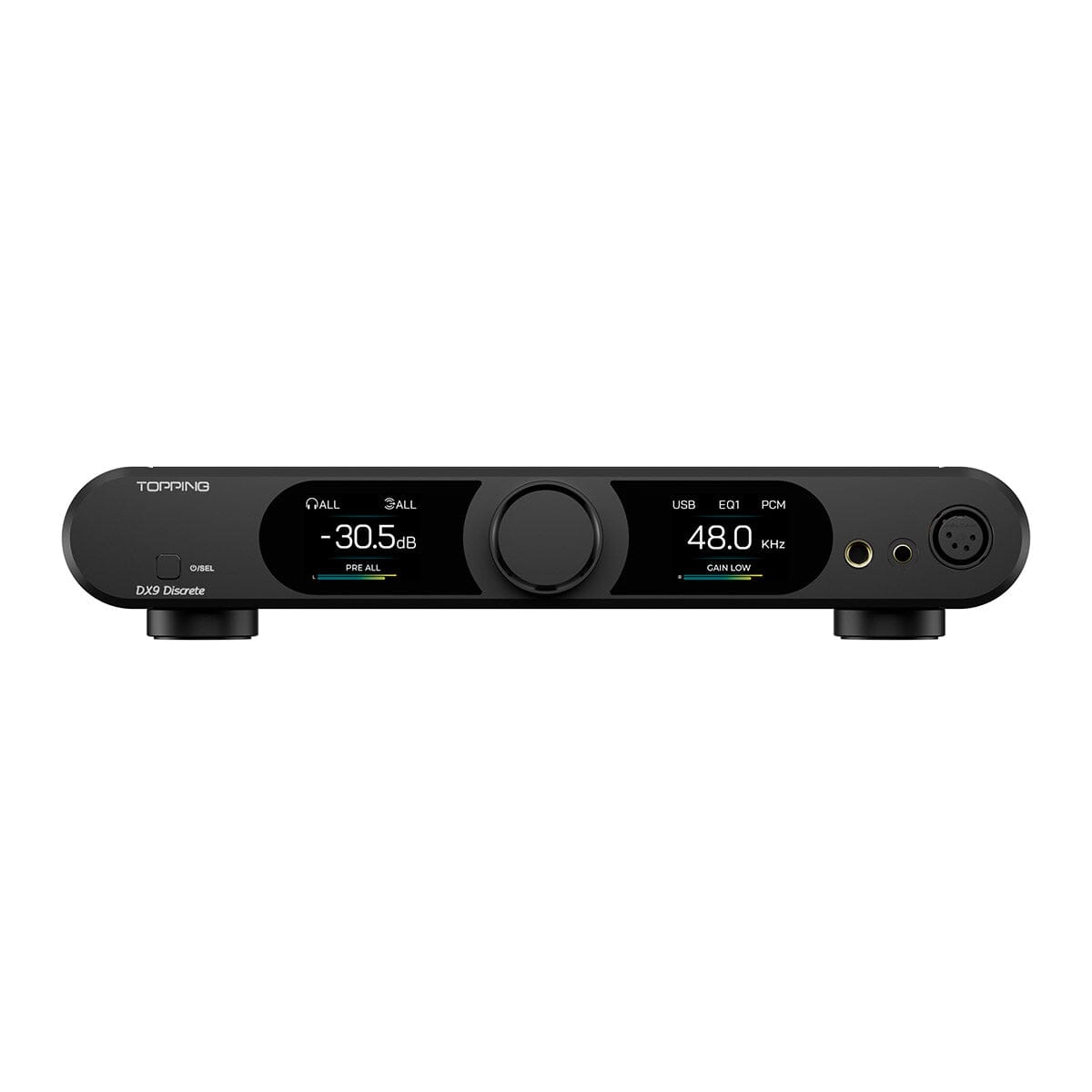

Topping DX9 Discrete features a solid build quality. This mighty all-in-one features a sleek CNC-machined aluminum alloy chassis along with a glass-top through which you can have a look at the intricate audio circuitry inside the DAC/AMP. It also features dual colorful display on the front with Aurora UI that includes FFT spectrum and VU meter display.
