Features of Topping DX7 Pro BT5.0 Full Balanced DAC Headphone AMP

DX7 Pro Upgraded DAC Chips

The dual ES9038 DAC chips on the original DX7s have been upgraded to one ES9038PRO DAC. The upgrade promises improved signal to noise ratio and reduced distortion.

IIS input and 4.4mm balanced output addition on DX7 Pro

Topping has also boosted its input IIS and 4.4mm balanced output as additions on DX7 pro comparing with DX7s.

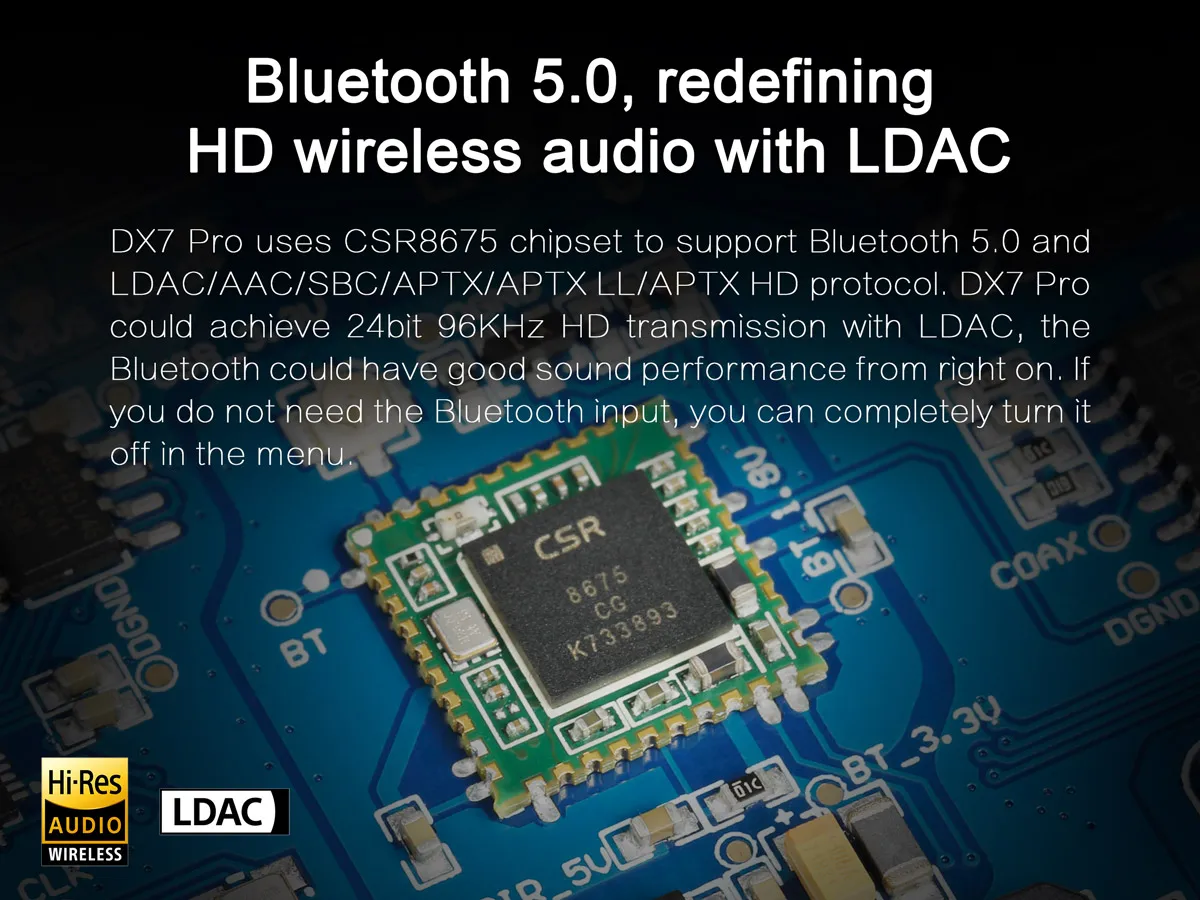

Latest Bluetooth 5.0 addition on Topping DX7 pro

Topping has employed the Qualcomm Bluetooth 5.0 Soc CSR8675 on DX7 pro with LDAC transmission supported. CSR8675 is a premium tier single-chip solution delivering high quality wireless audio performance and supporting the development of highly differentiated premium wireless audio products. Integrated support for aptX, aptX HD.







Topping has employed the Qualcomm Bluetooth 5.0 Soc CSR8675 on DX7 pro with LDAC receiving support. CSR8675 is a premium tier single-chip solution delivering high-quality wireless audio performance and supporting the development of highly differentiated premium wireless audio products..DX7 Pro could achieve 24bit 96KHz HD transmission with LDAC.

Meanwhile, AAC/SBC/APTX/APTX LL/APTX HD protocol Bluetooth codecs are all supported by DX7 pro. If you do not need to try Bluetooth input, you can completely turn it off on the menu.
When there is a better interface, you can use the HDMI cable to directly send the 11S signal into the DX7 Pro's ES9038PRO for a better decode. 11S input can support up to PCM32bit768kHz & DSD1024 native. The 11S input provides phase settings, DSD channel settings, and DSD indicator pin selection settings, which are compatible with most digital interfaces on the market that use the HDMI interface to output 11S signals.

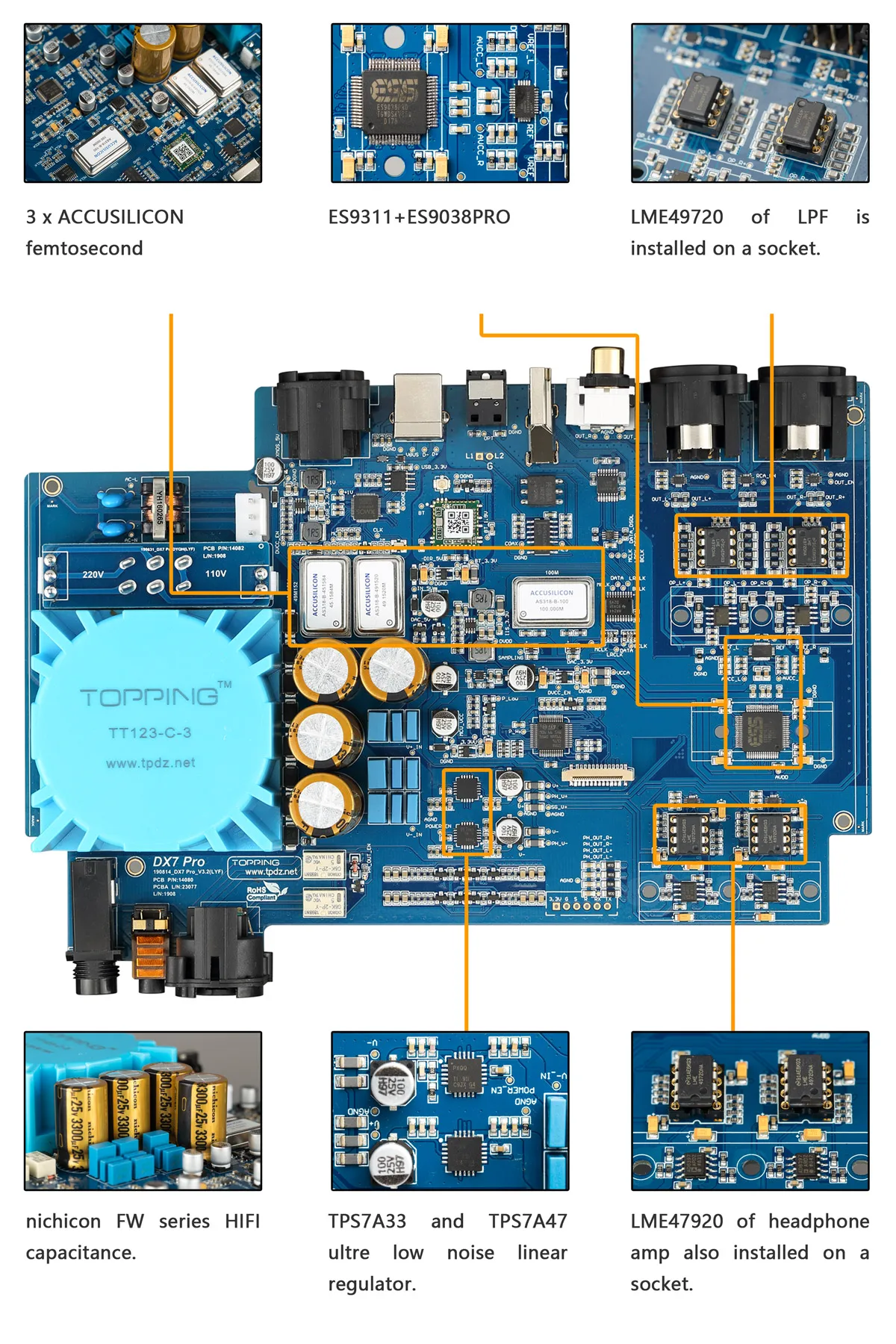

Topping DX7 pro opts ultra-low noise linear power chip ES9311 to supply high-quality power and 3x ACCUSILICON femtosecond for DX7 pro which delivers the ultra-high performance of DX7 pro. The excellent decoding performance brings us more details, lower distortion (AMP THD+N at 6.35 and balance output both reduced much as shown in the specification table comparing to DX7s), and higher signal-to-noise ratio ( DAC SNR and AMP SNR increase 3 dB separately than DX7s). It supports native DSD, DXD and PCM audio file decoding to meet the lossless decoding needs of most people.

DX7 Pro Fully compatible with single-end 6.35mm, 4 pin XLR balanced and 4.4mm balanced outputs which are new for the DX7 series. In addition, the headphone amp of DX7 Pro has two built-in gain further expand the usable range to meet the options of different users.

Because of using full balanced output construction, Topping DX7 Pro is able to compatible with both XLR balanced and RCA single-end, You can choose any one of them to output, or both to output at the same time. This will greatly convenient for your use.

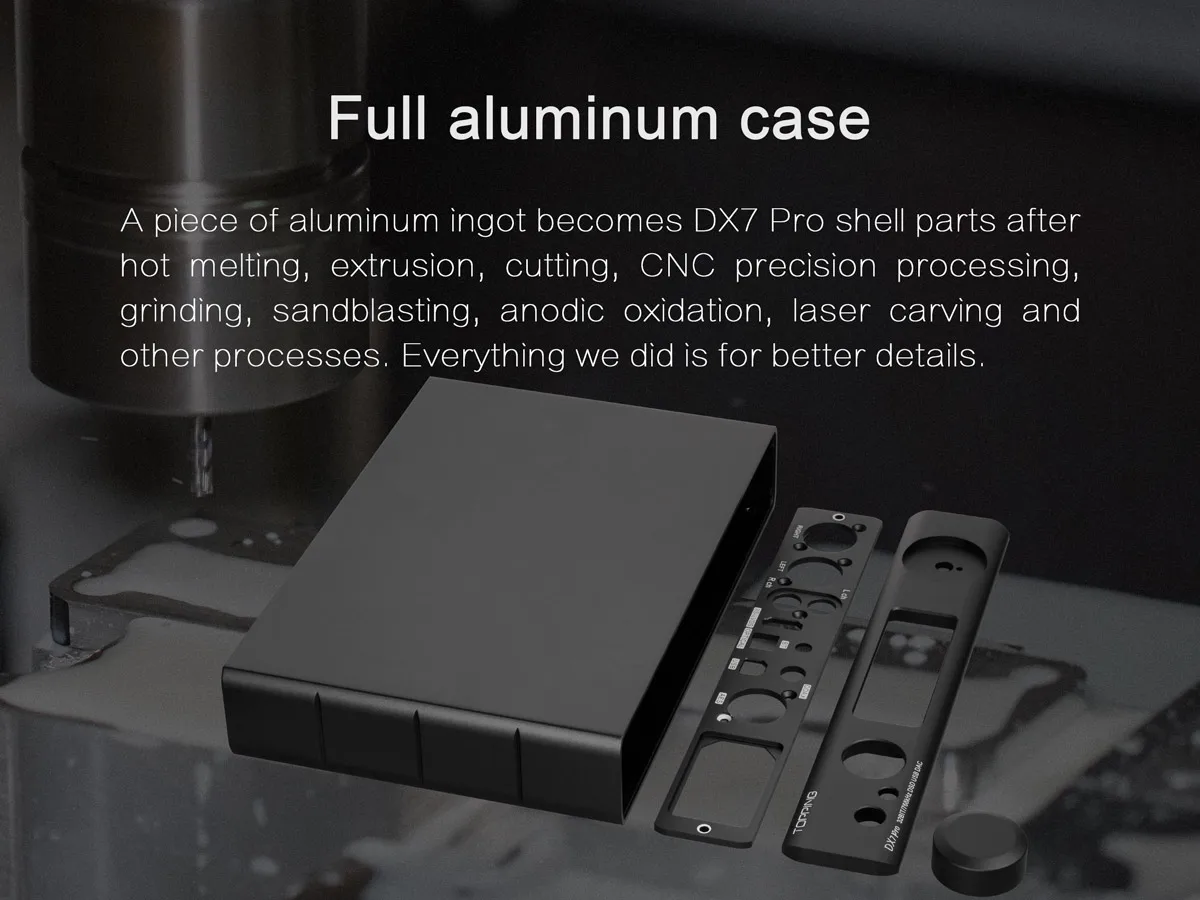

Full aluminum case of DX7 Pro
A piece of aluminum ingot becomes DX7 Pro shell parts after hot melting, extrusion, cutting, CNC precision processing, grinding, sandblasting, anodic oxidation, laser carving, and other processes. Everything we did is for better details.
DX7 Pro Easy to use
Despite its numerous functions and settings, Topping DX7 Pro is not at all cumbersome in its use. A XX inch of OLED screen shows all the working information and status of the current DX7 Pro; In addition, all functions can be set using the remote control.


Bluetooth headphone amp/ Bluetooth DAC application

Connect the Bluetooth of your phone, tablet, and notebook to DX7 Pro, and connect your amplifier, active speakers or head-phones to the DX7 Pro's output, then DX7 Pro becomes your
Bluetooth headphone amp/Bluetooth DAC, You can easily enjoy the high-quality sound and convenience brought by Blue-tooth 5.0, If your device supports L DAC transmission, you will get an even better experience.

External high-performance AC for media player, mobile phones and tablets

Whether it is App e or Android, and it is a media player, mobile or tablet. s long as your device supports OTG external soundcard, you c n connect to the USB input of DX7 Pro so that
your media player, mobile phone, and tablet can be used as a pure player and t sound quality is improved immediately.
Topping dx7 pro specification 1Topping dx7 pro specification Topping dx7 pro specification



LineOut/USB In@96kHz RCA
THD+N@A-wt <0.00014% @1kHz
SINAD@A-wt 117 dB @1kHz
SNR@A-wt 122dB @1kHz
Dynamic Range@A-wt 122dB @1kHz
Noise@A-wt <1.7uVrms
Channel Crosstalk -120dB @1kHz

LineOut/USB In@96kHz2 XLR
THD+N@A-wt <0.00010% @1kHz
SINAD@A-wt 120dB @1kHz
SNR@A-wt 126dB @1kHz
Dynamic Range@A-wt 126dB @1kHz
Noise@A-wt<2.6uVrms
Channel Crosstalk -140dB @1kHz

USB IN:  44.1kHz-768kHz/16bit-32bit、
DSD64-DSD256(Dop)、DSD64-DSD512(Native)
IIS IN:  44.1kHz-768kHz/16bit-32bit、
DSD64-DSD256(Dop)、DSD64-DSD1024(Native)
OPT/AES/COAX IN:  44.1kHz-192kHz/16bit-24bit、DSD64(DOP)
BT IN:  AAC/SBC/APTX/APTX LL/APTX HD/LDAC
