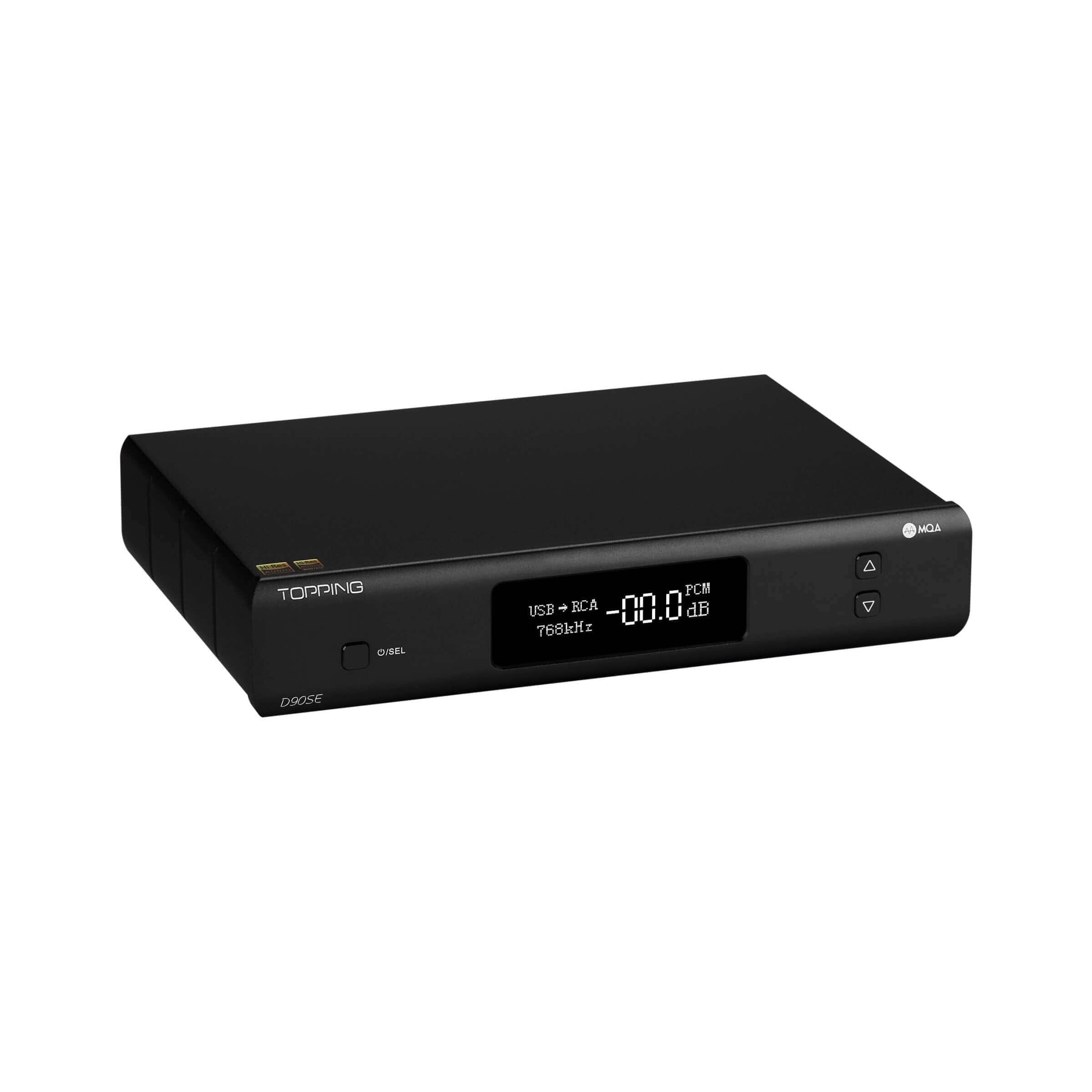

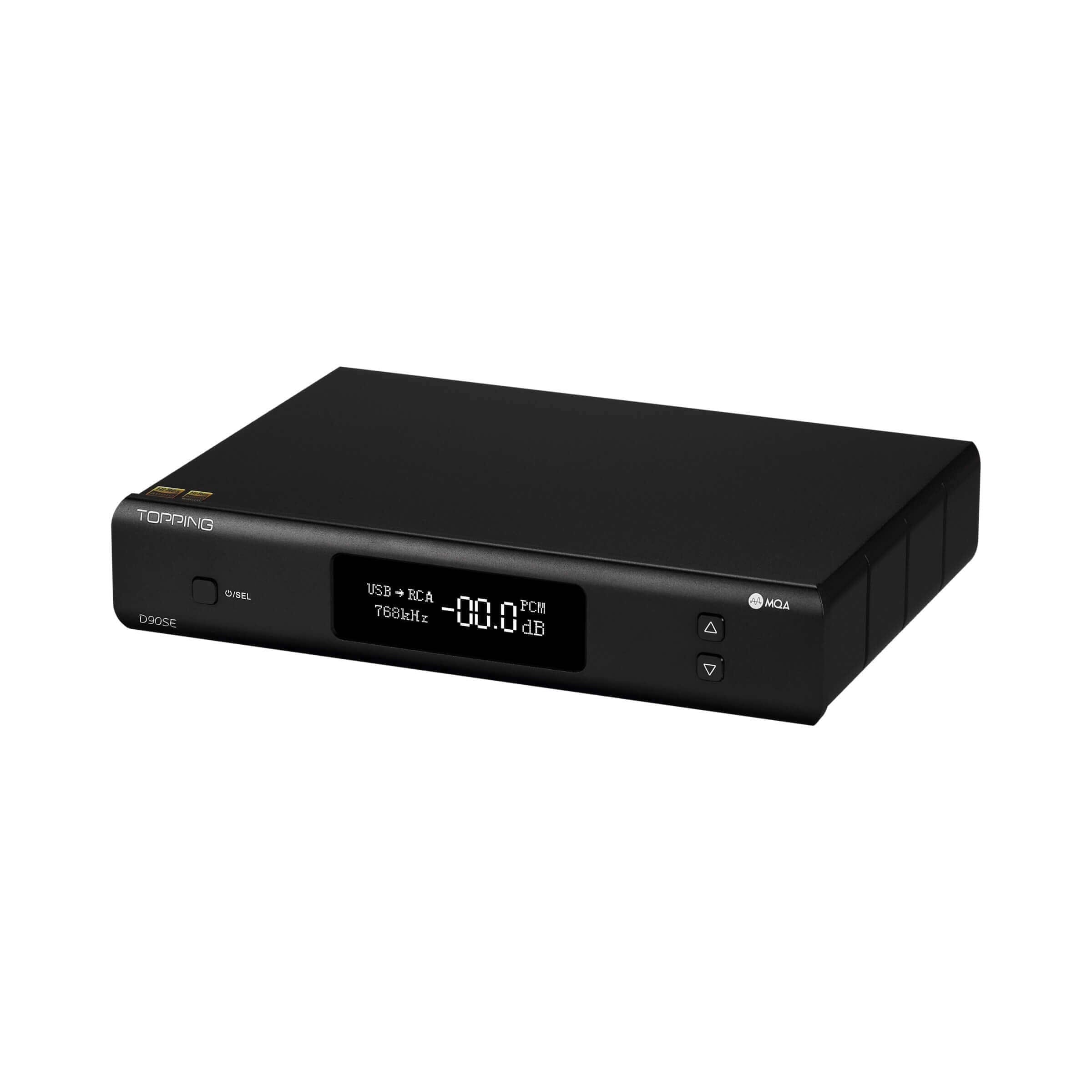

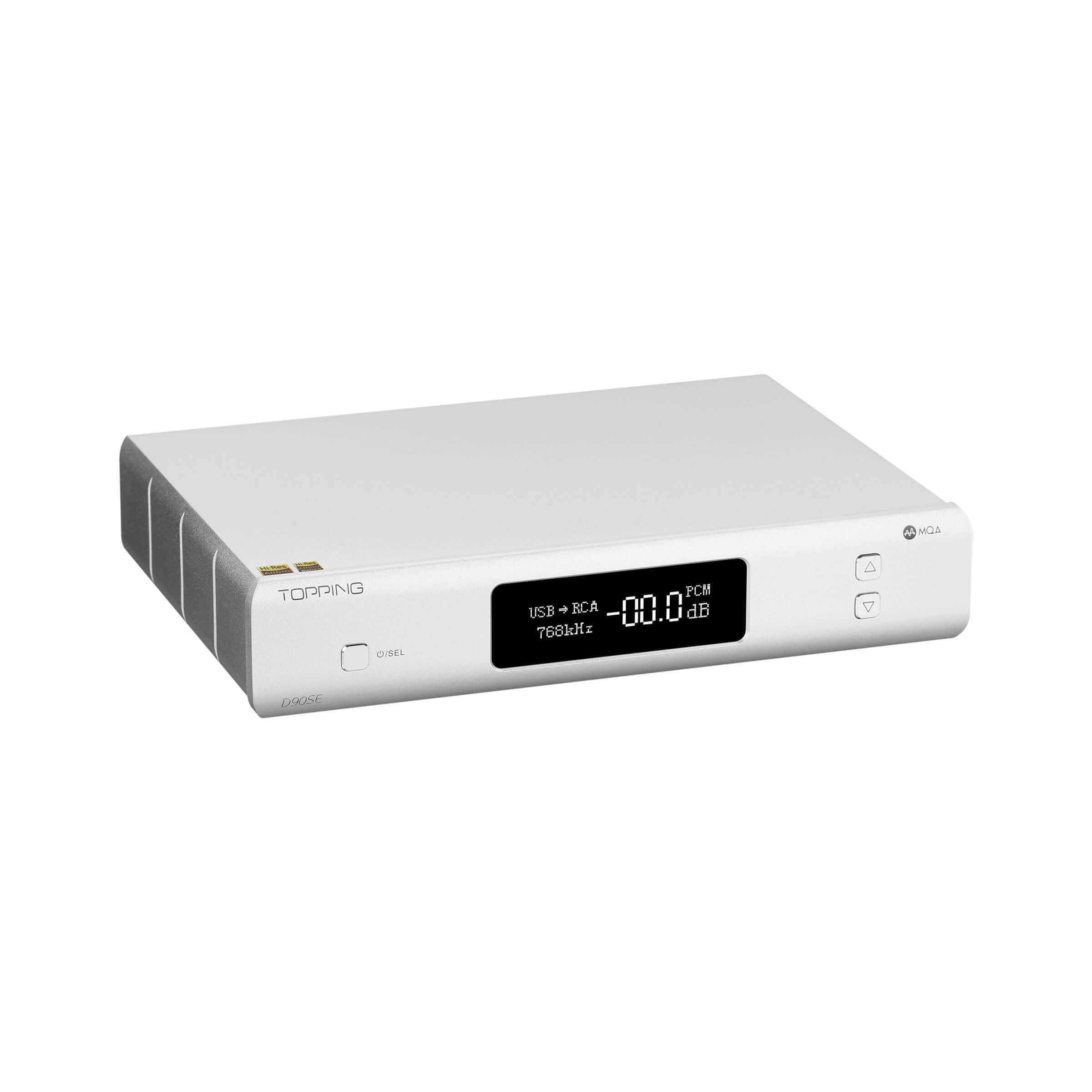

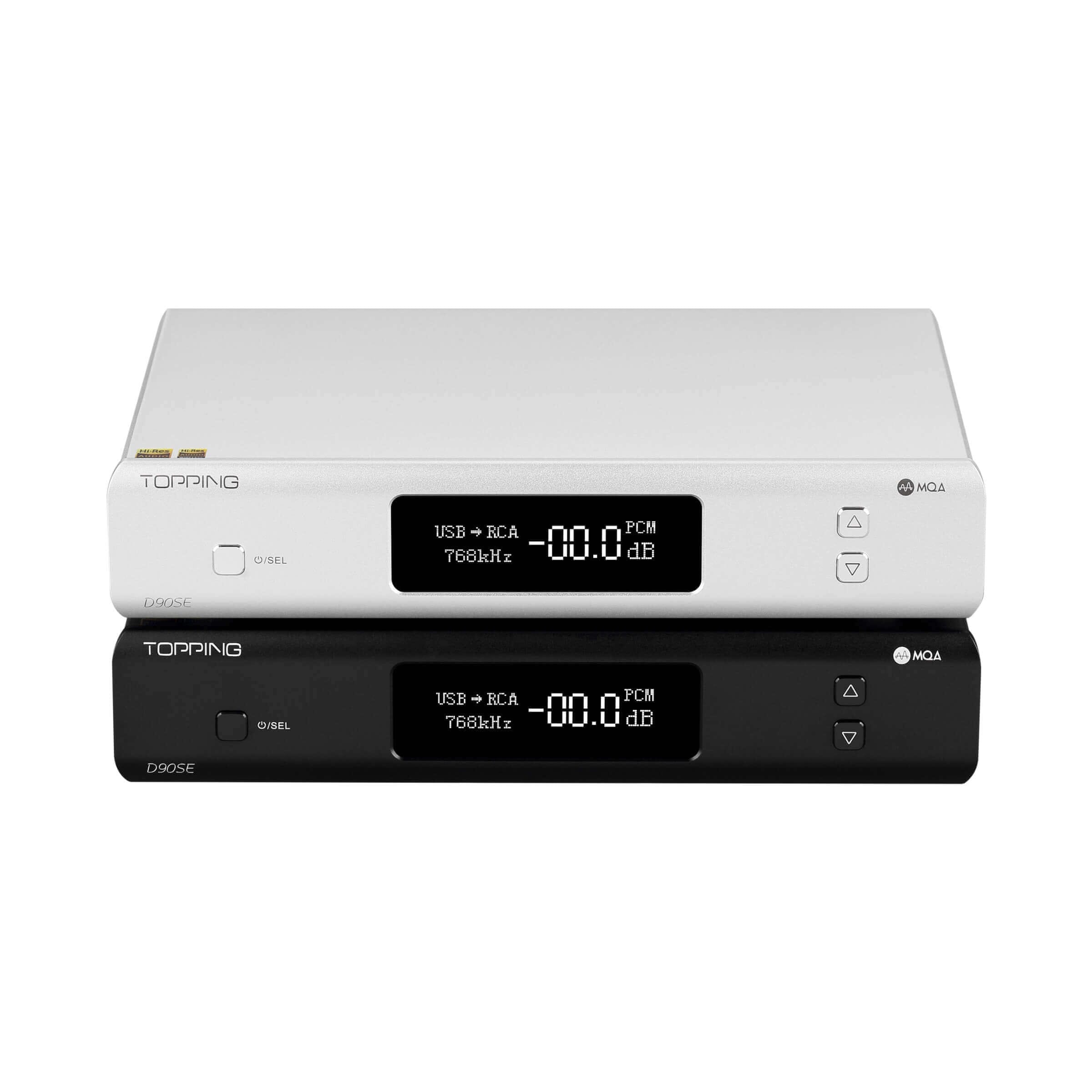

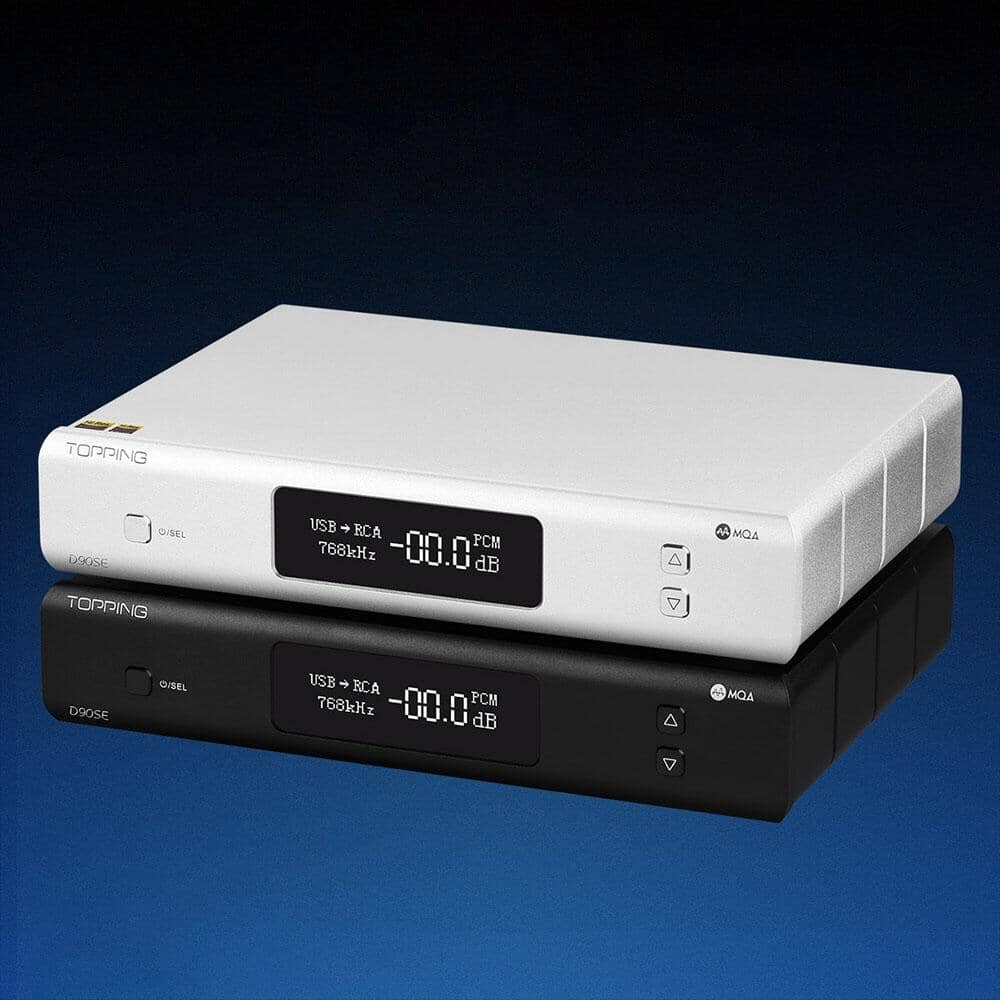

TOPPING D90SE MQA Bluetooth Full Balanced DAC

Features:-

>Flagship ES9038Pro DAC Chip.

>Hi-Res Audio & Hi-Res Audio Wireless Certified.

>Flagship-Grade Performance With Ultra-Low Distortion.

>2nd Generation 16-Core XMOS XU216 USB Signal Receiver.

>PCM Decoding up to 32-Bit/768kHz.

>Native DSD512 Decoding.

>IIS Input Supports Native DSD1024 Support.

>MQA Decoding Support across USB, Coaxial, Optical, and AES Inputs.

>High-Resolution Bluetooth V5.0 Connectivity With LDAC Transmission Codec.

>RCA & XLR Output Support.

>Ultra-Low Noise Pre-Amp Function.

>Fully Operational Remote Control.

Output Parameters(RCA):-

>THD+N(A-Weighted): <0.00007%@1kHz.

>THD+N(No-Weight): <0.0008%@20Hz-20kHz.

>SNR: 127dB.

>Dynamic Range: 127dB.

>Frequency Response: 20Hz-40kHz(+/-0.3dB).

>Output Level: 2.1Vrms@0dBFS(4V Mode), 2.6Vrms@0dBFS(5V Mode).

>Noise: <1.3uVrms.

>Crosstalk: -124dB@1kHz.

>Channel Balance: 0.3dB.

>Output Impedance: 100 ohms.

Ouptut Parameters(XLR):-

>THD+N(A-Weighted): <0.00005%@1kHz.

>THD+N(No-Weight): <0.0003%@20Hz-20kHz.

>SNR: 134dB.

>Dynamic Range: 134dB.

>Frequency Response: 20Hz-40kHz(+/-0.3dB).

>Output Level: 4.2Vrms@0dBFS(4V Mode), 5.2Vrms@0dBFS(5V Mode).

>Noise: <1.1uVrms.

>Crosstalk: -139dB@1kHz.

>Channel Balance: 0.3dB.

>Output Impedance: 100 ohms.

Meet the all-new flagship Balanced Desktop DAC, the Topping D90SE. Topping has carefully implemented an advanced ES9038Pro 32-Bit DAC chip that is paired with a 16-core XMOS XU216 USB signal receiver chip for high-resolution audio decoding. The D90SE supports full MQA decoding as well as PCM 768kHz and native DSD512 decoding.

Flagship DAC, Flagship Performance:-

Topping D90SE is a flagship-grade desktop DAC capable of providing unmatched performance with its high-quality audiophile-grade components. It achieves industry-leading performance with an ultra-low-distortion rating of <0.00005%. It brings the true details out of our music with great clarity and precision.

Flagship-Grade Sabre DAC Chip:-

Topping has equipped the D90SE with a powerful ES9038Pro flagship-grade DAC chip from Sabre Technologies. It helps the D90SE decode the high-resolution audio signals with ultimate quality and performance achieving industry-leading distortion and SNR ratings.

High-Resolution Signal Decoding With XMOS USB Processor:-

Topping D90SE adopts a 2nd-gen XMOS XU216 16-core USB processor chip that enables high-resolution audio signal decoding. It provides  supports for decoding PCM signal up to 32-Bit/768kHz and DSD up to DSD512 natively.  Apart from these, Topping D90SE also supports full MQA unfolding bringing the latest MQA Technology high-end users worldwide. MQA decoding is supported via USB, AES, Optical, and Coaxial input options.

High-Resolution Bluetooth Connectivity:-

Topping D90SE adopts Qualcomm's latest CSR8675 Bluetooth chip that provides seamless Bluetooth V5.0 connectivity. It supports multiple high-resolution wireless codecs including LDAC, AptX HD, AptX LL, AptX, SBC, and AAC.

Balanced & Single-Ended Selectable Output Options:-

D90SE features balanced XLR and single-ended RCA output ports. Users get the option to choose between different output options such as, "XLR Only", "RCA Only", or "XLR+RCA". Output option can also be chosen between 4V and 5V for XLR output and 2V and 2.5V for the RCA output option.

Pre-Amp Function:-

Topping D90SE is not only a dedicated high-end DAC with a fixed output level, it can also serve as a pre-amplifier where you can control the output volume level using the front panel or the remote control.
