SMSL SU-9 PRO ES9039MPRO Decoder MQA&MQA-CD BT 5.0 DAC
Features:-
>World’s First DAC With Dual ES9039M Pro DAC Chips.
>3rd Generation XMOS XU316 USB Processor.
>Self-developed brand-new CK-03 FPGA Clock Architecture.
>Decodes high-resolution 32Bit/768kHz PCM and DSD512(native) signals.
>Full MQA Decoding with all inputs.
>MQA-CD decoder.
>High-Resolution Bluetooth connectivity.
>LDAC/AptX HD/AptX/SBC/AAC wireless codecs.
>Specially designed discrete component linear power supply.
>High-end gold-plated input/output interfaces.
>RCA/XLR outputs.
>USB/Coaxial/Optical inputs.
>Fully functioning remote control.
Technical specifications:-
>Output Level: 5.2Vrms(XLR), 2.5Vrms(RCA).
>THD+N: 0.00005%(-125dB).
>DNR: 134dB.
>SNR: 134dB.
>Sampling Rate: Up to 32-Bit/768kHz, DSD512(USB), 24-Bit/192kHz, DoP64(Optical/Coaxial).
>Power consumption: <10W.
>Standby power: <0.5W.
>Size: 187.5x154x40mm.
>Weight: 0.79kg.
---SpecificationsSplit---
SMSL SU9 Pro is the latest in the SU9 series. It is the world’s first DAC that houses ES9039M Pro DAC chips. It’s a fully loaded high-end Desktop DAC that packs an impressive performance with stunning looks. SMSL has designed the SU9 Pro with top-quality components for premium performance!!
Latest-Generation Sabre Dual DAC Chipset:-
SMSL has featured the latest launched ES9039M Pro DAC chips on the SU9 Pro. The DAC uses a dual DAC arrangement. ES9039M Pro is the latest flagship 32-Bit DAC chip with an 8-channel design. The SU9 Pro utilizes full 8-channels of both the DACs promising a true high-end performance right at your desktop setup!!
3rd Generation XMOS USB Processor:-
SMSL SU9 Pro utilizes a 3rd generation XMOS XU316 USB processor that brings a true 32-bit USB performance to your desktop chain. It supports high-resolution PCM up to 768kHz, and Native DSD512 signal decoding support.
Brand-New FPGA Clock Architecture:-
SMSL has equipped the SU9 Pro with their in-house developed brand-new CK-03 FPGA architecture. With independent femtosecond crystal oscillators, the FPGA circuit greatly lowers the clock jitter.
High-Performance Low-Noise Power Supply:-

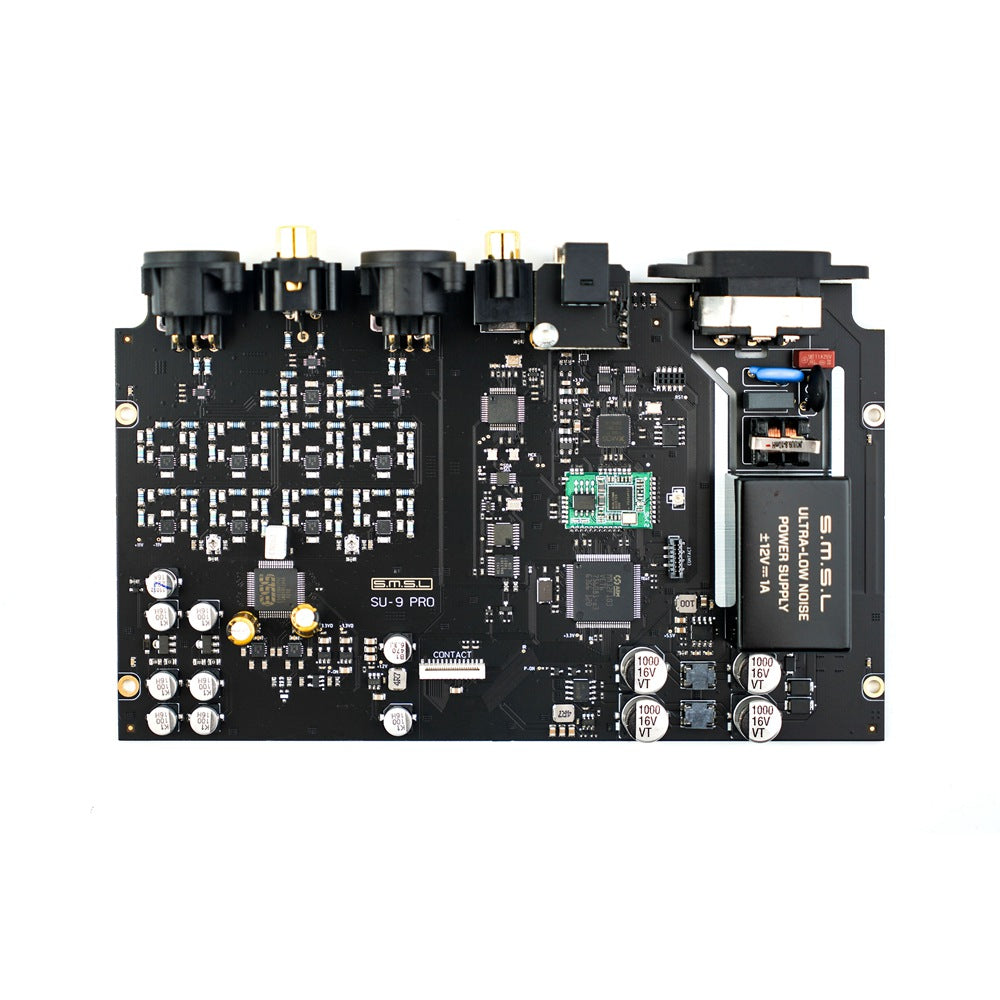

SMSL has equipped the SU9 Pro with a specially designed low noise high-performance linear regulated power supply. The power supply is built into the audio circuitry with proper shielding. This new power supply improves power efficiency and lowers power consumption.
High-Resolution Bluetooth Connectivity:-
SMSL SU9 Pro supports high-resolution wireless Bluetooth connectivity for signal input. It supports high-resolution LDAC, AptX HD, AptX, SBC, AAC, transmission protocols.
Exquisite Build Quality With Aluminum Chassis & Fully Fitted Colorful Display:-
SMSL has designed the SU9 Pro with an exquisitely finished aluminum alloy chassis. It has got spectacular looks with its fully fitted colorful display.
Features:-
>World’s First DAC With Dual ES9039M Pro DAC Chips.
>3rd Generation XMOS XU316 USB Processor.
>Self-developed brand-new CK-03 FPGA Clock Architecture.
>Decodes high-resolution 32Bit/768kHz PCM and DSD512(native) signals.
>Full MQA Decoding with all inputs.
>MQA-CD decoder.
>High-Resolution Bluetooth connectivity.
>LDAC/AptX HD/AptX/SBC/AAC wireless codecs.
>Specially designed discrete component linear power supply.
>High-end gold-plated input/output interfaces.
>RCA/XLR outputs.
>USB/Coaxial/Optical inputs.
>Fully functioning remote control.
Technical specifications:-
>Output Level: 5.2Vrms(XLR), 2.5Vrms(RCA).
>THD+N: 0.00005%(-125dB).
>DNR: 134dB.
>SNR: 134dB.
>Sampling Rate: Up to 32-Bit/768kHz, DSD512(USB), 24-Bit/192kHz, DoP64(Optical/Coaxial).
>Power consumption: <10W.
>Standby power: <0.5W.
>Size: 187.5x154x40mm.
>Weight: 0.79kg.
---SpecificationsSplit---
SMSL SU9 Pro is the latest in the SU9 series. It is the world’s first DAC that houses ES9039M Pro DAC chips. It’s a fully loaded high-end Desktop DAC that packs an impressive performance with stunning looks. SMSL has designed the SU9 Pro with top-quality components for premium performance!!
Latest-Generation Sabre Dual DAC Chipset:-
SMSL has featured the latest launched ES9039M Pro DAC chips on the SU9 Pro. The DAC uses a dual DAC arrangement. ES9039M Pro is the latest flagship 32-Bit DAC chip with an 8-channel design. The SU9 Pro utilizes full 8-channels of both the DACs promising a true high-end performance right at your desktop setup!!
3rd Generation XMOS USB Processor:-
SMSL SU9 Pro utilizes a 3rd generation XMOS XU316 USB processor that brings a true 32-bit USB performance to your desktop chain. It supports high-resolution PCM up to 768kHz, and Native DSD512 signal decoding support.
Brand-New FPGA Clock Architecture:-
SMSL has equipped the SU9 Pro with their in-house developed brand-new CK-03 FPGA architecture. With independent femtosecond crystal oscillators, the FPGA circuit greatly lowers the clock jitter.
High-Performance Low-Noise Power Supply:-
SMSL has equipped the SU9 Pro with a specially designed low noise high-performance linear regulated power supply. The power supply is built into the audio circuitry with proper shielding. This new power supply improves power efficiency and lowers power consumption.
High-Resolution Bluetooth Connectivity:-
SMSL SU9 Pro supports high-resolution wireless Bluetooth connectivity for signal input. It supports high-resolution LDAC, AptX HD, AptX, SBC, AAC, transmission protocols.
Exquisite Build Quality With Aluminum Chassis & Fully Fitted Colorful Display:-
SMSL has designed the SU9 Pro with an exquisitely finished aluminum alloy chassis. It has got spectacular looks with its fully fitted colorful display.
