Features:

Supports MQA decoding; The top performance D/A chip ES9038PRO from ESS Technology;
The high-performance power supply chip ES9311, the noise of ES9311 is as low as 1uVrms, to push ES9038PRO to the limit;
XMOS XU-208, true 32bit audio processing, supports DoP and Native DSD, and reaches 32bit/768kHz and DSD512;
Ultra-low phase noise and optimized clock processing circuit are used to achieve ultra-low clock jitter;
All inputs support DSD streaming, including coaxial and optical (DoP64);
Independent headphone volume design, does not interfere with the preamp volume;
Special design of discrete components high current headphones amplifier for higher damping factor;
Use tempered glass display panel for higher light transmission and longer service life;
Built-in shielded, low noise power supply processing, while improving power efficiency, lower power consumption;
High quality gold-plated input and output jacks;
3 high-end dual op-amps OPA1612 and a lot of audio grade components are used;
2.19 inch LG TFT LCD display;
JAS Hi-Res certification;

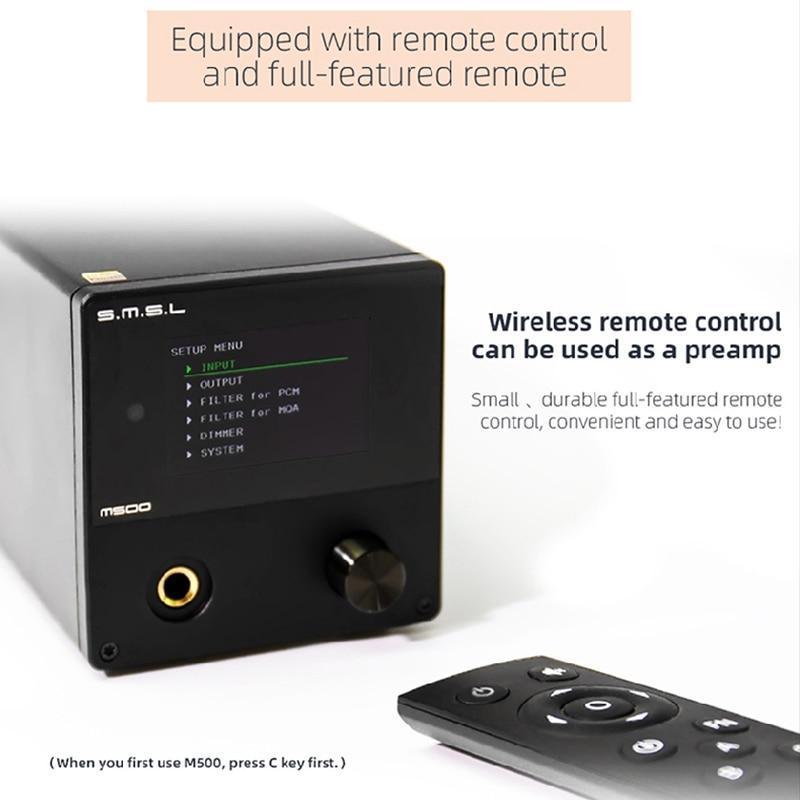

Equipped with remote control and full-function remote control.



Specifications:

Input: USB / Opticalx2 / Coaxial
Output :RCA Headphone Amplifier/ RCA /XLR
THD+N :0.00015%
Dynamic range : XLR 125dB
RCA 120dB
SNR :120dB
USB transmission :Asynchronization
USB compatibility:Windows 7 / 8 / 8.1 / 10, Mac OSX10.6 or Later、Linux
Bit depth :USB 1bit, 16 ~ 32bit
Optical / Coaxial 1bit, 16 ~ 32bit
Sampling rate :USB PCM 44.1 ~ 768kHz
DSD 2.8224 ~ 22.5792MHz
Optical / Coaxial PCM 44.1 ~ 192kHz
DSD DSD64(DoP)
Headphone amplifier output power:570mW(32Ω)
290mW(64Ω)
125mW(150Ω)
65mW(300Ω)
Power Consumption :5W
Standby power : <0.5W
Size : 85x88x197mm (WxHxD)
Weight :0.91kg

  • Brand Name: S.M.S.L
  • PCM Sampling Frequencies: 44.1 kHz
  • PCM Sampling Frequencies: 48 kHz
  • PCM Sampling Frequencies: 88.2 kHz
  • PCM Sampling Frequencies: 96 kHz
  • PCM Sampling Frequencies: 176.4 kHz
  • PCM Sampling Frequencies: 192 kHz
  • PCM Sampling Frequencies: 352.8 kHz
  • PCM Sampling Frequencies: 384 kHz
  • PCM Sampling Frequencies: 705.6 kHz
  • PCM Sampling Frequencies: 768 kHz
  • Type: Desktop
  • DSD Sampling Frequencies: 2.8224 MHz (DSD64)
  • DSD Sampling Frequencies: 11.2896 MHz (DSD256)
  • DSD Sampling Frequencies: 22.5792 MHz (DSD512)
  • Material: Metal
  • Outputs: 6.5 mm
  • Outputs: Balanced Out
  • PCM Word Length: 16-bit
  • PCM Word Length: 24-bit
  • PCM Word Length: 32-bit
  • Inputs: USB Type-A
  • Inputs: Optical (SPDIF)
  • Inputs: Coaxial
  • Model Number: M500
  • Input Format: 65/125/290/570 mW
  • Dimensions (W x H x D): 197*88*85 mm
  • D/A Converter: ES9038PRO
  • WIFI: No
  • USB Compatibility: Windows 7
  • USB Compatibility: Windows 8
  • USB Compatibility: Windows 8.1
  • USB Compatibility: Windows XP
  • USB Compatibility: Windows Vista
  • USB Compatibility: ios
  • USB Compatibility: Android
  • USB Compatibility: osx
  • USB Compatibility: None
  • Bluetooth: No
