SMSL DS300 High-Performance MQA DAC & Headphone Amplifier

Features:-

>High-Performance Cyberpunk Theme Desktop DAC/AMP.

>Next-Generation ESS ES9039Q2M DAC Chipset.

>3rd Generation XMOS XU316 USB Processor.

>Supports PCM up to 32-bit/768kHz and DSD up to DSD512.

>MQA and MQA-CD Decoding.

>Qualcomm Bluetooth Chipset Supporting LDAC, aptX HD, SBC, and AAC Codecs.

>Unique Cyberpunk Design.

>Colorful LED Lighting with Rhythmic Effects.

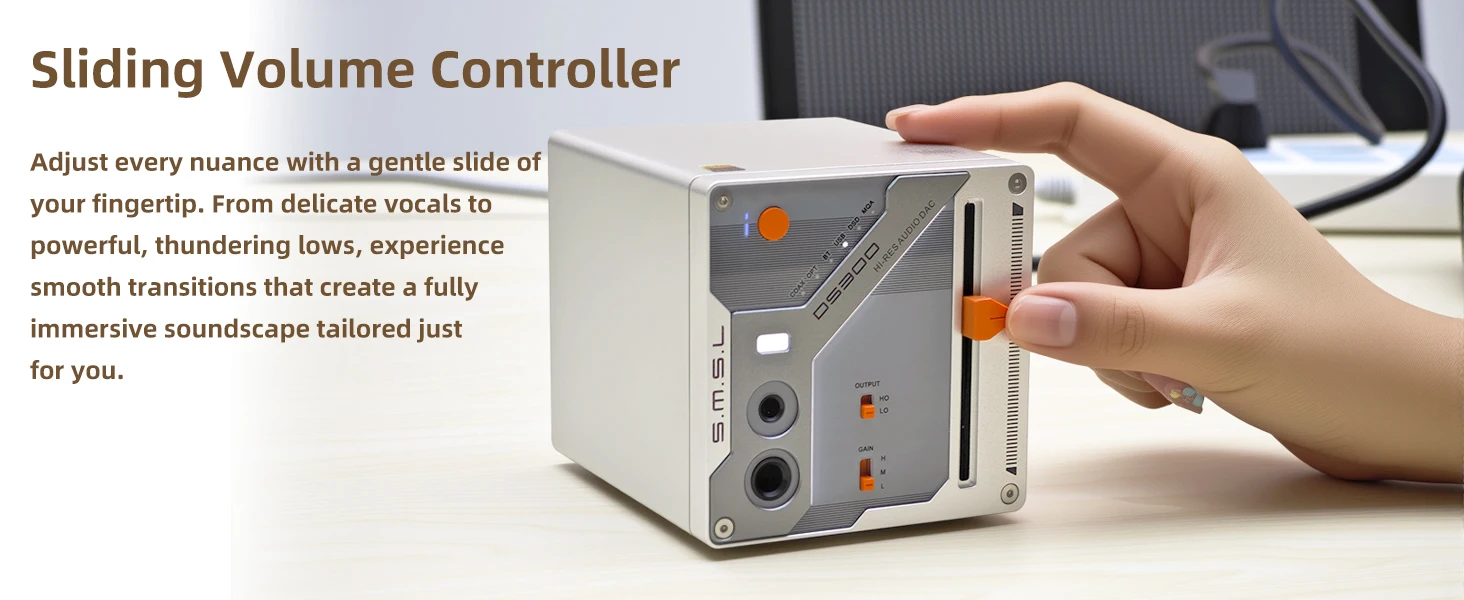

>Innovative Sliding Volume Controller.

>High-Performance Amp Section with Four OPA1612A OPAMPs.

>4.4mm and 6.35mm HPA Output.

>Strong Output Reaching Up To 3W Per Channel.

>Premium Quality Audio-Grade Components.

>Dedicated Audio Clock Processing Circuit.

>Versatile Connectivity with Multiple Input Ports.

>All-Ports Except Bluetooth support DSD Processing.

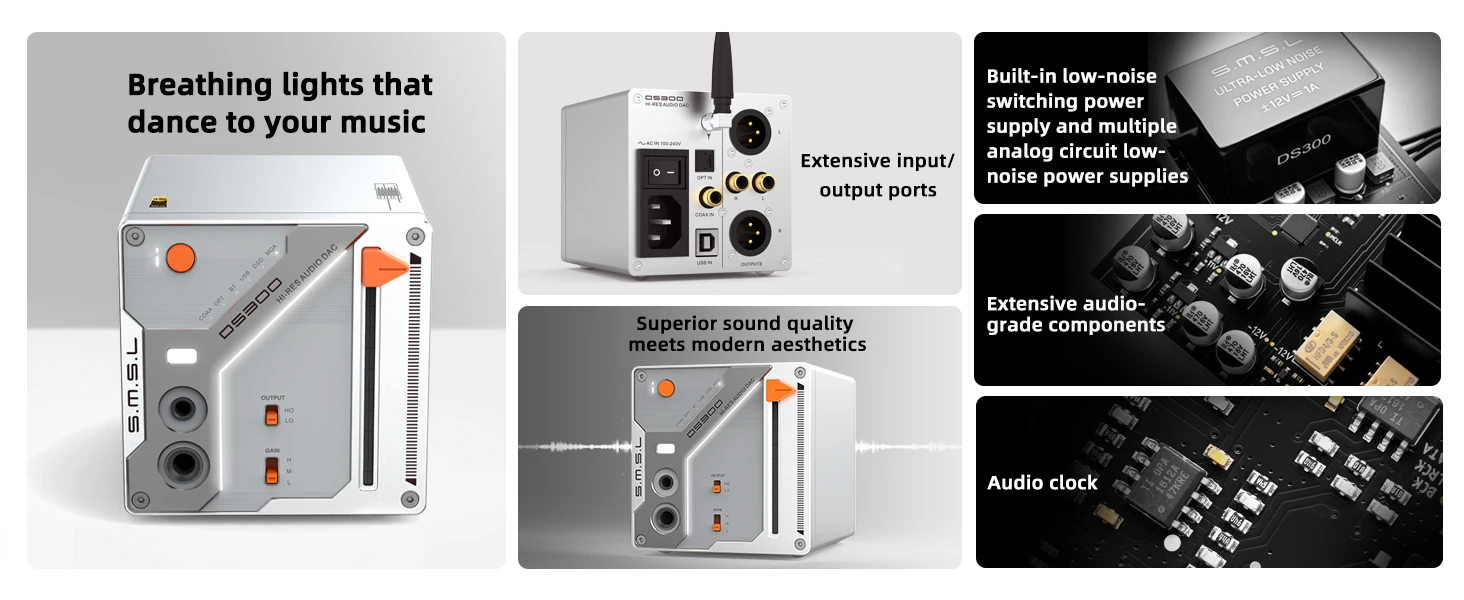

>Built-in Low-Noise Switching Power Supply.

>Multiple Low-Noise Analog Power Rails.

>High-Quality Gold-Plated Input/Output Connectors.

>Hi-Res Audio Certified.

SMSL DS300 is a brand new desktop DAC/AMP that combines a stunning cyberpunk design theme with advanced audio technology. We have the next-generation ESS ES9039Q2M 32-Bit DAC chipset paired with 3rd-generation XMOS XU316 USB processor; this setup promises high-resolution PCM and DSD audio signal processing. The DS300 also has full support for MQA and MQA-CD decoding. It packs a powerful amplification section with four OPA1612A amp chips. SMSL DS300 achieves a strong 3W per channel output, powerful enough to drive demanding full-sized headphones with ease. SMSL has crafted a unique cyberpunk design theme for the DS300, which includes colorful LED lights and a volume slider. The DS300 is crafted using high-quality audiophile-grade components on the audio circuitry. With the SMSL DS300, bring a capable all-in-one solution to your desktop space!!

Your Desktop Revamped With Cyberpunk:-

SMSL DS300 is prepared to revamp your desktop setup with an innovative cyberpunk theme and a powerful audio setup. Featuring a high-performance ESS Sabre DAC chipset, a powerful amp section, it delivers quality sound without breaking your bank. The chassis and design are compact enough to fit in smaller spaces. Prepare to enjoy high-fidelity sound at your desktop with the SMSL DS300.

Pure High-Fidelity Audio Decoding:-

SMSL DS300 features next-generation ESS ES9039Q2M DAC chipset combined with XMOS XU316 3rd generation USB processor. This setup delivers pure high-resolution audio decoding to your desk space. It supports high-resolution 32-bit/768kHz PCM and native DSD512 audio signals. The high-performance 32-bit ESS DAC provides exceptional decoding performance with high SNR, DNR, and ultra-low THD+N characteristics. It also supports MQA and MQA CD Decoding.

High-Power Headphone Output:-

SMSL DS300 packs a powerful output with its strong amplification section. The amp section adopts four OPA1612A operational amplifiers that produce a massive output reaching up to 3W per channel. It can easily drive most IEMs and Headphones with great ease. The amp section is designed to be clean; it pairs well with sensitive IEMs as well.

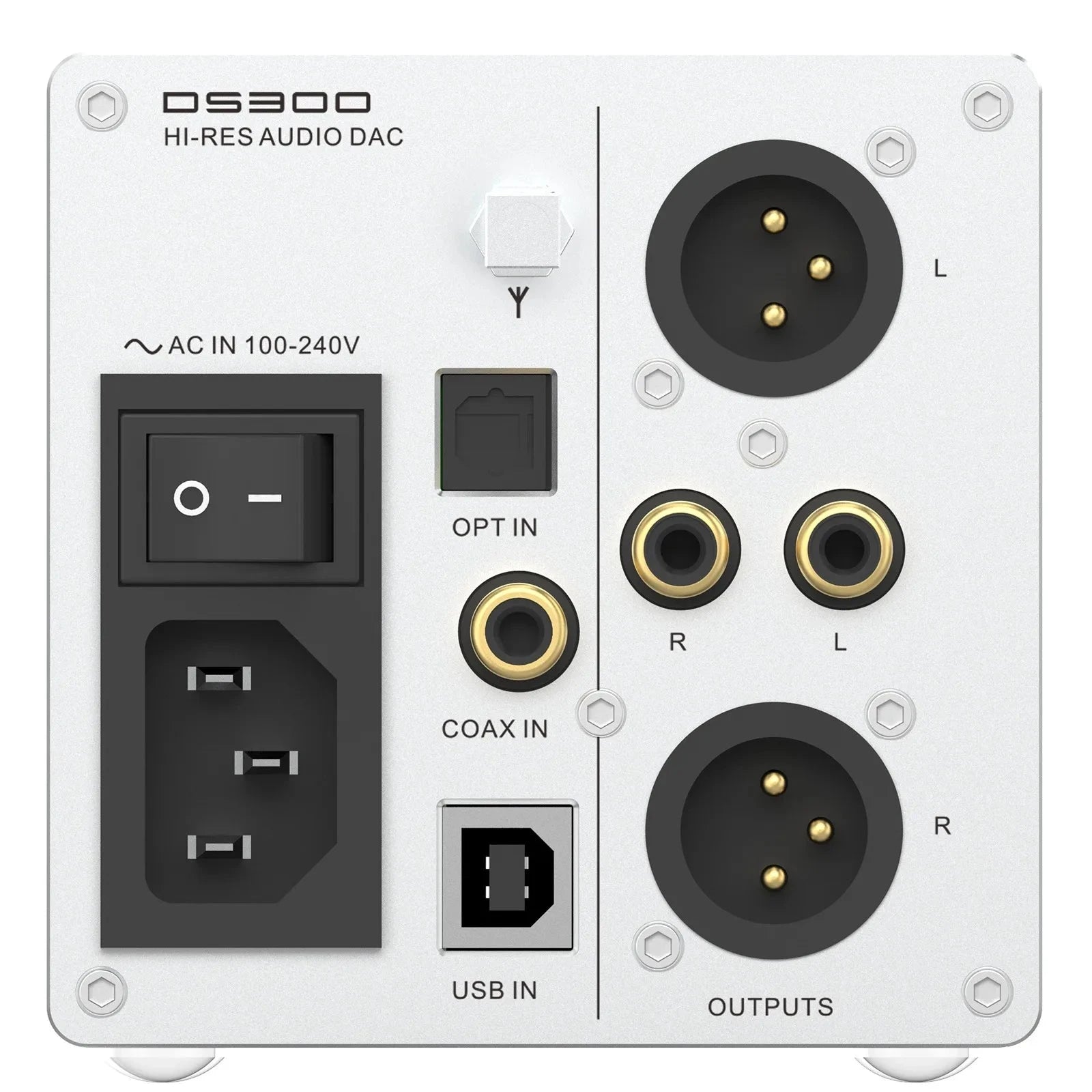

Extensive Input and Output Options:-

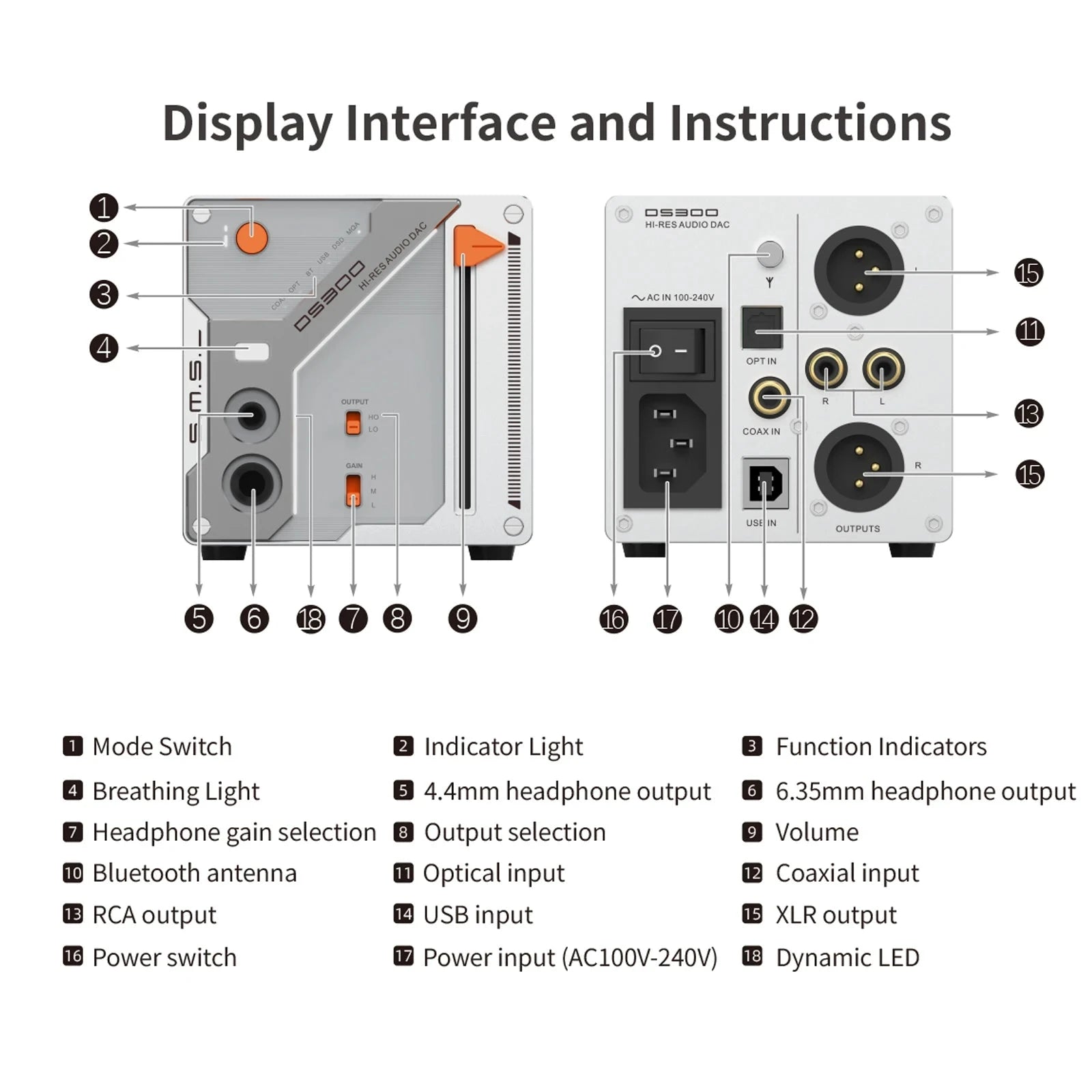

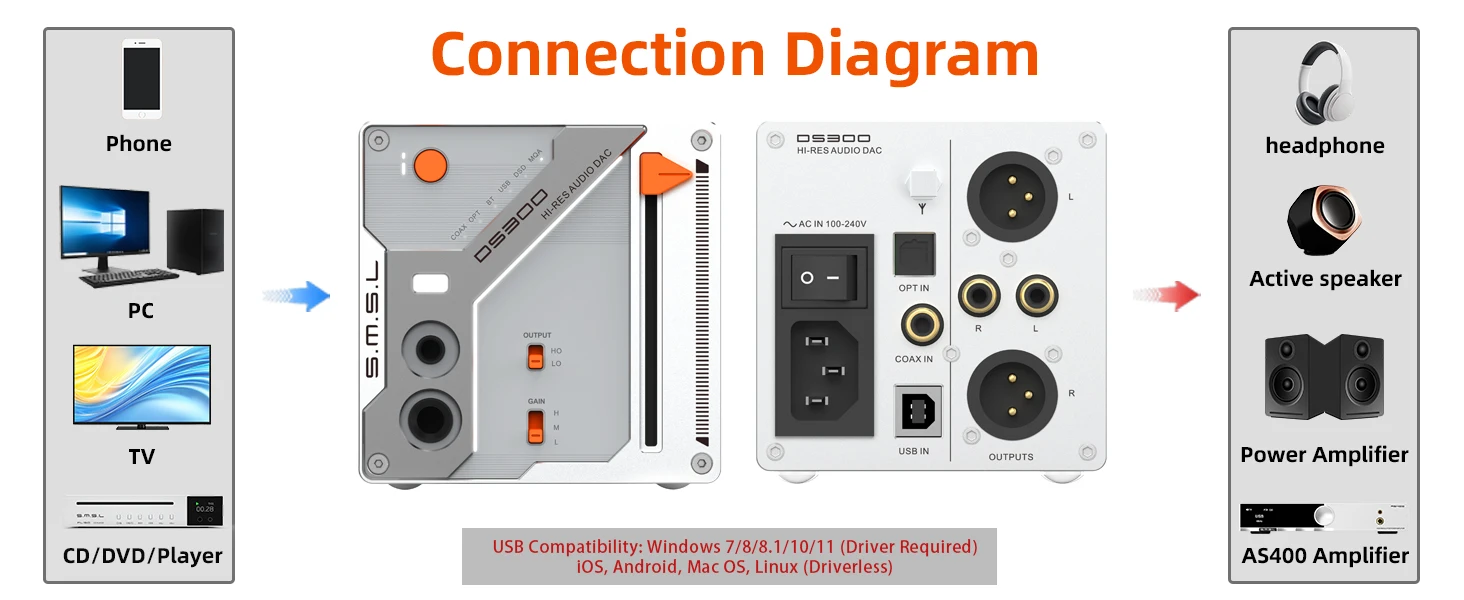

SMSL DS300 is a versatile desktop device that supports an array of digital and analog connections. For input, it features USB, Optical, Coaxial, Bluetooth V5.1 connections. For output, we have XLR, RCA connections for line-out functionality and 6.35mm and 4.4mm headphone output ports.

Full Gain and Volume Controls At Your Fingertips:-

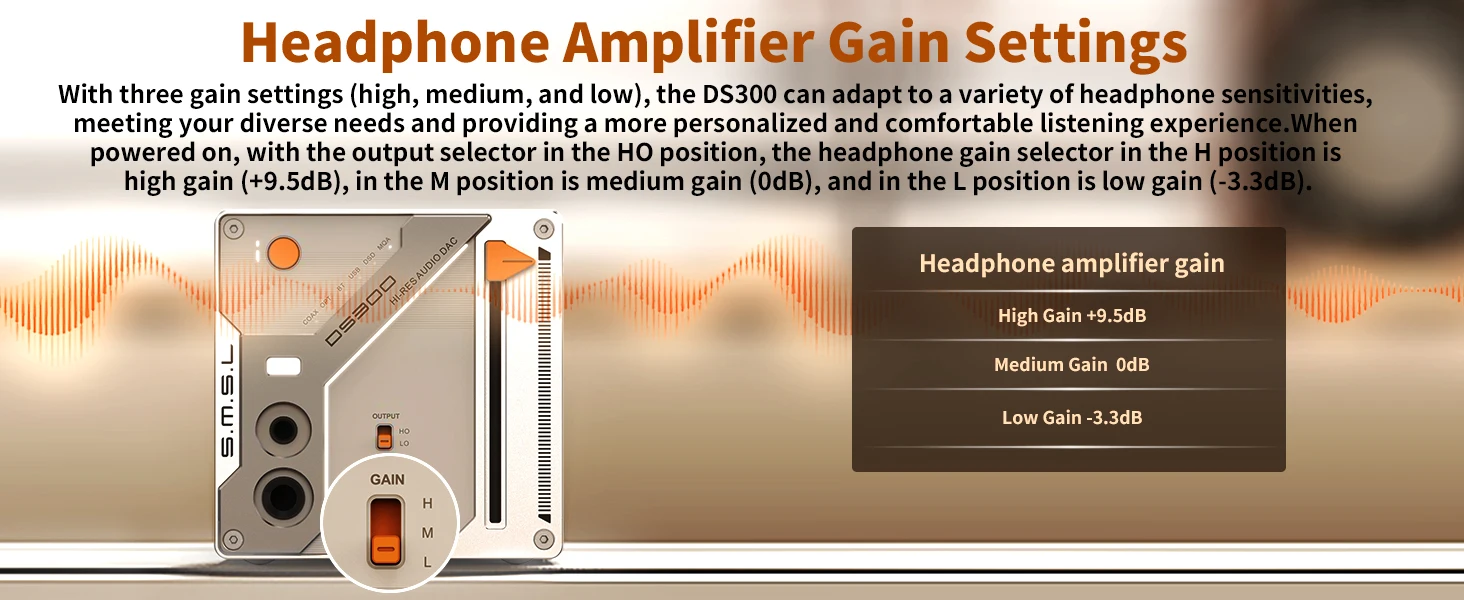

SMSL DS300’s cyberpunk design is well-equipped with extensive features. It has an LED indicator, volume slider, and gain mode slider. It has three gain modes: high gain(+9.5dB), medium gain(0dB), and low gain(-3.3dB).

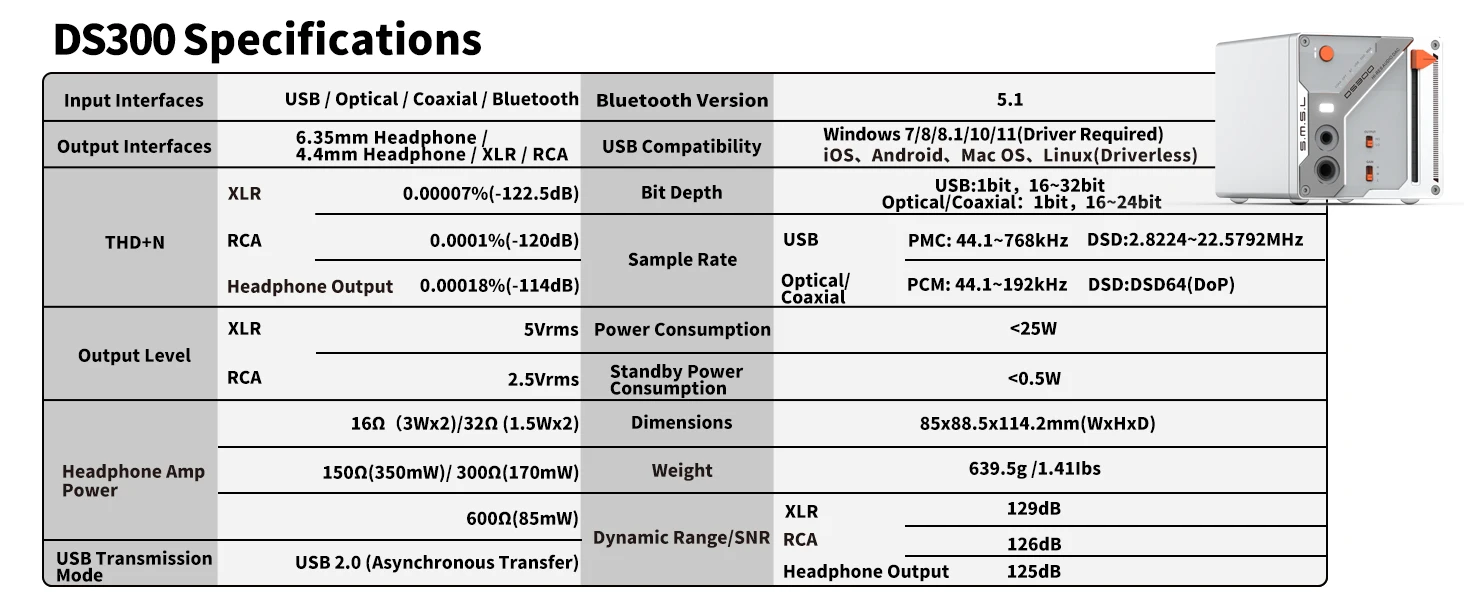

Specifications

Input Interfaces: USB, Optical, Coaxial, Bluetooth, XLR, RCA

Output Interfaces: 6.35mm Headphone, 4.4mm Headphone, XLR, RCA

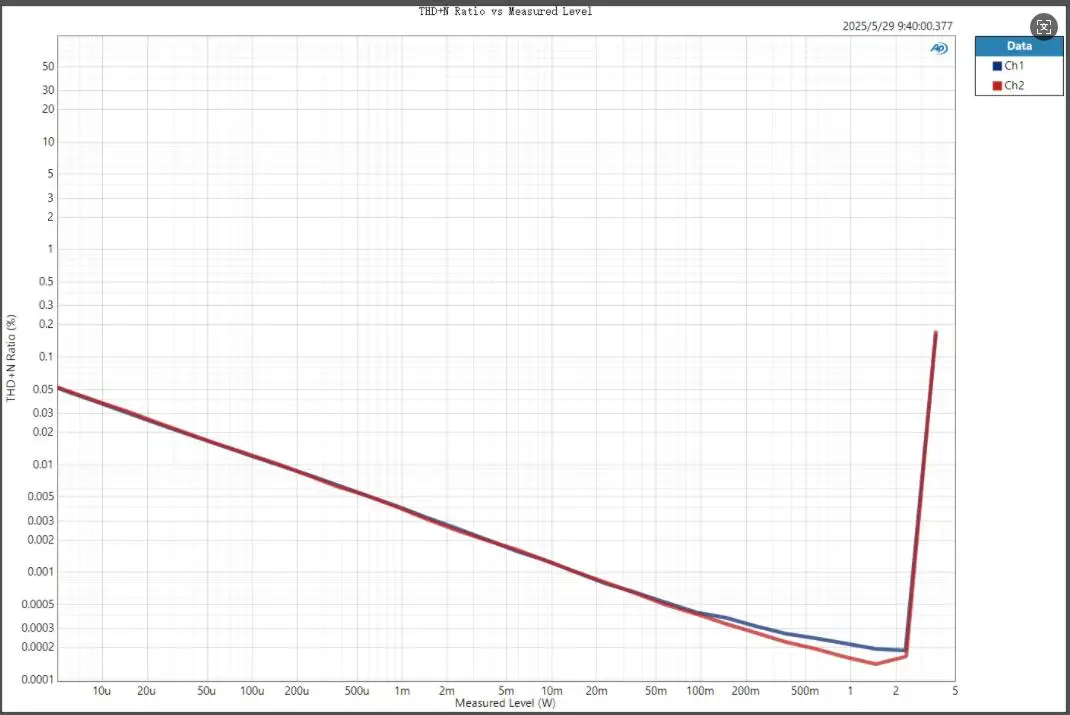

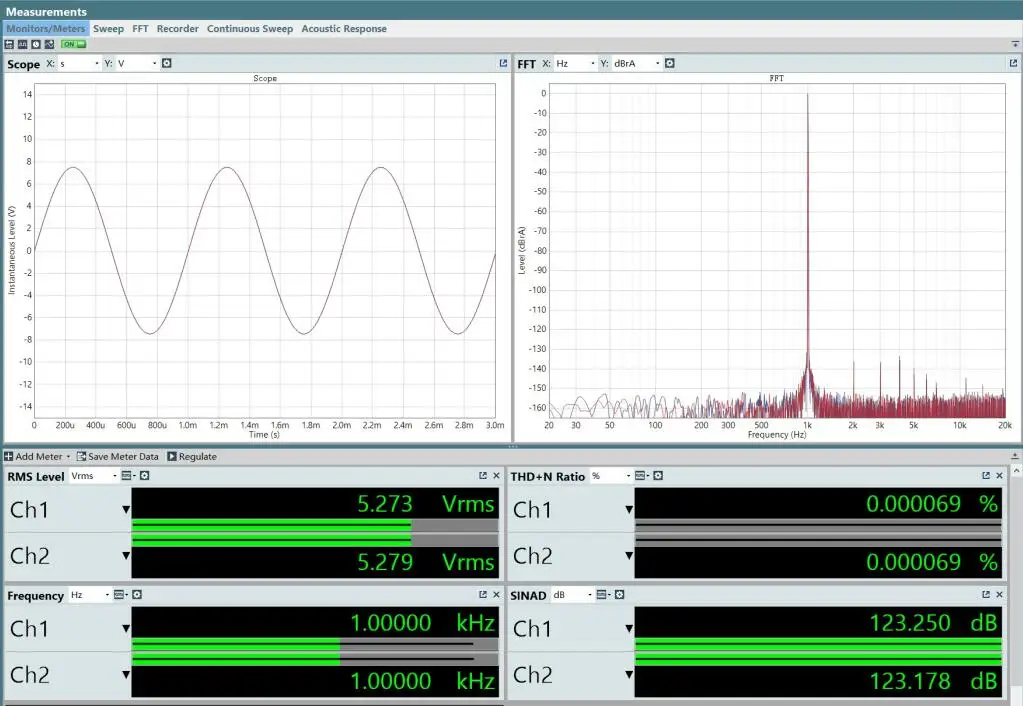

THD+N:

XLR: 0.00007% (-122.5dB)

RCA: 0.0001% (-120dB)

Headphone Output: 0.00018% (-114dB)

Output Level:

XLR: 5Vrms

RCA: 2.5Vrms

Headphone Amplifier Power:

16Ω (3W x 2)/32Ω (1.5W x 2)

150Ω (350mW x 2)/300Ω (170mW x 2)

600Ω (85mW)

USB Transmission Mode: USB 2.0 (Asynchronous Transfer)

Bluetooth Version: 5.1

USB Compatibility: Windows 7/8/8.1/10/11 (Driver Required), iOS, Android, macOS, Linux (Driverless)

Bit Depth: USB: 1-bit, 16~32-bit; Optical/Coaxial: 1-bit, 16~24-bit

Sample Rate: USB: PCM: 44.1~768kHz, DSD: 2.8224~22.5792MHz

Optical/Coaxial: PCM: 44.1~192kHz, DSD: DSD64 (DoP)

Power Consumption:<25W

Standby Power: <0.5W

Dimensions: 85 x 88.5 x 114.2mm (W x H x D)

Weight: 639.5g (1.41lbs)

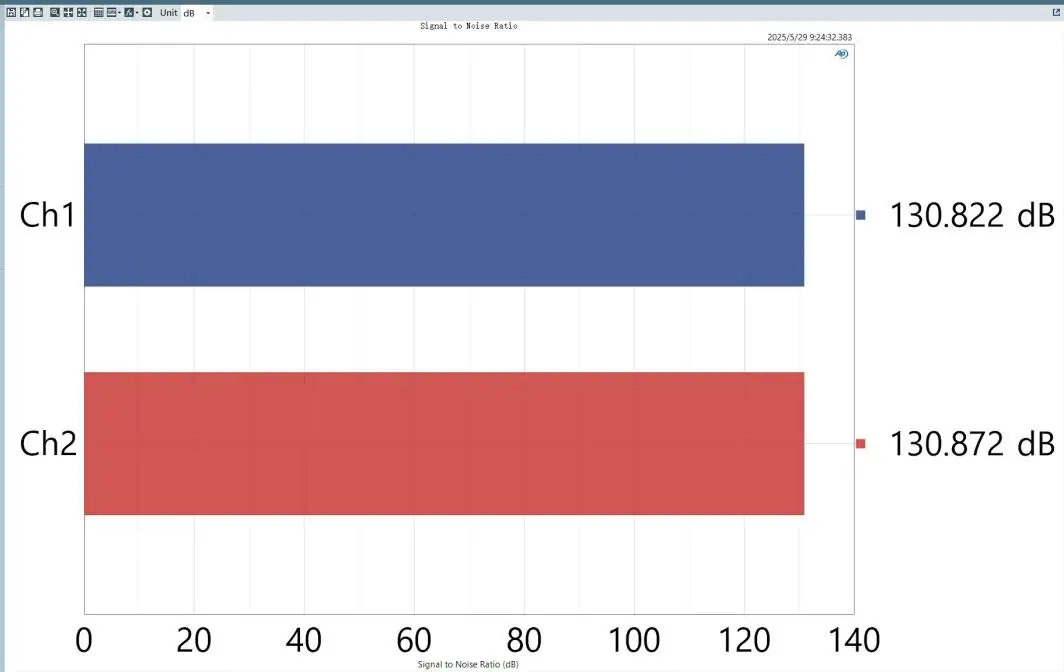

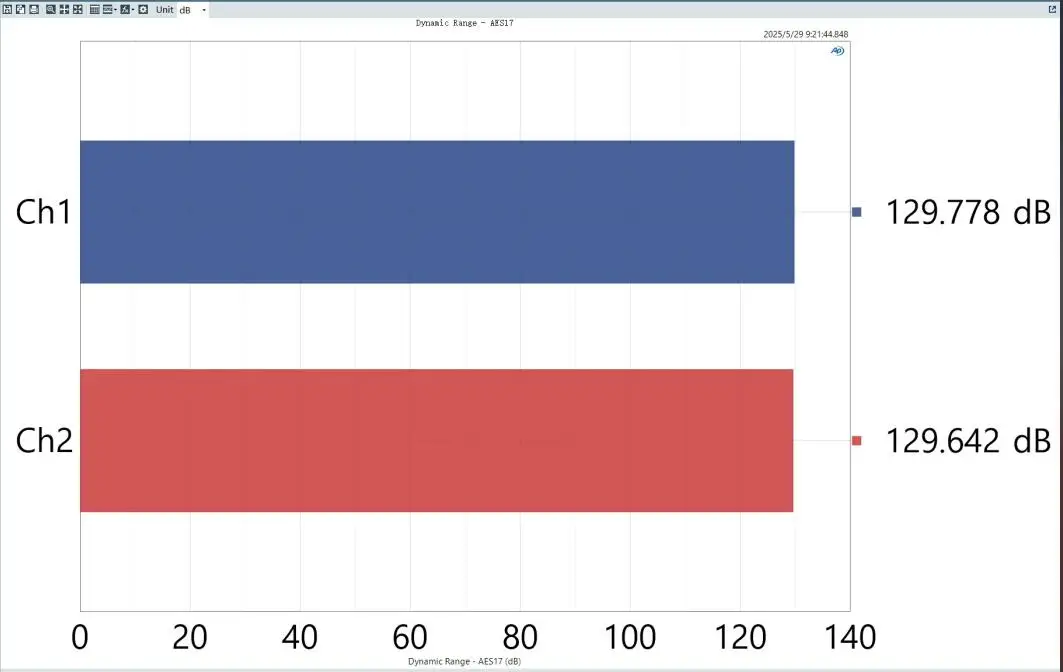

Dynamic Range/SNR:

XLR: 129dB

RCA: 126dB

Headphone Output: 125dB
