SMSL DS100 DS43131 Decoder Chip DSD512 Coaxial Headphone Amplifier

🎵 High Performance MQA DAC Amplifier: Harnessing the audio decoding chipset, the CS43131 from Cirrus Logic, SMSL DS100 boasts meticulously designed circuitry that elevates its performance to an astonishing distortion level of 0.00017% (-115dB)! Supports MQA/MAQ-CD Decoding. Restore the most authentic sound in the recording studio.

🎵 USB DAC XMOS XU-316 PCM support 32bit/768kHz & DSD512:Powering USB decoder is the brand-new third-generation XMOS XU-316, which boasts PCM support up to 32bit/768kHz and DSD support reaching DSD512. Coaxial and fiber inputs further support DoP64, ensuring seamless compatibility with a wide range of audio sources.

🎵 CK-03 Clock Processing Circuit & Low-Noise LDO Power Supplies: Desktop dac to minimize clock jitter and ensure optimal audio quality, the DS100 features a dedicated audio clock processing circuit, the CK-03. Additionally, a built-in high-efficiency power chip provides ample energy to the decoder, complemented by multiple low-noise LDO power supplies.

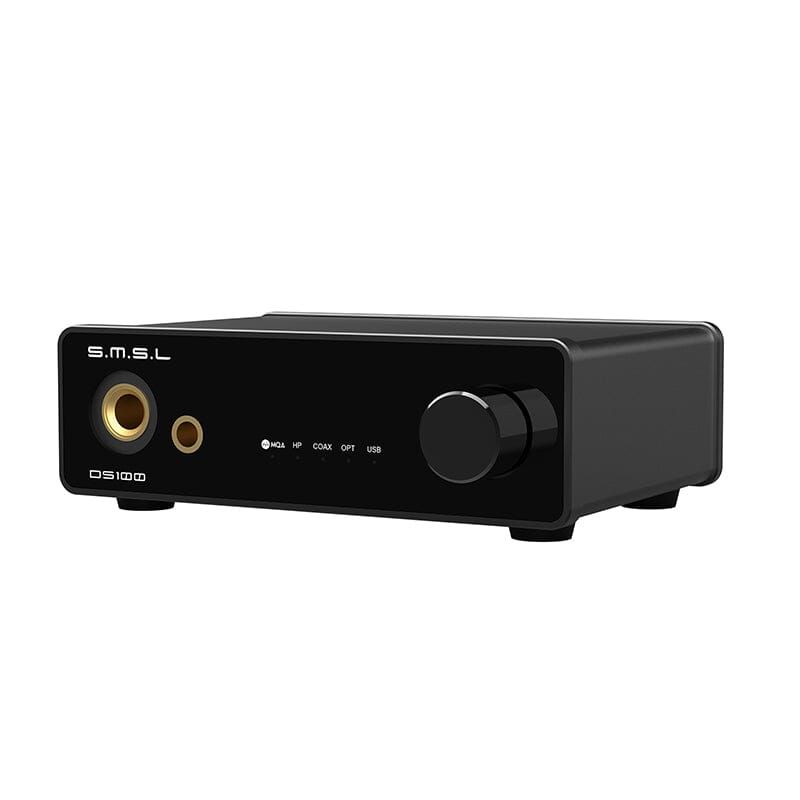

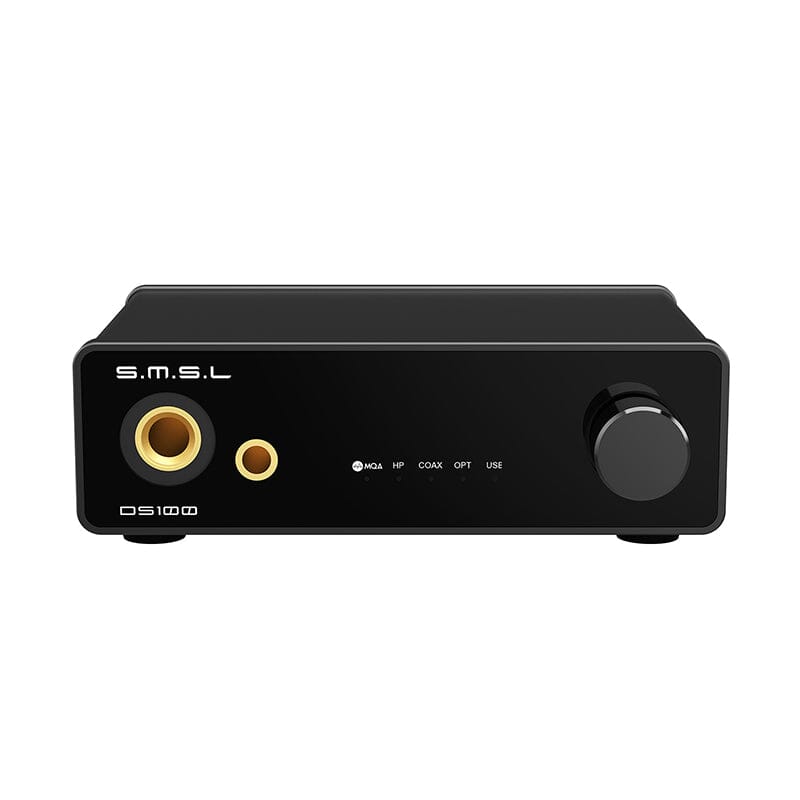

🎵 Double Headphone Jack Design: The audio dac is specially equipped with two specifications of 6.35mm and 4.4mm headphone jacks.It offers an output of 7 Vrms for 600 Ω high-impedance headphones, and 61mW for 16 Ω low-impedance headphones. Designed to meet your diverse headphone connection needs. Also, please set the input mode and output mode correctly.When adjusting the volume, four LED lights, HP, COAX, OPT, and USB, are used to indicate the current volume level.

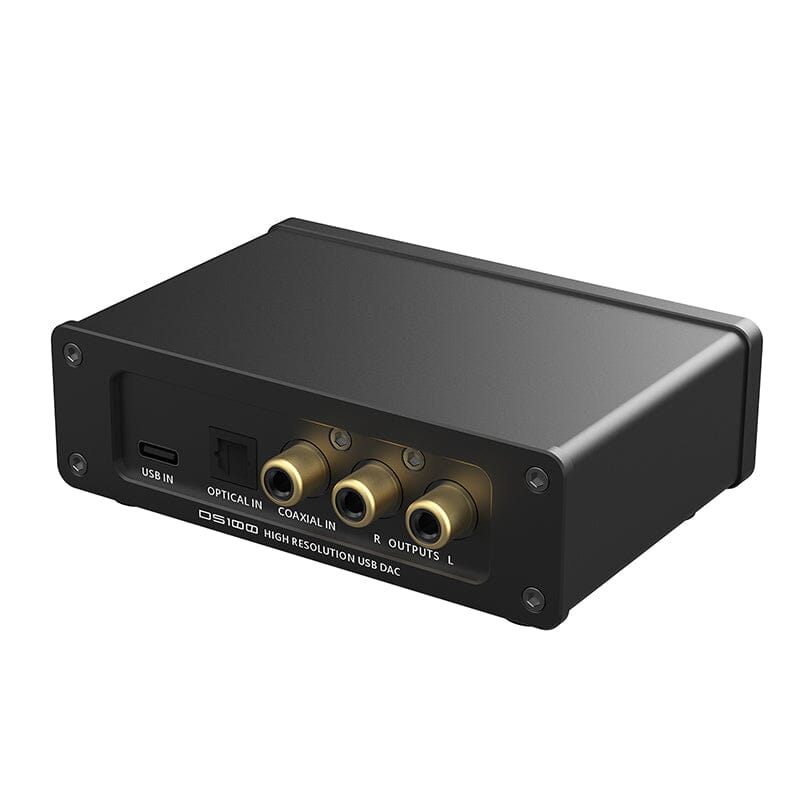

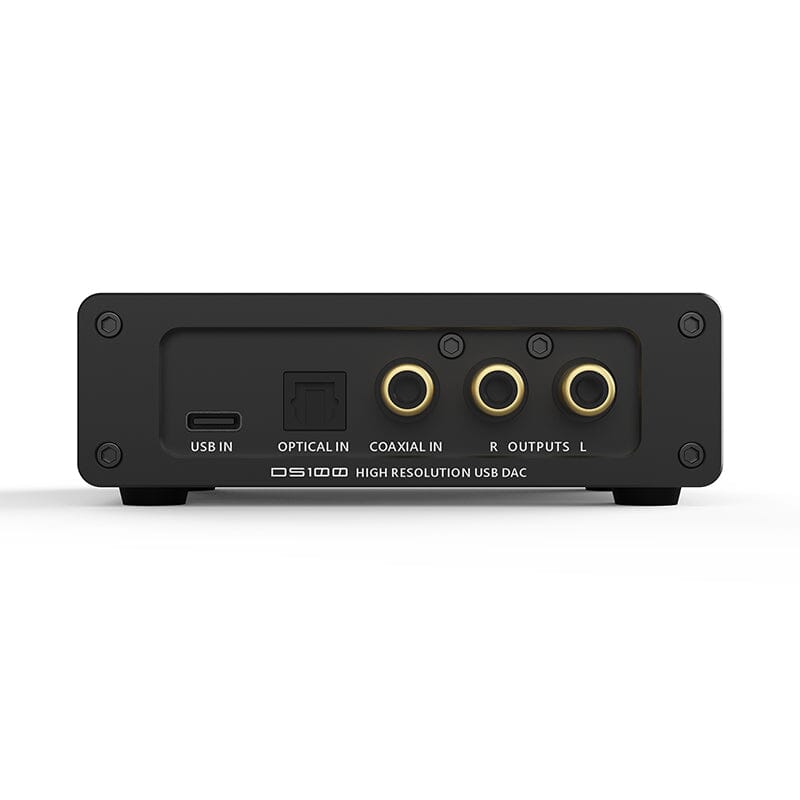

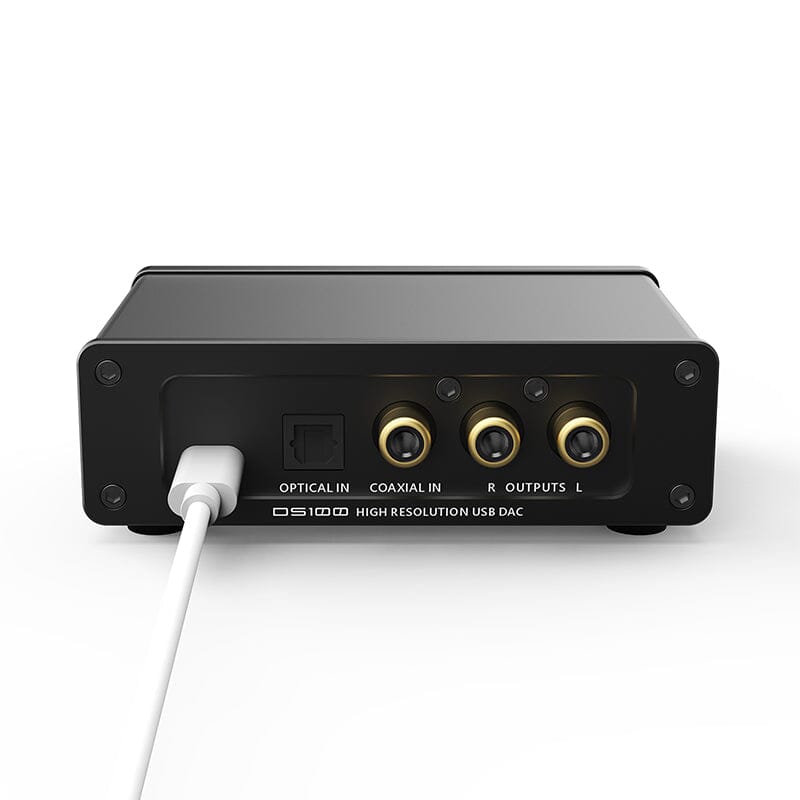

🎵 High-Quality Mini DAC : DS100 is made of aluminum alloy and precision machined using CNC technology with high-quality gold-plated input and output terminals to ensure safe and reliable connections. DS100 Packing list: 1xSMSL DS100. 1xUSB Cable. 1xUser manual. 1xWarranty card.

🎵 High-Quality Mini Desktop Decoder: DS100 is made of aluminum alloy and precision machined using CNC technology with high-quality gold-plated input and output terminals to ensure safe and reliable connections. Certified by the Japan Audio Society (JAS) for Hi-Res audio. Ensure the best audio experience.* If you have any questions, please feel free to contact us.

🎵 High Performance: Harnessing the audio decoding chipset, the CS43131 from Cirrus Logic, SMSL DS100 boasts meticulously designed circuitry that elevates its performance to an astonishing distortion level of 0.00017% (-115dB)! Supports MQA/MAQ-CD Decoding. Restore the most authentic sound in the recording studio.

🎵 USB XMOS XU-316 PCM support 32bit/768kHz & DSD512:Powering USB decoder is the brand-new third-generation XMOS XU-316, which boasts PCM support up to 32bit/768kHz and DSD support reaching DSD512. This ensures that your audio experience is as pristine and lossless as possible. Coaxial and fiber inputs further support DoP64, ensuring seamless compatibility with a wide range of audio sources.

🎵 DS100 All-in-one DAC Supports MQA, MQA-CD

🎵 Equipped with MQA technology, DS100 brings CD sound quality to a whole new level. Every note seems to have been carefully crafted, bringing you an unprecedented auditory feast.

🎵 CK-03 Clock Processing Circuit & Low-Noise LDO Power Supplies: To minimize clock jitter and ensure optimal audio quality, the DS100 features a dedicated audio clock processing circuit, the CK-03. Additionally, a built-in high-efficiency power chip provides ample energy to the decoder, complemented by multiple low-noise LDO power supplies.

🎵 Double Headphone Jack Design: The audio decoder is specially equipped with two specifications of 6.35mm and 4.4mm headphone jacks, designed to meet your diverse headphone connection needs. Headphone amplifiers can boost the power of audio signals, improve sound quality, and get the best out of your headphones.

🎵 Small Size. Precision Machined Using CNC Technology.Durable & Fashionable,The small audio decoder has a user-friendly interface, which is intuitive and easy to operate. It is easy to carry and is very suitable for music enthusiasts and new users going out.

🎵 Windows operating system requires the installation of a driver. Please download the driver from the S.M.S.L. official website. You can refer to the following path for the file location: Support - Product Driver Downloads - DS100. If you need assistance, please contact us.
