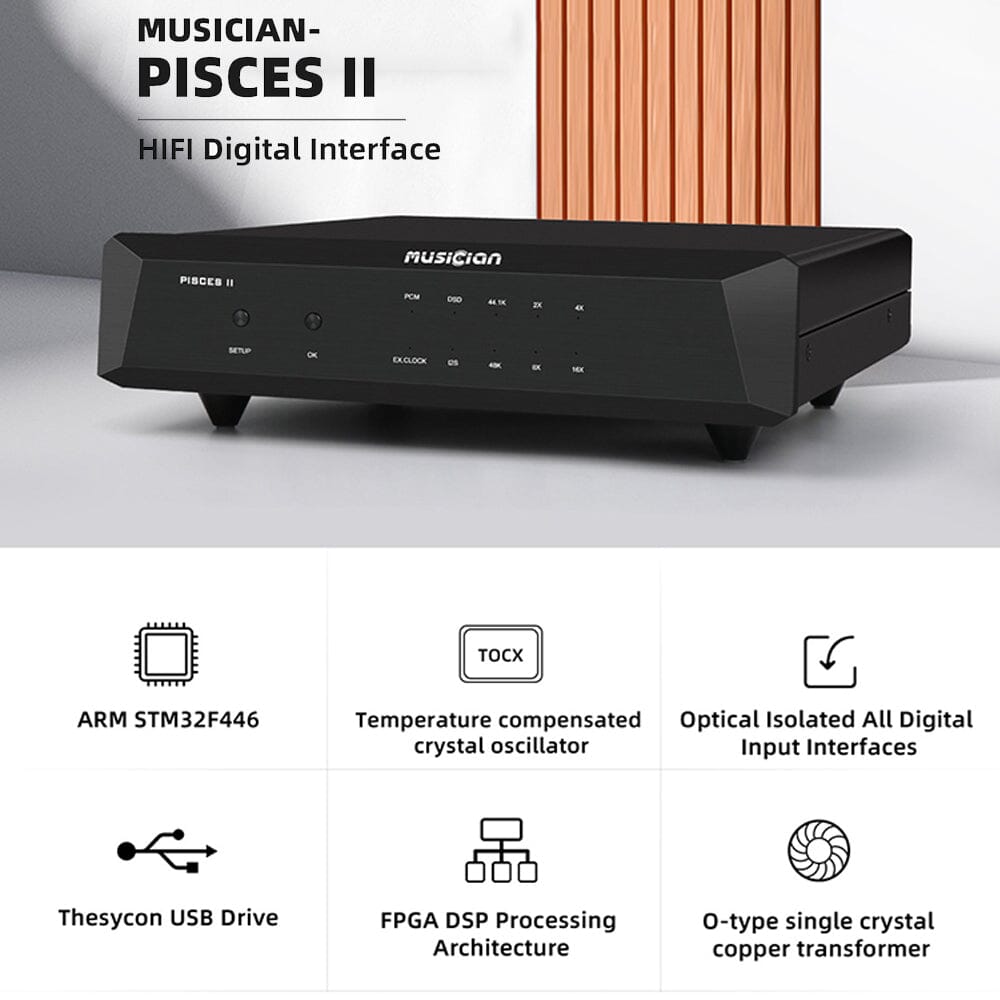

Musician Audio Pisces II High-fidelity Digital Interface

Technical Highlights PISCES: -

>Proprietary FPGA DSP Processing Architecture
>FIFO Buffer and Reclock with Internal Crystal
>TCXO temperature compensated active crystal oscillator
>O-type single crystal copper transformer
>Optical Isolated All Digital Input Interfaces

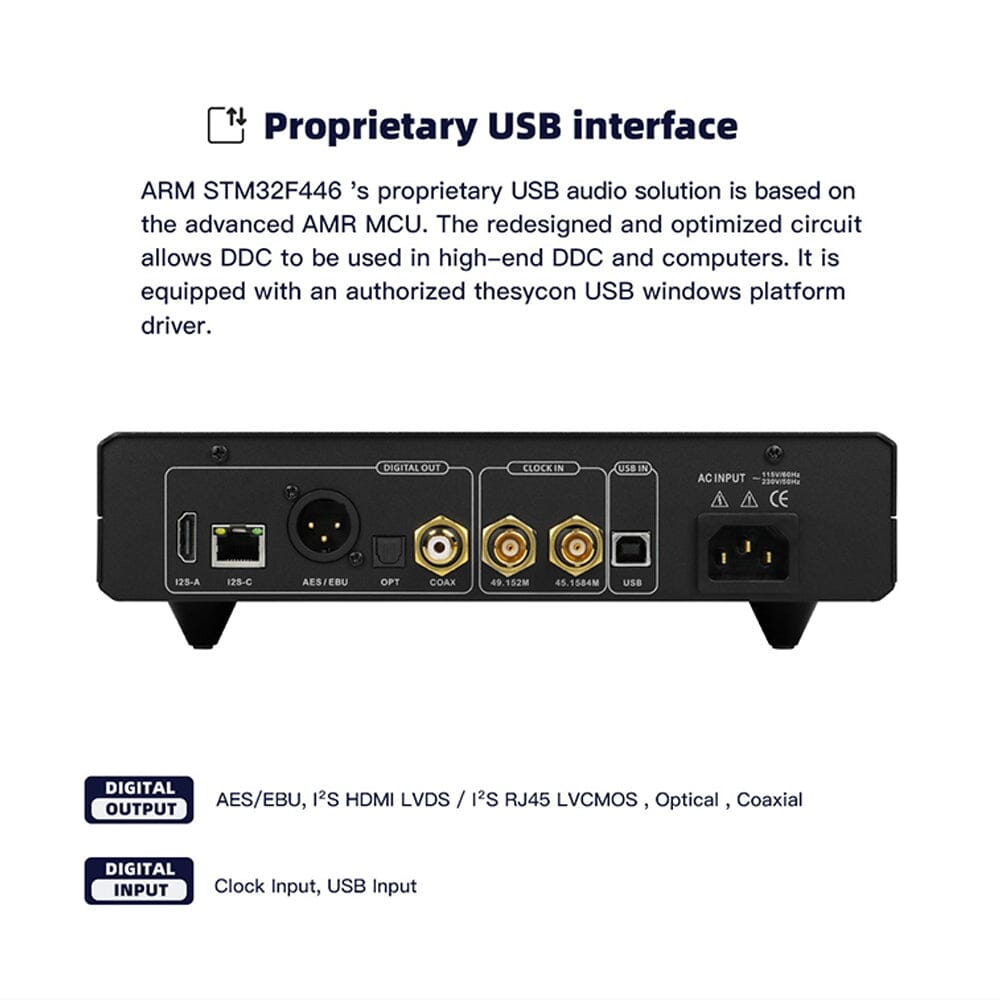

>Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
>Licensed Thesycon USB Driver For Windows Platform
>Driverless On Mac & Linux
>External Clocks Input Supported ( 45.1548MHz/49.152MHz )

DSD: -
DSD64(DoP) on Coax/AES/Opt Input & Output
Up to DSD512 On USB Input & I²S Output

PCM: -

24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Output
Up to 768KHz On USB Input & Up to 384KHz on I²S Output

Digital Input: USB2.0 Type B

External Clock Input: 45.1548MHz，49.152Mhz

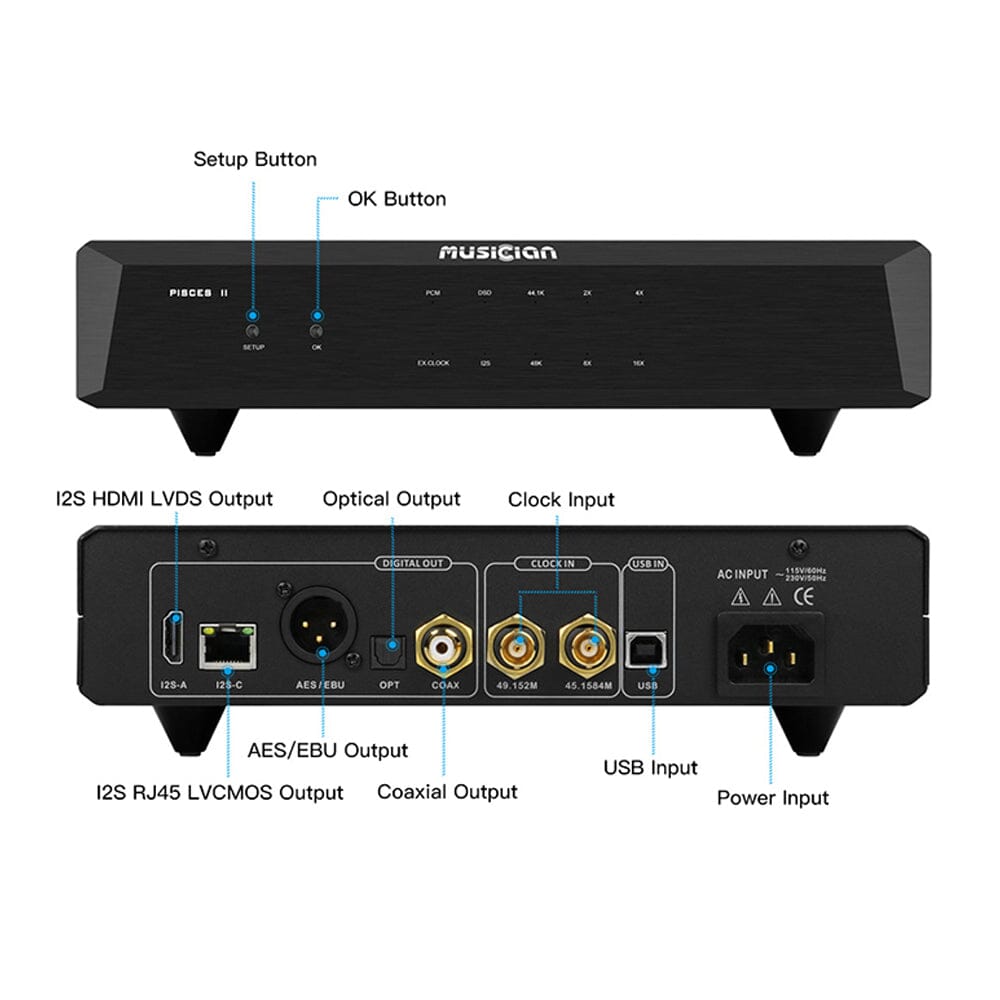

Digital Output: -

AES/EBU, I²S HDMI LVDS/I²S RJ45 lvcmos,
Optical, Coaxial

Please note: -

>The RJ45/HDMI ports of PISCES II are not typical network/multimedia RJ45/HDMI ports. They are purpose-built I²S ports.
>Please do not connect it to the typical multimedia HDMI port
(i.e. Bluray player/TV etc) / Ethernet network.
