Note: This is pre-sale item, it will be shipped out on 31 October.

Specifications of Meizu HiFi DAC Pro

Frequency Range: 20Hz-40KHz
Interface Type: Type-C
PCM decoding capability: 32bit / 384kHz
DSD: DSD64/DSD128
SNR: >120dB
DNR: >120dB
THD+N: <0.0003%
Output load: 16Ω ~ 600Ω
Chip: Cirrus Logic CS43131
Output Power: 30mW dual-channel @32Ω; 6.7mW dual-channel @600Ω

*Does not support playback of DSD format on mobile phones.

Features of Meizu HiFi DAC Pro Headphone Amplifier:

Compatible with most USB Type-C devices. Compatibility may vary due to device systems or hardware.
Weigh just 4g, lightweight and portable.
No built-in microphone. Support most wire headphones with Mic and Remote.
No built-in battery. Power from the USB interface, with low power consumption. Actual power consumption is related to the way of use and the mobile phone model.

USB Type-C Port

Meizu Hi-Fi DAC Pro Headphone Amplifier connects to the USB Type-C port of your device and allows you to listen to Hi-Fi audio using your current wired headphones.

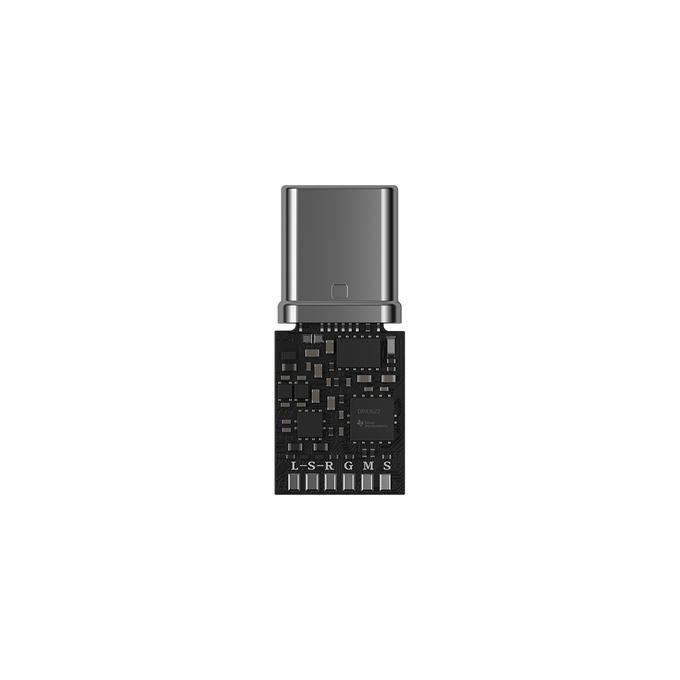

Cirrus Logic CS43131 DAC

The Hi-Fi DAC Headphone Adapter has a built-in Cirrus Logic CS43131 DAC for 32bit/384KHz audio.

16Ω-600Ω Impedance

Texas OPA 1622 Amplifier with 16-600Ω high impedance range thrust. dynamic adaptive adjustment, powerful energy, easy to promote large impedance professional HiFi headphones, lossless enjoyment of the Walkman.

Hi-Res Audio

Hi-Res certified high-resolution sound quality.  * Hi-Res Audio is a high-quality audio product design standard developed by JAS (Japan Audio Association) and CEA (Consumer Electronics Association).

9

    High-Performance DAC Lossless HIFI
    Cirrus Logic CS43131 high-performance independent DAC decoder chip, up to 120dB dynamic range, less than 0.0003% harmonic distortion, restore HiFi sound quality.
    Supports up to 32bit/384kHz PCM decoding output, and Direct Stream Digtal high-resolution audio format DSD64/DSD128 decoding to reproduce lossless music enjoyment.
    10
    Texas Instruments' secondary operate amplifier chip releases the potential of headphones
    Powered by Texas Instruments' OPA1622 secondary operate amplifier chip, it offers up to +145mA/-130mA current drive capability and 10V/μs transient slew rate. Give your professional headphones a powerful enough drive for a wider sound field and excellent sound quality resolution.

    11

    Notice:
    1. Meizu HIFI DAC Headphone Amplifier and PRO currently support Android, iOS, (Mac)OS, Windows10, and the calling function relies on the connected headphones. However, some old models of Type-C interface do not support the limitation of the call function. The Meizu HIFI DAC Headphone Amplifier can not be connected to the 3.5mm earphone with a microphone. (*The mobile phone before Meizu 15 does not support this Hi-Fi. Decoding the amplifier to make a call)
    2. Meizu Hifi pro can support the remote control function of the headset. However, due to the different effects of different player definitions, the player may respond differently to the up and down curve control, or the up and down songs may not be used normally. Supports devices with USB Type-C digital audio output and supports American standard 3.5mm headphones.
    3. The Meizu HiFi DAC headphone amplifier and Pro are automatically connected to the Windows 10 computer or Mac computer and can be used directly. To set high sound quality (such as DSD format), it is recommended to use the following combination on your computer:system:
    4. 1) macOS 10.11 + player: Audirvana Plus 3.2.4.    2) system: Windows10 + player: Foobar2000 or TuneBrowser.
    5. Because Meizu HiFi DAC and PRO have hardware or software compatibility issues with some devices, and Meizu can not solve it in the current. If it can not work with your device, please let us know.

    QUESTIONS & ANSWERS

    Ask a Question
    • How does this differ from the Meizu HiFi DAC (non-pro)? They look to be the same specs wise, so I'm confused as to why the pro version costs more.

      Meizu hifi pro is different from hifi dac.The Meizu HiFi DAC Pro comes with Ti OPA1622 Audio Operational Amplifier, HiFi pro with He-res certification. HIFI Pro uses braided cable.

    • Do you need to download any drivers to use with a Windows 10 computer???

      You can use it directly with a windows 10 computer

    • Does it support external microphone?

      Its just a DAC cable
