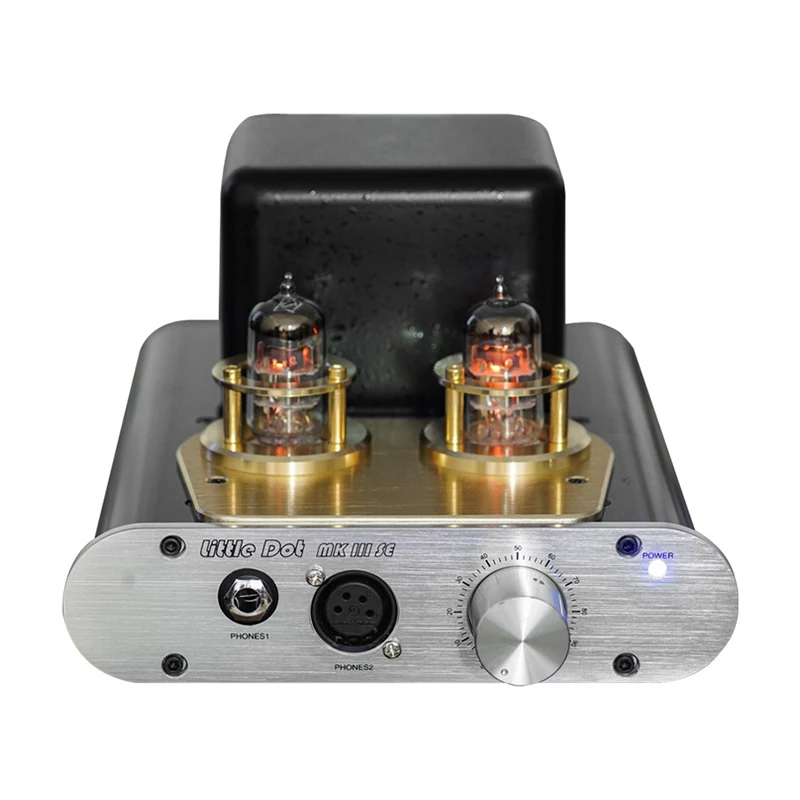

Little Dot MK3 SE MKIII SE LD 6N11 Tube Transistor Balance Pure Class A Amplifier
Write a review
|
Ask a question
---SpecificationsSplit---
Description
Little Dot LD III SE is a mixed tube-transistor, balance amplifier. Former level tube adopts 6N11(6922/ECC88,etc); Transistor part adopts full discrete, full symmetry, pure class a circuit amp; The machine to the whole balance, the balance is compatible with,have XLR balanced input,output, also have an RCA input,6.35 output; Very delicate secondary oxidation technology on chassis, and a gold-plated pipe rack.
Specification:
The input terminals:
Balance: XLR 3 p x2
Ubalance: RCA x2
The output terminal:
Balance: XLR 4 p x1
Ubalance: 6.35 mm x1
Input impedance:10K ohm
Distortion degree:0.001%(1000 hz)(output: 2v RMS)
SNR:95dB
Frequency response:5 hz-100 KHZ(1 dB)
Output power:
2.5W (32 ohm)
1.8W (120 ohm)
0.8W (300 ohm)
Adapter headphone impedance:32 ohm-600 ohm
Magnification:
Gain = HIGH:9
Gain = LOW:4.5
The power consumption:30 VA
Size:245x165x120mm
Weight:3Kg
