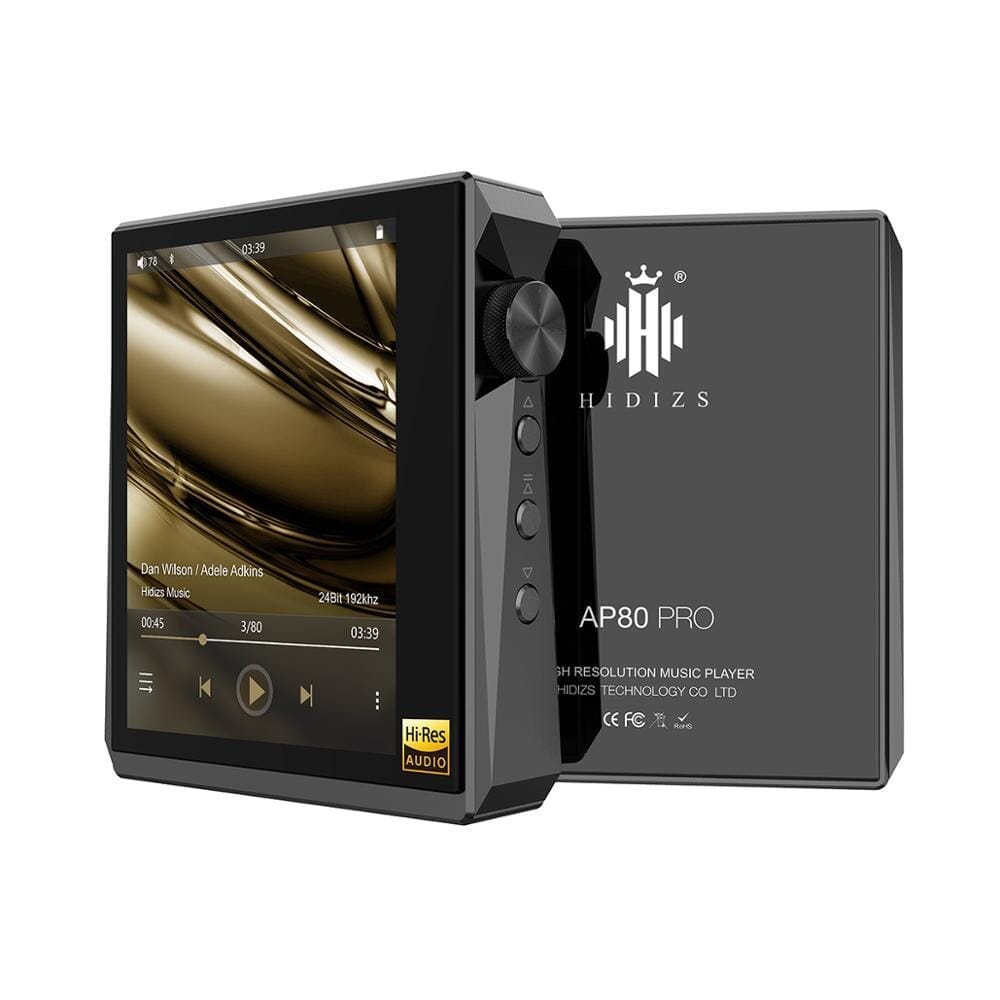

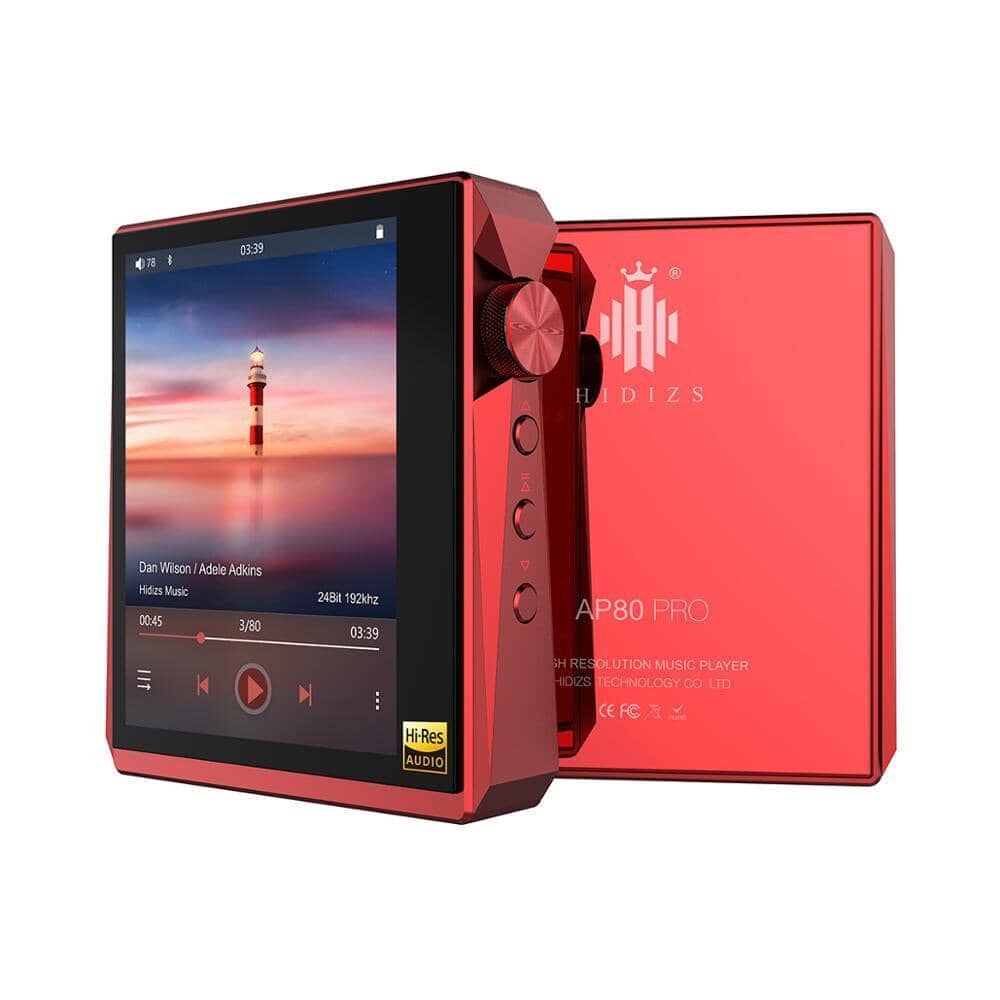

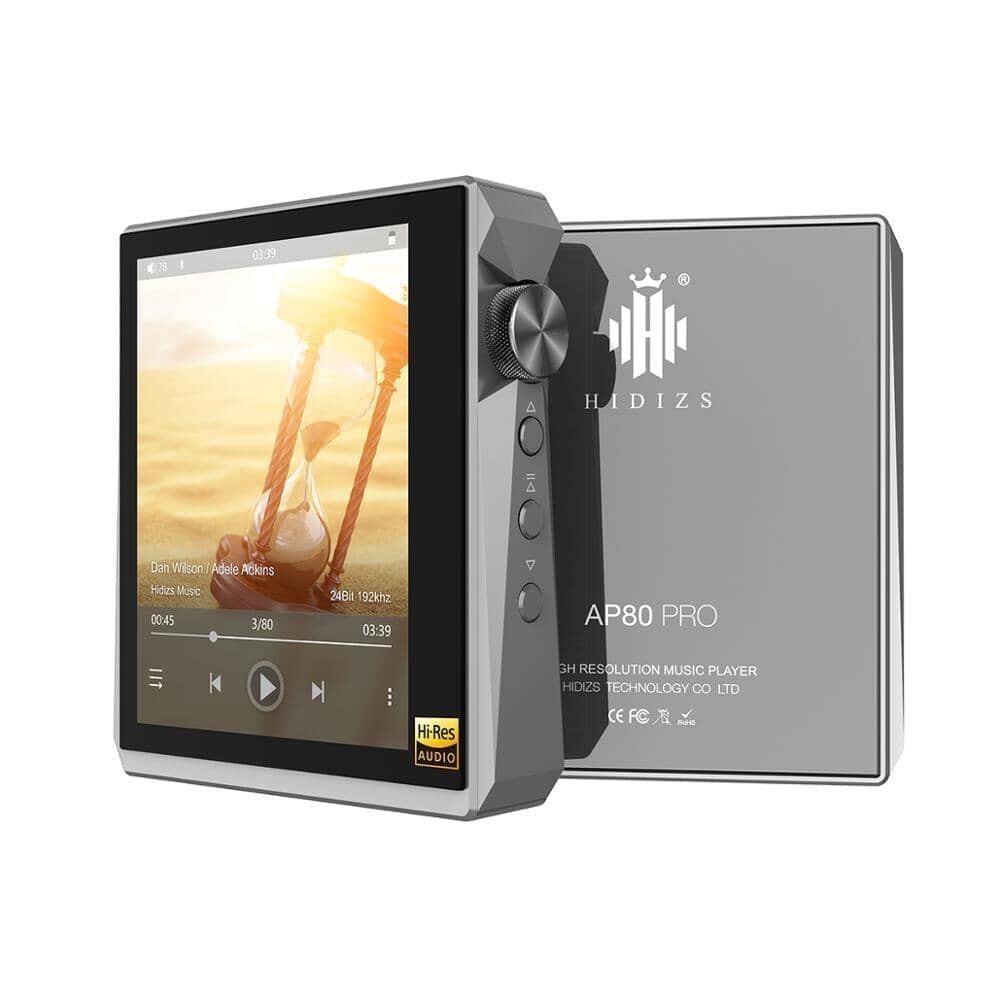

Hidizs AP80 PRO Fully Balanced Portable Music Player DAP
Technical Specifications:-
>High-Performance DUAL ES9218P DAC.
>PCM Decoding Up To 32-Bit/384kHz, DSD Up To DSD256 Natively.
>Dual Output Ports, 3.5mm Single-ended and 2.5mm Balanced.
>2.45” Samsung IPS Touchscreen Display(480x360).
>HBC3000 FPGA Hardware Decoding Chip.
>Bi-Directional Bluetooth V4.2 Support with Hi-Res Codecs including LDAC, APT-X, and more.
>HiBy UAT Support, custom-designed Bluetooth Codec by HiBy.
>USB DAC Support.
>Hi-Res Audio Certification.
>Step Counter.
>FM Radio.
>Aluminium Alloy Body with Stereoscopic Glass Back.
>Battery Life of up to 13 hours and up to 50 days of standby.
>USB Type-C Charging Port.
Hidizs has released its latest digital audio player in the form of Hidizs AP80 Pro. The Hidizs AP80 Pro is a very powerful DAP with dual ES9218P DAC chips, Dual Output Ports, small form factor with an aluminum alloy body, and glass back panel. The player is loaded with features and provides an uncolored natural sound output.
High-Quality Clean Audio Signal Decoding:-
Hidizs AP80 Pro is equipped with a high-performance dual DAC setup featuring Dual ES9218P DAC chips paired with FPGA HBC3000 hardware decode chip. The player is able to decode PCM up to 32-Bit/384kHz and DSD up to DSD256 natively. The decoding is noise and jitter-free. The player provides a pure detailed sound output.
Dual Output Ports with High Output Power:-
Hidizs AP80 Pro is equipped with dual output ports featuring a 3.5mm single-ended port and a 2.5mm balanced output ports. The 3.5mm single-ended output has an output rating of up to 70mW+70mW at 32 ohms of load, while the 2.5mm balanced port has an output power rating of up to 190mW+190mW at 32 ohms of load. It provides enough power to power your buds and IEM’s very easily.
Easy To Carry With Small Form Factor:-

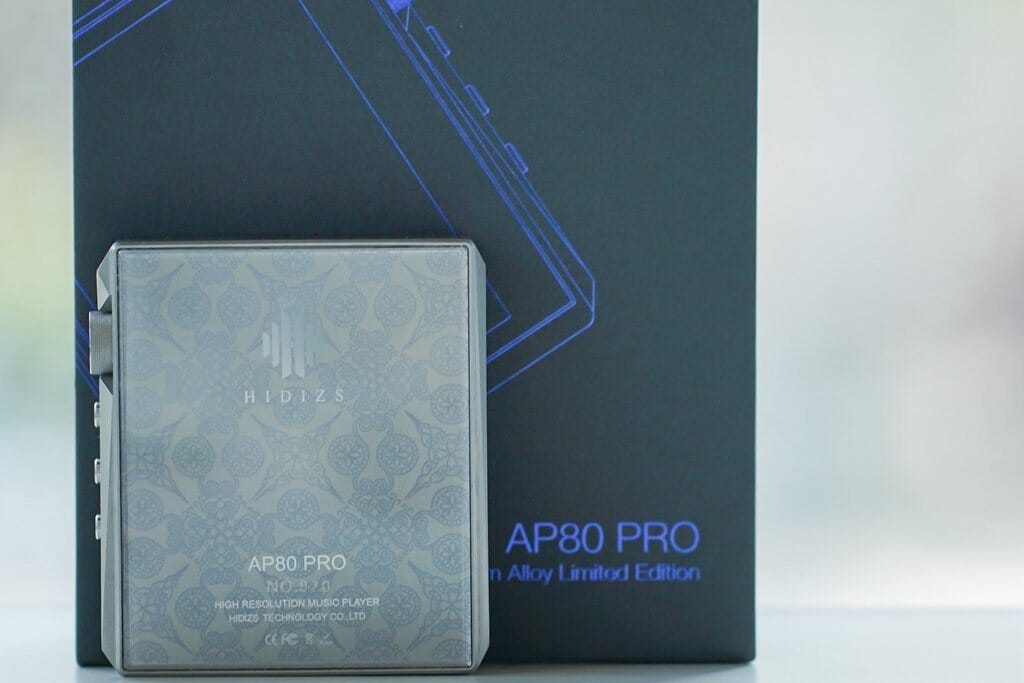

Hidizs AP80 Pro is a well-built product with a small form factor that makes it very easy to carry around with other gadgets. The body is made up of high-quality aluminum alloy material with a stereoscopic glass back panel to add to the rich look of the player. It also features a 2.45” Samsung IPS display with 480x360 resolution.
Wireless Freedom:-
Hidizs AP80 Pro features Bi-directional Bluetooth V4.2 wireless connectivity with hi-res codecs support including Sony LDAC, Apt-X, UAT, and many more. UAT stands for Ultra Audio Transmission. It is a new Bluetooth Codec developed by HiBy. It supports an industry highest sample rate of 192kHz at an industry highest data bandwidth of 1.2Mbps. It also ensures a strong and stable wireless Bluetooth connection.
USB DAC, FM Radio, and More:-
Hidizs AP80 Pro can be used as a USB DAC and enjoy good music with your PC or Laptop. It also features FM Radio and Steps counter. The player is loaded with features and provides a smooth user interface.

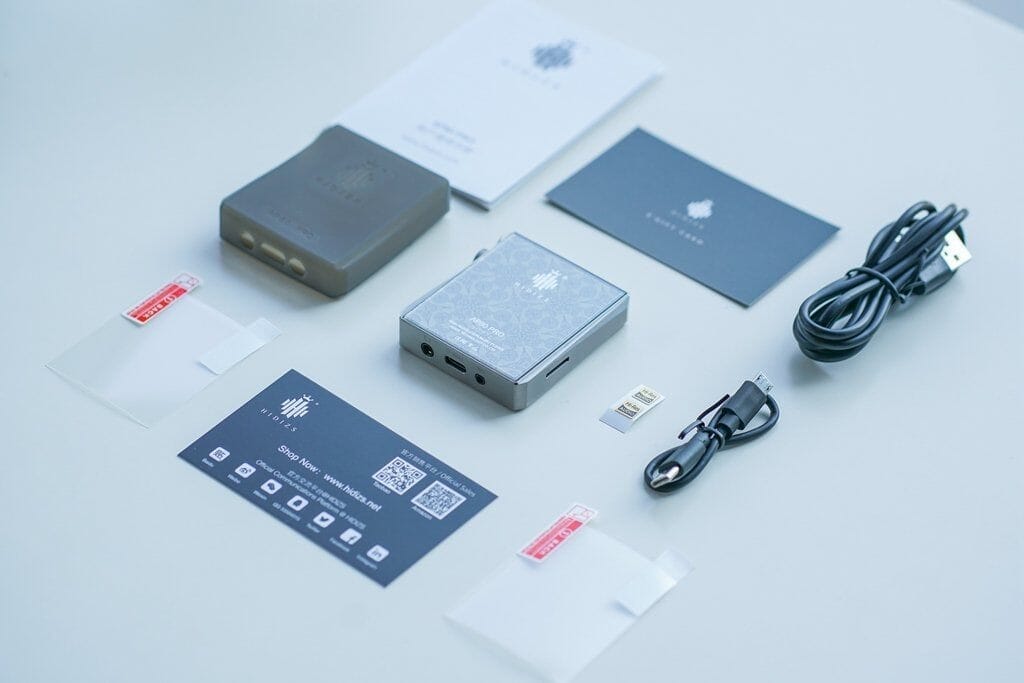

Package Contents:-
>Hidizs AP80 Pro.
>USB Type-C Charging Cable.
>USB Type-C to Micro USB Cable.
>Silicone Carry Case.
>Screen Protectors.
>User Guide.






Technical Specifications:-
>High-Performance DUAL ES9218P DAC.
>PCM Decoding Up To 32-Bit/384kHz, DSD Up To DSD256 Natively.
>Dual Output Ports, 3.5mm Single-ended and 2.5mm Balanced.
>2.45” Samsung IPS Touchscreen Display(480x360).
>HBC3000 FPGA Hardware Decoding Chip.
>Bi-Directional Bluetooth V4.2 Support with Hi-Res Codecs including LDAC, APT-X, and more.
>HiBy UAT Support, custom-designed Bluetooth Codec by HiBy.
>USB DAC Support.
>Hi-Res Audio Certification.
>Step Counter.
>FM Radio.
>Aluminium Alloy Body with Stereoscopic Glass Back.
>Battery Life of up to 13 hours and up to 50 days of standby.
>USB Type-C Charging Port.
Hidizs has released its latest digital audio player in the form of Hidizs AP80 Pro. The Hidizs AP80 Pro is a very powerful DAP with dual ES9218P DAC chips, Dual Output Ports, small form factor with an aluminum alloy body, and glass back panel. The player is loaded with features and provides an uncolored natural sound output.
High-Quality Clean Audio Signal Decoding:-
Hidizs AP80 Pro is equipped with a high-performance dual DAC setup featuring Dual ES9218P DAC chips paired with FPGA HBC3000 hardware decode chip. The player is able to decode PCM up to 32-Bit/384kHz and DSD up to DSD256 natively. The decoding is noise and jitter-free. The player provides a pure detailed sound output.
Dual Output Ports with High Output Power:-
Hidizs AP80 Pro is equipped with dual output ports featuring a 3.5mm single-ended port and a 2.5mm balanced output ports. The 3.5mm single-ended output has an output rating of up to 70mW+70mW at 32 ohms of load, while the 2.5mm balanced port has an output power rating of up to 190mW+190mW at 32 ohms of load. It provides enough power to power your buds and IEM’s very easily.
Easy To Carry With Small Form Factor:-
Hidizs AP80 Pro is a well-built product with a small form factor that makes it very easy to carry around with other gadgets. The body is made up of high-quality aluminum alloy material with a stereoscopic glass back panel to add to the rich look of the player. It also features a 2.45” Samsung IPS display with 480x360 resolution.
Wireless Freedom:-
Hidizs AP80 Pro features Bi-directional Bluetooth V4.2 wireless connectivity with hi-res codecs support including Sony LDAC, Apt-X, UAT, and many more. UAT stands for Ultra Audio Transmission. It is a new Bluetooth Codec developed by HiBy. It supports an industry highest sample rate of 192kHz at an industry highest data bandwidth of 1.2Mbps. It also ensures a strong and stable wireless Bluetooth connection.
USB DAC, FM Radio, and More:-
Hidizs AP80 Pro can be used as a USB DAC and enjoy good music with your PC or Laptop. It also features FM Radio and Steps counter. The player is loaded with features and provides a smooth user interface.
Package Contents:-
>Hidizs AP80 Pro.
>USB Type-C Charging Cable.
>USB Type-C to Micro USB Cable.
>Silicone Carry Case.
>Screen Protectors.
>User Guide.
Questions & Answers
Have a Question?
-
How long is the battery life?
50 days of deep standby and 13 hours of continuous playback.
-
What are the product dimensions?
61×56×13.8mm
-
What is the type of memory card I can use?

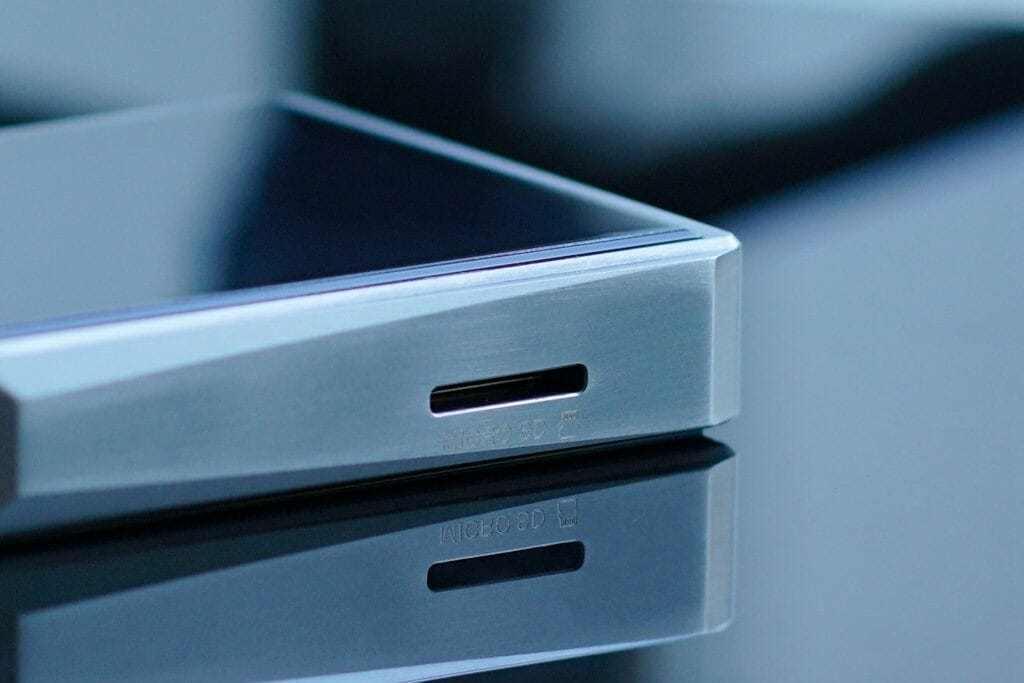

The Hidizs AP80 Pro supports MicroSD Cards up to 512G.
-
Can I change the digital filters?
Yes, you can easily change between 8 different digital filters.
-
How many gain settings?
The Hidizs AP80 Pro has a low and high gain setting.
-
What type of balanced cable or jack do I need to use the balanced output?
The Hidizs AP80 Pro has 1 balanced output port compatible with 2.5mm jacks.
-
Is the AP80 Pro balanced?
Yes the Hidizs AP80 Pro has dual ES9218P DAC chips and so is fully balanced with 1 balanced 2.5mm output.
-
How can I navigate/use the AP80 Pro?

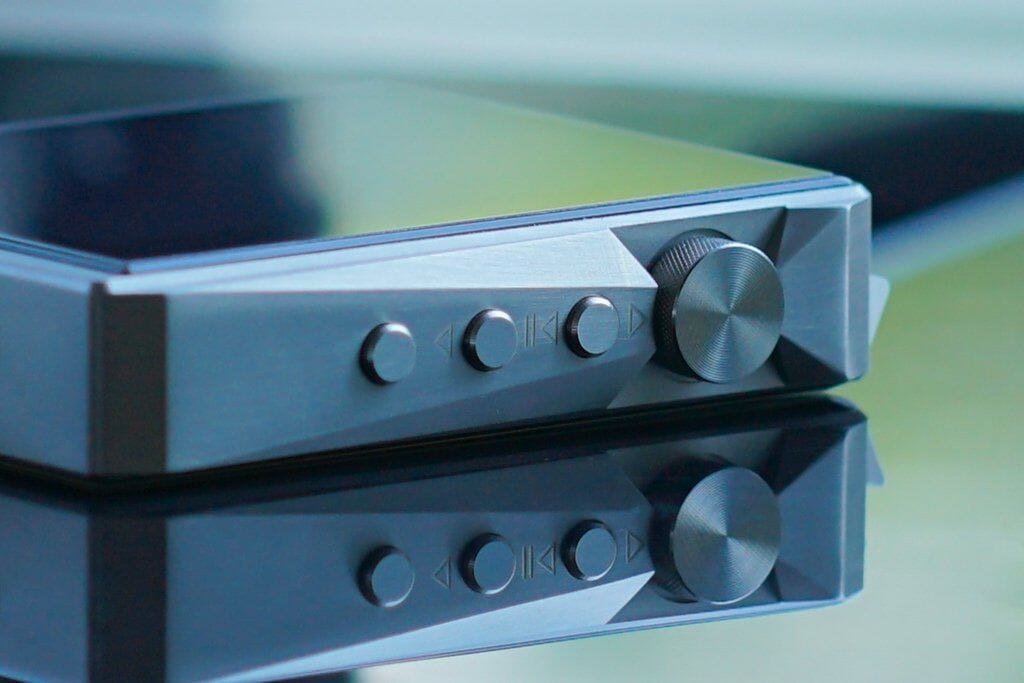

The Hidizs AP80 Pro can be used by the touchscreen, the tactile buttons on the side, and also the Japanese ALPS volume wheel.
-
What type of USB does the AP80 Pro use?
The Hidizs AP80 Pro uses Type-C USB2.0.
-
Is it compatible with iOS/Android?
Yes.
-
Does it support 96kHz PCM?
Yes the Hidizs AP80 Pro supports PCM up to 32bit/384kHz.
-
Does it support DSD?
Yes the Hidizs AP80 Pro Supports DSD up to DSD256.
-
Does it support remote operation or HiBy Link?
Yes. The AP80 Pro supports remote operation through HiBy Link, But the HiBy App needs to be installed on the phone or tablet first.
-
Is the Bluetooth Bidirectional?
Yes. The AP80 Pro can act as a Bluetooth audio source or a wireless Bluetooth decoding amplifier.
-
What types of Bluetooth codecs does it support?
The Hidizs AP80 Pro supports Hiby UAT, APT-X, and Sony LDAC codecs.
-
What version of Bluetooth does the Hidizs AP80 Pro have?
The Hidizs AP80 Pro has Bluetooth 4.2. Capable of transmitting “CD-like” audio quality over Bluetooth.
-
Is the Hidizs AP80 Pro Hi-Res certified?
Yes, the Hidizs AP80 Pro is Hi-Res certified from the Japan Audio Society (JAS) and carries the logo.
-
Can I use the Hidizs AP80 Pro as a USB DAC with my Android phone?
Yes but only with Android phones that support the OTG function.
-
Can I use the Hidizs AP80 Pro as a USB DAC on my PC/Mac/Linux/Android?
Yes, the Hidizs AP80 Pro can be used as a USB DAC with the aforementioned devices.
-
Does it have an EQ function?
Yes, the Hidizs AP80 Pro has an EQ feature with 8 EQ effects preinstalled along with the ability to customize your EQ.
-
Does it have Radio?
Yes, The Hidizs AP80 Pro features FM radio function.
-
What kind of DAC chip does the Hidizs AP80 Pro use?
The Hidizs AP80 Pro uses 2 ES9218P DAC Chips in a dual configuration.
