Twelve Upgrades With Latest FiiO M11 Plus Android Music Player:- M11 Plus Vs M11 Pro Vs M11

Twelve Upgrades With Latest FiiO M11 Plus Android Music Player:- M11 Plus Vs M11 Pro Vs M11

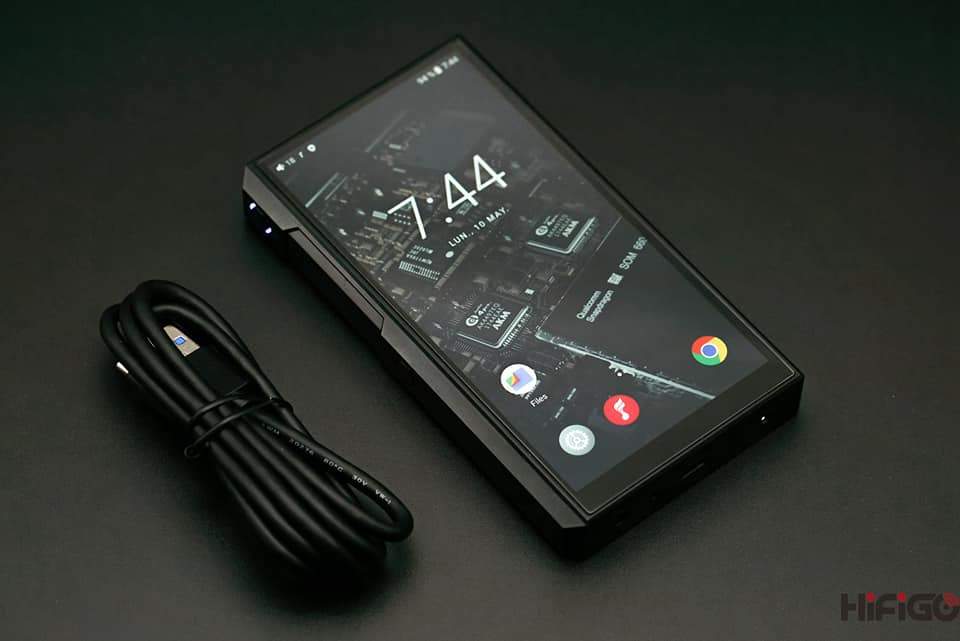

Fiio recently announced its latest Android digital audio player, the M11 Plus that comes as an upgrade on the award-winning M11 Pro music player. The M11 Plus is the third product in the M11 series of Android music players after M11 Pro and M11 itself. It brings all the necessary upgrades to update the series to the latest technology with faster SoC, Latest Android OS, a New Innovative Volume system, more Ram memory, a bigger display, and many more upgrades. There are more than 10 updates that FiiO has brought for us with the M11 Plus over the M11 Pro. But how do these upgrades actually affect the performance of M11 Plus over the previous models? What changes does M11 Plus actually bring for the end-users? Today we are bringing you a comparison between all three M11 models and their technical specifications.

FiiO M11 Plus-1

Technical Comparison:-

Specification

M11 Plus

M11 Pro

M11

DAC

Dual AK4497EQ

Dual AK4497EQ

Dual AK4493

Amplifier Module

THX AAA78*2

THX AAA78*2

OPA926*2

SoC(CPU Chip)

Snapdragon 660

Exynos 7872

Exynos 7872

Memory(RAM)

4GB

3GB

3GB

Storage

64GB

64GB

32GB

Crystal Oscillator

Femtosecond Crystal

Normal Crystal

Normal Crystal

PCM Decoding

32-Bit/384khz

32-Bit/384kHz

32-Bit/384kHz

DSD Decoding support

DSD256

DSD256

DSD256

MQA Decoding

8X

8X

8X

Exclusive Shortcut Key

Yes

No

No

Display

5.5” 720*1440 Bezel less

5.15” 720*1440

5.15” 720*1440

Android

Android 10

Android 7

Android 7

Volume Control

Physical Keys+Swipe Touch Panel

Scrollwheel

Scrollwheel

Headphone Output

2.5/3.5/4.4mm

2.5/3.5/4.4mm

2.5/3.5/4.4mm

Gain Modes

Three(Low/Med/High)

Two(Low/High)

Two(Low/High)

Output Power

Up to 588mW(32ohm, Bal)

Up to 550mW(32ohm, Bal)

Up to 600mW(32ohm, Bal)

Balanced Line-Out

Supported

Not Supported

Not Supported

Bluetooth Connectivity

V5.0

V4.2

V4.2

Bluetooth Transmission Codec Support

SBC/AptX/AptX HD/LDAC/AAC

SBC/AptX/AptX HD/LDAC

SBC/AptX/AptX HD/LDAC

Bluetooth Reception Codec

SBC/AAC/LDAC

SBC/LDAC

SBC/LDAC

USB Type-C Connect

Faster V3.0

V2.0

V2.0

USB Write Speed

Up to 90MB/S

Up to 30MB/s

Up to 30MB/s

Battery

6000mAh

4370mAh

3800mAh

Battery Life

Up to 11.5H

Up to 9.5H

Up to 13H

Charging Power

Up to 27W

Up to 18W

Up to 18W

Apple Music

Supported

Not supported

Not supported

MicroSD Card Slots

1(Up to 2TB support)

1(Up to 2TB support)

2(Up to 2TB support on each slot)



FiiO M11:

FiiO M11-1

FiiO M11 Pro:

FiiO M11 Pro-1

FiiO M11 Plus:

FiiO M11 Plus-2

Key Upgrades With M11 Plus over the M11 Pro and Standard M11 model:-

Faster SoC:-

The main improvement with the M11 Plus in the series is the faster SoC chip resulting in a better, faster user experience and the latest Android OS support too. M11 Plus utilizes Qualcomm’s advanced Octa-core Snapdragon 660 chip that delivers exceptional performance improvements over the Hexa-core Exynos 7872 found in both M11 and M11 Pro.

New-Digital Audio Purification System(DAPS):-

FiiO has upgraded the audio chipset in the M11 Plus with their self-developed 4th-Generation FPGA+ premium NDK Femtosecond crystal oscillator clock that ensures a pure, natural sound output. Both the M11 Pro and M11 featured standard crystal oscillator clocks.

New 6th-Generation Honeycomb Design with Bezel-Less Display:-

FiiO M11 Plus boasts an aggressive look with its latest 6th-generation Honeycomb design(buttons have a hexagonal shape). It also features a bigger 5.5” bezel-less display. Display in M11 Plus is not only beautiful to look at with its bezel-less design, but it also has better color reproduction and crisp image clarity. Both the previous models are almost identical in looks with the same 5.15” display, the only difference being PRO branding on the side of the device in the M11 Pro model. On the back, M11 Plus has a beautiful diamond-cut pattern while the M11 Pro and M11 had a plain glass back panel.

FiiO M11 Plus-3

New-Generation Touch-Sensitive Volume Control:-

FiiO M11 Plus features newly-designed volume control using physical buttons and a sliding touch panel. Forget the traditional volume scroll wheel that was there on the M11 and M11 pro, Now adjust the volume by simply sliding your finger on the touch panel between the physical volume buttons. It brings a new innovative experience for its users.

Increased RAM:-

FiiO has increased the RAM in FiiO M11 Plus from 3GB in the previous models to 4GB. Increased RAM allows for better multi-tasking with the device, smoother performance even during prolonged use.

Latest Android 10 OS:-

The old-generation Exynos SoC chipset was holding the M11 and M11 pro to receive the latest Android updates. But with the Implementation of the Snapdragon 660 chipset M11 Plus comes loaded with FiiO’s first iteration of Android 10 with over 137 icons redrawn, every detail customized, everything made sure to be beautiful and intuitive. It also supports the latest functions such as Dark mode, Night mode, and three navigation options to further enhance the user experience. With the latest Android, Apple Music support is also added to the M11 Plus.

FiiO M11 Plus-4

Balanced Line-Out Support:-

Along with the regular 2.5/3.5/4.4mm headphone output ports present in both M11 Pro and M11 models, M11 Plus also features a Balanced 4.4mm line-out port. It allows the device to be paired with balanced amplifiers without any trouble. Both the M11 Pro and M11 lack this dedicated balanced line-out functionality.

Unique Shortcut Key:-

FiiO M11 Plus features a fully customizable shortcut key near the volume panel on the side of the player. It is exclusive with the M11 Plus model and was not present in any of the FiiO’s devices before. It can be customized to execute complex operations with a single click such as Random Next Track, Delete Currently Playing Song, Switch Between Digital Filters, Switch EQ, and many other options.

Triple Gain Modes For All Kinds Of Headphones:-

M11 Plus features three-level gain modes to pair different headphones with the device. Each gain mode offers 120-volume steps allowing for precise volume adjustment with both sensitive and power demanding headsets.

FiiO M11 Plus-5

Improved Bluetooth Connectivity:-

FiiO M11 Plus supports Bluetooth V5.0 connectivity that provides a stronger, more stable connection in comparison to the V4.2 connectivity offered by M11 Pro and M11 models. With Apple Music Support, the M11 Plus also added support for AAC codec along with the regular LDAC/AptX/AptX HD/SBC codecs supported by the previous devices.

Bigger Battery:-

Battery size in M11 Plus has been increased from 4370mAh in M11 Pro to 6000mAh in the M11 Plus. M11 Plus provides up to 11.5H of continuous music playback that was restricted to 9.5H on the M11 Pro. The OG M11 had a battery life of up to 13H even with a smaller 3800mAh battery.

Faster USB Connection:-

FiiO has upgraded the USB Type-C port to V3.0 in the M11 Plus. It provides fast charging support up to 27W, faster write speed of up to 90MB/s. Both the M11 Pro and M11 had a USB V2.0 connection port supporting 18W fast charging and 30MB/s write speed.

FiiO M11 Plus-6

All these upgrades make the M11 Plus worth over both the previous models as it provides a snappier user experience, improved battery, Balanced Line-out function, latest Android OS, and many more features overall providing a better user experience. The M11 Plus is not only a worthy upgrade but also an amazing device for people looking to get a high-end portable audio experience. Check out more details about the M11 Plus on our store page here.
