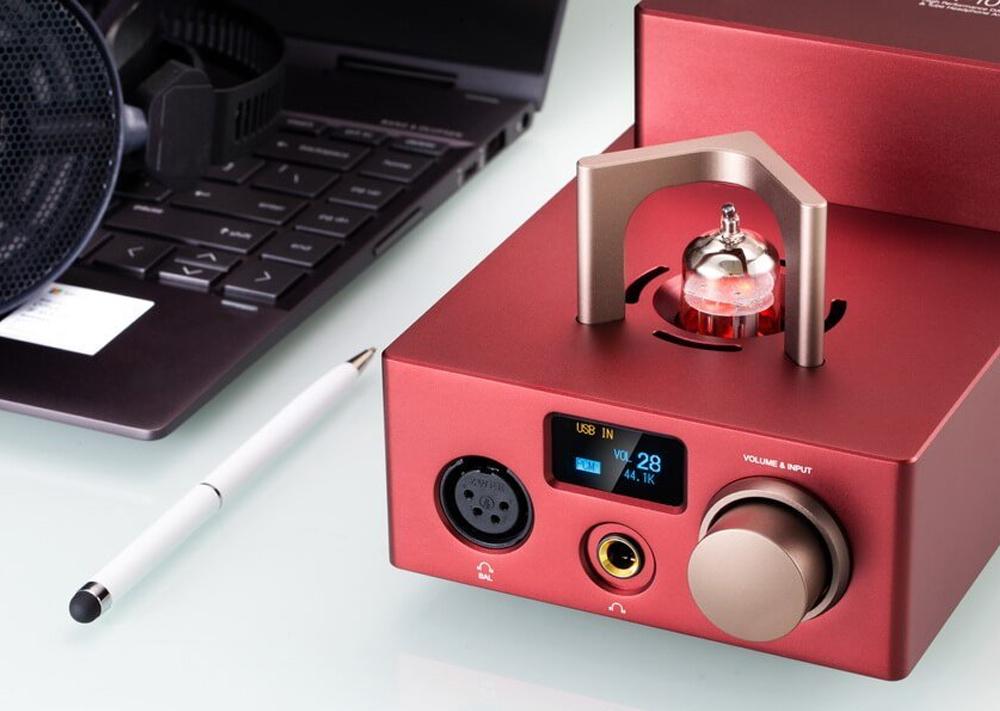

xDuoo Releases TA-10R: Upgraded Tube Amplifier!!

xDuoo Releases TA-10R: Upgraded Tube Amplifier!!

xDuoo has upgraded its classic tube amplifier, the xDuoo TA-10 to the latest xDuoo TA-10R. The latest TA-10R features an upgraded AKM4493 DAC chip and supports optical and coaxial inputs. While keeping the design aesthetics the same as before xDuoo has changed the body color to Red. The xDuoo TA-10 is one of the best tube amplifiers in its price range, xDuoo has brought that experience forward with the TA-10R improving the overall output with a better DAC system. The latest TA-10R is priced at 299.90$, check out more details here.

xDuoo TA10R-1

Features:-

* Classic tube 12AU7.

* Top level XMOS 8-core chip (XU208).

* High-Performance AKM DAC chip AK4493EQ.

* USB/coaxial digital interface.

* Class-A Transistor expansion.

* USB OTG.

* Dual clock system.

* Combination of tube and transistor.

* Japanese ELNA SILMC capacitors.

* Shell made from aluminum.

* Magnetic tube guardrail.

* Power supply: AC 100–240V.

* Supported OS: Windows (requires drivers), Mac.

* Sample rate: SB input.

* PCM: 16–32 bit/44.1–384 kHz.

* DSD: DSD64–DSD256 (1bit/2.8M–11.2M).

* DXD: 24–32 bit/352.8–384 kHz.

* Output power: 6.35mm: 2,000 mW (at 32 ohms); XLR: 2,000 mW (at 32 ohms).

* Frequency response: 10 Hz–100 kHz(+/- 1 dB).

* Gain: +18 dB.

* Distortion: ≤ 0.01% (1 kHz, 32-ohm load).

* Suitable headphone impedance: 8–600 ohms.

* Size: 9.1 x 4.7 x 4.1 in (23 x 12 x 10.5 cm).

* Weight: 3.3 lbs (1.5 kg).

* USB input.

* Two sets of AUX inputs.

* SPDIF output.

* AUX output.

In The Pursuit Of Perfection:-

xDuoo TA10R-2

In order to design a perfect sounding product, xDuoo has equipped the TA-10R with the best of the components in the market. It features a premium audio chipset housing a high-performance AK4493 DAC chip from Asahi Kasei Technologies. The decoding chip is paired with a HiFi CPLD chip, Dual active crystal oscillators, and other premium components for a premium high-fidelity output. It has adopted the ECC82/12AU7 tube to process and refine the audio signal.

High-Quality USB Signal Decoding:-

When connected to the USB interface, the TA-10R utilizes the power of a top-level XMOS 8-core chip(XMOS XU208). It enables the device to decode PCM up to 32-Bit/384kHz and DSD up to DSD256 natively. The TA-10R supports USB signal decoding with PC, smartphones(Both Android and iOS).

xDuoo TA10R-3

Class A Amplification:-

In electronics, amplifier classes are letter symbols assigned to different amplification types. The xDuoo TA-10R is a class A amplifier. A class A amplifier conducts through the entire period of a signal resulting in a better output amplification with ultra-low distortion.

Coaxial & Optical Input:-

The latest xDuoo TA-10R now supports Coaxial and Optical audio signal input options. Please note that with the Coaxial & Optical input options, the player can only decode up to 24 Bit/192kHz.

Powerful Output:-

The xDuoo TA-10R features two headphone output ports, one 4-pin XLR  balanced port, and the other 6.35mm single-ended headphone output port. The device outputs a humongous output power of up to 2000mW @ 32 Ohm of the load. 2000mW or 2W is actually a lot of power, it can power up any of your demanding headphones with ease. xDuoo suggests up to 600 Ohm headphone pairing with the device.

xDuoo TA10R-4

Pricing & Availability:-

The xDuoo TA-10R has got a price tag of 299.90$. At its price point, the TA-10R is a fabulous tube amplifier with a high-quality audio chipset. Grab it today!! Check out more details here.

Comparison Between TA-10 and TA-10R:-

>Both the devices are high-class Tube amplifiers.

>The latest TA-10R features an AK4493 DAC chip while the AK4490 comes equipped with an AK4490 DAC chip.

>The latest TA-10R features Optical and Coaxial signal input options, No such options in the previous model.

>It is available in Red color now.
