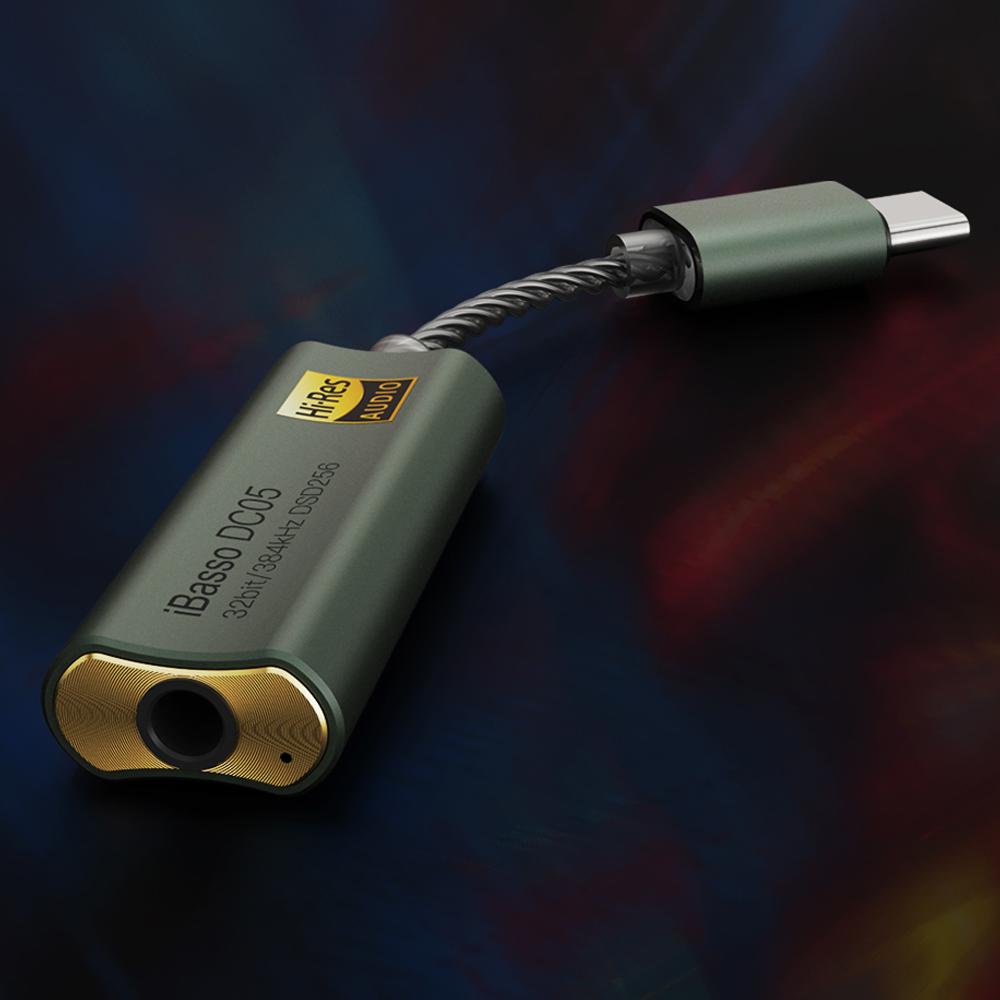

Meet The Brand New iBasso DC05: Latest MQA USB DAC/AMP

Meet The Brand New iBasso DC05: Latest MQA USB DAC/AMP

iBasso changed the way we enjoy our High-Res music using our smartphones. With their wide range of “DC” series of Portable USB DAC/AMPs, they brought us 3.5mm, 4.4mm, and 2.5mm headphone jacks to use with current-gen smartphones where headphone jacks are a rare sight. Today, iBasso has released the fifth installment in the famous “DC” series, meet the latest iBasso DC05. The latest DC05 has a Dual DAC chipset with two high-performance ES9219C ESS Sabre DAC chips. iBasso has integrated their latest Quad DAC+ technology in the DC05 combined with dynamic range enhancement. DC05 delivers quality performance with its latest HyperStream III architecture achieving a high-dynamic-range of up to 121dB and low THD+N ratings of <0.00056%. It features a single-ended headphone output interface with a 3.5mm output port. iBasso has always priced its products with competitive prices, the same can be said for the latest DC05 available for just 59.99$. Order yours here.

iBasso DC05-1

Features:-

>Dual ES9219C DAC chips.

>Self-developed Quad DAC+ Technology.

>Time Domain Jitter Eliminator.

>HyperStream III architecture.

>MQA Decoding.

>Supports 32-Bit/384kHz PCM decoding.

>Supports native DSD256 decoding.

>Powerful output voltage.

>Precise volume adjustment.

Technical Specifications:-

>THD+N: <0.00056%.

>Output voltage: 2Vrms(300Ω load), 1.73Vrms(32Ω load).

>Output power: 140mW@16Ω, 93mW@32Ω.

>Frequency Response: 20Hz-40kHz.

>Dynamic range: 121dB.

>SNR: 121dB.

>Output Impedance: <0.5Ω.

>Weight: 9grams.

>Length: 105mm.

>Interface: Type-C.

iBasso DC05-2

Quality Performance With Premium Dual DAC Chipset:-

iBasso DC05 adopts a premium Dual DAC chipset featuring two high-performance ES9219C DAC chips from Sabre Technologies. It is the same DAC configuration that is featured in many famous audio players and decoders including the latest Shanling M3X. ES9219C is a premium 3rd generation audio decoding chip from Sabre Technologies that delivers quality performance. DC05 features Time Domain Jitter Eliminator and Hyper Stream III architecture delivering a class-leading dynamic range of 121dB and low THD+N level of less than 0.00056%. Users will experience true high-resolution sound performance just with their smartphones and iBasso DC05.

Supports High-Resolution Audio Signal Decoding:-

iBasso DC05 supports decoding for high-resolution audio signals with great precision and quality. It turns your regular smartphone into a full-blown Hi-Res audio player with support for 32-Bit/384kHz PCM as well as native DSD256 decoding.

iBasso DC05-3

Full MQA Decoding:-

iBasso DC05 supports MQA(Master Quality Authenticated) decoding. It has received the required certification and properly decodes high-resolution MQA signals delivering a true sound performance for the users. MQA streams are capable of providing pure sound performance as the recording engineer intended.

Powerful Output With Ultra-Low Impedance:-

iBasso DC05 has a single-ended 3.5mm headphone output port with an ultra-low impedance rating of less than 0.5Ω. It provides up to 140mW of clean power @ 16Ω of load. Even at 32Ω of load, the DC05 outputs up to 93mW of power which is more than adequate to power most earphones in the market.

Precise Volume Adjustment:-

iBasso has developed a custom volume control application that uses the latest UAC2.0 USB protocol to enable 64-step volume control by a connected source device. This allows the users to use both sensitive as well as demanding earphones/headphones with the DC05.

iBasso DC05-4

Pricing & Availability:-

iBasso DC05 is available at an attractive price of just 59.99$. Shipments will begin shortly, order yours today!!
