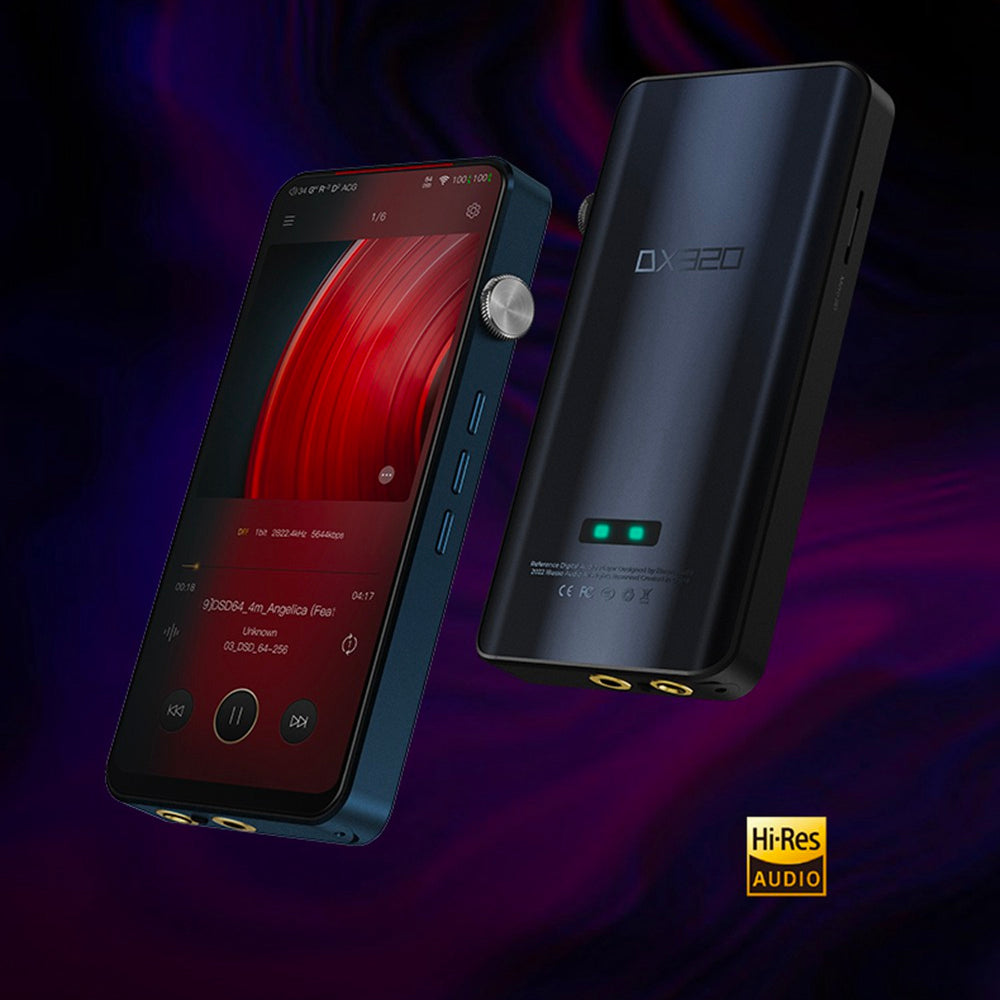

iBasso Announces "DX320": Reference-Grade Flagship Digital Audio Player

iBasso Announces "DX320": Reference-Grade Flagship Digital Audio Player

iBasso has got years of experience in designing high-end and premium audio gears. Over the years they have gained expertise over premium Hi-Res players with so many successful models under their brand name such as DX240, DX160, DX300, and more. Apart from Digital audio players, iBasso is also known for other categories including IEMs, Portable DAC/AMPs, etc. The latest from the iBasso is a brand new flagship digital audio player, the iBasso DX320. iBasso DX320 is a reference-grade flagship digital audio player equipped with top-of-the-line hardware for exceptional audio performance. iBasso has trusted the latest launched flagship DACs(Audio Decoding Chips) from ROHM, actually, their latest launched MUS-IC™ series DAC chips for the DX320. The player has dual System Controllers and Dual Batteries, all done for nothing else but a pure high-resolution sound experience. iBasso DX320 is launched officially for 1,599$. It is currently up on pre-order with us, and shipments will begin by the middle of May. You can check out more details on our product page here.

iBasso DX320-1

Features:-

>Flagship Dual DAC chipset with 2xBD32301EKV DAC chips from ROHM.

>In-house developed FPGA master controller.

>Excellent Performance With Industry-leading SNR and THD+N ratings.

>Patented Dual Battery Power Supply structure.

>Ultra-fast lag-free performance with Snapdragon 660 SoC.

>Replaceable AMP card.

>Stock AMP11 MK2s chipset.

>Stunning 6.5” display(2340x1080P resolution).

>Dual operating systems(Android 11 & Mango OS).

>Professional-grade Parametric Equaliser.

>True MQA 16X support.

>Bluetooth V5.0 connectivity.

>High-speed Wifi connectivity.

>Up to 10 hours of continuous music playback.

>Supports QC3.0, PD3.0 quick charging.

Technical Specs:-

>Model: DX320.

>Screen: 6.5” IPS display.

>USB Type: Type-C 3.1.

>RAM+ROM: 6GB+128GB.

>Battery Capacity: 4000mAh for digital section, 2000mAh for AMP card section.

>Charging Time: 2.5H.

>Dimensions: 162x77x17mm.

>Weight: 205grams.

AMP11 MK2s Specifications:-

>Output Ports: 4.4mm/2.5mm balanced/3.5mm single-ended headphone outputs, 3.5mm coaxial output, USB OTG output.

4.4mm/2.5mm balanced output specs:-

>Maximum output level: 7.1Vrms.

>Output power: 1200mW@32Ω, 168mW@300Ω.

>Frequency Response: 10Hz-40kHz.

>SNR: 125dB.

>Dynamic Range: 125dB.

>THD+N: Up to -112dB.

>Crosstalk: -120dB.

>Output impedance: 0.38Ω.

3.5mm SE output specs:-

>Max output level: 3.5Vrms.

>Output power: 380mW@32Ω, 40mW@300Ω.

>Frequency Response: 10Hz-40kHz.

>SNR: 122dB.

>Dynamic Range: 122dB.

>THD+N: Up to -110dB.

>Crosstalk: -114dB.

>Output impedance: 0.34Ω.

iBasso DX320-2

Reference-Grade Hi-Res Sound Performance With Flagship DAC Chips:-

iBasso’s latest DX320 Digital Audio Player uses a flagship-grade Dual DAC chipset. It adopts two BD34301EKV DAC chips designed by ROHM as a part of their latest MUS-IC™ series. The Dap achieves class-leading performance with ultra-low distortion ratings and high SNR ratings. They provide super clean high-resolution audio signal decoding, users are gonna get a true high-resolution audio experience with the DX320.

Patented Dual Battery Architecture:-

The battery and power management system play an important role in High-end audio systems. The battery system greatly influences the sound performance. iBasso has designed the latest DX320 digital audio player with a patented dual battery power architecture. Here one battery is placed for DAC and other components on the circuitry while there’s a secondary battery specifically for the amp section. This patented dual Battery architecture enables the DX320 to produce a clean and detailed sound presentation.

iBasso DX320-3

Custom-Developed FPGA Master Audio Architecture:-

iBasso has used an in-house developed FPGA-Master Technology. It is a system-wide audio controller that directly requests the audio Data from the SoC chip and presents it directly to the DAC chipset. It utilizes two accusilicone femtosecond crystal oscillators to achieve a fully synchronized single clock source. FPGA Master technology makes the audio processing to be the main task in the system, ensuring a stable and interference-free audio experience for the users.

Dual Operating Systems:-

iBasso DX320 has dual operating systems. They have an open Android 11 OS and a Linux-based Mango OS. Users can choose whether they want an open Android experience where they can use countless media applications or they just want a dedicated music player. Obviously, these can be switched easily anytime the user desires.

iBasso DX320-4

Swappable AMP Module, Stock AMP11 MK2s:-

Over the years, iBasso has designed music players with swappable amp motherboards. The latest DX320 is no different. It supports easily swappable amp motherboards. Currently, the DX320 comes bundled with the latest AMP11 MK2s amp module. It has 3.5mm SE, 2.5mm Bal, and 4.4mm Bal headphone output ports(they also have a line-out function). The maximum output power rating of AMP11 MK2s is up to 1200mW @ 32Ω through the balanced outputs.

Snappy User Interface:-

iBasso has equipped the DX320 with 8-core Qualcomm Snapdragon 660 SoC chip. It is a 14nm architecture SoC chip, that takes less power and delivers faster performance. With 6GB RAM and 128GB ROM, the DX320 has a smooth lag-free user interface just like your smartphones.

iBasso DX320-5

Stunning 6.5” Display:-

iBasso DX320 houses a large 6.5” full-screen display with super-thin bezels. It produces crisp images with stunning clarity. The screen has a resolution of 2340x1080 pixels.

Large 4000mAh Battery:-

iBasso DX320 houses a large 4000mAh battery that can provide continuous music playback for up to 10 hours straight. This battery also has QC3.0 and PD4.0 fast charging support.

Price & Availability:-

iBasso DX320 is currently up for pre-order priced at 1599$. It is available in two different color options, Black and Blue. You can check out more details on our product page here.
