FiiO Q5s Type-C Latest USB DAC/AMP Announced

FiiO Q5s Type-C Latest USB DAC/AMP Announced

FiiO Q5s is one of the most famous USB DAC/AMPs of its generation. FiiO has now updated the Q5s with new technology to keep up with today’s market. It has got an update right from the heart with a new updated Dual DAC chipset, THX AAA amplification module, USB Signal Receiver, Bluetooth Signal Receiver, and most importantly the USB Interface. Instead of the previous gen’s micro USB interface for audio signal input and charging the latest Q5s feature a Type-C interface for both charging the device and audio signal input. The latest FiiO Q5s Type-C is priced at 369.99$, check out more details here.

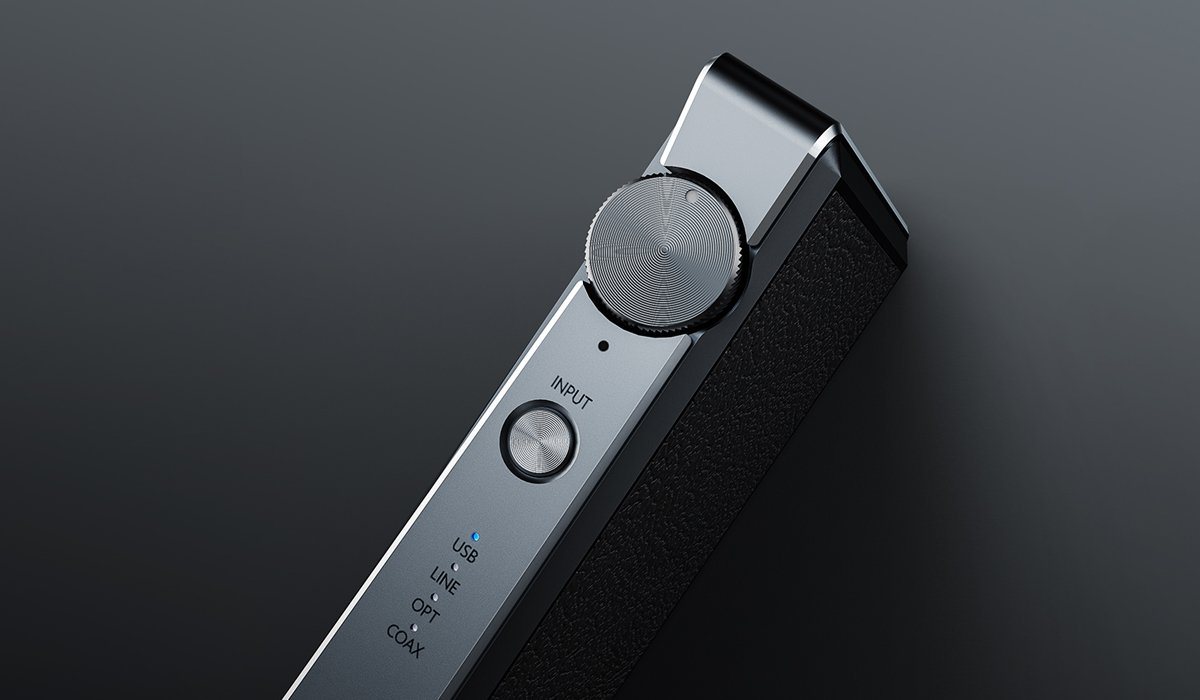

FiiO Q5s TypeC-1

Features:-

>Dual AK4493EQ DAC Chips.

>XMOS XU208 USB Signal Receiver Chip.

>Supports PCM Decoding up to 32Bit/768kHz.

>DSD Decoding up to DSD512 natively.

>THX AAA Amplification.

>QCC5124 Bluetooth Chip.

>Bluetooth V5.0 Connectivity.

>High-Res Bluetooth codecs including LDAC, AptX HD, and more.

>Variety of input options including Coaxial, Optical, Line-in, USB.

>Variety of output: 3.5mm/4.4mm/Line-out.

>Replaceable AMP Module(Bundled with THX AAA AM3D Module).

>Audiophile-grade power supply.

>RGB Light Indicator.

Technical Specifications:-

>Output Power(Single-ended): Up to 220mW @ 32Ohm.

>Output Power(Bal): Up to 560mW @ 32Ohm.

>THD+N: <0.002%(1kHz/32Ohm).

>Output Impedance: 1Ohm.

>Headphone Out: 3.5mm/4.4mm/Line-out.

>Signal Input: USB Type-C/Coax/Optical/Line-in.

>3800mAh Battery.

>Up to 25 hours of battery life(Aux-In).

>Up to 9.5 hours battery life(USB/Coax/Optical/Bluetooth).

Latest USB Type-C Interface:-

FiiO Q5s TypeC-2

Almost all the new devices whether it be smartphones or digital audio players are switching to the USB Type-C interface from the traditional Micro USB as it offers better functionality like better data transfer speed, better power management for charging, and more. Our latest FiiO Q5s uses the latest USB Type-C interface for charging and audio signal input.

Replaceable AMP Modules:-

FiiO Q5s TypeC-3

Just like the previous generation FiiO Q5s, the latest Q5s Type-C also features replaceable AMP modules. As for the stock package, it comes bundled with a high-performance THX AAA-78 AMP module with 3.5mm PO and 4.4mm Bal output ports. It has an output power rating of up to 220mW @ 32 Ohm from the single-ended 3.5mm port and up to 560mW @ 32 Ohm from the 4.4mm Bal output port.

High-Performance AKM DAC Chipset:-

The latest FiiO Q5s Type-C is equipped with a powerful dual DAC chipset housing two high-performance AK4493EQ DAC chips. It is a premium 32-Bit 2CH DAC with AKM’s patented Velvet Sound Technology. The DAC chips are arranged in an independent manner, one for the left channel and the other for the right channel.

High Decoding Capabilities:-

The FiiO Q5s Type-C is equipped with an XMOS XU208 USB signal receiver chip the Q5s offers unmatched decoding capabilities. It can decode PCM up to 32-Bit/768kHz, DSD up to DSD512 natively. Paired with the high-performance AK4493EQ Dual DAC chipset, the Q5s offer a high-resolution sound experience with low-distortion and crisp clarity.

FiiO Q5s TypeC-4

Unmatched Bluetooth Performance:-

The Q5s Type-C is equipped with a QCC5124 Bluetooth chip. It provides impeccable Bluetooth performance with V5.0 connectivity and hi-res codecs support including LDAC, AptX HD, AptX LL, AptX Adaptive, and more.

Audiophile-Grade Power Supply:-

In order to get the best sound experience a high-quality power supply unit is a must in audio devices. It lowers the chances of getting electrical noise or disturbances in the output. FiiO has equipped the Q5s Type-C with a high-quality audiophile-grade power supply unit consisting of low-noise LDO regulators. The analog, digital, low-pass, and amplification circuits of the Q5s Type-C are independently powered to ensure a pure sound output without any disturbances.

Battery Life:-

The latest FiiO Q5s Type-C features a large 3800mAh battery. It provides a battery life of up to 25 hours on Aux input and up to 9.5 hours on other input options. This is more than enough for portable and desktop use for long music sessions. It gets fully charged in just around 3 hours with a 2A charger slot.

FiiO Q5s TypeC-5

Price & Availability:-

The FiiO Q5s is priced at 369.99$, it is available to order from our store here. Shipments will begin shortly.
