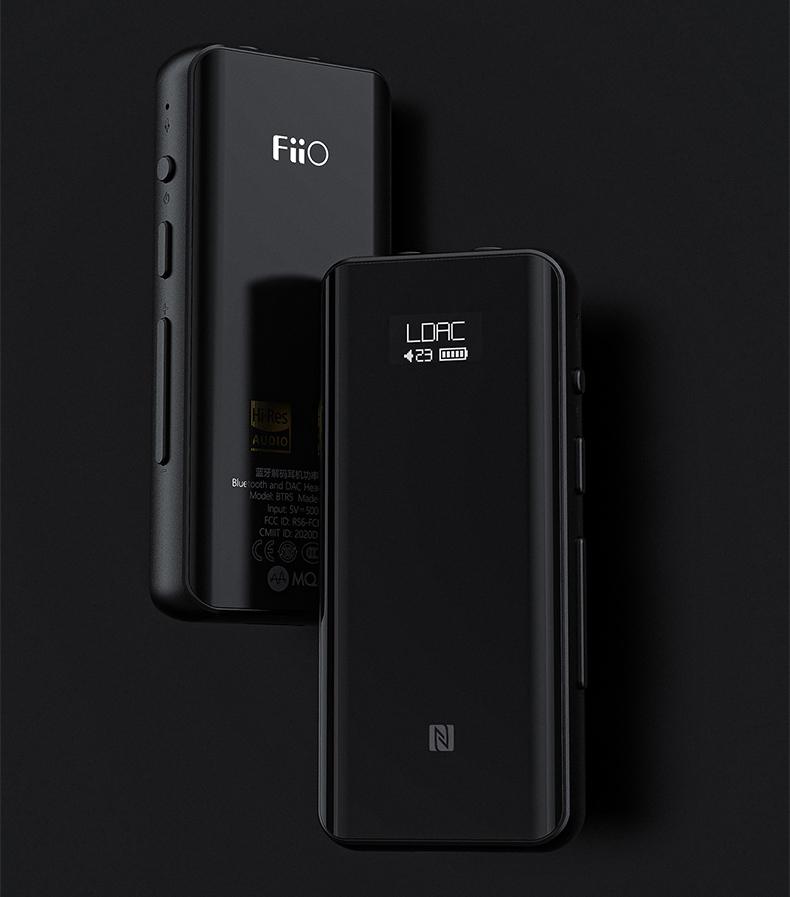

FiiO BTR5 2021:- Upgraded Your Favorite High-Resolution Bluetooth+USB DAC/AMP

FiiO BTR5 2021:- Upgraded Your Favorite High-Resolution Bluetooth+USB DAC/AMP

FiiO has revised their highly acclaimed BTR5 Bluetooth DAC/AMP, bringing you the latest FiiO BTR5 2021. BTR5 has been one of the best portable Bluetooth DAC/AMP with its brilliant performance and amazing features. It became an instant favorite among audio enthusiasts. With the BTR5 2021, FiiO is making it even better with dual ES9219P DAC chips, Qualcomm’s latest CSR8675 Bluetooth Chip, XMOS XUF208 USB processor, Dual independent crystal oscillators, MQA decoding, and many more latest features. Are you looking to buy a portable Bluetooth DAC/AMP that can also serve as a powerful USB DAC/AMP?? We are pretty sure your search will end with the BTR5 2021!! It is currently available on pre-order with our store for 129.99$, shipments will begin in mid-September.

FiiO BTR5 2021-1

Features:-

>High-performance Dual DAC chipset(Dual ES9218P).

>Flagship-grade CSR8675 Bluetooth Chip.

>FPGA clock management.

>Dual independent crystal oscillators.

>Bluetooth V5.0 with full hi-res codec support.

>Independent XMOS XU208 USB processor.

>PCM support up to 32-Bit/384kHz and DSD256 native support(USB connection).

>MQA Decoding.

>Two-level Gain mode.

>Double-sided 2.5D glass with OLED display.

>3.5mm+2.5mm headphone output.

>FiiO Music application support.

>One-touch NFC pairing.

>In-Line Remote and Mic Support.

Technical Parameters:-

>Volume Steps: Bluetooth: 32 steps, USB DAC: 60 steps.

>Battery capacity: 550mAh.

>Battery Life: up to 9H(3.5mm), Up to 7H(2.5mm).

>Charging time: 1.5H.

3.5mm Headphone out parameters:-

>Output Power: up to 80mW(32ohm).

>SNR: -118dB.

>Noise floor: <2uV.

>THD+N: <0.004%.

>Separation: 79dB.

2.5mm Balanced Headphone out parameters:-

>Output Power: up to 240mW(32ohm).

>SNR: -122dB.

>Noise floor: <2.2uV.

>THD+N: <0.002%.

>Separation: 117dB.

Experience Your Favorite Music Wirelessly With High-Resolution Clarity:-

Gone are the days when Bluetooth devices had performance issues. The latest FiiO BTR5 2021 features Qualcomm’s flagship CSR8675 Bluetooth chip providing a strong and stable Bluetooth V5.0 connection with high-resolution LDAC, AptX HD, AptX LL, aptX, SBC, AAC codec support. Your music will bloom with life with the BTR5 2021.

FiiO BTR5 2021-2

Upgraded Sabre DAC For High-Resolution Decoding:-

BTR5 2021 adopts a high-performance Dual DAC chipset featuring two ES9218P DAC chips from ESS Sabre Technologies. The device decodes high-resolution audio signals with ultimate clarity and precision. You get to enjoy your music with ultra-low distortion and a clean, noise-free background.

MQA Decoding:-

MQA, Master Quality Authenticated has become a new standard for high-resolution audio. FiiO has included MQA decoding support with the BTR5 2021, Users will be able to enjoy high-resolution MQA files to their full potential. Please note, MQA will be supported via USB connections.

FiiO BTR5 2021-3

FPGA Precision Clock Management:-

FPGA Architectures are usually used in high-end music players. It is responsible for the transmission, reception, and clock management of audio signals. In BTR5 2021, a specially developed FPGA architecture greatly reduces the jitter and improves signal stability.

Independent Dual Crystal Oscillators:-

FiiO BTR5 uses two independent crystal oscillators(45.1584/45.152 MHz) that helps in the accurate reproduction of the audio signal under various sampling rates.

FiiO BTR5 2021-4

High-Resolution Signal Decoding With USB Connection:-

FiiO has designed BTR5 2021 with XMOS’s latest XU208 USB signal receiver chip. It enables support for high-resolution audio signal decoding with the USB connection. BTR5 2021 supports PCM decoding up to 32-Bit/384kHz and DSD up to DSD256 natively.

Dual Headphone Output:-

FiiO BTR5 2021 houses two headphone outputs, 3.5mm single-ended and 2.5mm balanced. Users can pair their IEMs and headphones with the BTR5 with ease. It also supports an in-line mic and remote control to easily access calls and media playback features. SE port has an output power of up to 80mW@32 ohm, Balanced port has an output power of up to 240mW@32 ohm.

FiiO BTR5 2021-5

OLED Display, FiiO Application Support:-

FiiO BTR5 features an OLED display that shows various settings and functions including active filter, car mode, EQ settings, USB settings, Gain level, and more. BTR5 2021 can also be connected to FiiO application on smartphone that allows the users to easily adjust these settings on the device.

Nintendo Switch Support:-

Users can connect the FiiO BTR5 with their smartphones, PCs, and even Nintendo Switch gaming console via USB connection. Enjoy high-resolution audio with your Nintendo console.

Price & Availability:-

FiiO BTR5 2021 is currently available on pre-order with our store. You can book yours today for just 129.99$. Shipments will begin mid-September.

As with all our orders, we offer free express worldwide shipping on orders above 500$. We also offer free priority shipping for selected regions for orders above 100$ check out more details on our shipping policy here.
