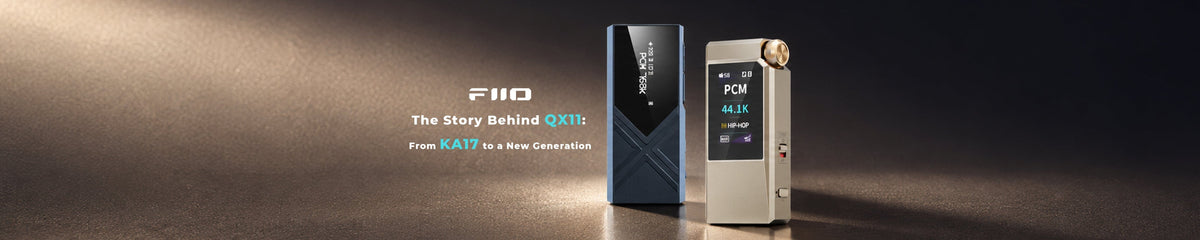

FiiO's Evolution Of Portable Powerhouse: QX11 Vs KA17 & QX13!!

The USB dongle DAC and amplifier market has undergone a remarkable metamorphosis over the past few years. What started as simple, low-power adapters to replace the vanishing 3.5mm headphone jack has transformed into a highly competitive space populated by pocket-sized powerhouses capable of rivaling full desktop setups. Here at HiFiGo, we have had a front-row seat to this evolution, closely monitoring every technological leap. Today, we are exploring one of the most significant transitions in recent portable audio history: FiiO’s introduction of the QX Series.

This new lineup represents a paradigm shift, moving beyond the critically acclaimed KA series to establish a new hierarchy of performance and versatility. To truly understand the gravity of this launch, we must look at the inaugural model, the FiiO QX11, and compare it extensively against both its direct predecessor, the benchmark FiiO KA17, and its incoming high-tier sibling, the FiiO QX13.

This comprehensive guide breaks down the engineering, the architecture, and the user experience of these three formidable devices to help you determine which one deserves a permanent place in your everyday carry.

Decoding the Lineage: What Does "QX" Mean?

Before diving into the specifications, it is crucial to understand the philosophy behind FiiO's new naming convention. For years, the FiiO "Q" series (think of the legendary Q3 and Q5s) represented the brand's dedicated, battery-powered portable amplifiers. These were devices built strictly for authoritative audio amplification. By bringing the "Q" prefix to their USB dongle line, FiiO is signaling a definitive return to uncompromising, high-current amplification in a bus-powered format.

The "X", meanwhile, represents a multifaceted approach to modern digital life. It signifies diversity in use cases—meaning these devices are no longer just for playing lossless FLAC files. They are designed to integrate seamlessly into gaming setups, professional communication environments, and complex desktop ecosystems.

• The FiiO KA17: The reigning champion of the KA series. It popularized the "Desktop Mode" in dongles and set a high bar for power output.
• The FiiO QX11: The direct evolutionary successor to the KA17. It retains the core DAC footprint but radically overhauls power efficiency, physical interaction, and multimedia versatility.
• The FiiO QX13: The new flagship-tier heavyweight. It boasts a larger footprint, flagship-level decoding chips, a massive display, and brute-force driving power for the most demanding audiophiles.

Design, Build, and Ergonomics

When you hold a premium audio device, the physical footprint and material finish dictate how seamlessly it integrates into your daily routine.

The KA17 laid down a highly functional, utilitarian design language. Measuring 64 x 27.7 x 12.7 mm and weighing just 33.5g, it is comfortably pocketable. It was offered in standard Black, Blue, and Titanium aluminum alloy finishes, providing a sleek but understated look.

The QX11 meticulously preserves this exact "comfort zone." It measures an almost identical 64 x 28.8 x 13 mm and weighs 36g, ensuring it remains incredibly friendly for daily mobile use. However, FiiO has elevated the aesthetic presentation. The QX11 trades the standard colors for a striking Dark Ink Green and a sophisticated Retro Gold aluminum alloy finish. It feels more bespoke and tactile, acting as a statement piece alongside your smartphone.

The QX13, however, is where physical constraints are loosened in favor of extreme performance. It is noticeably wider and heavier, measuring roughly 64.2 x 30.7 x 13 mm. Depending on the version you choose, it weighs 33.7g (Black) or up to 39.2g (Titanium). The build quality here is exceptional. The standard QX13 features a chassis crafted from up to 21 layers of stacked carbon fiber, offering aerospace-grade strength and excellent thermal insulation, while a separate laser-engraved Titanium Gold aluminum alloy version provides a more metallic, industrial aesthetic.

The Digital Heart: DAC Architecture and Decoding

At the core of any digital-to-analog converter is, naturally, the silicon responsible for translating your digital files into an analog signal.

Both the KA17 and the new QX11 share the same foundational decoding structure. They utilize a highly regarded dual-DAC implementation featuring the ESS Technology ES9069Q chips. This fully balanced setup provides exceptional channel separation and a vanishingly low noise floor (less than 2.2µV on both devices). Both devices effortlessly decode PCM streams up to 32-bit/768kHz and Native DSD512. The QX11, however, utilizes a new SPV5068 USB controller, which pushes its DSD DoP support up to 256 (compared to the KA17's DoP 128) and raises its coaxial digital output capability to an impressive 384kHz/24-bit.

The QX13 steps into a completely different tier of digital processing. It houses the flagship ESS ES9027PRO DAC, a chip usually reserved for large, stationary desktop equipment. This is an 8-channel DAC configured in a fully differential design, paired with a 16-core XMOS XU316 processor and ultra-low phase noise femtosecond crystal oscillators. This flagship silicone ensures pristine output matching across channels, drastically reducing clock jitter for a highly resolving, lifelike presentation with a signal-to-noise ratio exceeding 124dB.

The Amplification Stage: The Pursuit of Power

The most defining difference between these three models lies in their analog amplification stages. FiiO has completely overhauled the amplifier topology for the QX series.

The KA17 Baseline: The KA17 utilized a THX AAA 78+ headphone amp design driven by four SGM8261-5 operational amplifiers. With its dedicated Desktop Mode engaged (via external USB power), it maxed out at a very respectable 650mW + 650mW at a 32Ω load through its 4.4mm balanced output, and 270mW through the 3.5mm single-ended port. In standard non-desktop mode, it provided 300mW balanced and 140mW single-ended.

The QX11 Evolution: The QX11 abandons the SGM chips in favor of four high-end Texas Instruments OPA1622 op-amps wired in parallel. The OPA1622 is legendary in DIY and audiophile circles for its incredibly low distortion and high output current capabilities. This change yields a massive 23% increase in total thrust. In Desktop Mode, the QX11 pushes an astonishing 800mW + 800mW through the balanced output and 295mW single-ended (at 32Ω). Even running solely off your phone battery in standard mode, it delivers a robust 360mW balanced and 175mW single-ended.

The QX13 Powerhouse: If the QX11 is an evolution, the QX13 is a statement of brute force. It employs six high-end TI op-amps: two OPA1692 chips for low-pass filtering and four precision-integrated INA1620 chips for the output driver stage. This sophisticated architecture requires a separate digital-analog board design to manage heat and crosstalk. The result? A staggering 900mW + 900mW balanced output in Desktop Mode, and 310mW single-ended. In standard mode, it still delivers 570mW balanced and 250mW single-ended. The QX13 is built specifically to drive stubborn, low-sensitivity planar magnetic headphones that would traditionally require a desktop amplifier.

Engineering Marvels: Power Efficiency and Charging

High power output usually comes with a severe penalty: massive battery drain and excessive heat. Dongles are notorious for killing smartphone batteries. FiiO's engineers recognized this pain point and made efficiency a primary focus for the QX series.

The KA17, while powerful, was power-hungry. It drew 150mA on standby, 180mA under a standard balanced load, and up to 255mA in Desktop Mode.

The QX11 introduces a spectacular leap in power management. By optimizing the internal circuitry and utilizing the SPV5068 chip, FiiO reduced the overall power consumption by an incredible 25% to 35%. The standby power draw has plummeted to a mere 78mA (nearly half of the KA17). Under a balanced load in standard mode, it draws only 140mA, and in Desktop mode, it caps at 185mA.

Furthermore, while both the KA17 and QX11 feature dual Type-C ports (one for data, one for external power to activate Desktop Mode), the QX11 takes it a massive step further by supporting PD 45W pass-through charging. You can plug a high-speed charger into the secondary port, and the QX11 will simultaneously run its desktop mode amplifiers and quickly charge your connected smartphone.

The QX13, due to its massive ES9027PRO chip and INA1620 amps, naturally consumes more power (120mA standby, 170mA standard balanced, 210mA desktop mode). However, FiiO offset this by introducing a brilliant new magnetic ecosystem. The QX13 comes with a magnetic leather case designed to snap perfectly onto MagSafe iPhones or Android devices (via an included ring). More importantly, it is designed to stack magnetically with FiiO's "ESTICK" mini power banks, creating a completely self-sustaining, pocketable desktop rig that doesn't drain a single drop of your smartphone's battery.

Displays, UI, and Physical Interaction

How you interact with your device is just as important as how it sounds. The user experience has been radically upgraded across the board.

• KA17: Utilized a highly functional but small 0.96-inch monochrome OLED display with three standard physical buttons for volume adjustment, menu navigation, and track skipping.
• QX11: Elevates the experience with a vibrant 1.14-inch IPS color screen. It abandons standard volume buttons for a highly tactile, analog-style rotary volume knob combined with a multi-function push button. Most uniquely, it features a dedicated side "shortcut key." With one click, you can instantly swap UI themes, toggle operating modes, or cycle through EQ presets without menu diving.
• QX13: Takes the visual experience to an extreme. It sports a massive, front-dominating 1.99-inch IPS color display protected by Corning's high-strength glass. Powered by a dedicated 32-bit processor, this large screen allows for stunning visual UI themes and seamless portrait/landscape transitions. Because it requires precise power management for its 900mW output, the QX13 display features a built-in real-time USB power meter. Furthermore, it includes dynamic Audio Spectrum and VU analyzer displays that dance to the rhythm of your music.

The "X" Factor: DSP, Gaming, and Communication

As mentioned earlier, the QX series is designed to do more than just play music.

Parametric EQ (PEQ): FiiO’s excellent 10-band Parametric EQ is available on all three devices, allowing users to fine-tune frequencies, gain, and bandwidth via the FiiO Control app or web interface. The KA17 and QX13 support PEQ processing up to high 192kHz sample rates. However, the DSP engine inside the QX11 is so robust that it allows the full 10-band PEQ to remain active even when processing ultra-high-resolution 384kHz audio streams. All devices support the Auto EQ function, letting you instantly load community-created calibration curves for popular headphones.

Microphones and Gaming: This is where the QX11 truly stands alone. While the KA17 and QX13 are dedicated solely to playback, the QX11 is pitched as a hybrid HiFi DAC and professional gaming sound card. It features an integrated microphone directly on the chassis. Additionally, the 3.5mm port supports CTIA standard inline microphones, meaning you can plug in a standard gaming headset or consumer IEM and use its mic.

The QX11 features a dedicated Gaming Mode that applies advanced AI ENC (Environmental Noise Cancellation) to your voice, ensuring crystal-clear communication in multiplayer lobbies or professional Zoom calls. It even includes specially tuned sound effect presets optimized specifically for FPS (footstep localization), Action, MOBA, and Rhythm games. For gamers seeking zero-latency audio and clear voice comms without sacrificing audiophile sound quality, the QX11 is entirely unrivalled.

The HiFiGo Verdict: Which Should You Choose?

FiiO has successfully segmented the market with these three exceptional devices. Choosing the right one depends entirely on your specific daily habits and the gear you intend to drive.

Stick with the FiiO KA17 if: You already own it. The KA17 remains an incredibly capable device. If 650mW of balanced power is more than enough for your current IEMs, and you only use the dongle for pure music listening, there is no immediate need to upgrade.

Choose the FiiO QX11 if: You want the ultimate daily driver. The QX11 is the most well-rounded, versatile dongle on the market today. If you need a device that easily handles sensitive IEMs, pushes an authoritative 800mW into harder-to-drive headphones, and significantly reduces the battery drain on your smartphone, this is the pick. The tactile volume knob, 45W pass-through charging, and the addition of a high-quality microphone and gaming mode make it an indispensable tool for commuting, working, and playing.

Opt for the FiiO QX13 if: You are a purist chasing maximum audio performance and plan to drive demanding, low-sensitivity full-sized headphones. If you want the flagship ESS ES9027PRO DAC, the immense 900mW output thrust of the INA1620 op-amps, and you love the idea of a massive 1.99-inch display showing retro VU meters, the QX13 is a desktop replacement that happens to fit in your pocket. Paired with the Estick magnetic battery ecosystem, it represents the absolute bleeding edge of portable audiophile technology.

The portable audio landscape continues to shift rapidly, and with future models like the QX15 (rumored to feature R2R or tube technology) on the horizon, FiiO's QX series is proving that we have only just scratched the surface of what is possible. Which feature is most critical for your everyday listening setup: the power efficiency and microphone versatility of the QX11, or the raw driving force and large display of the QX13?
