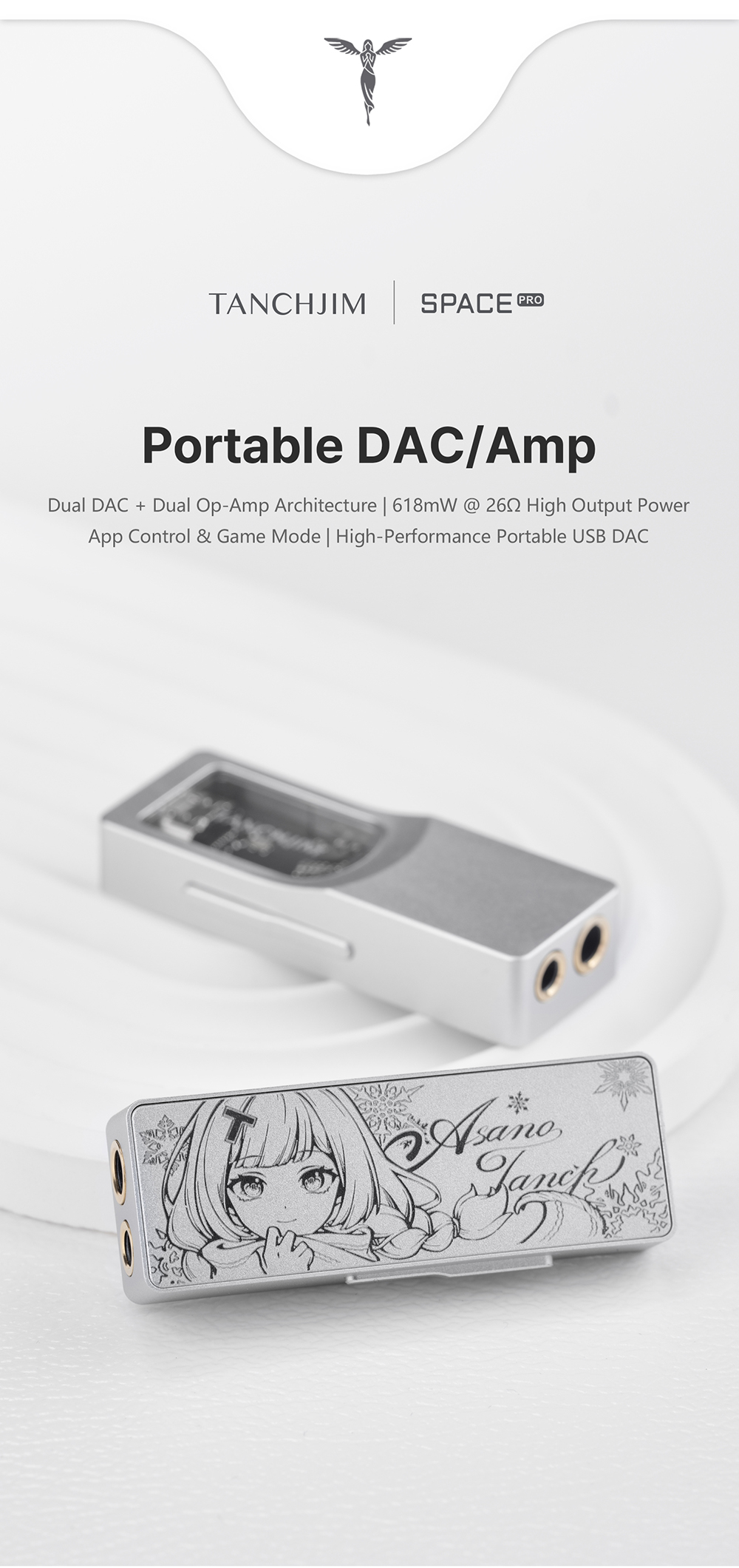

TANCHJIM Space Pro Dual CS43198 Portable USB DAC/AMP

Features:-

>High-Resolution Portable DAC/AMP.

>Dual DAC+Dual Independent Op-Amp True Hi-Fi Architecture.

>Dual CS43198 DAC+Dual ES8262 Amp Chips.

>Strong Output Thrust(Up to 618mW @ 26Ω).

>In-Line Microphone Support(CTIA Standard).

>High/Low Dual Gain Modes.

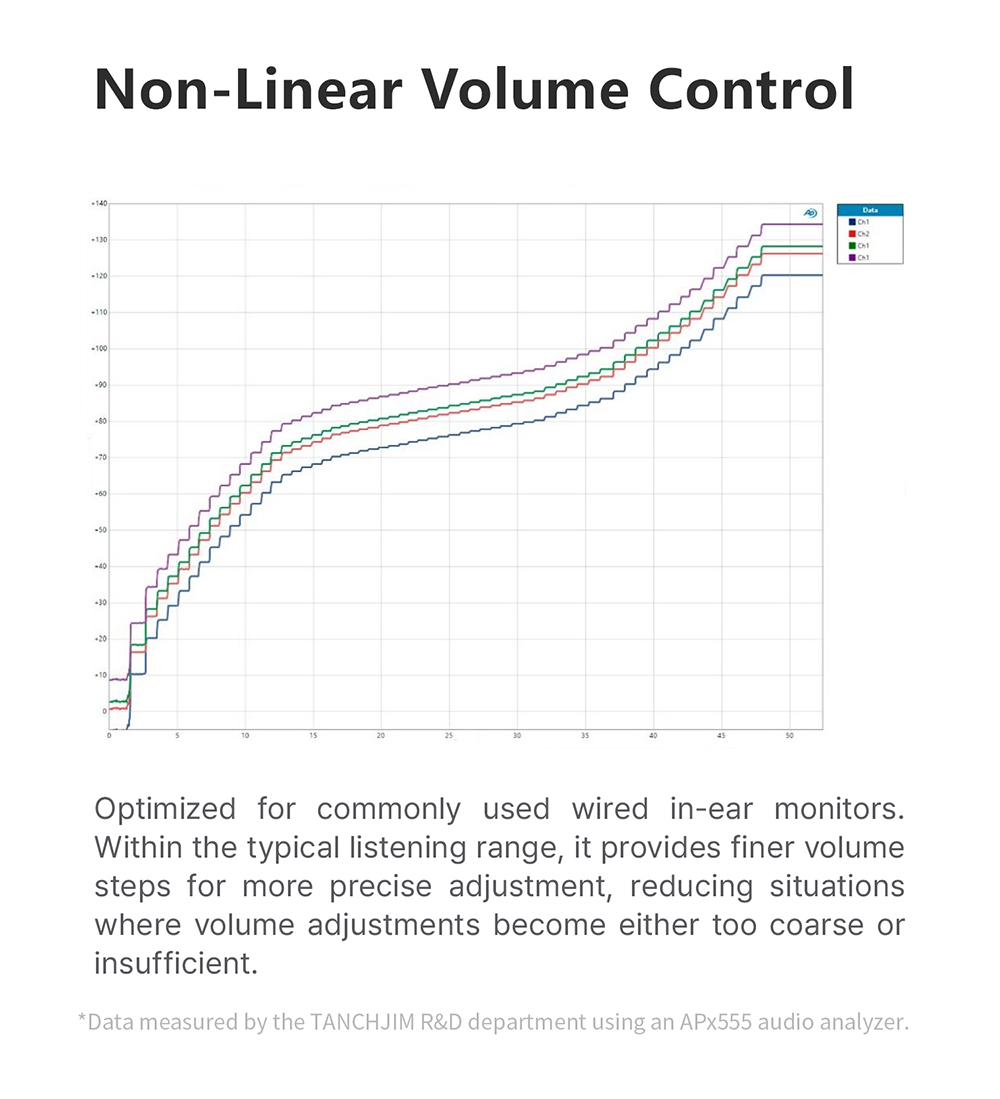

>Precise Volume Adjustment with Non-Linear Volume Control≥

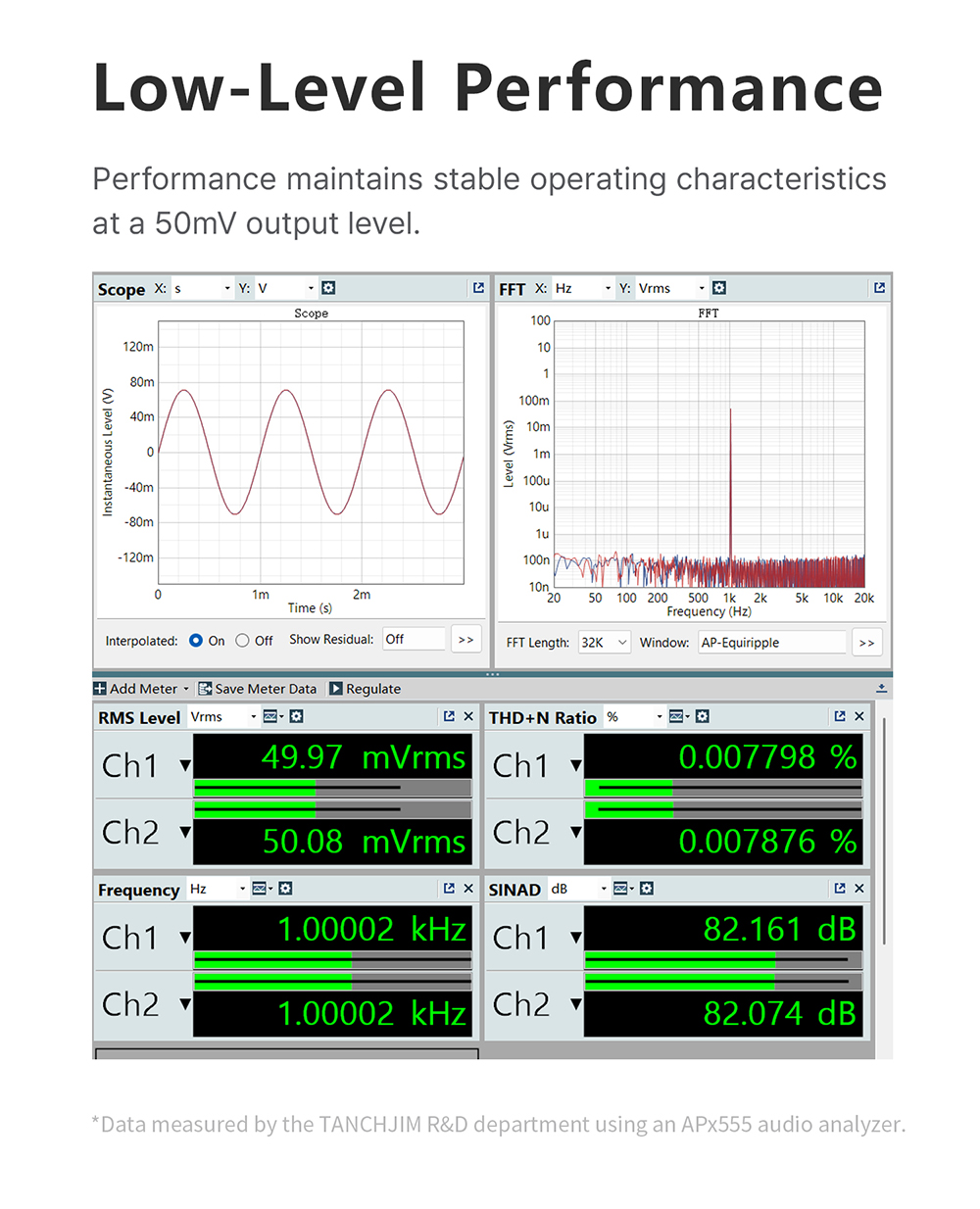

>Clean and Precise Output with Ultra-low THD+High Dynamic Range.

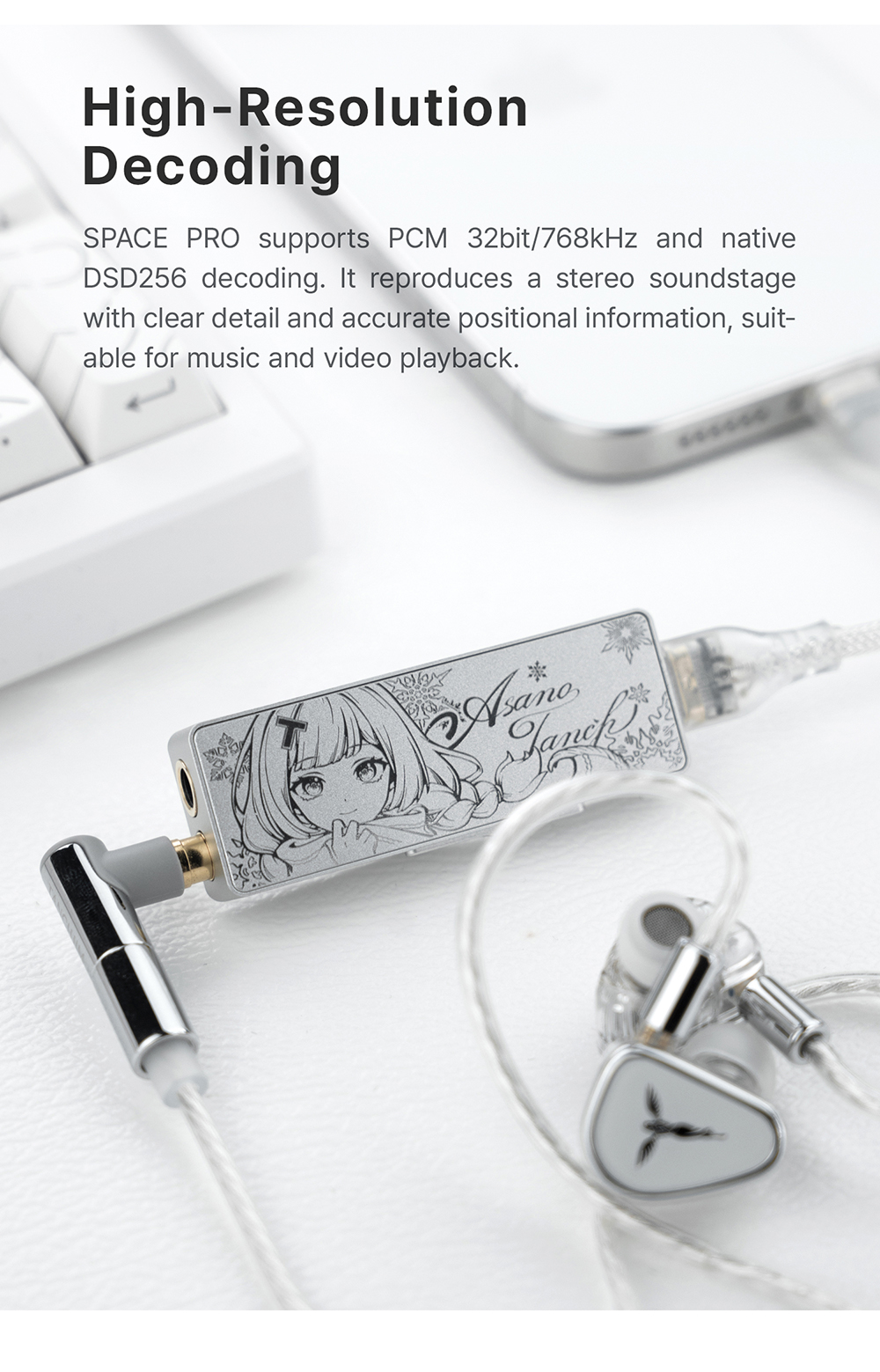

>Supports Native DSD256 and 768kHz PCM Signals.

>High-Efficiency Circuit Design with Class AB/H Dual Amplification Modes.

>High-SNR Performance.

>3.5mm+4.4mm Dual Output Options.

>Dual Port Simultaneous Connection(4.4mm for Output+3.5mm for Mic Input).

>Dedicated App Support with Game Audio Optimization System.

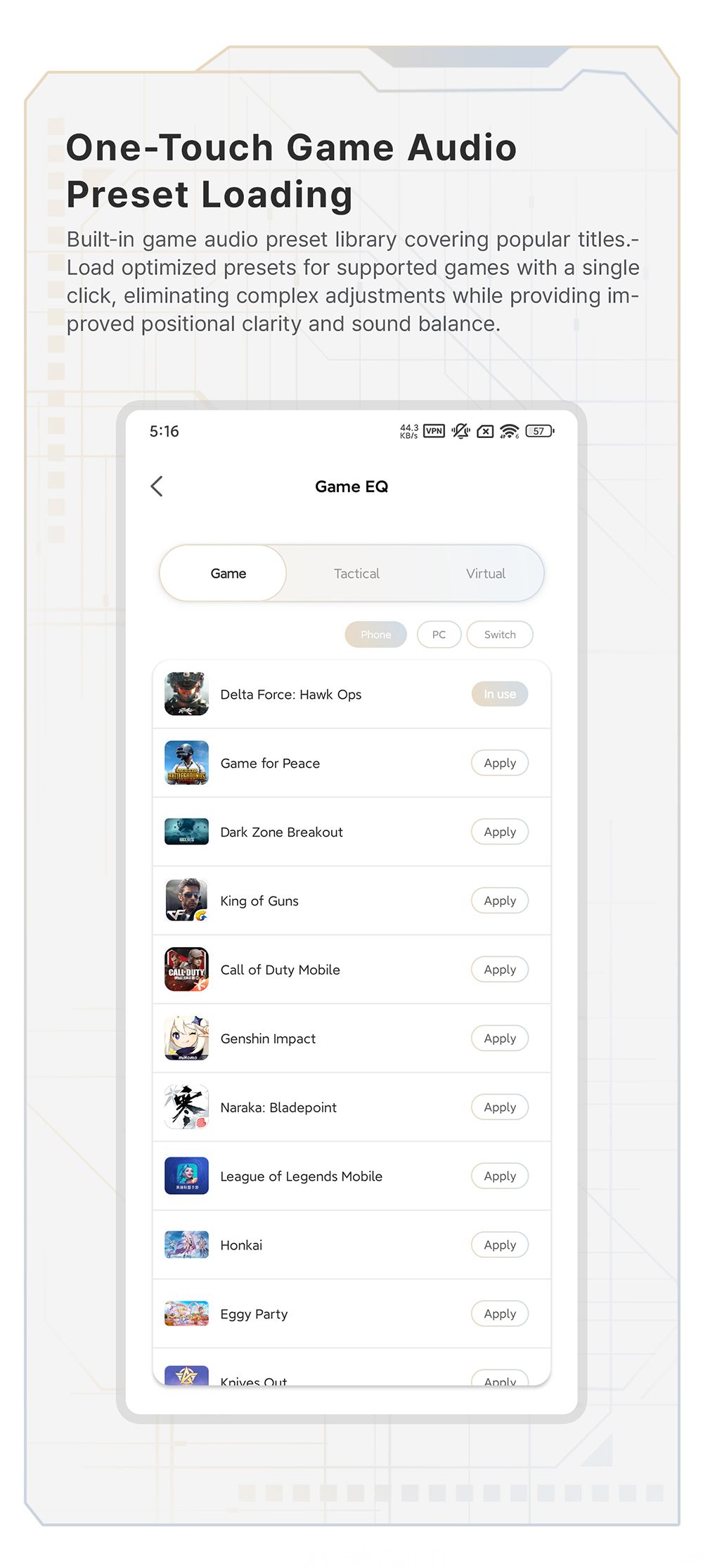

>One-Touch Game Audio Preset Loading.

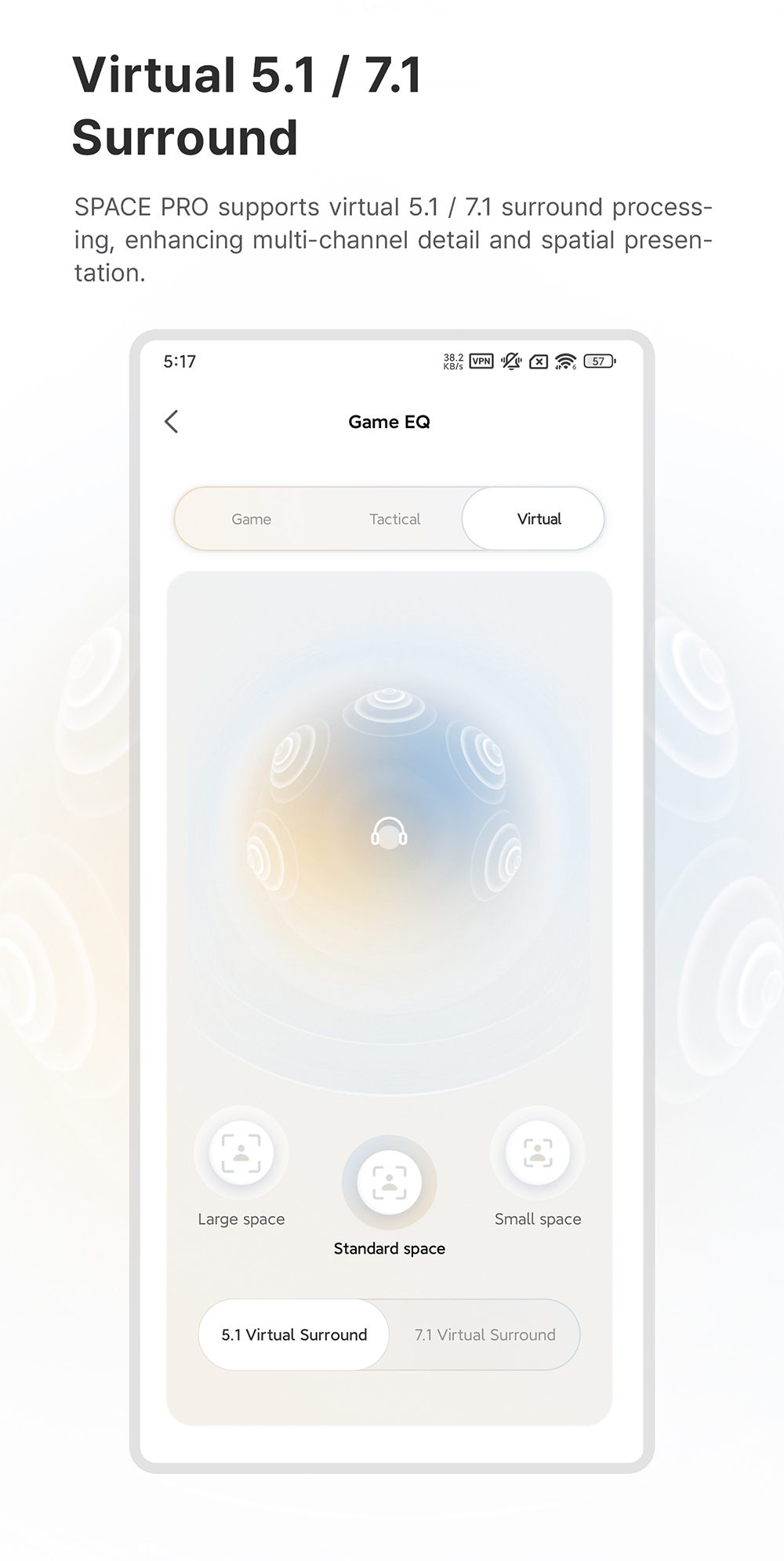

>Virtual 5.1/7.1 Surround Processing.

>10-Band PEQ Functionality with Preset Community Sharing.

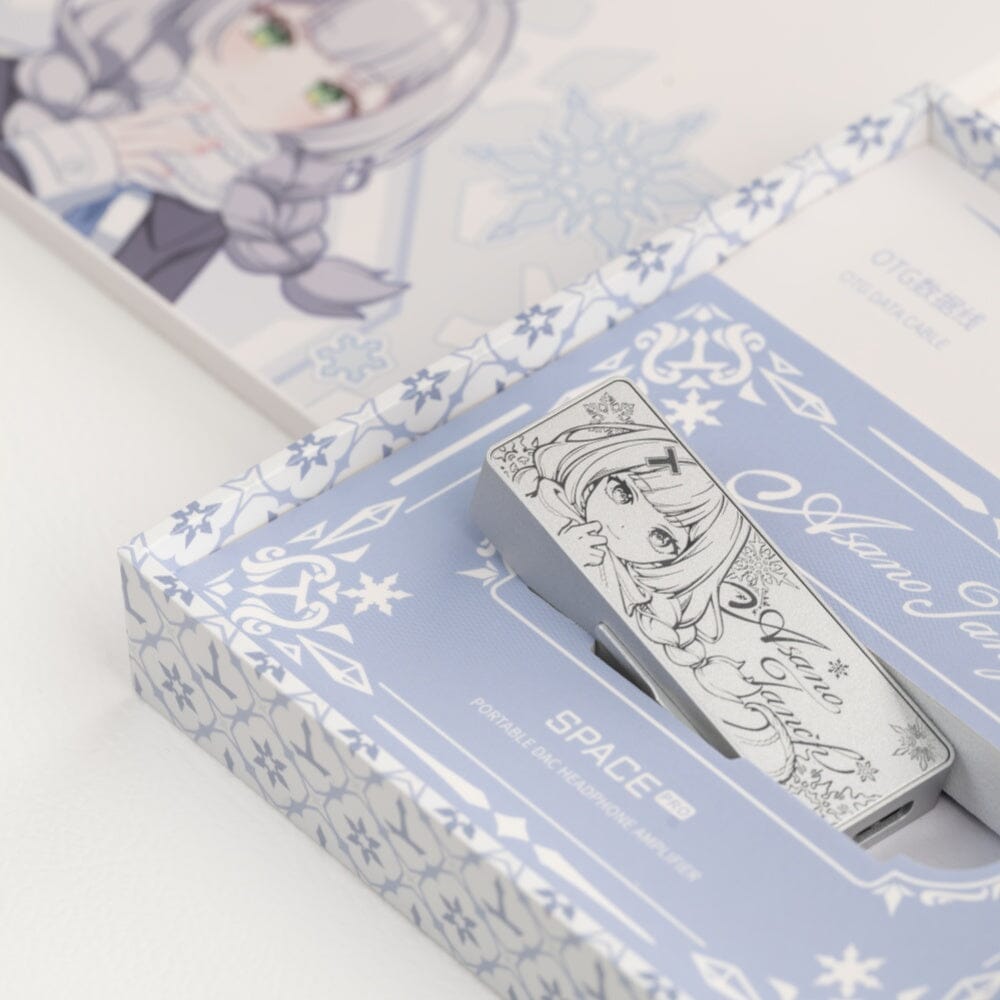

>Two Design Variants(Normal/Asano Tanch Snowfall Edition).

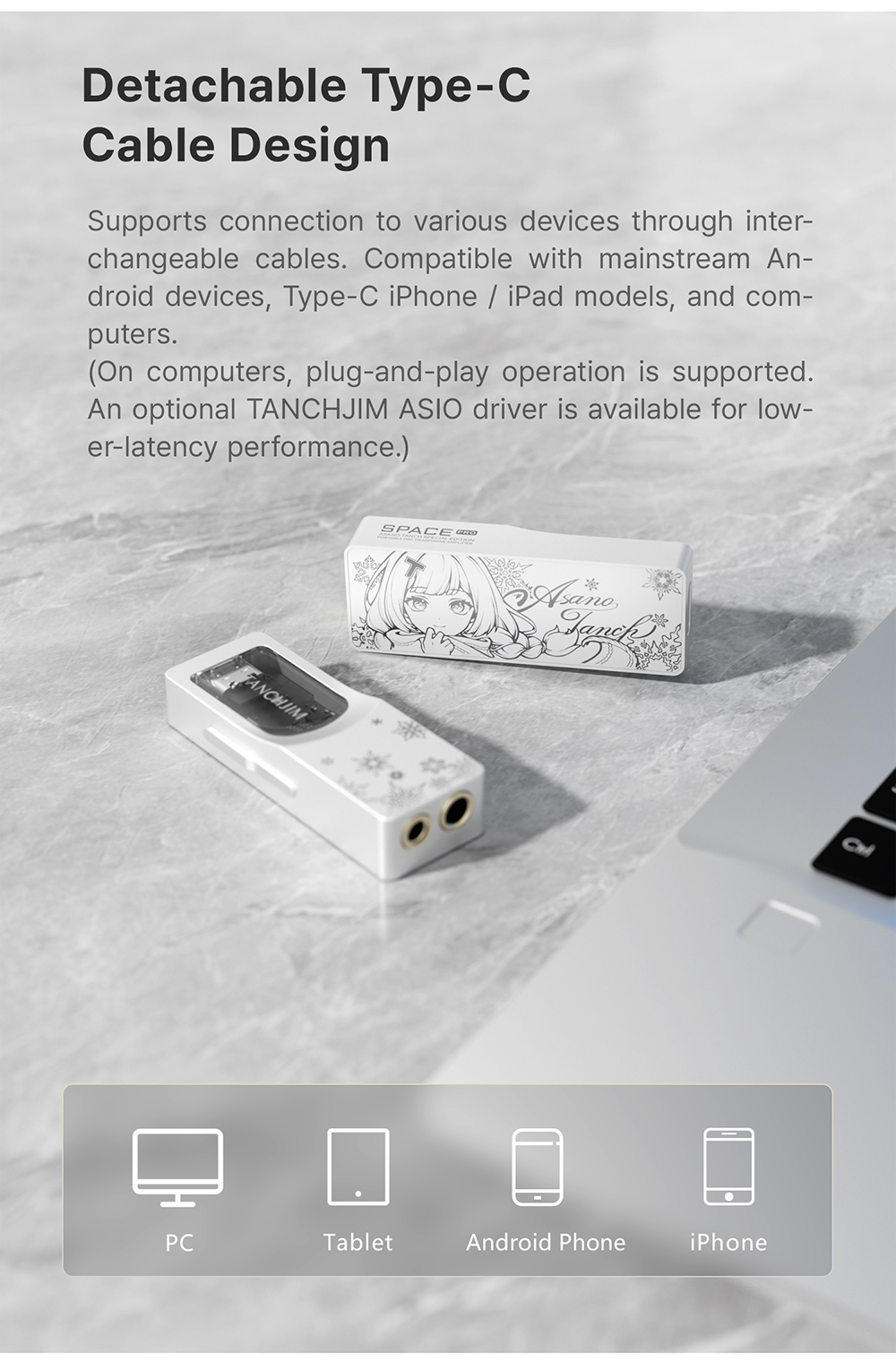

>Detachable Type-C Cable Design.

>Silver-Plated Single-Crystal Copper Type-C Interconnect Cable.

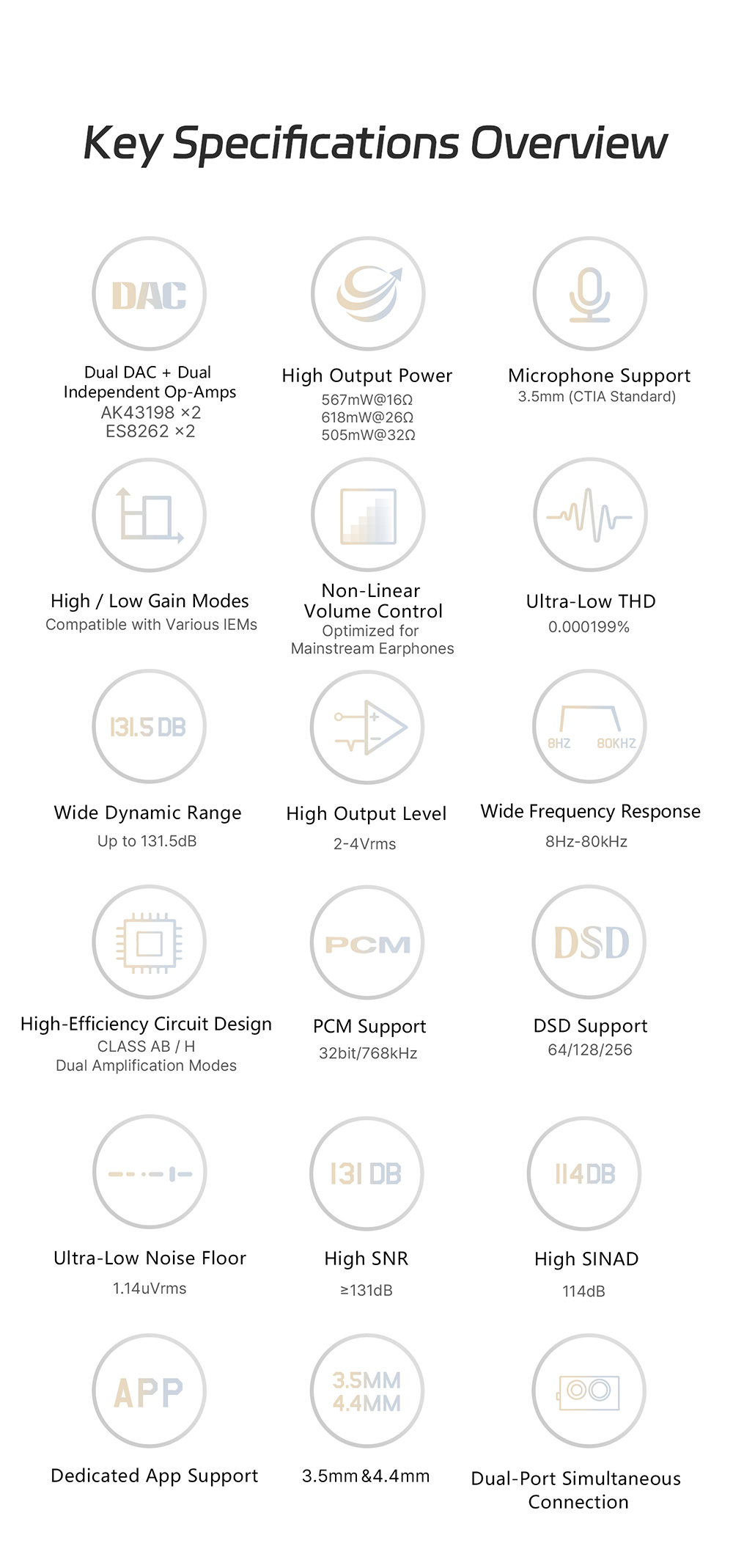

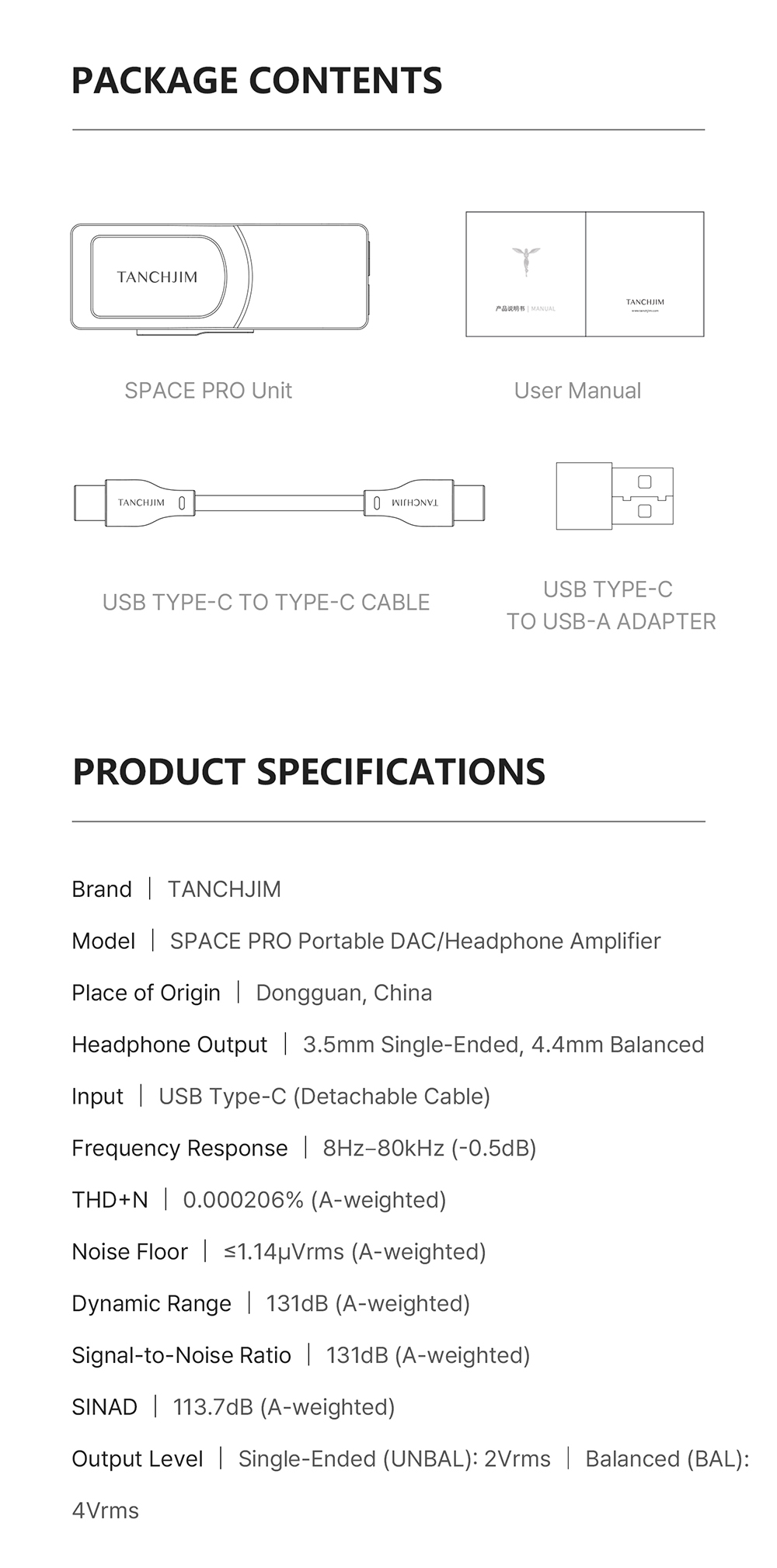

Technical Information:-

>Headphone Output: 3.5mm+4.4mm.

>Frequency Response: 8Hz~80kHz.

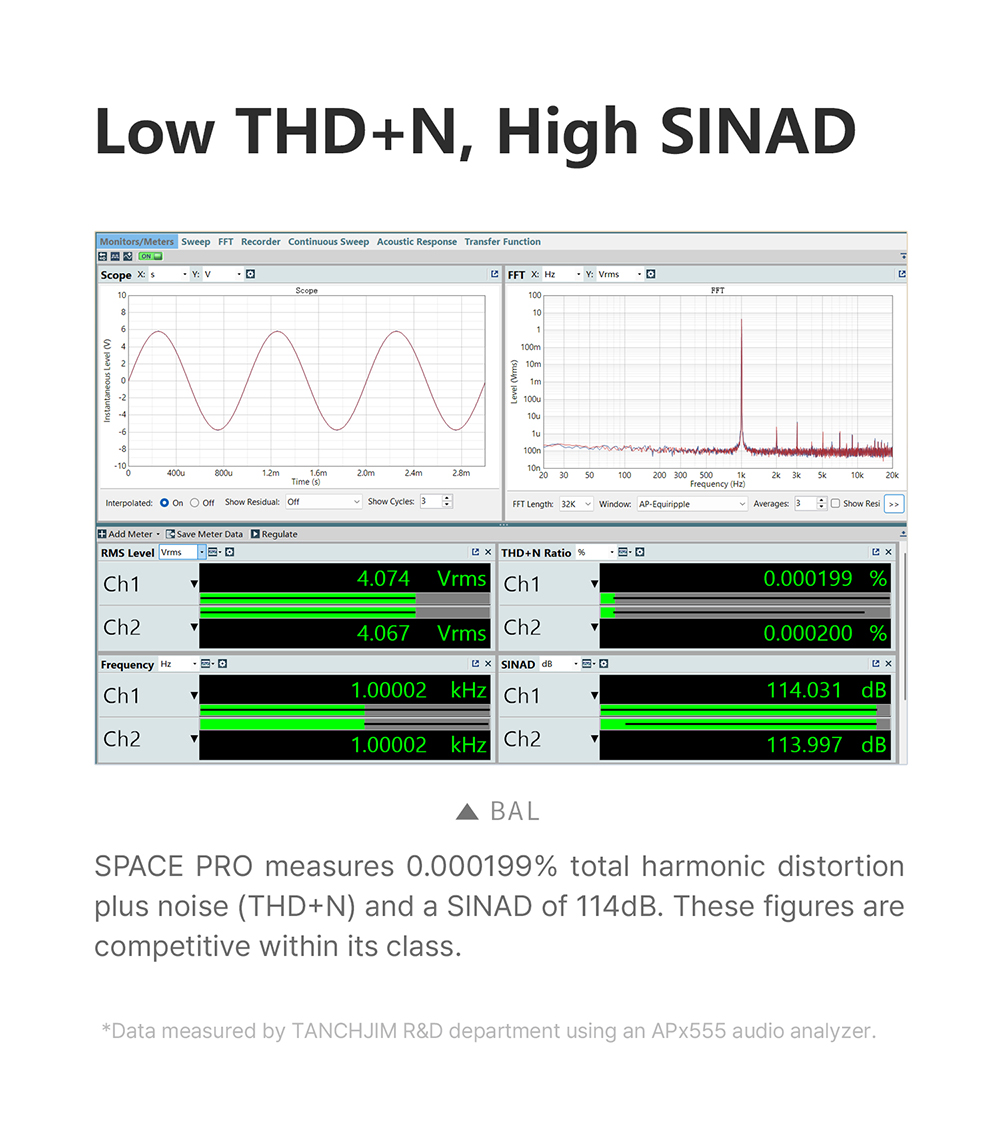

>THD+N: 0.000206%.

>Noise Floor: ≤1.14uVrms.

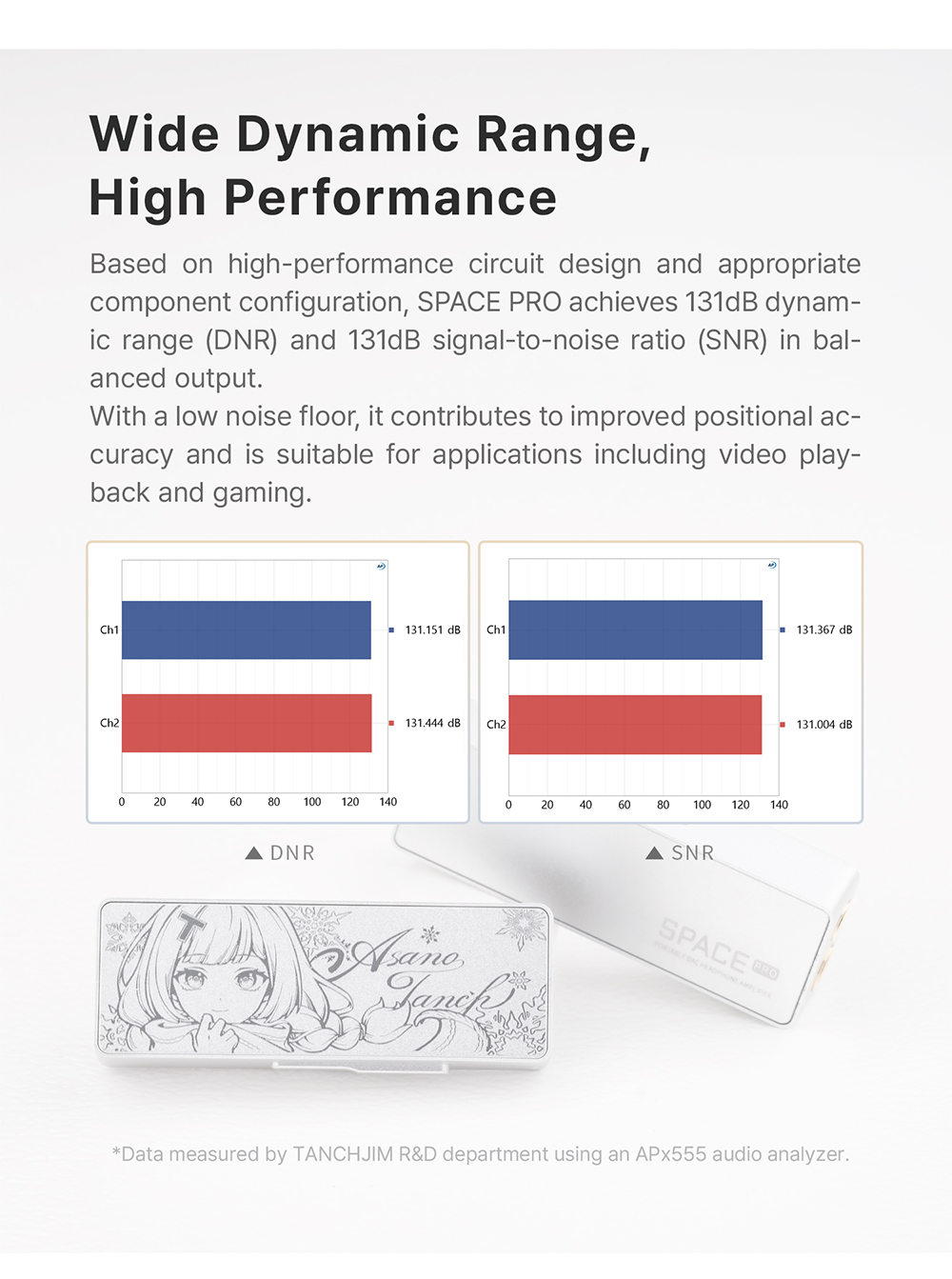

>Dynamic Range: 131dB.

>SNR: 131dB.

>SINAD: 113.7dB.

>Output Power: Up to 618mW.

>Output Level: 4Vrms(Bal), 2Vrms(Single-Ended).

Tanchjim has released a brand new high-resolution portable DAC/AMP, introducing the Tanchjim Space Pro. Featuring a brand new dual DAC+ dual independent OP-AMP architecture, the Space Pro promises true high-fidelity audio performance with high SNR, DNR, and ultra-low THD+N performance. It houses dual CS43198 DAC chips combined with dual ES8262 amplification chips. It offers a strong output thrust reaching up to 618mW per channel. Tanchjim has made the Space Pro available in two variants: the standard variant and the Asano Tanch Snowfall Edition variant. The Space Pro has complete integration with the Tanchjim application that brings native game audio optimization system, dedicated gaming presets, 10-band native PEQ, virtual 5.1/7.1ch optimization, and many more features. With 3.5mm and 4.4mm dual headphone output options, the Tanchjim Space Pro offers unmatched performance with full versatility for customization. Elevate your portable chain with the all-new Tanchjim Space Pro.

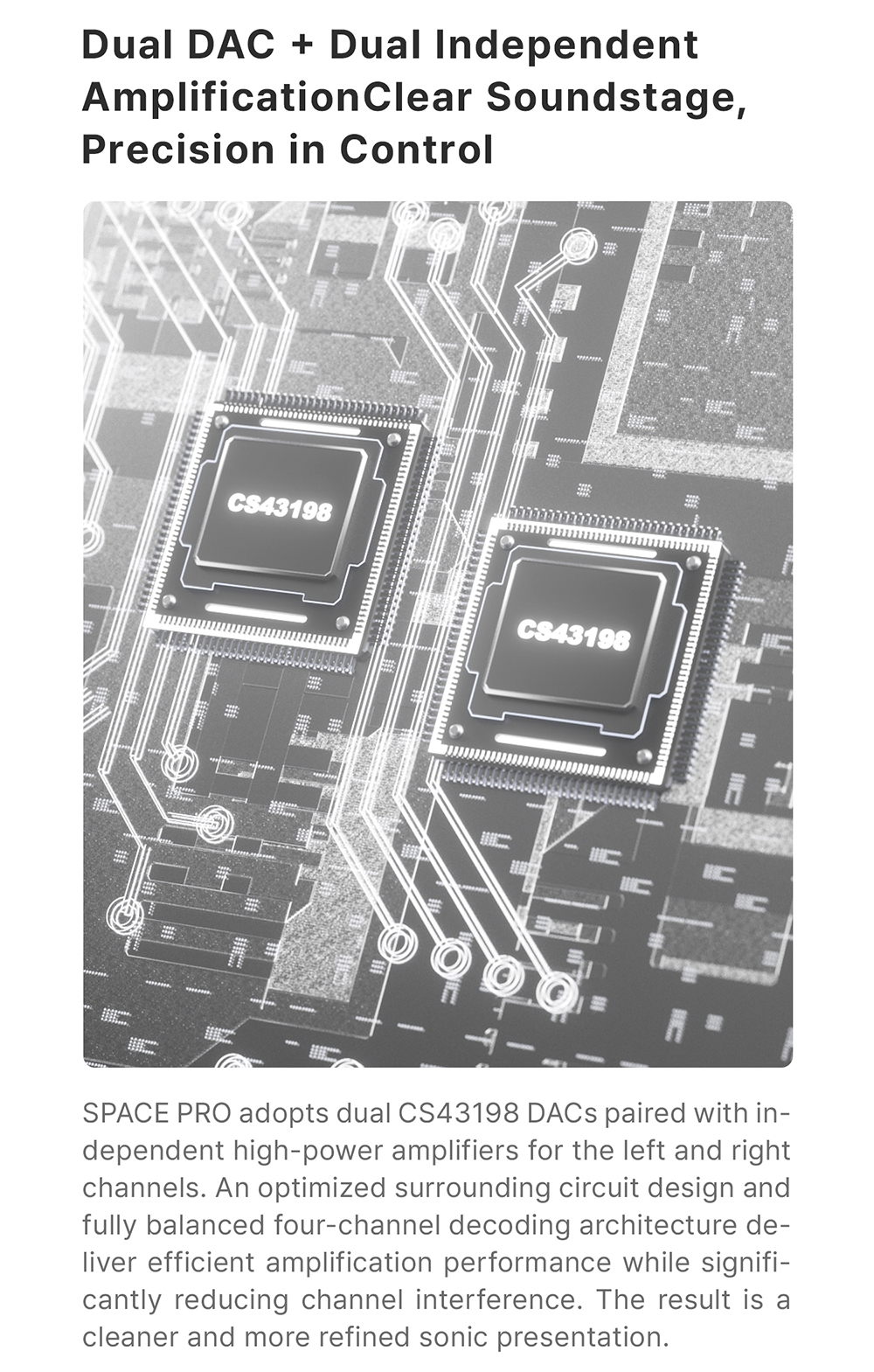

The Power of Dual DAC+Dual Op-Amp Architecture:-

Tanchjim Pro promises an astonishing sound quality with its professionally designed Dual DAC+Dual OPAMP architecture. The DAC/AMP houses dual CS43198 DAC chips paired with dual independent ES8262 OP-AMPs. This results in an open soundstage with precise details and a rich tone. The dual DAC+dual OPAMP design forms an optimized circuit with a fully-balanced four-channel decoding architecture. Enjoy seamless high-resolution audio signal processing with native DSD256 and 768kHz PCM signal decoding support.

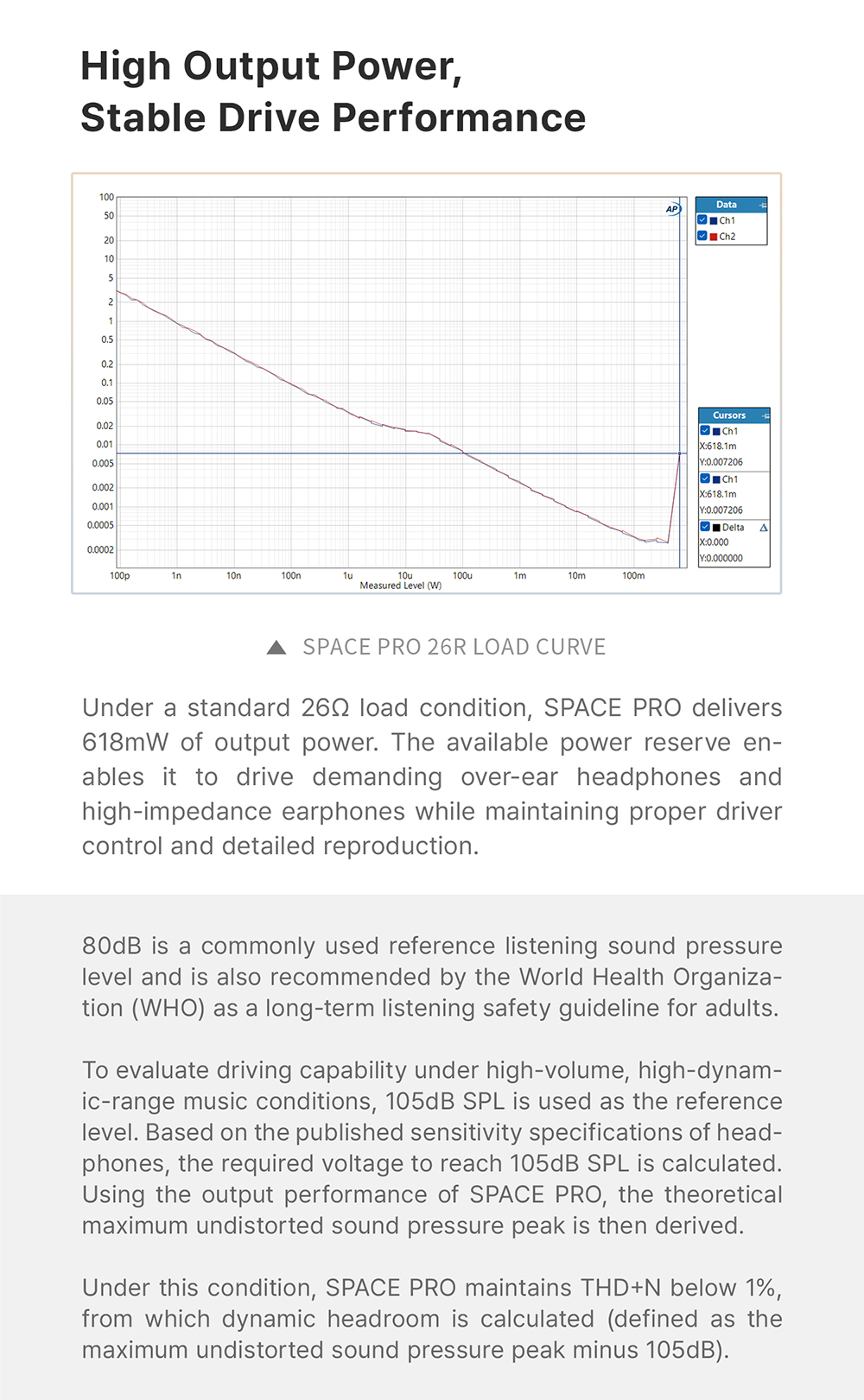

Stable Output, High Thrust:-

With its dual independent OPAMP design, the Tanchjim Space Pro delivers a strong output thrust. It reaches up to 618mW @ 26Ω impedance load. The output is clean and has a dark background with ultra-low harmonic distortion characteristics. The Space Pro has a maximum output level of 4Vrms. Tanchjim has features low/high, dual-mode gain control on the Space Pro, which makes it easier to pair the device with sensitive IEMs as well as high-power requiring headphones.

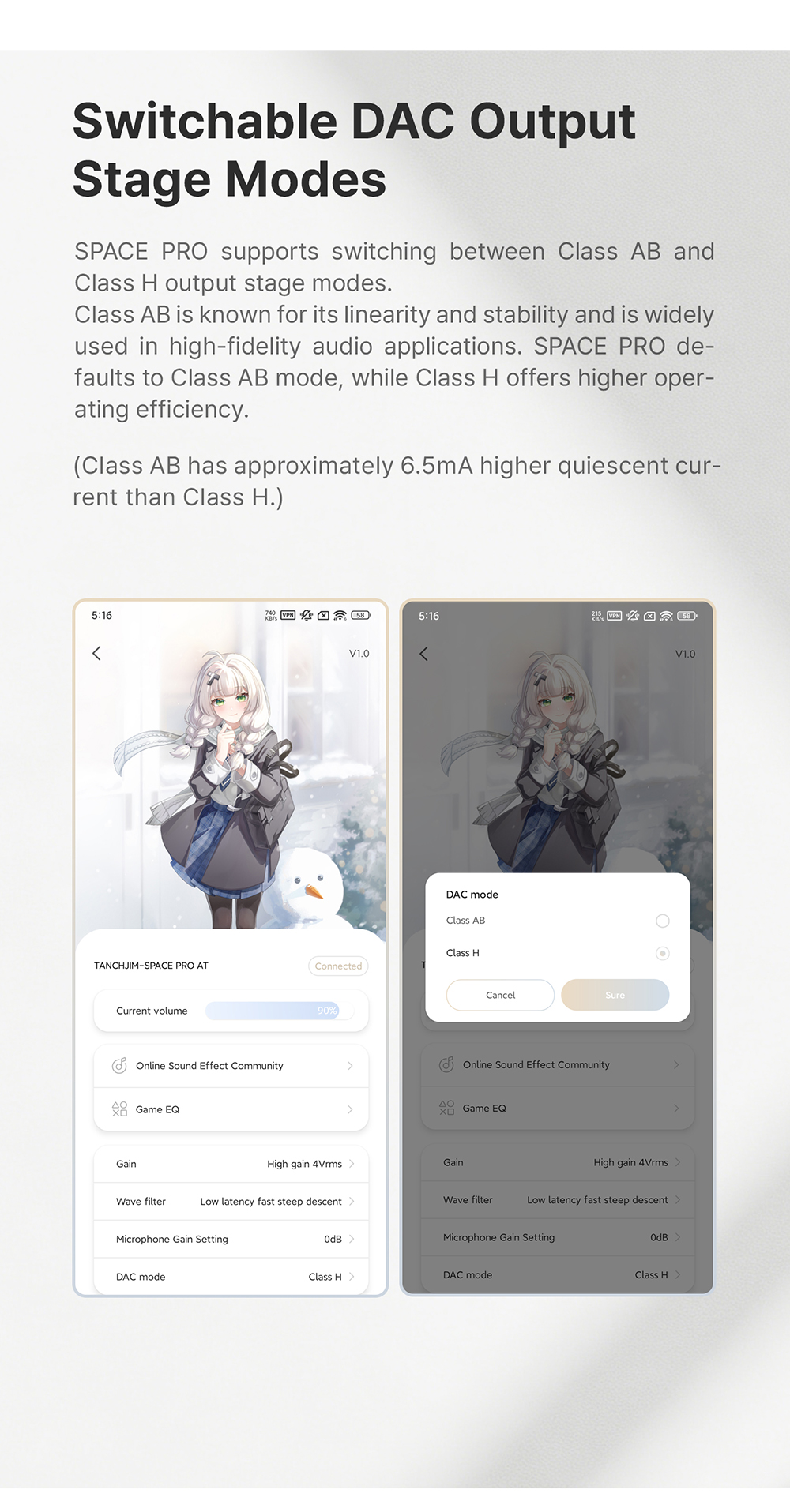

Switchable DAC Output Stage Mode:-

Tanchjim Space Pro supports dual DAC output stage modes featuring Class AB and Class H modes. Class AB mode delivers a stable and linear performance; it is widely used in high-fidelity audio devices. Class H mode, on the other hand offers smooth output with higher operating efficiency. Class H mode is perfect for low-output current devices to ensure seamless performance.

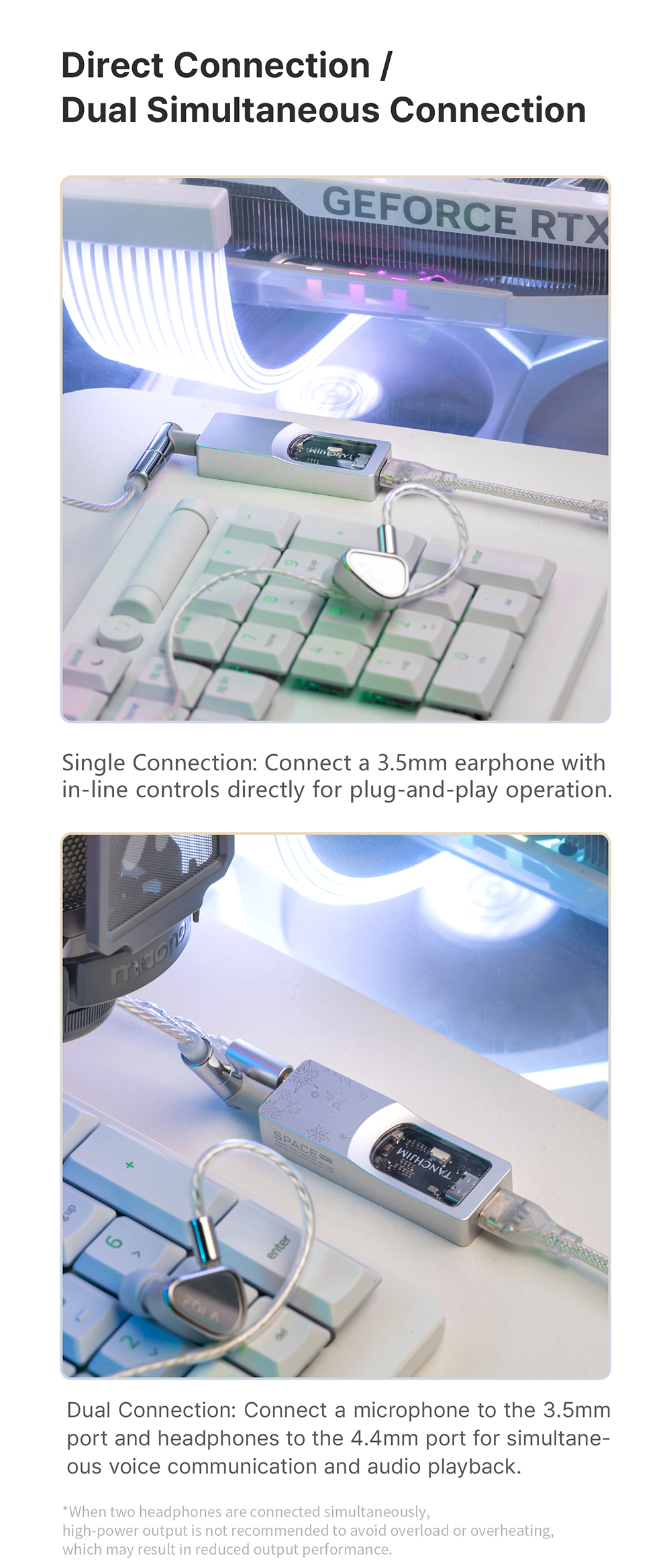

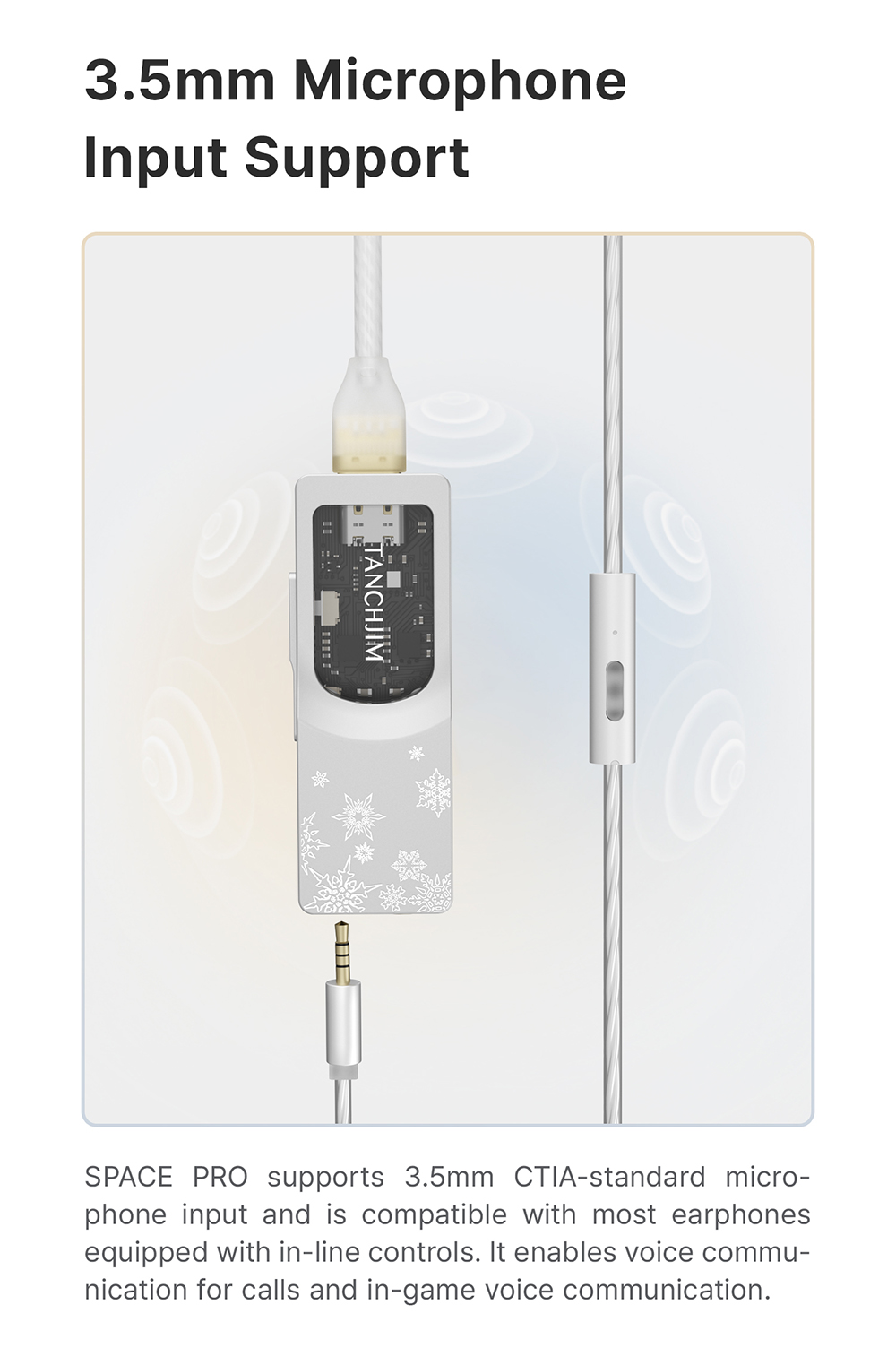

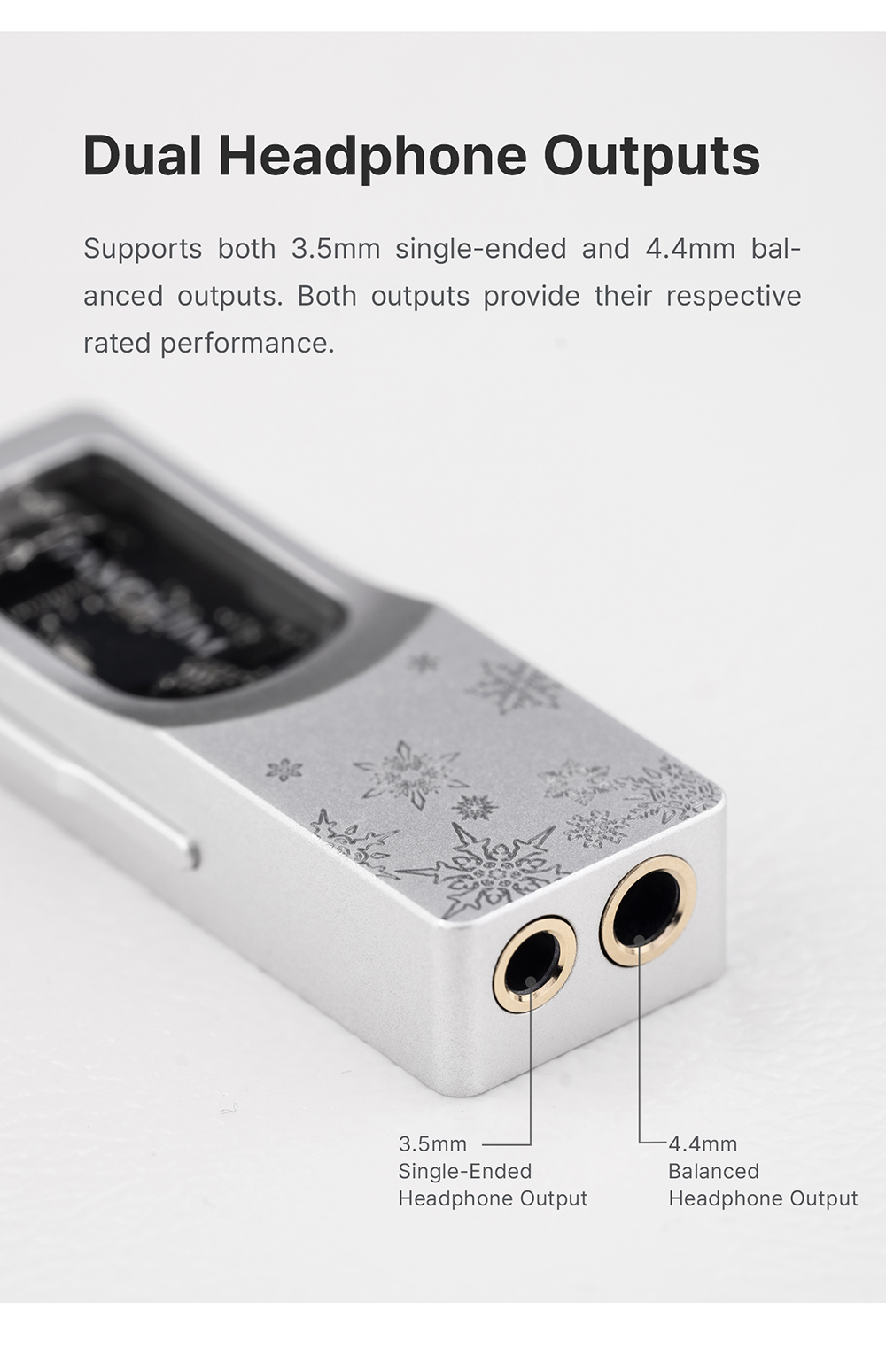

Dual Headphone Outputs:-

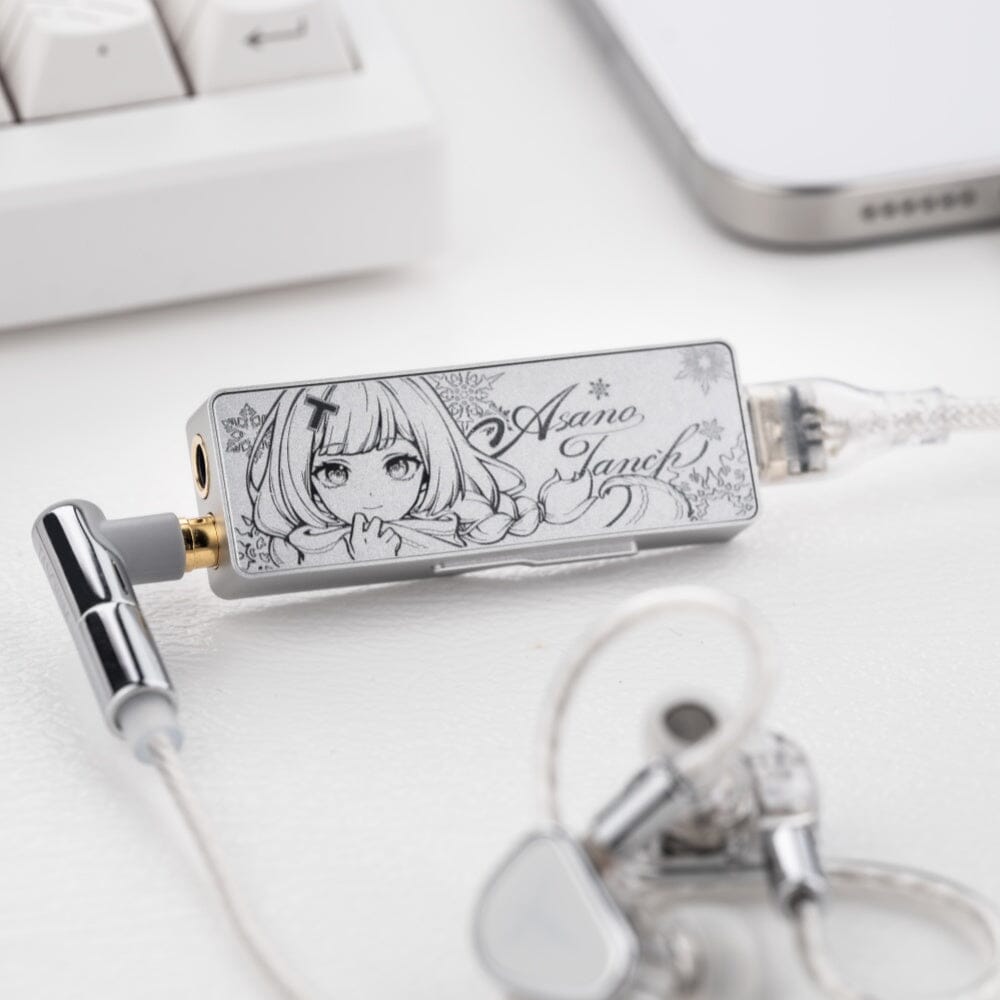

Tanchjim Space Pro has two headphone output options: 3.5mm single-ended and 4.4mm balanced output ports. The 3.5mm port supports an in-line microphone with CTIA standards. Even when using the earphones/headphones with the 4.4mm output port, users can use the 3.5mm port for dedicated mic usage.

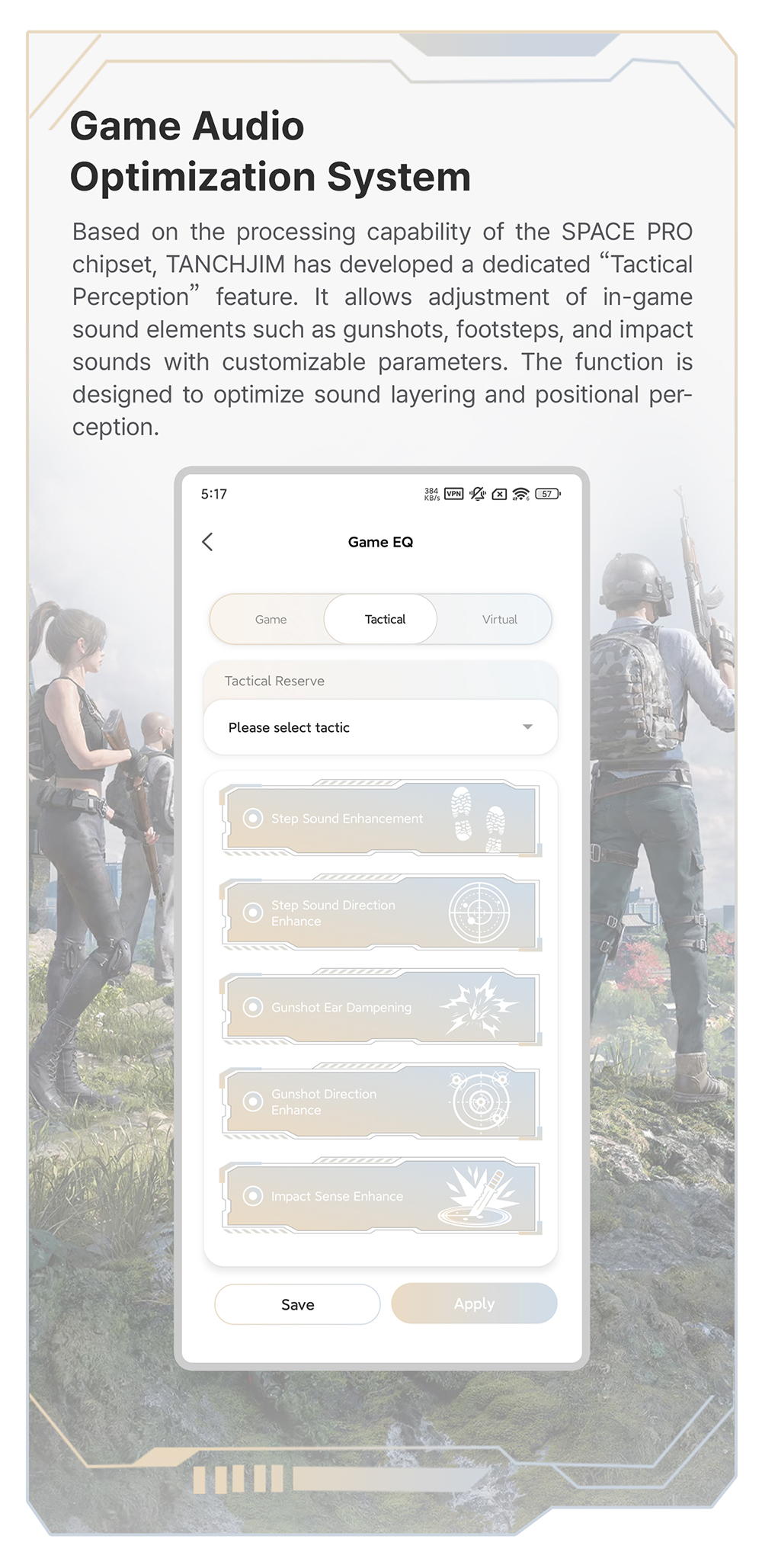

Application Integration with Advanced Game Audio Optimization System:-

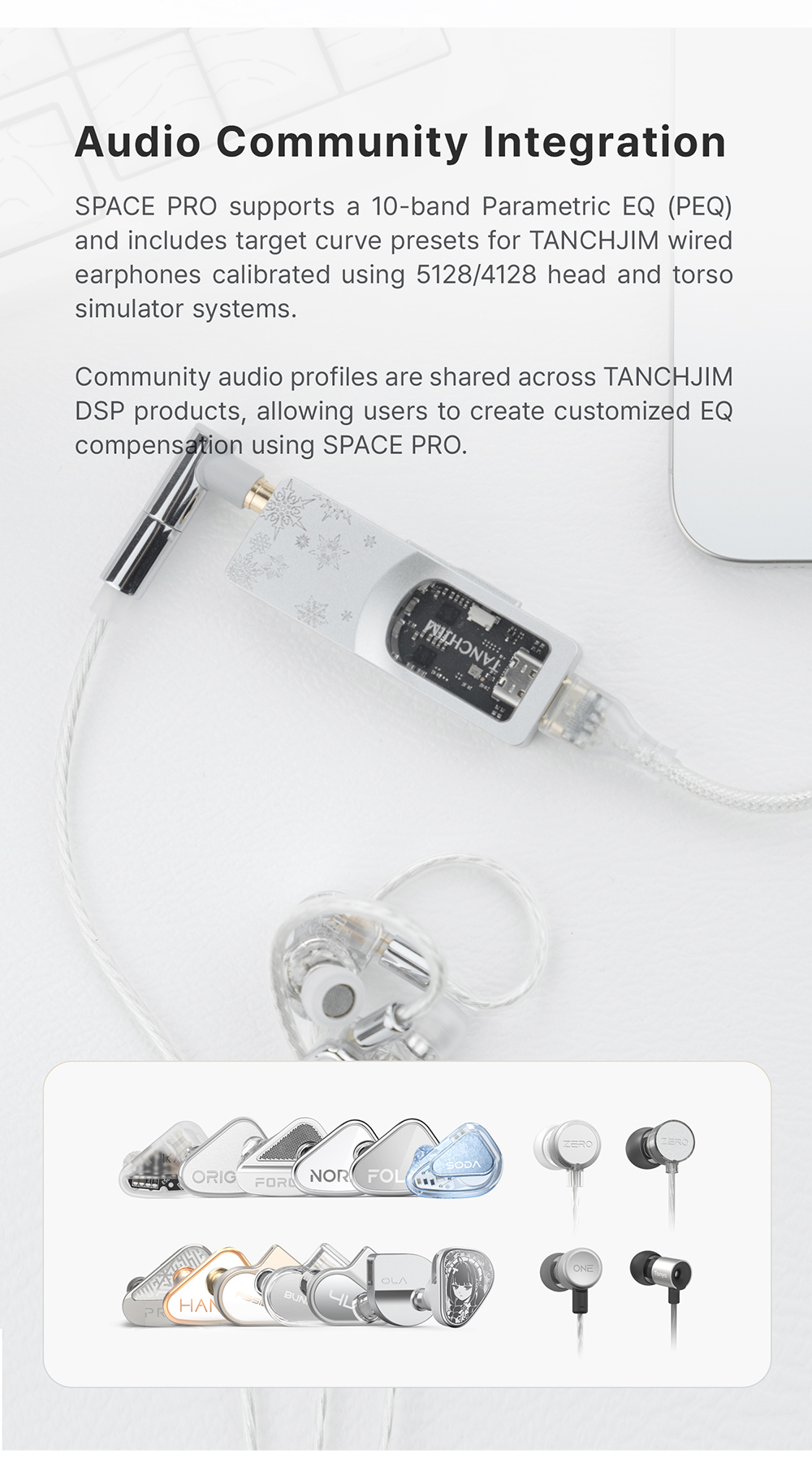

Tanchjim Space Pro is compatible with the Tanchjim application. The application has a dedicated Game Audio Optimization System for the Space Pro. It allows adjustment of in-game sound elements such as gunshots, footsteps, and impact sounds with customizable parameters. It has multiple built-in gaming audio presets, featuring audio setting parameters for many popular titles. The application also has dedicated 10-band PEQ with community sharing feature, which allow for further customization and easy output adjustment. Space Pro also supports virtual 5.1/7.1channel surround processing; this feature enhances multi-channel detail and offers a spatial presentation.

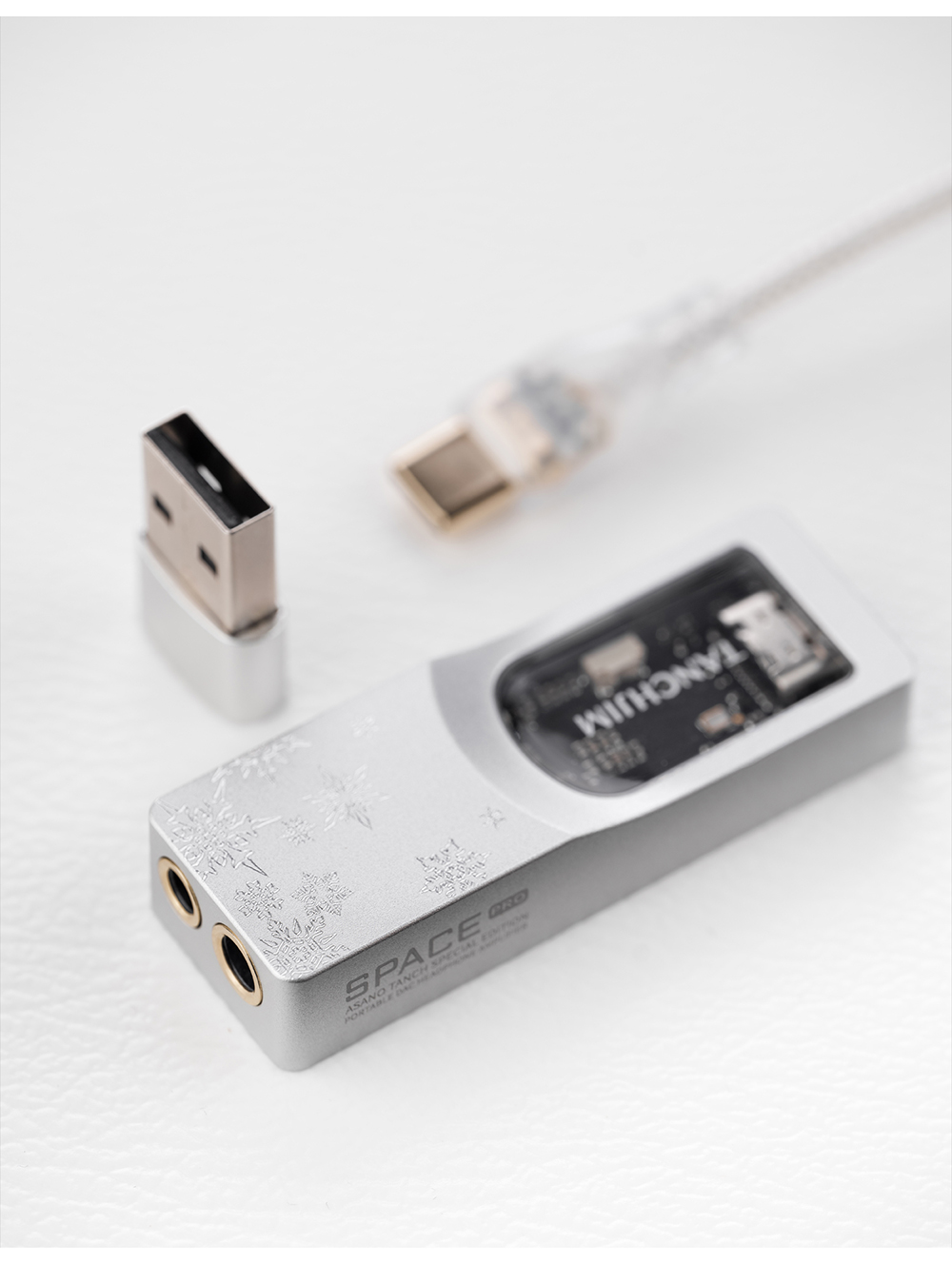

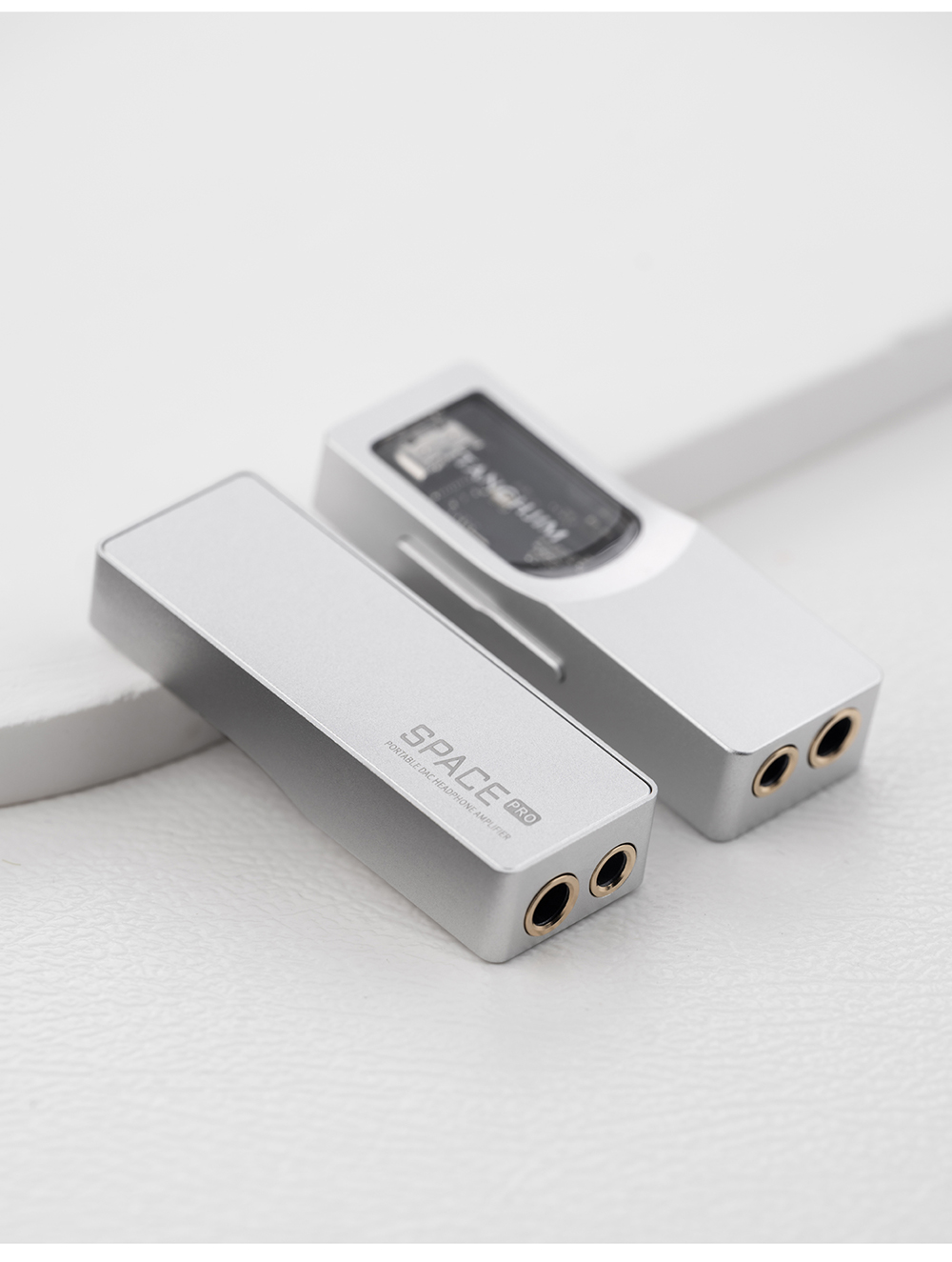

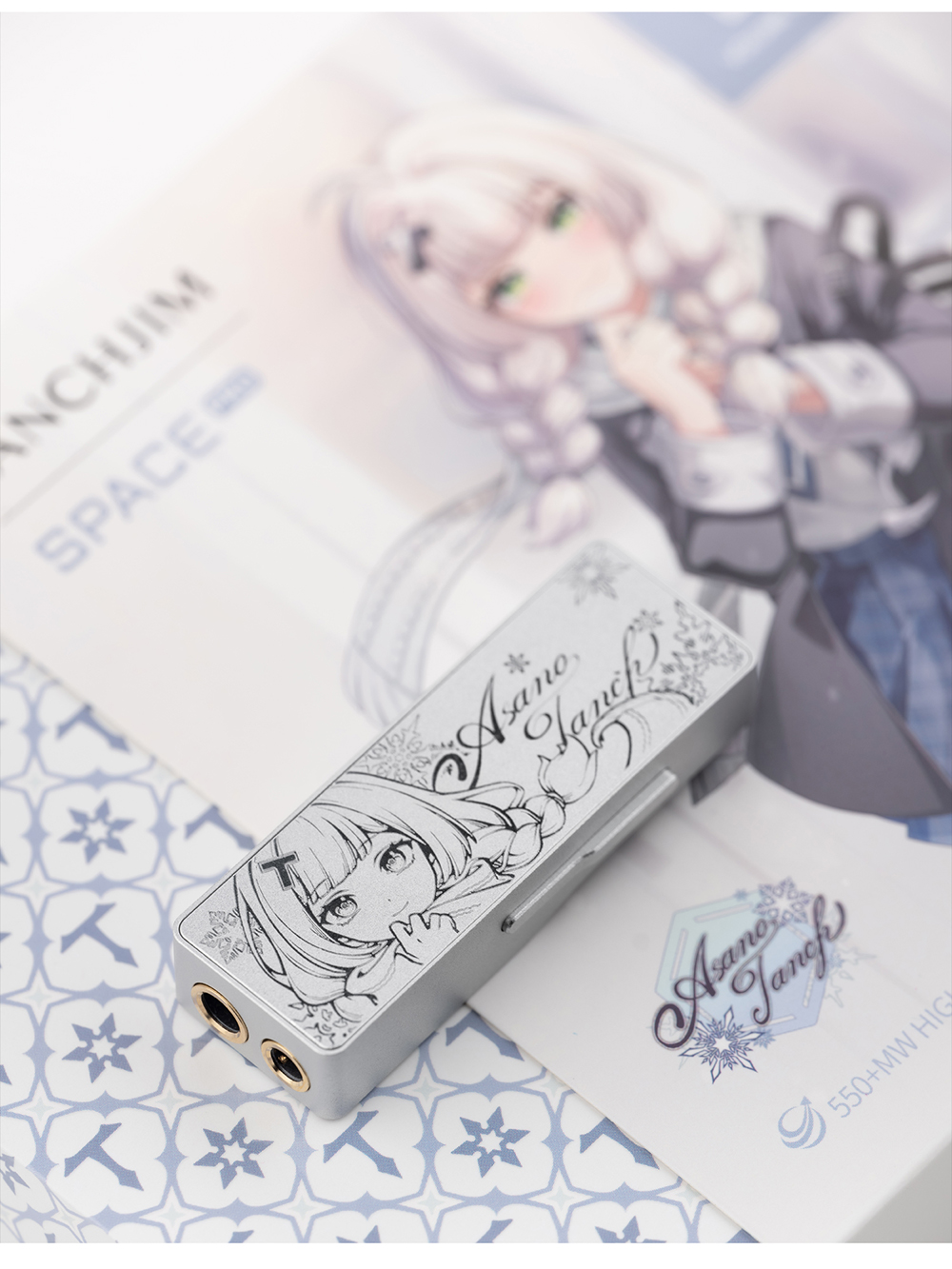

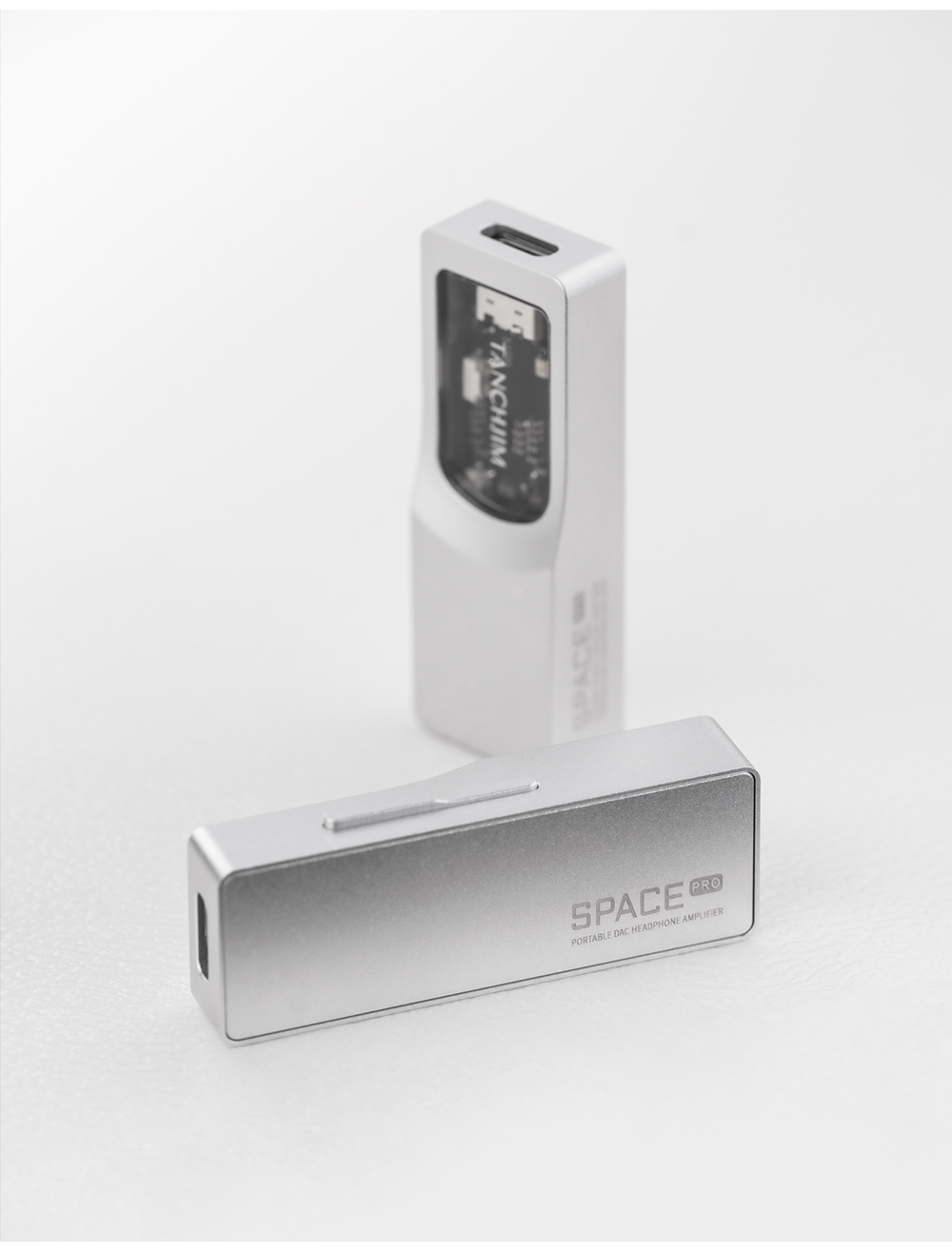

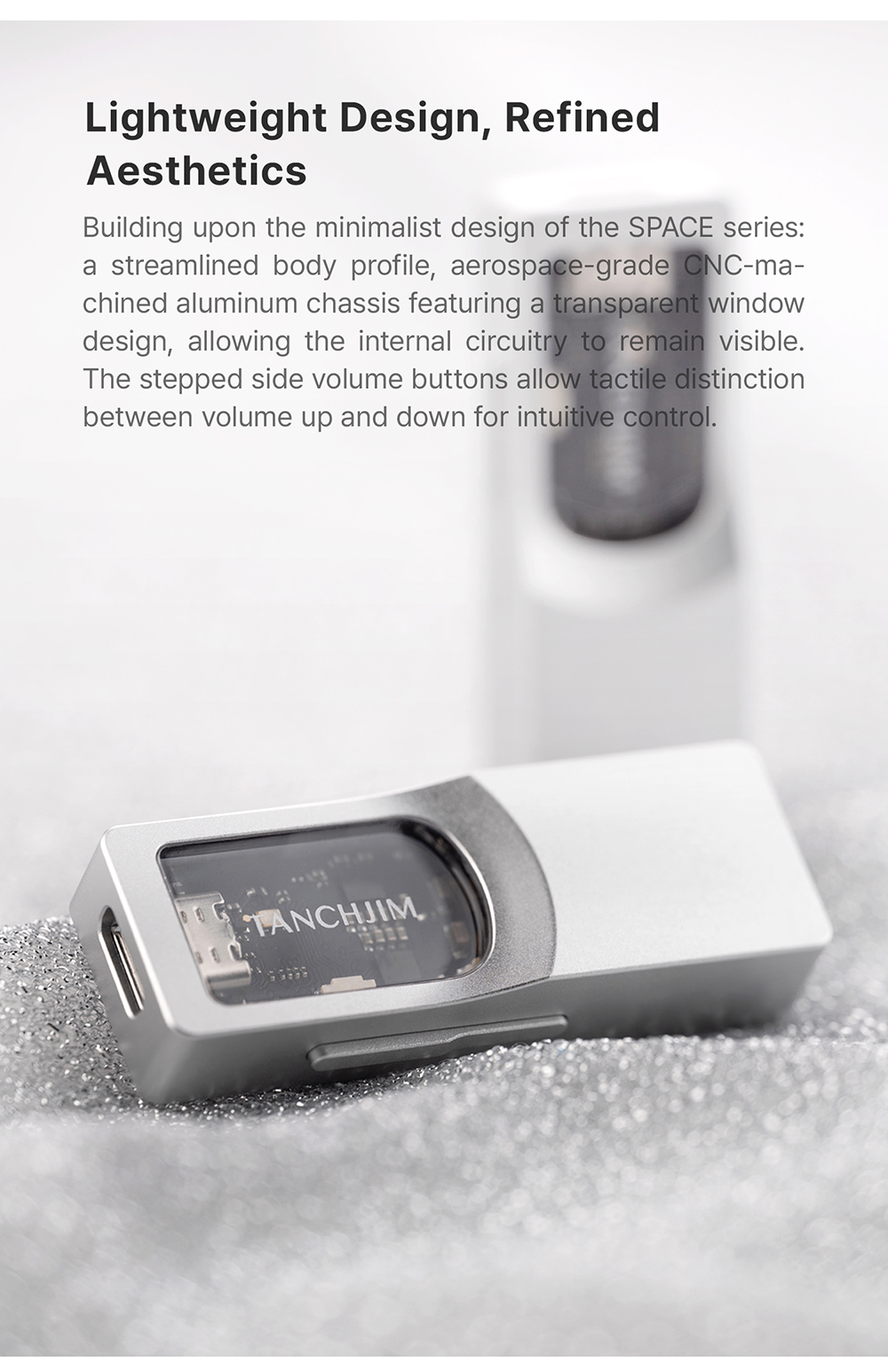

Lightweight Build, Exquisite Design:-

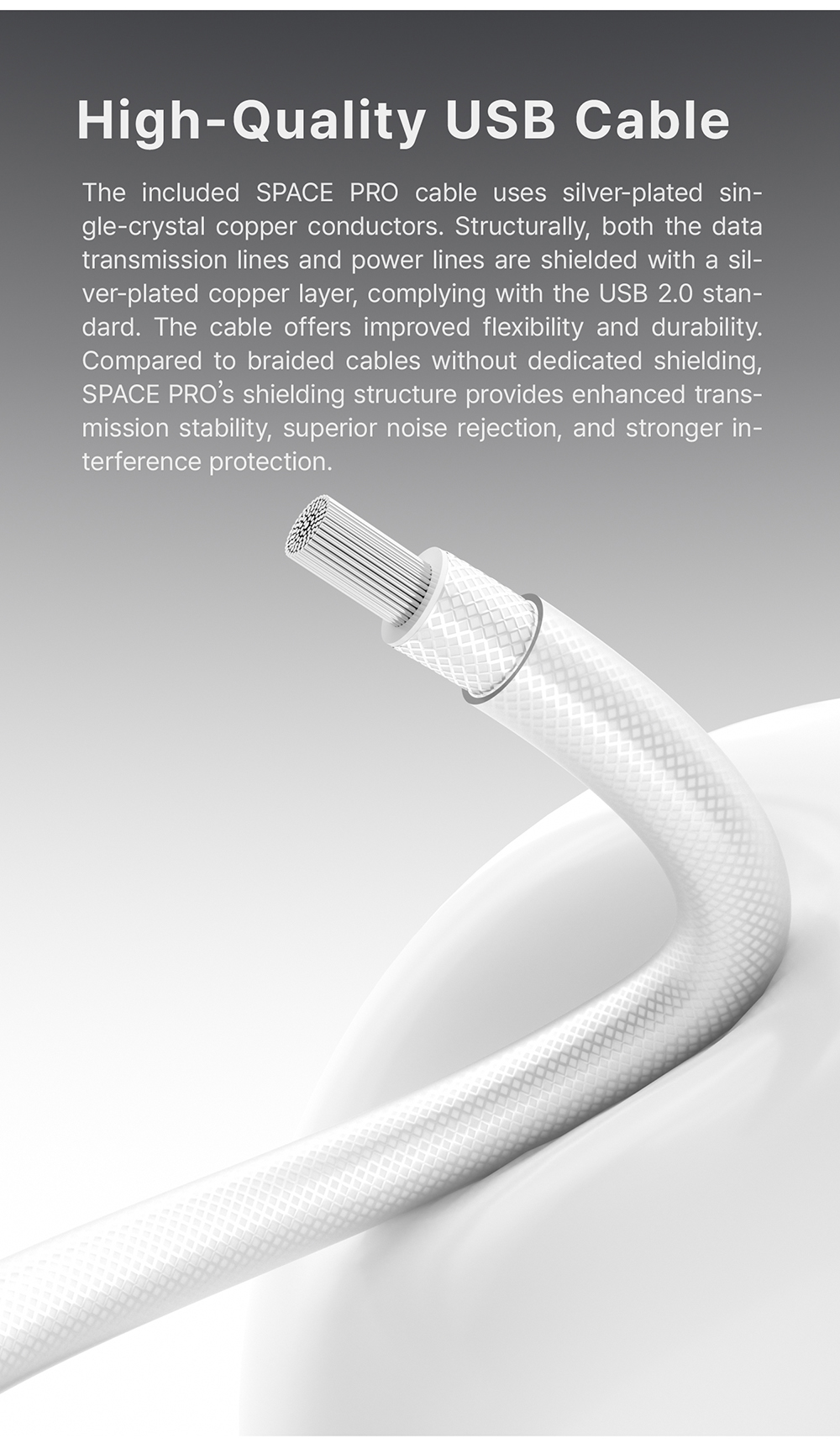

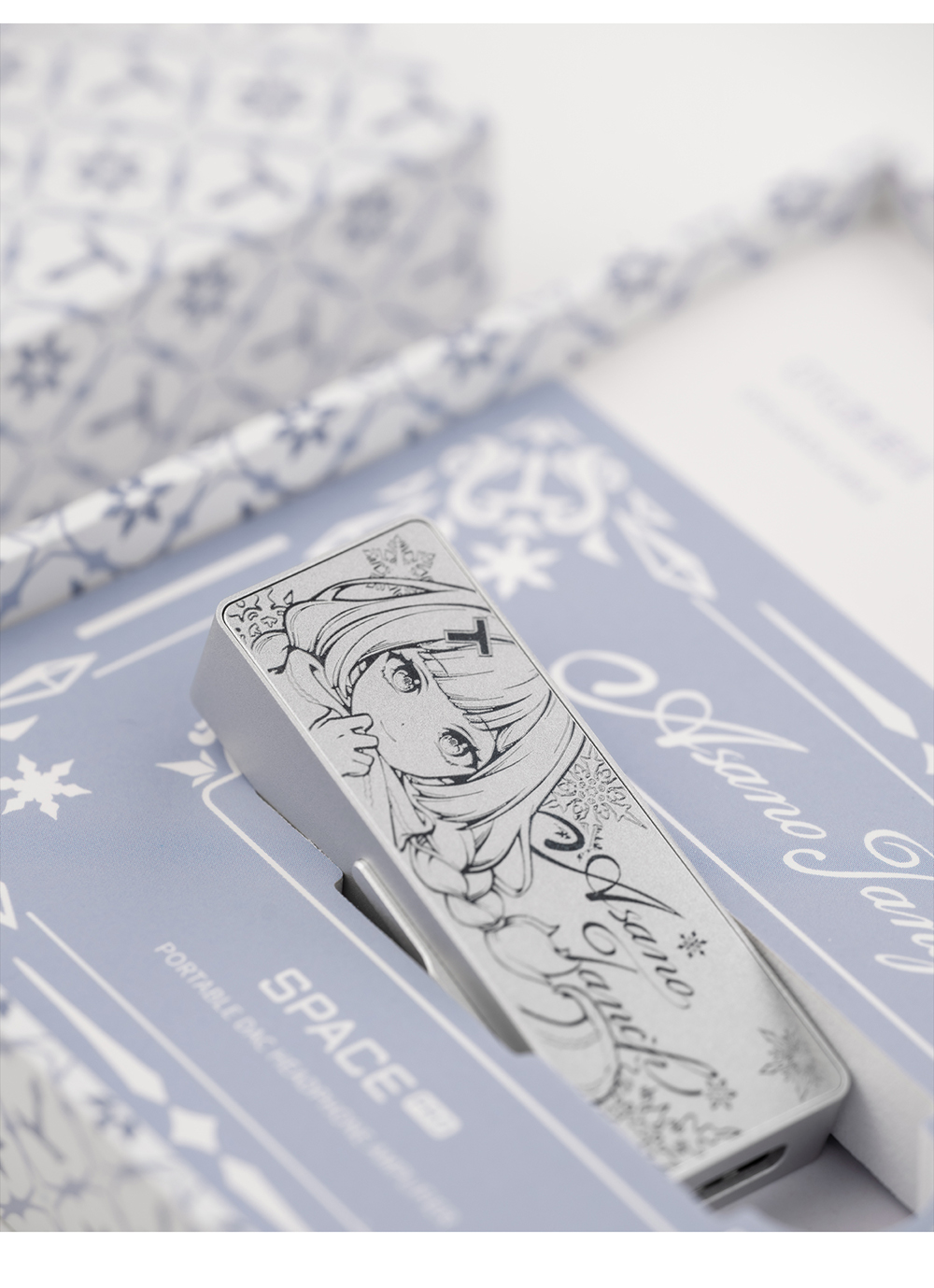

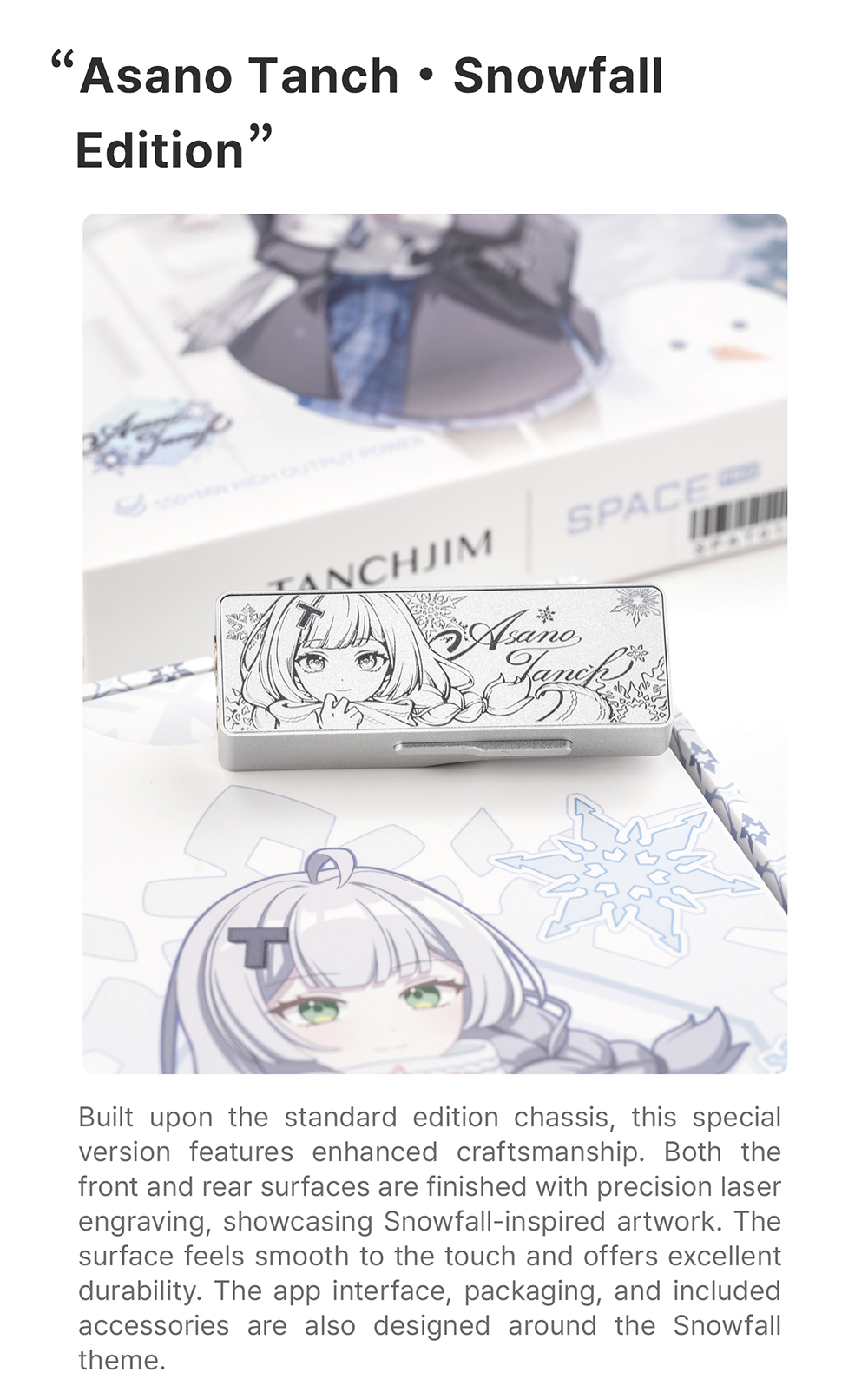

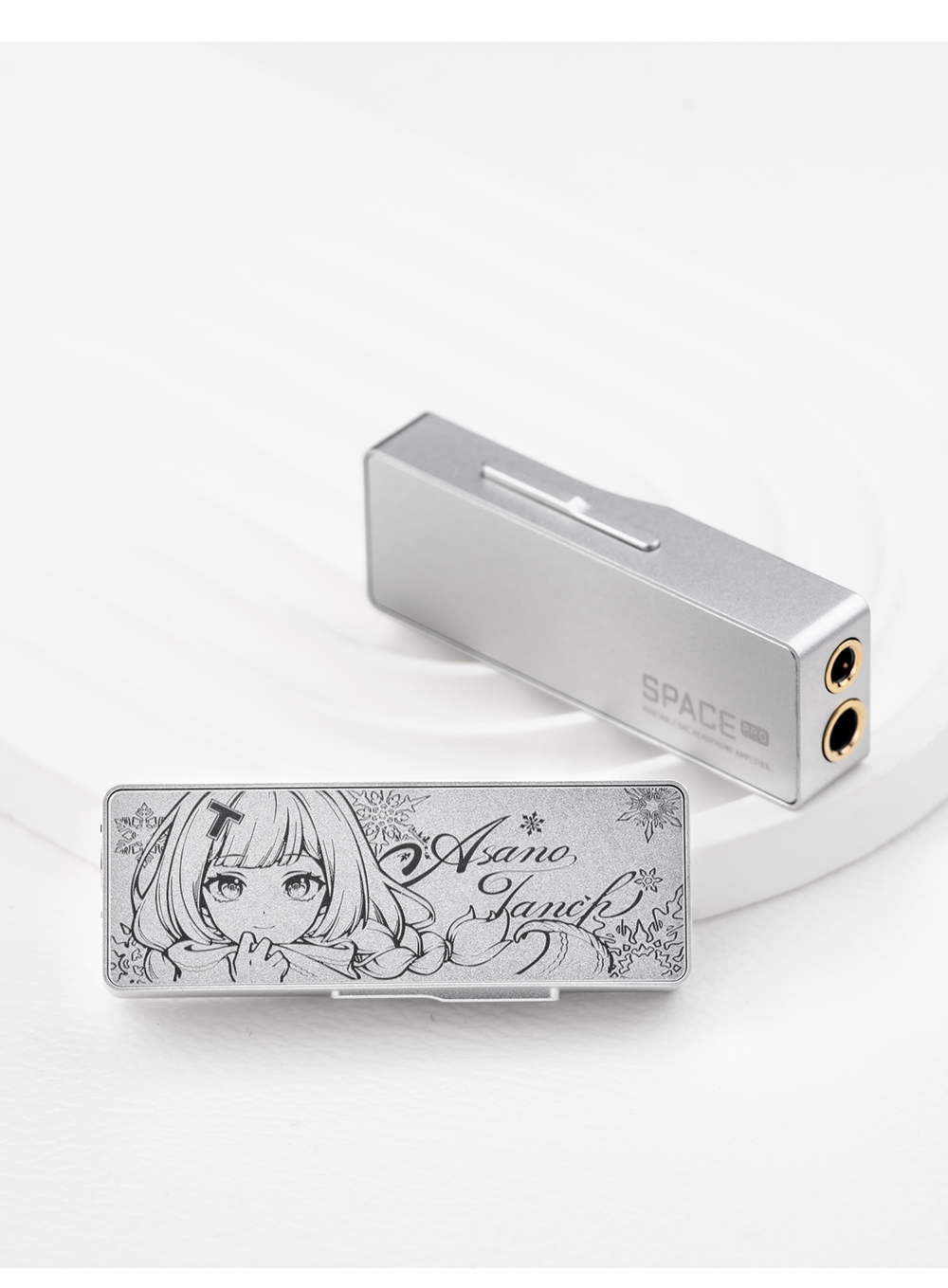

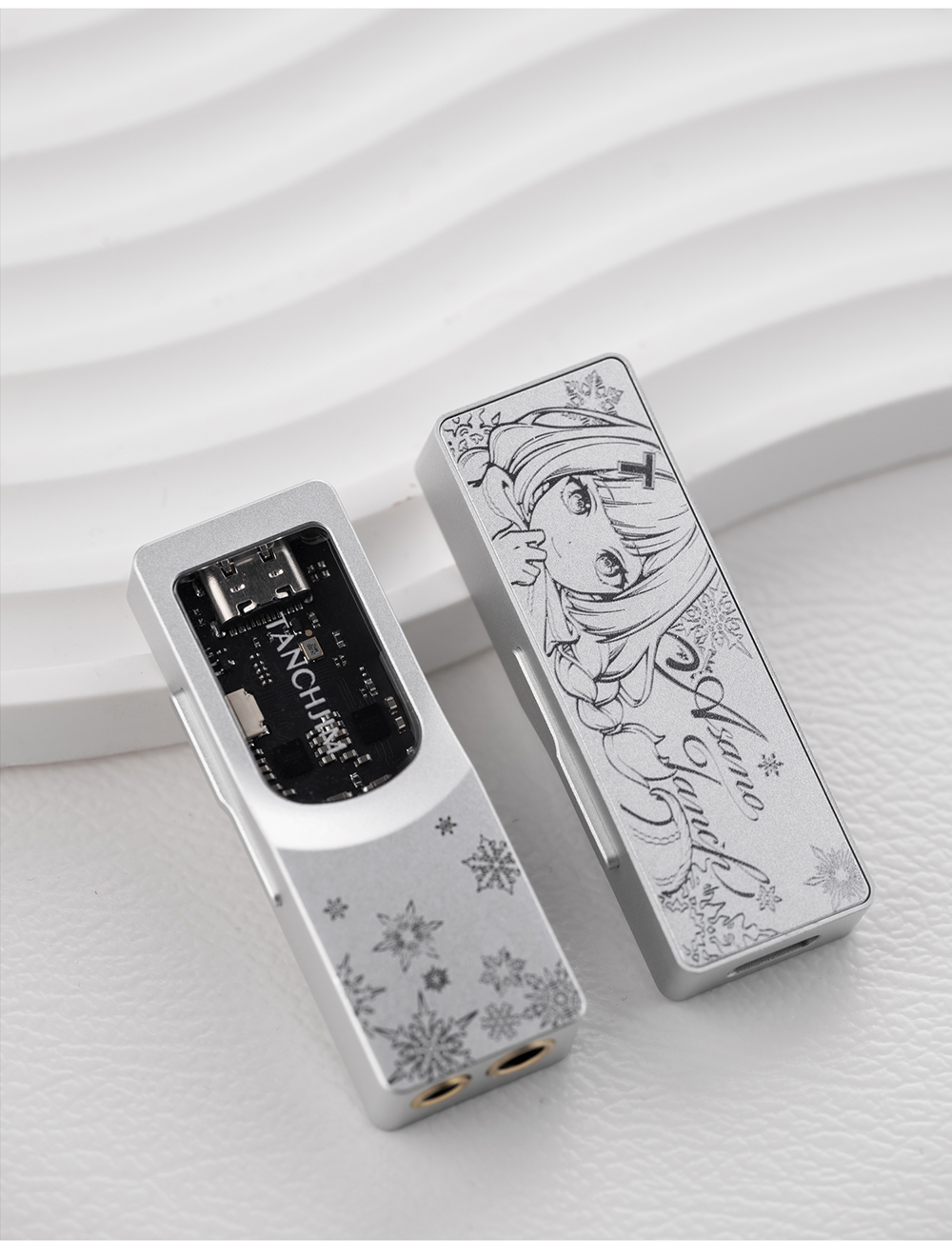

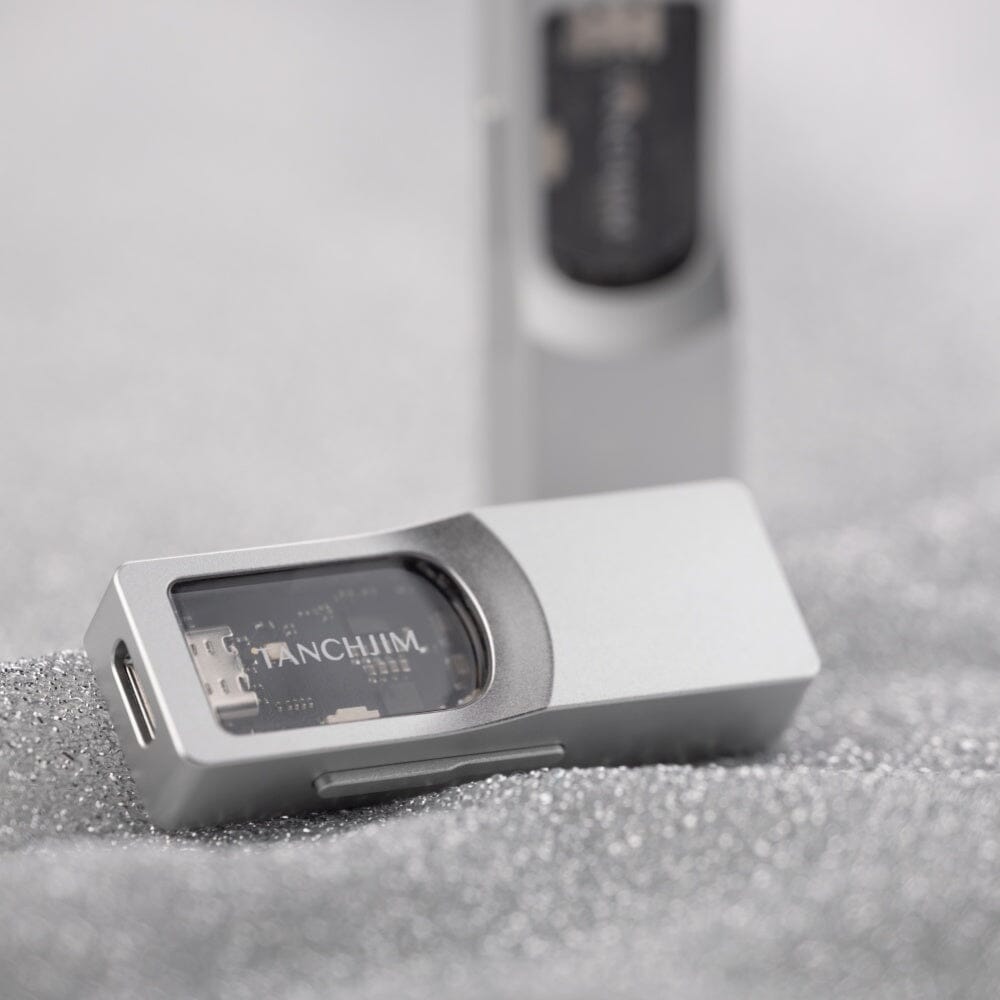

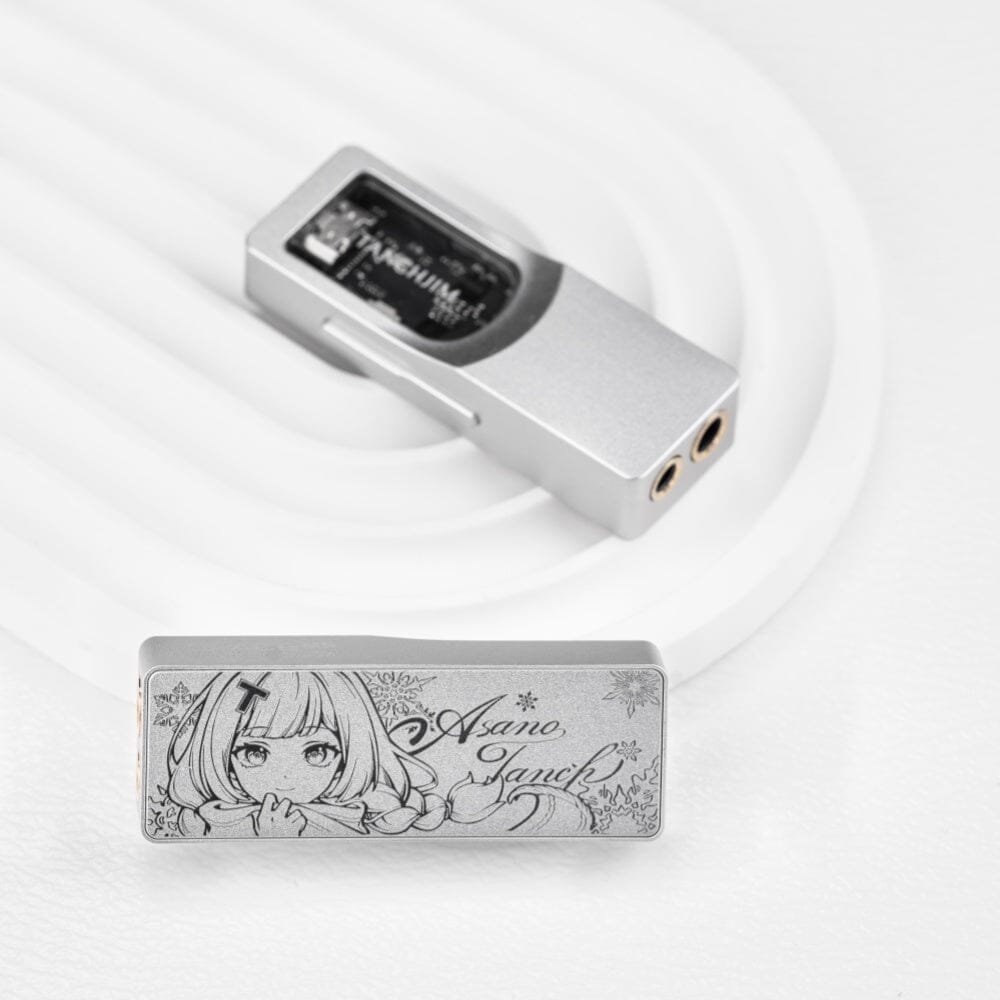

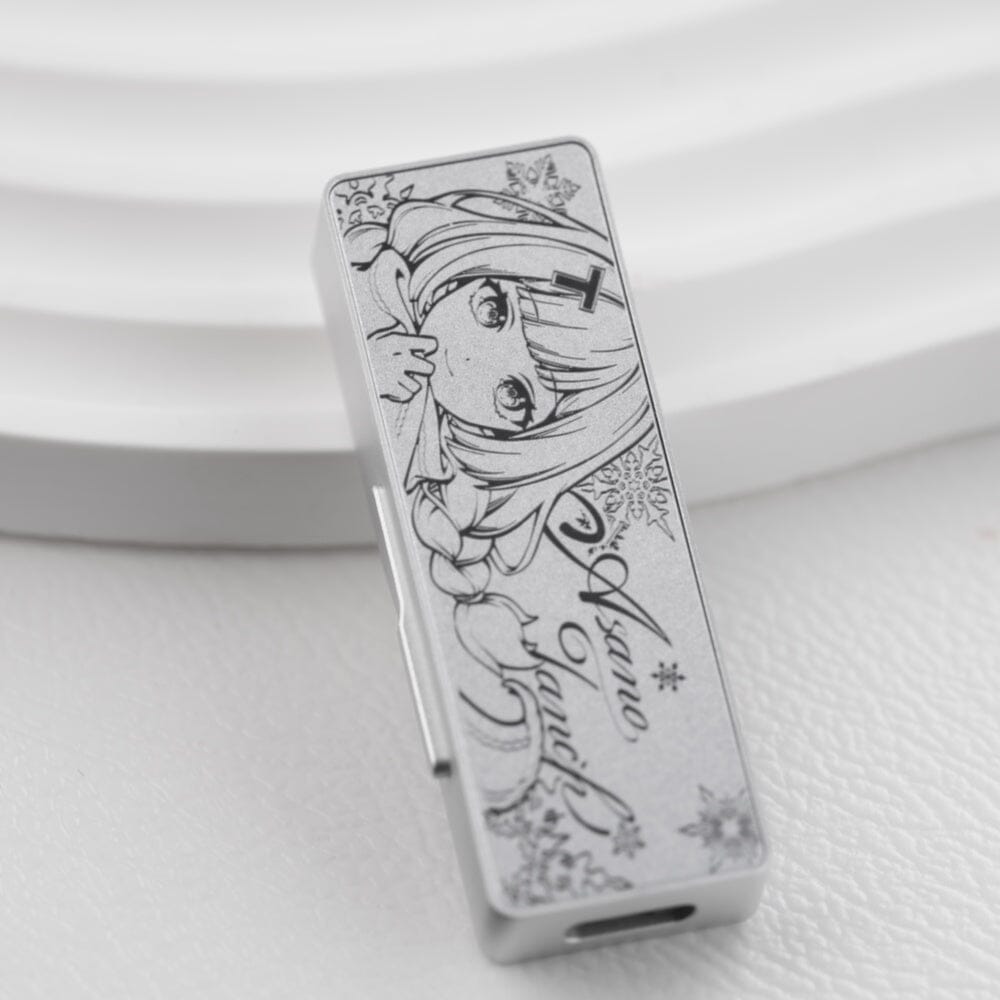

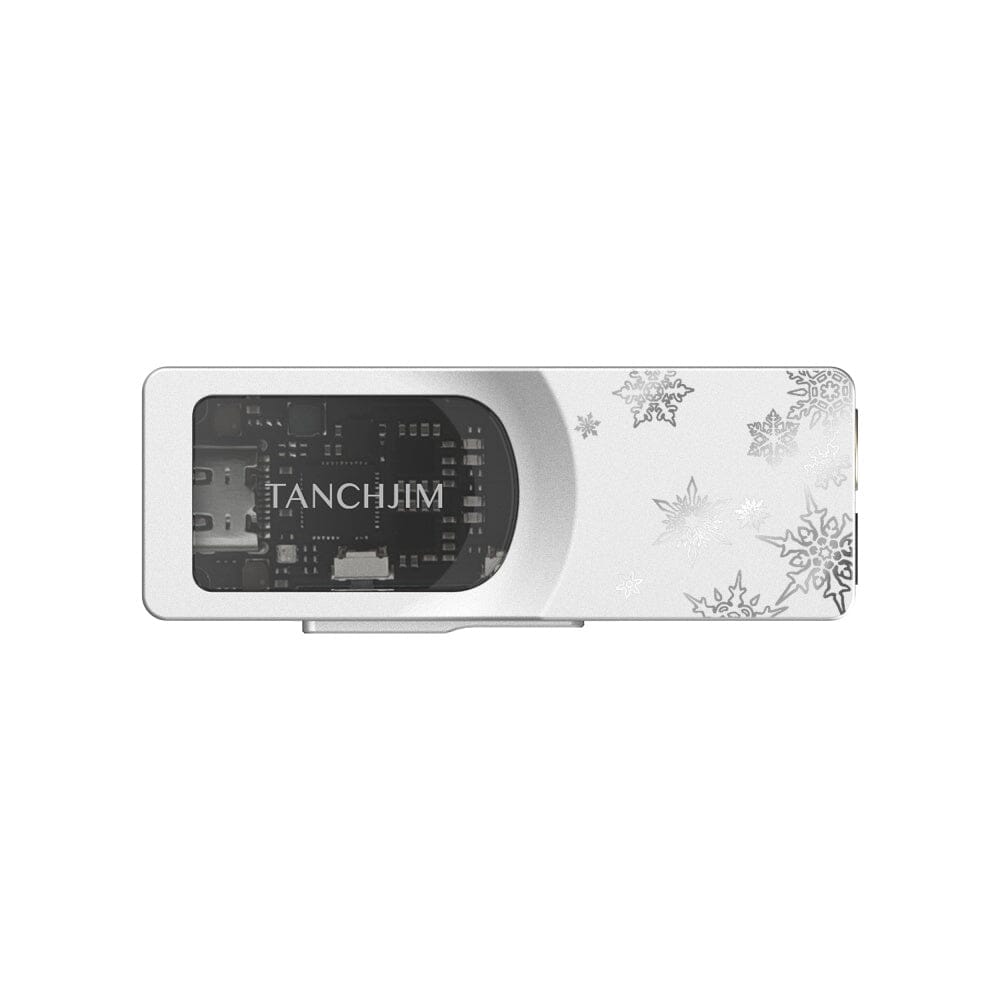

Tanchjim Space series has always been about compact and lightweight portable DAC/AMPs. The latest Space Pro follows that classic theme and offers a minimalistic design with a seamless body profile carved using a CNC-machined aerospace-grade aluminum alloy chassis and a transparent window. There are two variants available for the Space Pro, Standard variant offering a simple build, and the Asano-Tanch Snowfall edition, which features enhanced craftsmanship with high-precision laser engravings on the front and back surfaces. Tanchjim Space Pro comes with a detachable cable made up of high-quality silver-plated single-crystal copper wire conductors.
