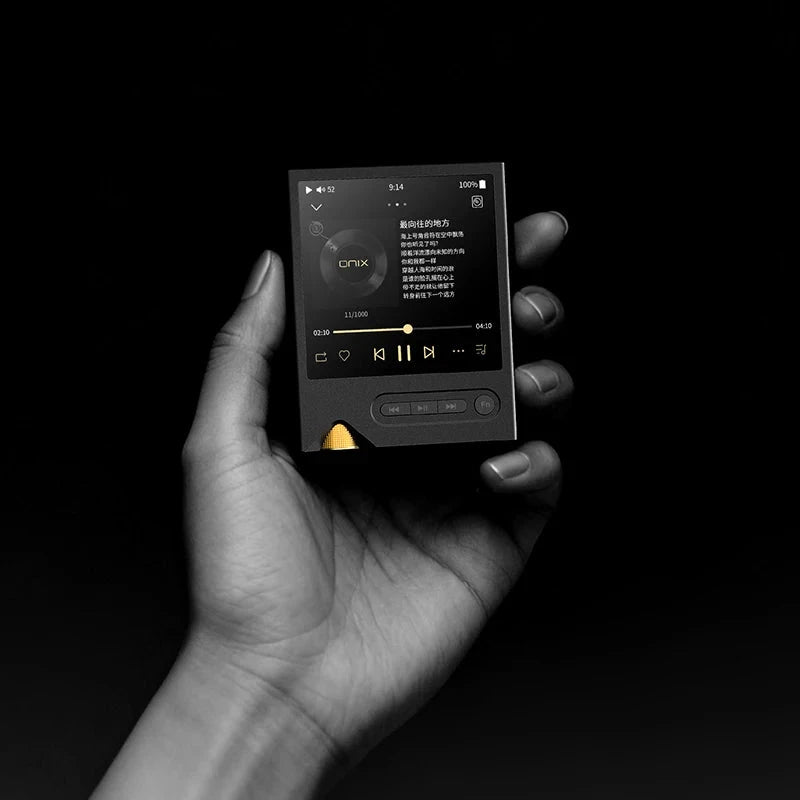

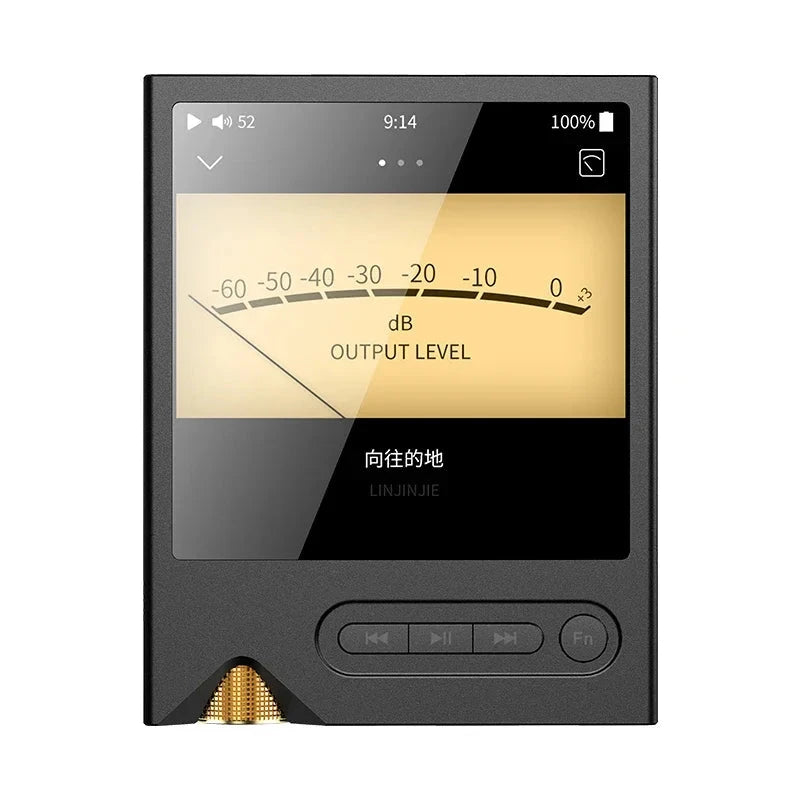

SHANLING ONIX XM2 Compact High-Fidelity Music Player

Key Features:-

Ultra-Compact ONIX Music Player

Flagship Cirrus Logic CS4308P DAC

Fully Balanced Circuit Design

Pure Music Operating System

800mW Balanced Output Power

Bi-Directional Bluetooth 5.2

USB DAC & USB Digital Output

Hi-Res Audio up to PCM 768kHz & DSD512

Compact Design, True ONIX DNA:-

The ONIX XM2 brings together two iconic design philosophies from the ONIX lineup: the pure musical focus of the Overture XM5 and the ultra-compact form factor of the Waltz XM10. By merging these approaches, XM2 delivers unmistakable ONIX sound quality in a highly portable, affordable, and practical music player—perfect for audiophiles who value performance without bulk.

Flagship Cirrus Logic DAC Architecture:-

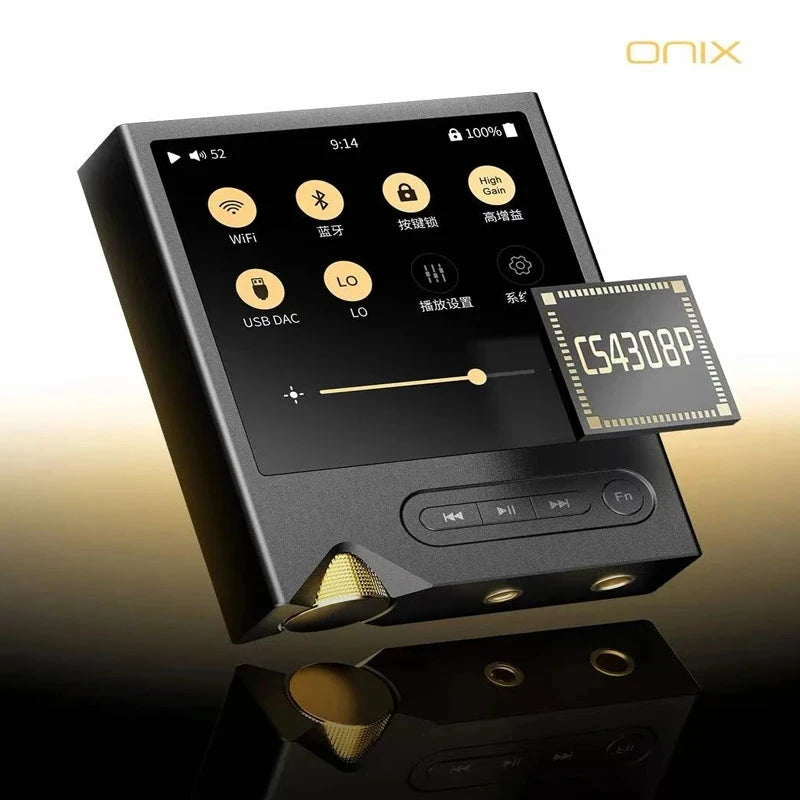

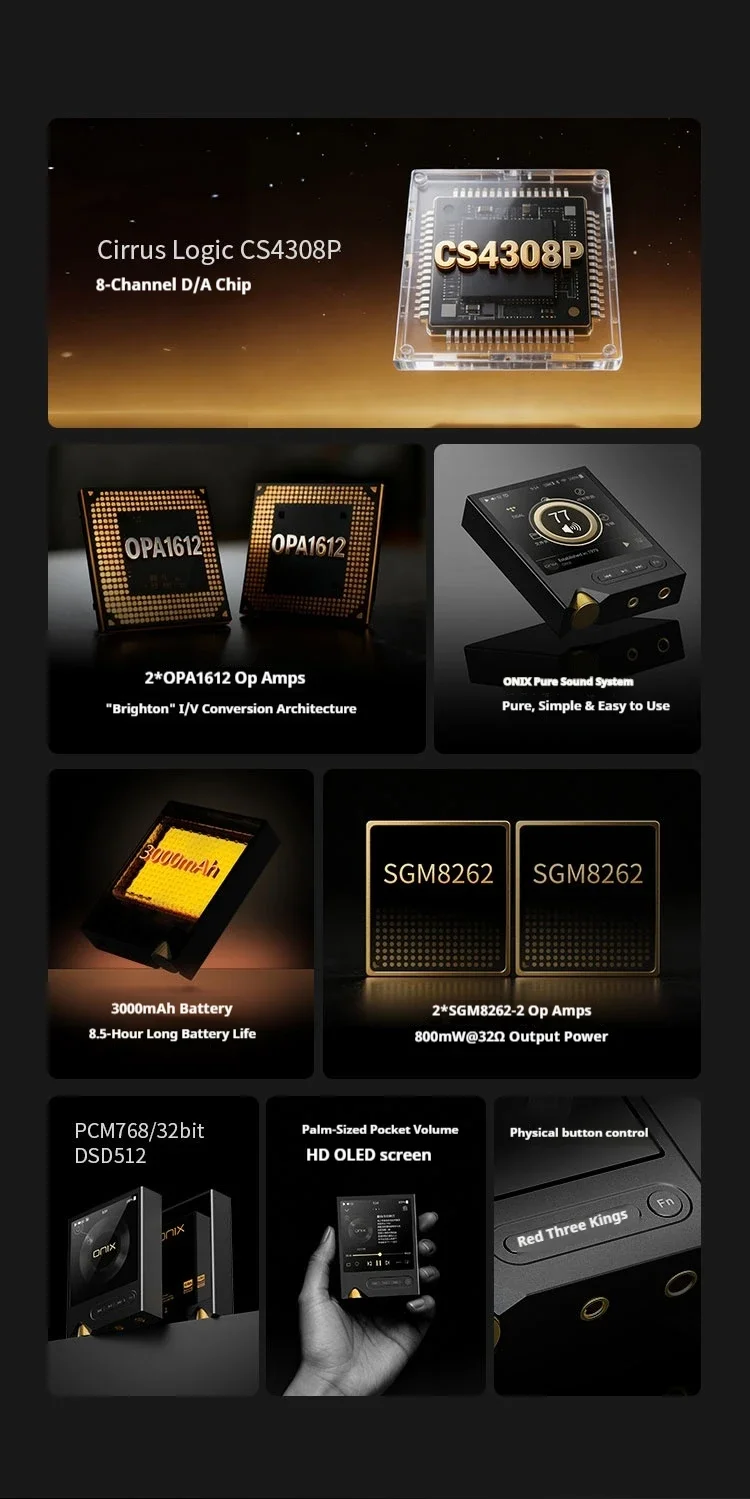

XM2 is the first ONIX player to feature the flagship Cirrus Logic CS4308P, a next-generation 8-channel DAC enabling a fully balanced circuit design. Compared to previous Cirrus Logic implementations, this represents a significant leap in resolution, dynamics, and tonal accuracy.

Paired with ONIX’s in-house “Brighton” I/V conversion circuit and dual SGM amplification stages, XM2 delivers up to 800mW @ 32Ω, while maintaining extremely low output impedance—making it ideal for both demanding headphones and ultra-sensitive IEMs.

Pure Music Operating System:-

Powered by the Ingenic X2000 platform, XM2 runs a highly optimized, in-house developed music system focused entirely on sound performance. Free from smartphone-style distractions, it delivers fast response, stable playback, and uninterrupted high-fidelity audio.

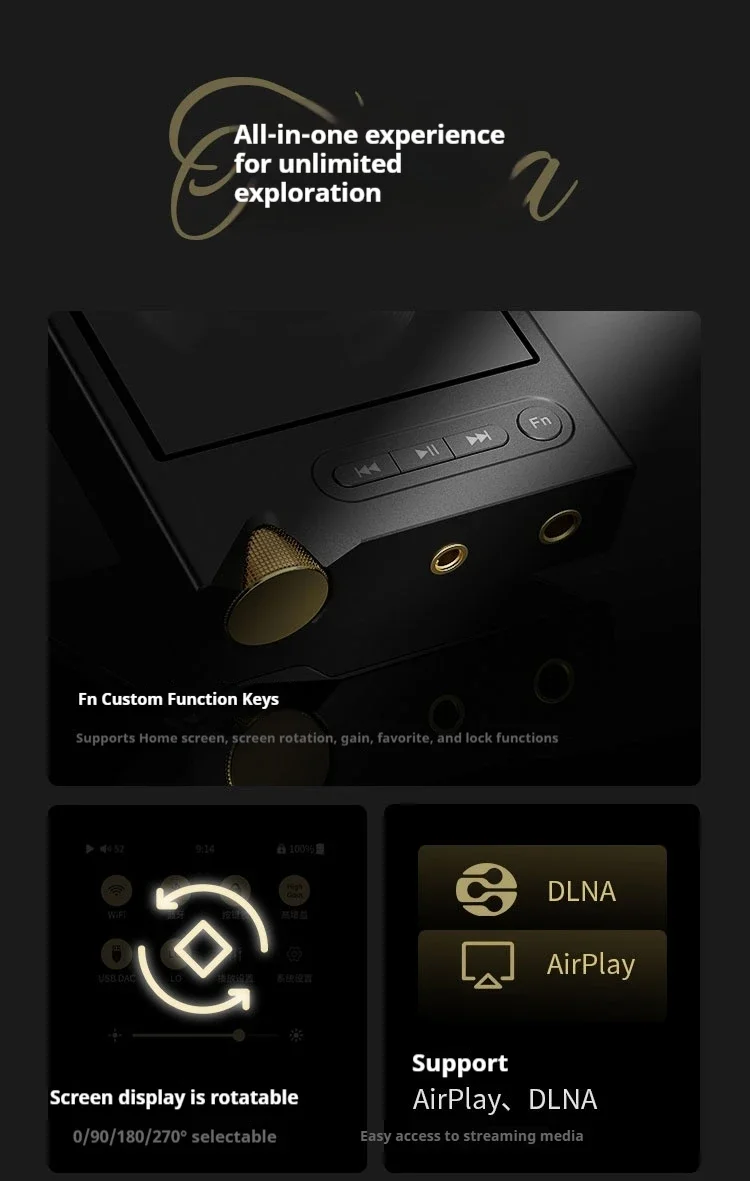

Music can be played locally from MicroSD cards, streamed via Tidal, or accessed over DLNA and AirPlay, ensuring a seamless and immersive listening experience.

Complete Feature Set, ONIX Style:-

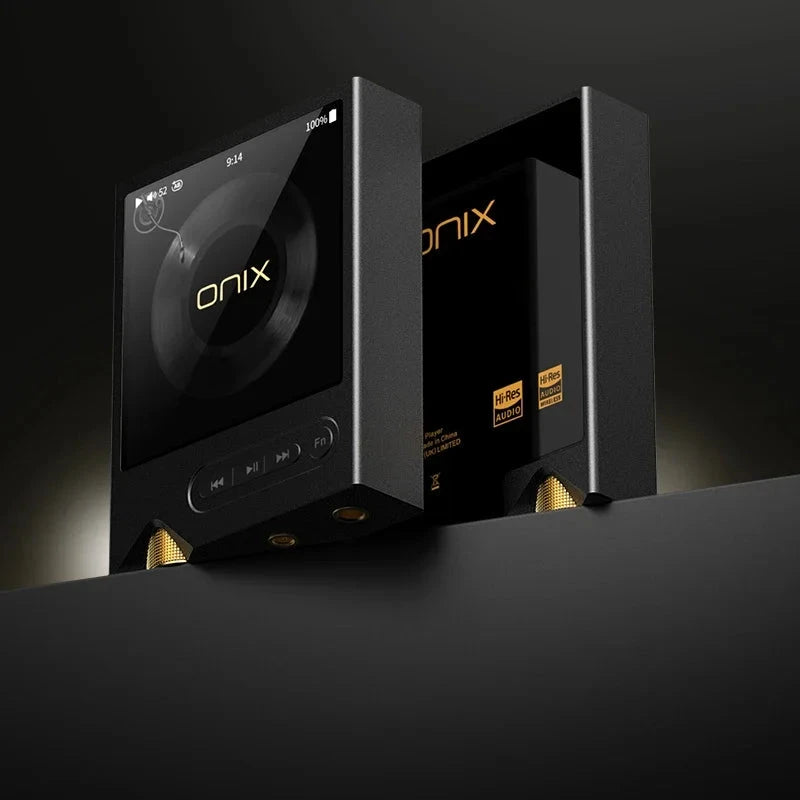

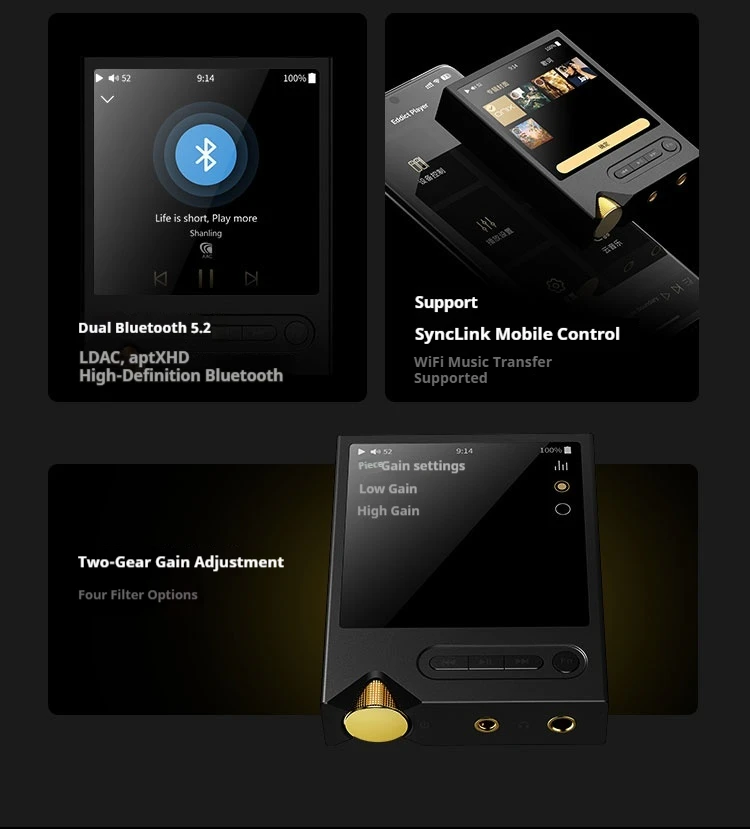

Encased in a durable, precision-crafted aluminum body, XM2 offers a full suite of modern connectivity options. Bi-directional Bluetooth allows both wireless streaming from smartphones and direct connection to Bluetooth headphones or speakers. USB digital output enables integration with high-end external DACs, while USB DAC mode allows XM2 to function as a high-quality audio interface for computers and mobile devices.

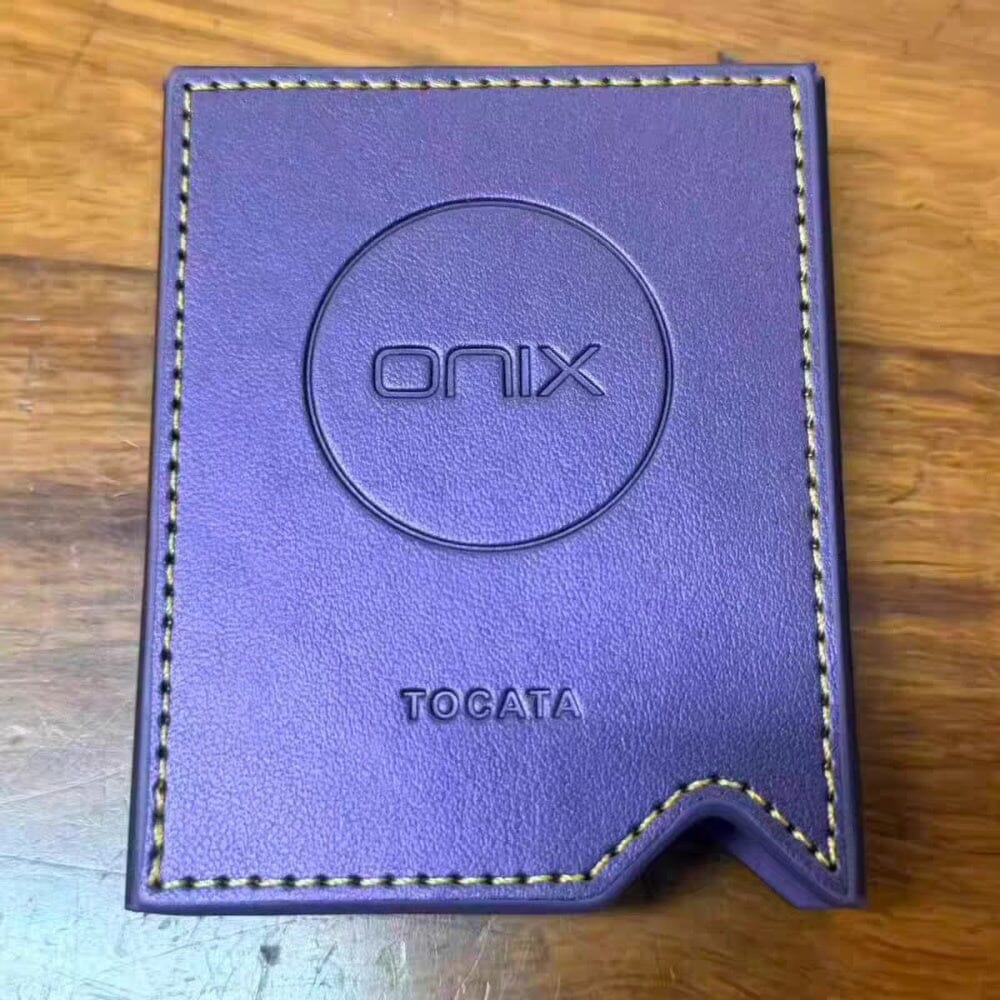

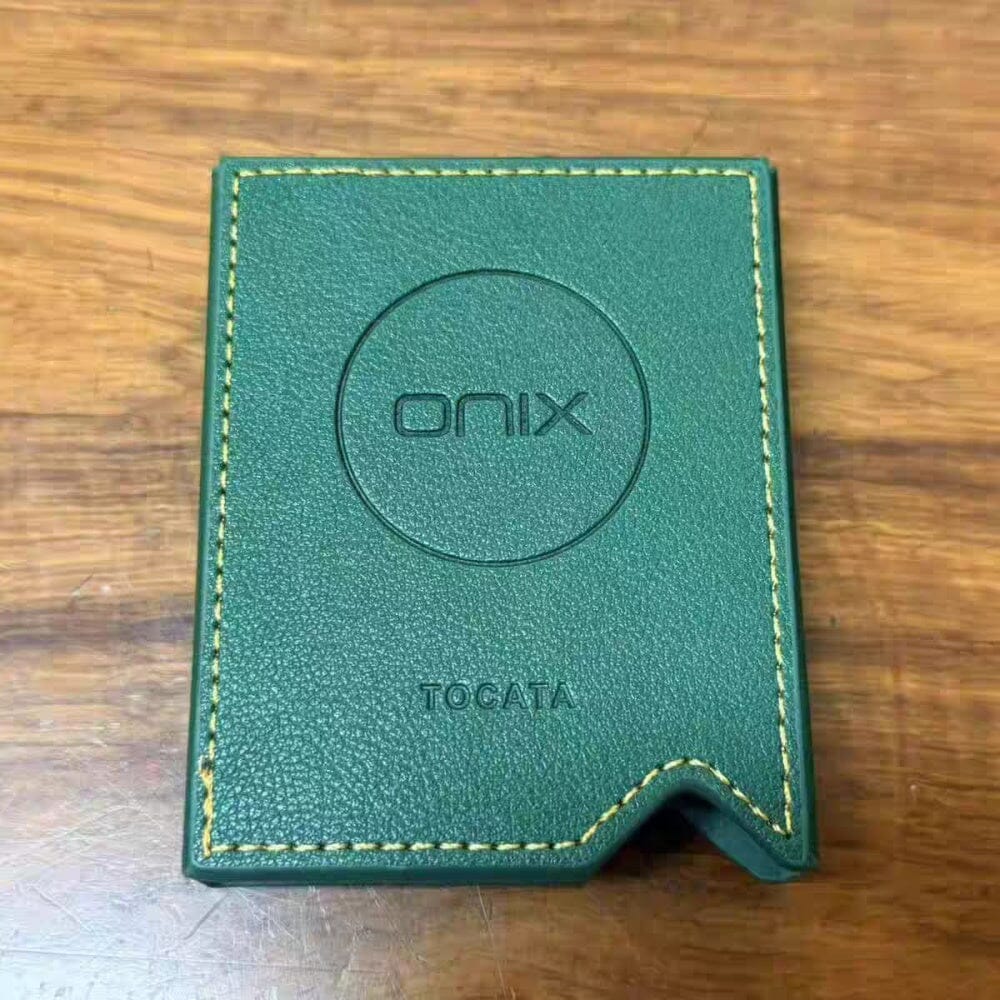

With optional magnetic phone case compatibility, XM2 becomes an even more flexible portable audio solution.

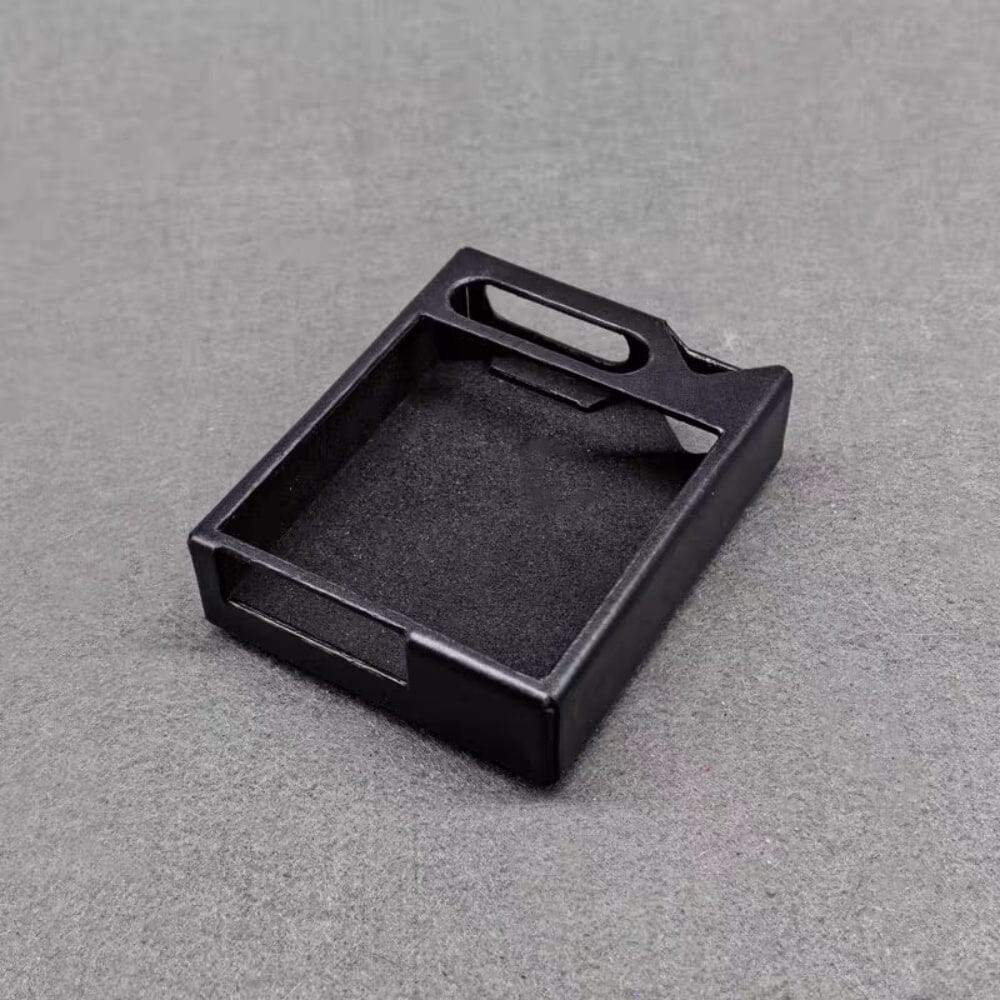

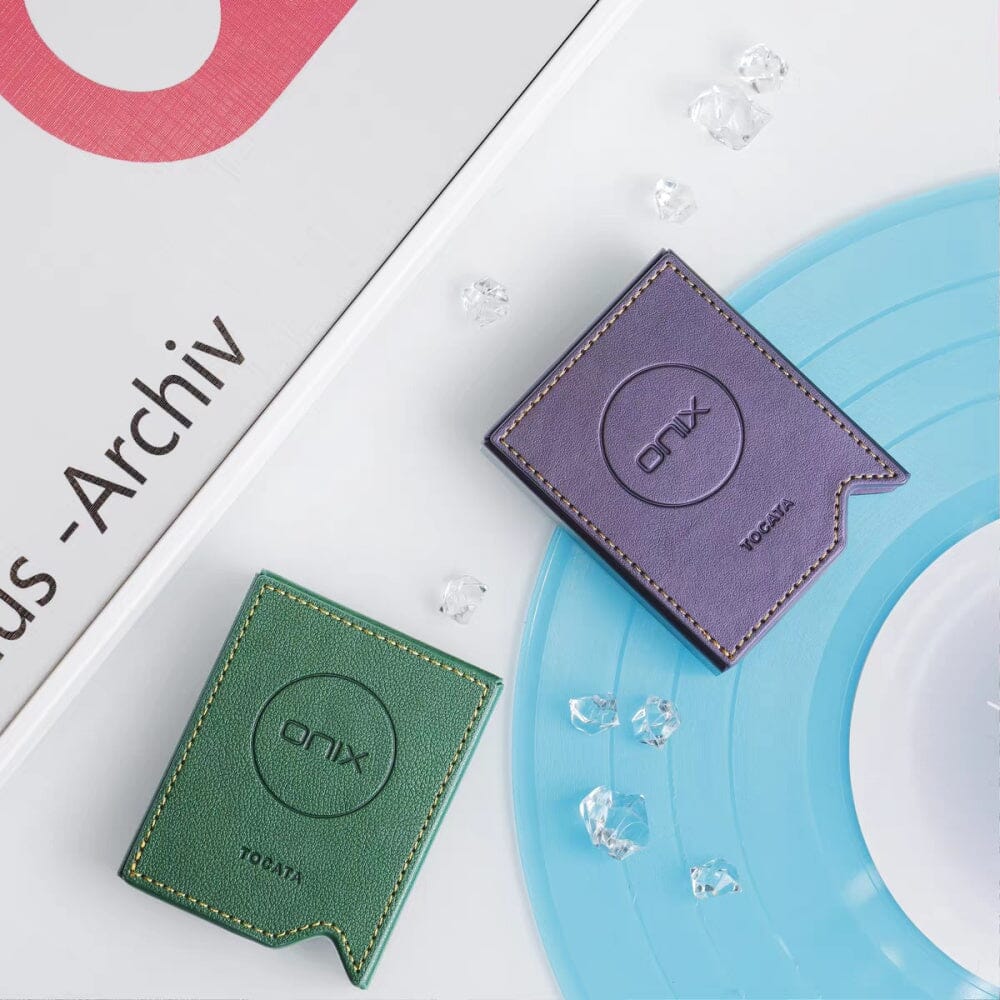

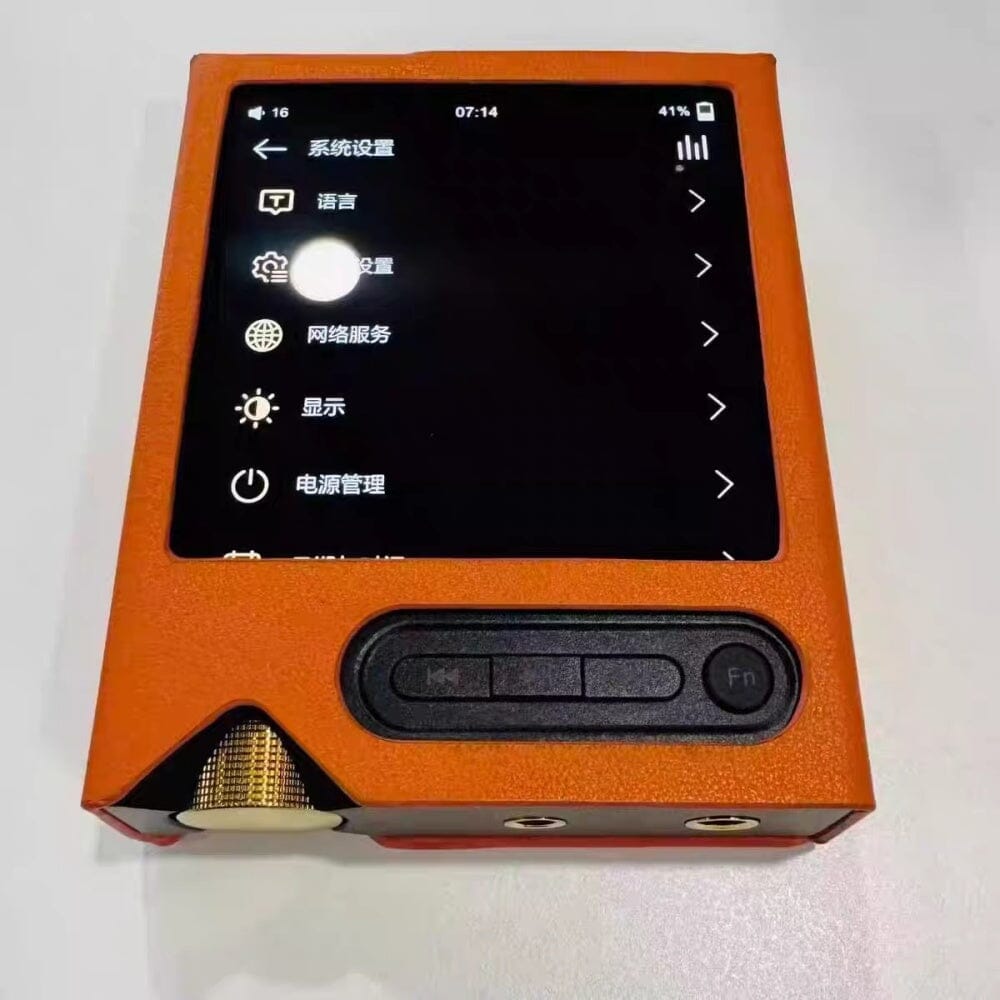

Magnetic phone case sold separately.

Intuitive Control and Premium Display:-

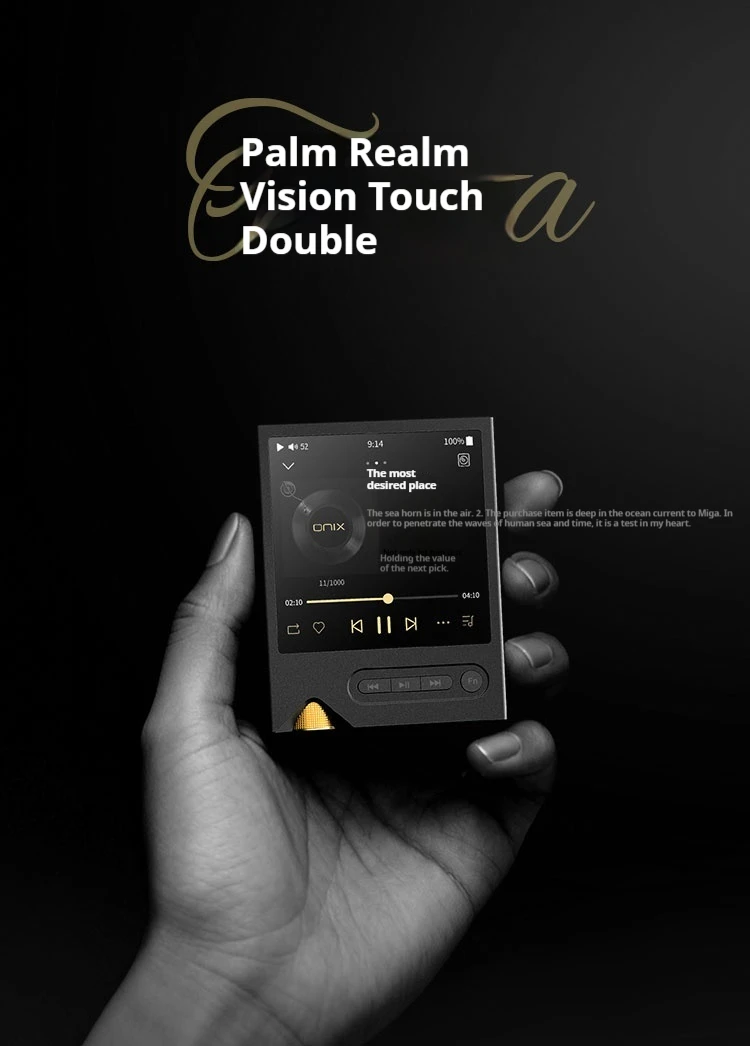

XM2 features a 3-inch square OLED touch screen with sharp 720p resolution, complemented by physical buttons and a dedicated volume wheel for precise control. Remote operation is also available via the Eddict Player app using SyncLink, offering full control from your smartphone.

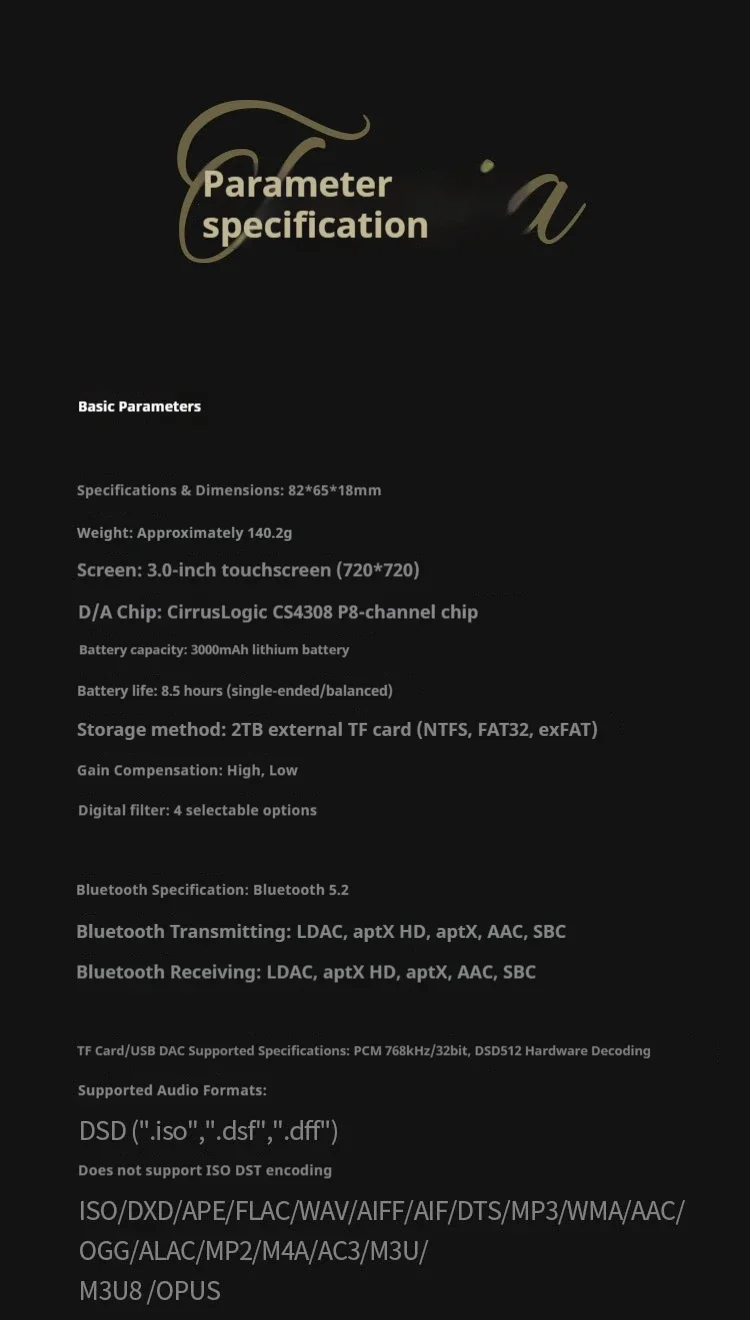

Specifications:-

Dimensions: 82 × 65 × 18 mm

Weight: 140 g

System Platform: Ingenic X2000

Operating System: In-House Developed

Display: 3-inch OLED Touch Screen, 720p

Playback: MicroSD (up to 2TB), Tidal Streaming

Controls: Touch Screen, 4 Hardware Buttons, Volume Wheel

Remote Control: SyncLink via Eddict Player (Android & iOS)

Bluetooth: Two-Way Bluetooth 5.2

Bluetooth Codecs: LDAC, aptX HD, aptX, SBC, AAC

Wi-Fi: 2.4G / 5G, DLNA, AirPlay, Tidal

USB: USB DAC Mode, USB Digital Output

Hi-Res Formats: PCM up to 768kHz / 32bit, DSD512

Headphone Outputs: 3.5mm Single-Ended, 4.4mm Balanced

Capacity: 3000 mAh

Charging: USB-C

Battery Life: Up to 8.5 hours (SE or Balanced)

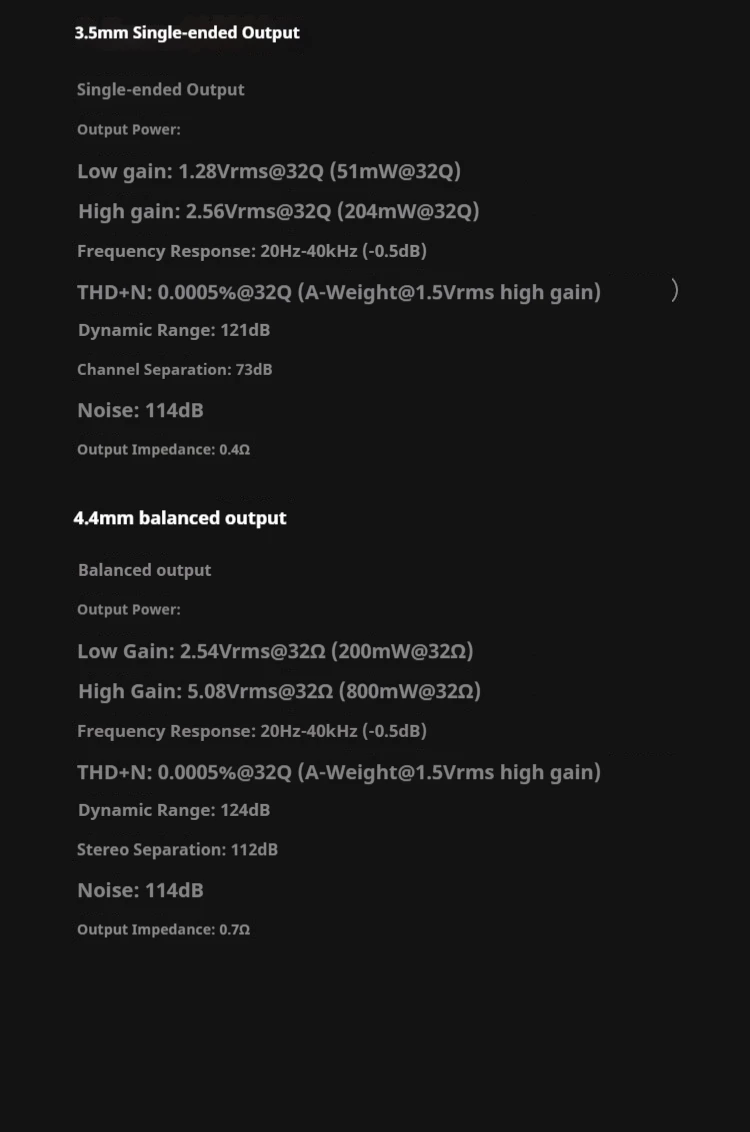

3.5mm Single-Ended Output

Output Power (Low Gain): 1.28V @32Ω (51mW)

Output Power (High Gain): 2.56V @32Ω (204mW)

Output Impedance: 0.4Ω

4.4mm Balanced Output

Output Power (Low Gain): 2.54V @32Ω (200mW)

Output Power (High Gain): 5.08V @32Ω (800mW)

Frequency Response: 20Hz–40kHz (−0.5dB)

THD+N: 0.0005% @32Ω (A-weighted)

Channel Separation: 112dB

SNR: 121dB @32Ω (A-weighted)

Noise Floor: 114dB @32Ω (A-weighted)

Output Impedance: 0.7Ω
