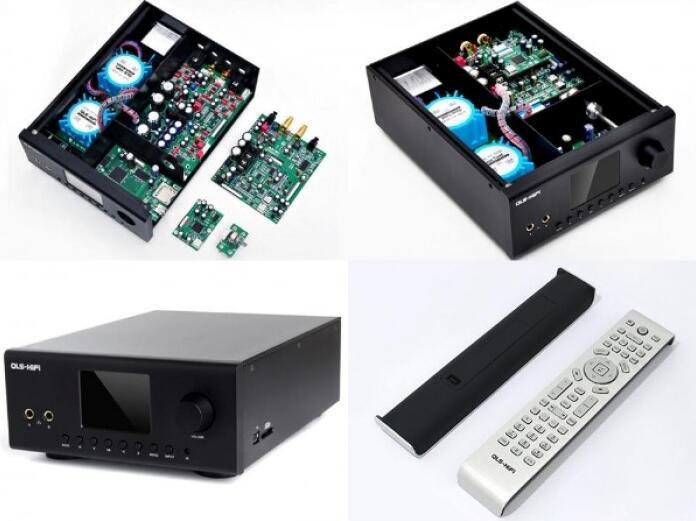

QA860 HiFi lossless digital music player (hereinafter referred to as QA860) is a set of digital player, DAC, headphone amplifier in one of the high cost HiFi equipment Internal power handling complex, real-time software architecture strongest, ultra-low Jitter clock and digital processing circuits, the unique strict isolation between circuits inside the machine design to ensure that it has a HI-END-level output characteristics.
The most conducive to sound software architecture
QA860 firmware continuation in QA660, still uses the QLS-HiFi exclusive patented technology --- microcontroller single-threaded pure tone player, unique procedural framework enables digital output with very low clock jitter (Jitter), and the digital audio output into the HI -END peak.
Support for mastering grade high bitrate file playback
QA860 can play 24Bit / 192KHz high rate of WAV digital audio stream, we know that the traditional CD-ROM only 16Bit / 44.1Khz, 24Bit / 192KHz digital mastering of data than conventional CD 5-8 times the amount of data (a 24Bit / 192Khz mastering songs almost the entire capacity of a CD), so the digital mastering both in the sound field, density, dynamic and resolving power so far beyond the traditional CD quality.
Digital DSD player that supports DSD direct play, direct decoding
QA860 can support DIFF and DSF files (DSD64, 1bit, Stereo) direct playback, you can output DSD DoP coaxial signal directly, but also through the internal DAC chip CPLD and direct hardware decoder outputs analog signals.
"Perfect restore each music" Music on Hold original vividness and musicality, background static, such as the deep sea, sounds fresh and moist, clean, transparent, full of atmosphere, the sound field broad, extending across the excellent overall sound directly, transparent, dynamic, enough Naiting. The atmosphere, gorgeous and noble.
- With digital coaxial and optical digital outputs, so that it could be used independently as a digital turntable.
- With digital coaxial and optical digital inputs, so that it could be used independently as a DAC.
- Comes with a large thrust headphone amplifier, amp with high impedance and low impedance output port, can directly promote and push a good majority HiFi headphones.
- Special support pre-function to facilitate users to connect high-powered speakers or no volume control for pure power amp, you can open pre-function menu settings, and then by remote control the analog output volume (Note: Due to AD1955 chip design problems in DSD mode can only be fixed level output, the volume control on the front stage DSD mode does not work, so if your device has no volume control after the class please DSD files into WAV file playback).
- Amp section with independent analog volume control can be turned off when using the internal pre-amp function to get better sound quality.
- DAC section fully balanced amplifier circuit, with balanced / unbalanced analog outputs.
- AC input with voltage selector switch, through the switch can adapt to the supply voltage of countries around the world.
- Support DSD64, 1bit DSD file DIFF and DSF direct play, direct decoding
- Supports WAV, FLAC and other lossless formats and MP3 mainstream lossy compression format.
- Support 24 Bit/ 192KHz high-bit-rate digital audio format WAV and studio mastering WAV file playback.
- Support WAV / FLAC with CUE file playback associated, CUE supports ANSI, UNICODE, UTF-8 encoding.
- Support SD / SDHC / SDXC, maximum support 128GB SDXC card (available in future software upgrade to support a larger capacity SD card).
- OSD supports Simplified Chinese, Traditional Chinese, and English.
- One filled with songs 16G card boot time is usually about 2 seconds to complete, 32G thousands of songs filled with super-boot SD card need only 3-4 seconds.
- 3.2-inch LCD screen to display the playback information and working condition.
- Operation settings automatically.
- Select a folder with direct manipulation, with the entire card / folder sequential or random play, with fast-forward, rewind, or return with repeated listening on a song.
- With time positioning function, you can jump directly to a specific point in time playback; possess AB intercept playback.
- Sample median: 16Bit or 24Bit.
- Sampling rate: 44.1Khz, 48Khz, 88.2Khz, 96Khz, 176.4Khz, 192Khz, DSD 1bit 64FS.
- Audio formats supported: WAV (up to 24 Bit/ 192KHz), APE, FLAC, AIFF, ALAC, DIFF, DSF, and MP3.
- Digital Output: Coaxial * 1; fiber * 1.
- Digital output format: PCM / Dolby Digital / DTS / DSD (DoP v1.0).
- Digital Input: Coaxial * 1; fiber * 1 (up to 24bit 192 KHz).
- Analog output: RCA unbalanced * 1; XLR balanced * 1.
- Amp output: 6.35 output port * 2.
- Analog output parameters:
- Unbalanced terminal output level: 2.44V RMS
- Balance end output level: 4.88V RMS
- Frequency response:0-50k Hz
- SNR: 120dB
- Dynamic range: 118dB
- Separation: 110dB
- Distortion: 0.0007%
- Amp maximum output power: 600 Europe: 120mw 300 Europe: 250mW 150 Europe: 550mW 64 Europe: 1.2W 32 Europe: 2W

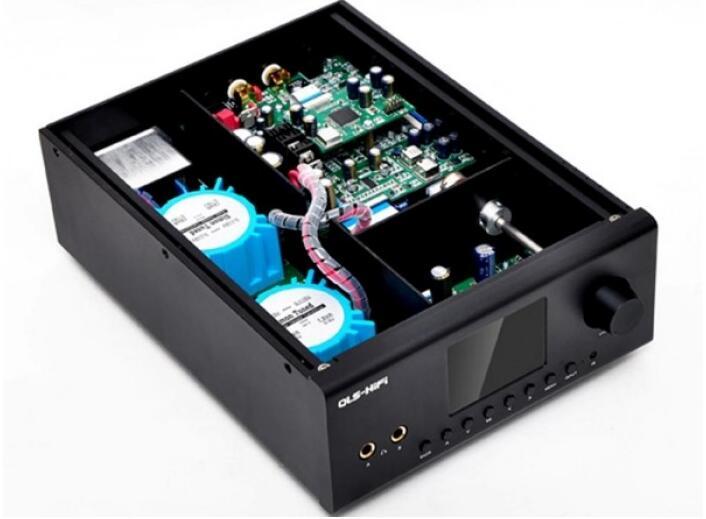

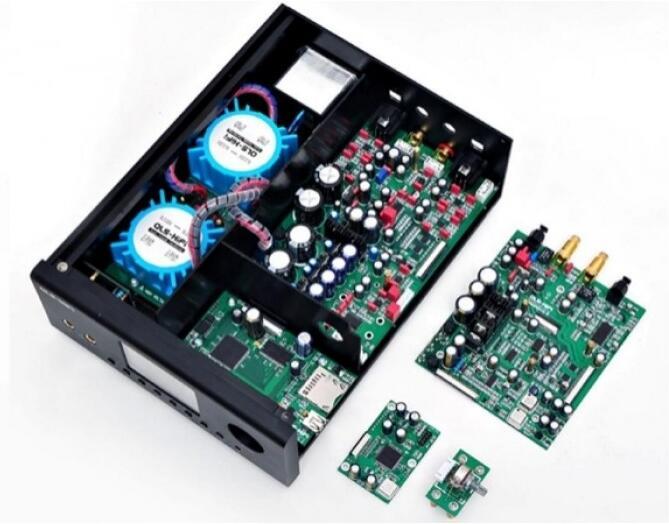

- DAC: AD1955 I / V: OPA2134 * 2 low-pass and preamp: LME49720 * 3 amp: LME49720 + OPA2134 + TPA6120
- Power Consumption: <30W
- Input Power: AC 100-120V or AC 220V-240V 50 / 60Hz (machine switch) (ordering no description always switch to AC 220V-240V position).
- Remote control Material: aluminum panels, plastic case, plastic buttons; remote control Size: 237 * 48 * 22mm; Remote Control Weight (without batteries): 135g
- Host size: 215mm (W) x330mm (depth) x100mm (height) (including connectors and feet exposed nails).
- Host weight: 5KG

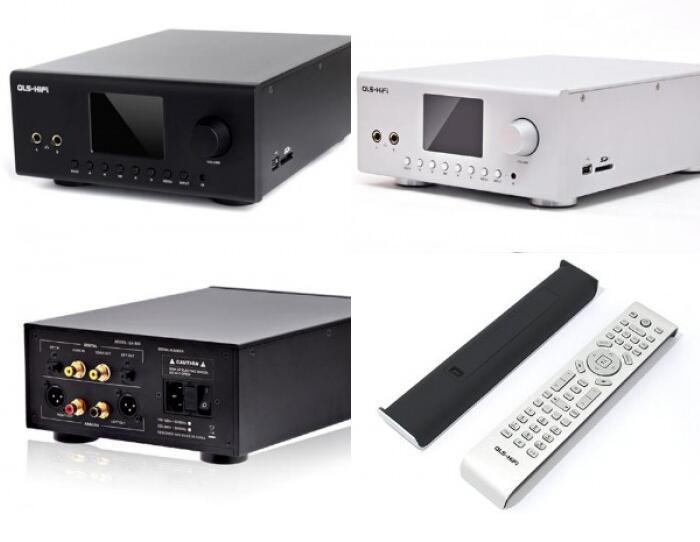

Digital inputs: RCA coaxial + square-port Fibre
Digital output: RCA coaxial + square-port Fibre
- Analog Output: a set of RCA unbalanced outputs, a set of XLR balanced outputs
- Amp output ports: 2 6.35 headphone port
- Power input: standard AC power input socket
- SD card: standard SD card
- USB input interface like A (cpl, no function)
- QA860 host.
- Remote Control ( battery not included)
- Power cord.
- 6GB Class10 SDHC card.
- Brand card reader.
- 6.35 to 3.5 headphone adapter plug
