After the official announcement in India and Shanghai, OPPO ENCO Q1 went on sale since September 12th.  OPPO Enco Q1 wireless headphones are the company’s first Bluetooth noise-canceling neckband headphones. We got OPPO ENCO Q1 from the first batch and we are very curious about the details inside.

1. Unboxing of OPPO ENCO Q1 wireless headphones

The headphones we got are sunny orange version.

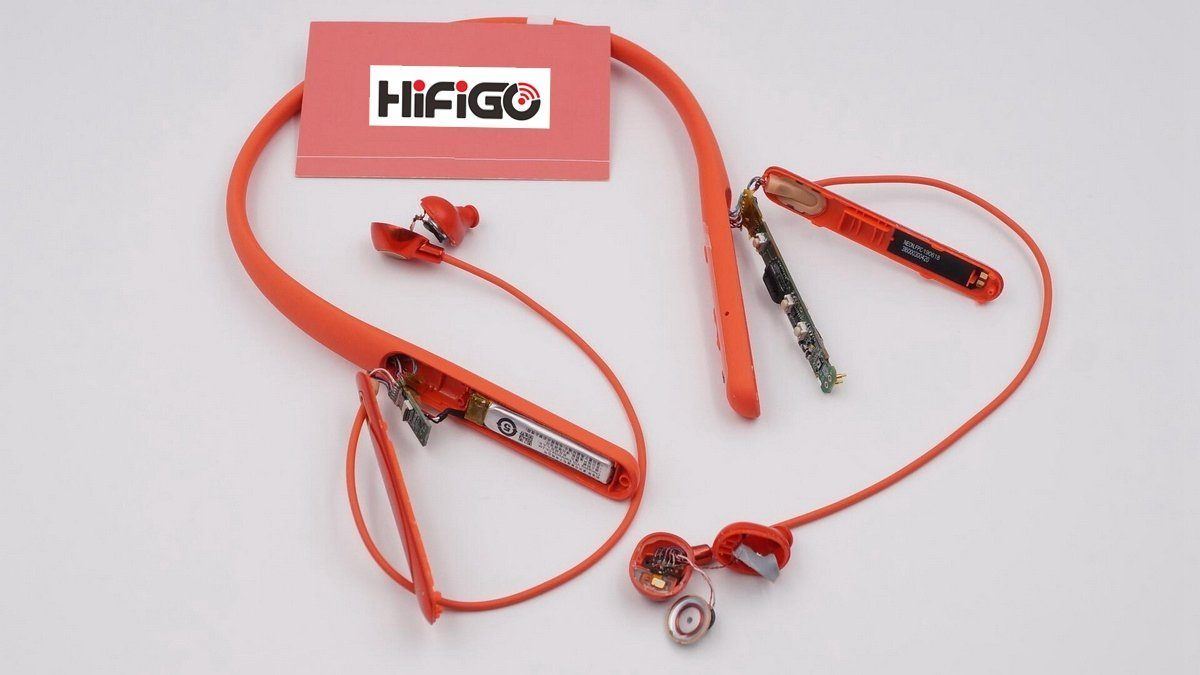

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown

Frontpage of the box showing it is a neckless headphone directly.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown2

There are so many details at back: active noise reduction, excellent sound quality, ultra-long endurance, comfortable wearing, etc. The sticker on the back shows the most important parameters.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown3

The package includes headphones, charging cable, extra three orange liquid silicone ear tips in different sizes, warranty card, and quick guide.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 4

USB-a to a usb-c white charging cable.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 5

Translucent orange liquid silicone ear tips are similar in color to the sunny orange earphone.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 6

The OPPO logo at the end of the flexible neck ring at the left end.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 7

Headset button on the left side, from left to right, the ANC active noise control bottom (on/off for one-click , double-click to switch music mode), the volume control (volume +/- with short press, forward/next with long press), the multifunction button ( 6 seconds to boot and pairing mode, 2 seconds on, 4 seconds off, play/pause, etc). There is a working indicator LED between the volume button and the multi-function button.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 8

The microphone pickup hole on the flexible neck ring at the left end of the headset.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 11

The USB type-c charging interface is sealed with a flexible orange rubber cover for waterproof and dustproof.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 12

 Orange rubber cover design closed tightly for waterproof.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 13

DESIGNED BY OPPO on the right.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 14

Magnetic at the back of earbuds for secure wearing.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 15

Drawing process on the magnet at the back of earbuds.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 16

The noise reduction feedforward(FF) microphone picking-up hole on the earbuds.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 17

The noise reduction feedback (FB) microphone picking-up hole on the earbuds.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 18

The metal mesh cover of the speaker

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 19

A white label attached with the product name, model number, SN, CMIT ID, and manufacturer information.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 20

Charging test with Charger LAB power-z KM001

2. Disassembly of OPPO ENCO Q1 wireless noise-reducing headphones.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 21

Disassembled the headphones from the end of the flexible neckband

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 22

Buckle structure and the adhesive connection, which is beautiful reliable well waterproof .

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 23

From left to right, the wires, circuit board, the battery protection circuit and the lithium polymer battery

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 24

The line is connected with the small board through the socket, and the small board is fixed with screws.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 25

Comparison of lithium polymer batteries and one-yuan coin.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 26

the battery conductor is connected to the board by welding.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 27

Rechargeable lithium-ion battery pack, 3.8v 160mAh 0.608wh;

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 28

UP71AC C81945 lithium battery protection IC.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 29

 View of the left end of the flexible neckband.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 30

the FPC patch BlueTooth antenna with polished rubber

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 31

Bluetooth antenna Pogo Pin thimble on the motherboard .

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 32

The internal wiring is connected to the motherboard through a socket.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 33

The four botton areas carved by CNC at the left end.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 34

 A close-up of the front of the motherboard.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 35

Close-up of the back of the motherboard.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 36

Comparison of mainboard and one dollar coin.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 37

The LED indicator on the mainboard.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 38

Close-up of a pair of volume buttons on the motherboard.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 39

Multi-function button on the motherboard close-up.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 40

The USB type-c interface is printed with L9HE1V1, and the edge of the interface is covered with a black waterproof rubber ring.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 41

 F2S IC close up

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 42

 EZK 129 IC. close up

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 43

G165 9300  microphone close up

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 44

BES2300 is a fully integrated adaptive active noise reduction solution that supports BlueTooth 5.0, LBRT low-frequency forwarding technology and dual-mode BlueTooth 4.2. It also supports third-generation FWS full wireless stereo technology, dual microphones, etc., with 28nm and BGA package.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 45

In addition, BES2300 supports noise reduction technology, especially the high-performance adaptive active noise reduction technology, which enables high-end active noise reduction headphones to achieve high sound quality and active noise reduction using a fully integrated chip.

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 46

 3. Teardown of the OPPO ENCO Q1 Noise Canceling True Wireless Earbuds

OPPO ENCO Q1 Noise Canceling True Wireless Earbuds Teardown 47

The dynamic driver is covered by a black sponge ring.



An internal noise-canceling feedforward (FF)microphone.

The internal construction of headphone head: wire, speaker, noise reduction microphone.



 The front of the dynamic driver equipped with PEEK+PU composite diaphragm.



The front of the internal feedback(FB) microphone, which is covered by a black spongy pad.



The backside of the feedback (FB) microphone welded with wires.



That's all

 4. The verdict of  OPPO ENCO Q1 wireless headphones

  • OPPO ENCO Q1 wireless noise reduction headset is designed with a flexible integrated neckband that is lightweight and comfortable to wear.
  • OPPO Enco QI  adopts four microphones for both FF+FB dual active noise cancellation. This Hybrid active noise cancellation uses both feedback and feedforward using four microphones, one pair per side. The feedforward active noise cancellation uses the external microphone to measure ambient noise before it enters the ear, processing that signal to ensure an exact and opposite signal leaves the system’s speaker to effectively cancel the ambient noise.
  • The PEEK+PU composite diaphragm large-size dynamic speaker quipped deliver us very good sound performance.
  • Built-in BES2300 digital chip, which is a new architecture of digital noise reduction chip, is capable of real-time calculation and processing of noise signals, and it works with the built-in ENC environment noise reduction algorithm to eliminate noise more accurately and effectively.
  • The power consumption of the chip in music mode is less than 5mA, and in combination with the built-in 160mAh lithium battery, it brings us 15 hours in noise-canceling mode and 22 hours in noise-canceling turnoff.
