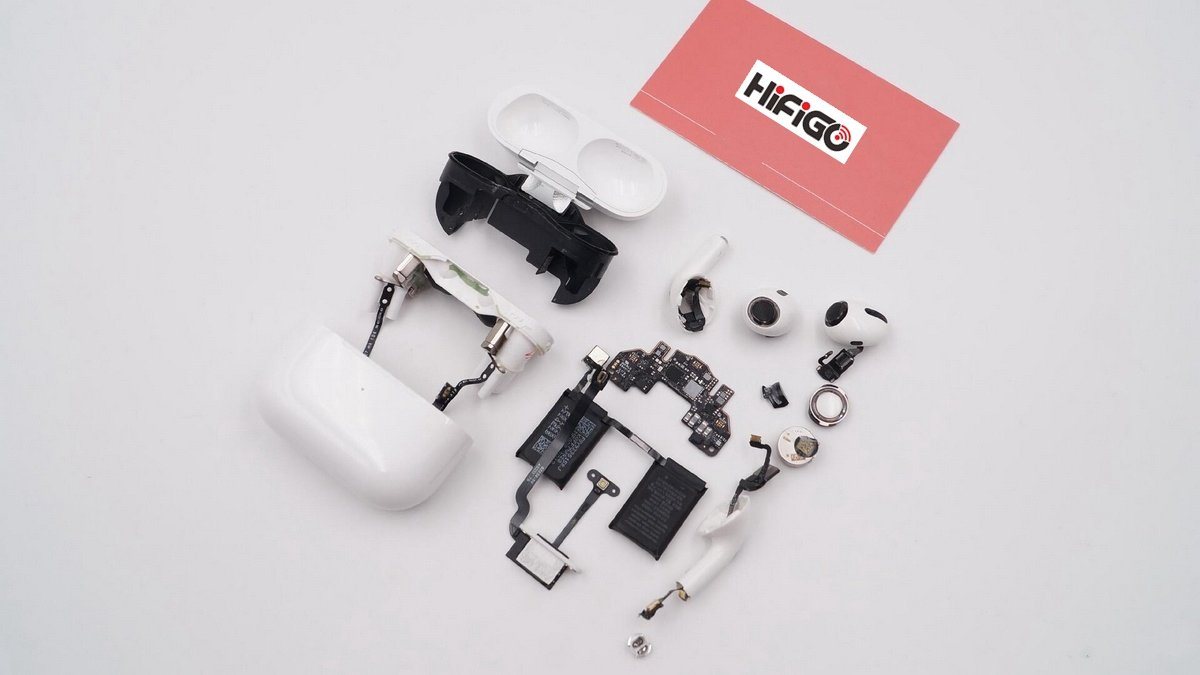

AirPods Pro Deep Dive Teardown | Hifigo

AirPods Pro Deep Dive Teardown | Hifigo

As true wireless earbuds continue to evolve, companies are making them smaller and adding powerful features like active noise cancellation (ANC). We'd heard rumors about a refined design and ANC of AirPods Pro for months. Finally they quietly revealed in a press release on a Monday afternoon. The Pro model introduces a host of new features, but that comes at a cost. And the question is: How is the AirPods Pro ($249)  built to worth the extra $50?  Let's check.

 1.Unpackage of Airpods Pro

 The box with familiar smell and characters of Apple.

Airpods pro deep dive teardown 2

Product model Airpods Pro with Wireless charging case in 6 languages,  certifications and company information.

Airpods pro deep dive teardown 3

 The package seems a pro version as well, it is thicker than the previous version.

Airpods pro deep dive teardown 4

 Three stickers on the side.

Earbuds PN: A 2083 A2084

Wireless charging case PN: A2190

Airpods pro deep dive teardown

Package:

Airpods pro earbuds with charging case.

USB-C to Lightning cable

Manual, warranty card, etc

S, L silicone eartips

Airpods pro deep dive teardown 6

 Close-up of connectors

Airpods pro deep dive teardown 7

The included charging case is different with the previous one. While the previous versions (2.1 x 1.7 x 0.8 inches)look and open more like a floss container, this new one (2.4 x 1.7 x 0.9 inches)  is wider and shorter. The new case is noticeably larger, though not by much. It's still quite small, and it's more compact than similar cases from Jabra, Sony and so on. Other than size, that's where the changes to the case itself end.

Airpods pro deep dive teardown 8

 A button for paring. But you don't need to press it for iPhone paring. It could be used to pair Andriod devices.

Airpods pro deep dive teardown 9

 Lightning port close-up

Airpods pro deep dive teardown 10

Wired charging test with POWER-Z KT001: Voltage: 5.038V and current:0.366A

Airpods pro deep dive teardown 11

 Wireless charging test with POWER-Z KT001: Voltage: 5.085V and current:0.374A

Airpods pro deep dive teardown 15

 The metal clips close-up.

Airpods pro deep dive teardown 16

 Earbuds with case weigh 56.7g, similar to 56.4g Apple claims.

Airpods pro deep dive teardown 17

 Case weighs 45.6g

Airpods pro deep dive teardown 18

10.7g total, similar to 5.4x2= 10.8g Apple claims

Airpods pro deep dive teardown 19

Close up of microphone vents

The outward-facing microphone vents.

Airpods pro deep dive teardown 23

Press relief vents.

Take a look at the head of the AirPods Pro, which is larger than the previous buds and holds two black mic vents.  At the bottom is a slim glossy chrome circle. Toward the end of the bud that goes into your ear is a new and notable addition: a silicon eartip.

Airpods pro deep dive teardown 20

The side that faces forward (towards your face) is flat, so you'll know where those controls reside when you reach for them.  At the top of the stem sits another vent, hiding another microphone.

Airpods pro deep dive teardown 24

The company added a silicon tip that not only makes the AirPods Pro more comfortable but also gives them the seal needed for effective noise cancellation.  And the overall shape is now more of an oval instead of a circle.

Airpods pro deep dive teardown 25

The stem is shorter than on previous versions of the AirPods and now has a small notch cut into them. Give either a squeeze and you'll discover an embedded Force sensor.  The stick-like extension is still here, but it's shorter and houses a new "force sensor" for the on-board controls.

For you fitness fanatics or heavy sweaters, the AirPods Pro are IPX4 rated.

2. Airpods Pro charging case Teardown

Airpods pro deep dive teardown 27

 The two parts of the charing case are connected with two FPC which connected to the lighting port and NFC charging wire respectively.

Airpods pro deep dive teardown 28

FPC connected through socket with glue.

Airpods pro deep dive teardown 29

Separate the two parts.

Airpods pro deep dive teardown 30

 The below part with FPC for button and NFC charging wire.

Airpods pro deep dive teardown 32

LED indicator and light port FPC

Airpods pro deep dive teardown 33

 The other side.

 Airpods pro deep dive teardown 34

 LED indicator close-up

 Airpods pro deep dive teardown 35

 Two batteries with the mainboard in the middle.

 Airpods pro deep dive teardown 36

The white cover, white earbuds cabin and the black part for fixation.

 Airpods pro deep dive teardown 37

 The charging connectors for the earbuds are connected to the mainboard with fpc and fixed with glue.

Airpods pro deep dive teardown 38

 Separate the white earbuds cabin first.

 Airpods pro deep dive teardown 39

 The magnet for earbuds fixing during charing.

 Airpods pro deep dive teardown 40

 QR code outside the cabin.

 Airpods pro deep dive teardown 41

 The chip for case detecting opening and closing state of the charging case.

 Airpods pro deep dive teardown 42

 The two batteries and mainboard of the case. Have to remove the glue and get the mainboard first,  then take off the batteries.

 Airpods pro deep dive teardown 43

Close - up of the batteries and mainboard.

 Airpods pro deep dive teardown 44

Other side of the batteries and mainboard.

 Airpods pro deep dive teardown 45

 Both sides of battery socket are fixed by the black glue which cannot be removed.

 Airpods pro deep dive teardown 46

 The protection circuit of the battery and IC on it are covered by the semi-transparency glue.

Airpods pro deep dive teardown 47

Information of the battery.

Airpods pro deep dive teardown 51

NXP610A3B KN3704 USB and charging IC.

 Airpods pro deep dive teardown 52

Close-up of the components side and most components are sealed with semi-transparency glue.

NPO capacitors close-up .

Airpods pro deep dive teardown 53

 SDG IC

 Airpods pro deep dive teardown 54

 3DG5 IC

 Airpods pro deep dive teardown 55

 3441APAF IC

 Airpods pro deep dive teardown 56

 T5AS KDD IC

 Airpods pro deep dive teardown 57

 C 9AB IC

 Airpods pro deep dive teardown 58

 Two Tj IC

 Airpods pro deep dive teardown 59

 E+ 8N IC

 Airpods pro deep dive teardown 60

 96Q201 IC

 Airpods pro deep dive teardown 61

 120A BBMU IC

 Airpods pro deep dive teardown 62

TI BQ25116A Charging managing IC

 Airpods pro deep dive teardown 63

 Another IC with 3441 APAF printed

 Airpods pro deep dive teardown 64

  Another IC with T5AS KDD printed

 Airpods pro deep dive teardown 65

 P3W LA IC

 Airpods pro deep dive teardown 66

 K5B C9A 11 IC

 Airpods pro deep dive teardown 67

STM32L476MGY6 Low-latencyChip from ST and floating-point arithmetic unit.

STM32L476MGY6 datasheet.

 Airpods pro deep dive teardown 68

59356A2KUBG ,Charing managent IC from BROADCOM

 Airpods pro deep dive teardown 69

 AirPods Pro charging case teardown

3. Teardown of Airpods Pro earbuds



 Airpods pro deep dive teardown 70

Tech-packed yet compact, AirPods Pro is built around our System in Package design — featuring the H1 chip that powers everything from sound to Siri.

 Airpods pro deep dive teardown 71

Apple H1 (System in Package) FPC connects the speaker and battery through the socket.

 Airpods pro deep dive teardown 72

Three parts of the earbuds

 Airpods pro deep dive teardown 73

The charging connector soldered to the FPC.

Airpods pro deep dive teardown 75

Remove the FPC of H1 ( System in Package). There are the battery, driver, microphone and other sensor components.

 Airpods pro deep dive teardown 76

CP1154 A3HOC battery,made in Germany,3.7V

 Airpods pro deep dive teardown 79

Remove the battery.

 Airpods pro deep dive teardown 80

 Battery is 0.16Wh.

 Airpods pro deep dive teardown 81

Speaker unit.

 Airpods pro deep dive teardown 82

 optical sensor close-up.

 Airpods pro deep dive teardown 83

Powerful bass is delivered by a custom-built high-excursion, low-distortion speaker driver. Remove the speaker driver.

 Airpods pro deep dive teardown 85

Motion acceleration sensor

 Airpods pro deep dive teardown 85

The inward-facing Microphone between the speaker diaphragm and the vent.  The microphone listens toward the ear, and AirPods Pro cancels the remaining noise detected by this microphone.

 Airpods pro deep dive teardown 87

 The inward-facing Microphone unit and battery unit FPC close-up

 Airpods pro deep dive teardown 88

 Bluetooth antenna connected to the coaxial connector of the H1 system in package.

 Airpods pro deep dive teardown 89

The metal fixes the earbuds to the charging case and adjusts the center of gravity of the earbuds.

 Airpods pro deep dive teardown 90

Close up of the metal

 Airpods pro deep dive teardown 91

 The components on the earbuds FPC. Two MEMS microphones and one force sensor.

 Airpods pro deep dive teardown 92

 The other side of the FPC. It is an independent antenna.

 Airpods pro deep dive teardown 93

Metal fixing structure of force sensor close-up.

 Airpods pro deep dive teardown 94

 Otherside of the force sensor.

 Airpods pro deep dive teardown 95

 234 939 GWM1 MEMS microphone, all the microphones are in same PN inside the earbuds.

 Airpods pro deep dive teardown 96

The Apple-designed H1 chip close-up. It employs 10 audio cores, creating incredibly low audio processing latency that enables real-time noise cancellation.

 Airpods pro deep dive teardown 97

 The other side of Apple  H1 (System in Package)

 Airpods pro deep dive teardown 99

The amplifier powers the speaker driver to remove background noise and works with the H1 chip to control listening levels. A super-efficient high dynamic range amplifier produces pure, incredibly clear sound while also extending battery life.

 Airpods pro deep dive teardown 100

 AirPods Pro right earbud teardown.

Airpods pro deep dive teardown 101

Vertical

  1. AirPods Pro have two microphones per earbud. The one on the outside detects ambient sound to analyze your surroundings. The second faces towards your ear to pick up any remaining noise that sneaks through. Together, the mics work alongside "advanced software" to continuously monitor your environment and adjust the ANC accordingly. Apple says the setup "adapts" the audio "200 times per second" to keep things sounding their best.  Apple says this tech is unique, and it's the first to use the 10 audio cores on the H1 chip to make the adjustment in real time. The company also says that a key difference from other ANC headphones is, even when there's no music playing, the AirPods are still analyzing and adapting based on your environment.
  2. Apple employs what it calls Adaptive EQ, which automatically tunes the low- and mid-range frequencies to each user's ear. There's also a built-in amplifier that Apple says enhances clarity while also optimizing battery life. It's a lot of techspeak, but the end result is much better audio quality than even the most recent AirPods can muster.
  3. Apple managed to squeeze three microphones and six sensors into the tiny, redesigned casing and still had room for its lauded H1 chip. They even added eartips.
