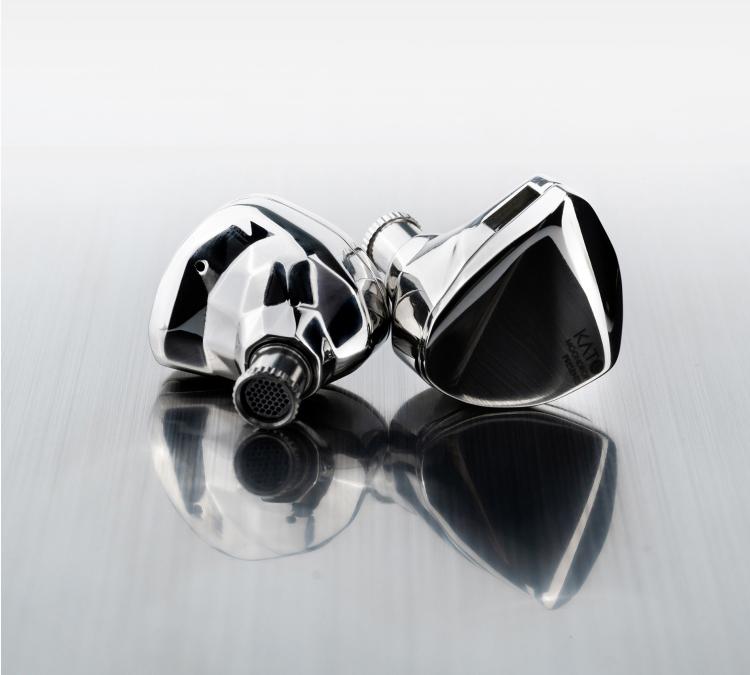

Moondrop Kato Single Dynamic IEMs with Newly Developed ULT Super Linear Dynamic Driver

Moondrop Kato Single Dynamic IEMs with Newly Developed ULT Super Linear Dynamic Driver

Moondrop is a veteran HiFi audio in-ear monitor brand based in China. They specialize in the research, development, and marketing of high-quality IEMs with a wide range of products across different price ranges. Moondrop has ruled the single entry to mid-level single dynamic IEM market with its highly acclaimed Kanas Pro & KXXS Earphones. Today, Moondrop has unwrapped the upgrade to the KXXS lineup, the very latest Moondrop Kato. After the repeated design, verification, and improvements over the past two years, Moondrop has developed a brand new ULT(Ultra-Linear Technology) dynamic driver unit that presents a powerful and engaging sound reproduction with low distortion and natural timbre. Moondrop Kato utilizes this ULT dynamic driver with 3rd generation DLC(Diamond-like Carbon) composite diaphragm bringing you a brand new experience in high-resolution music. The pair has a stunning three-dimensional look with a brand-new MIM stainless steel cavity. Moondrop Kato adopts a replaceable sound nozzle design with two different sets of ear nozzles included in the package. Kato is currently available on pre-order for 189$. Pre-order bonus includes their latest Line “K” upgrade cable. Check out more details here.

Moondrop Kato-1

Features:-

>Newly-Developed ULT Super Linear Dynamic Driver.

>3rd Generation DLC(Diamond-Like Carbon) Composite Diaphragm.

>Interchangeable Nozzle Design.

>3rd Generation Patented Anti-Blocking Acoustic Filter.

>Newly Designed Spring Silicone Ear Tips.

>Professional Tuning Following VDSF Target Response.

>High-Quality Copper Thick Silver-Plated Cable.

>Gold-Plated 2-pin 0.78mm Connectors.

Technical Specs:-

>10mm ULT Dynamic driver.

>Frequency Response Range: 10Hz-45kHz(IEC, Free Field).

>Effective Frequency Response Range: 20Hz-20kHz(IEC60318-4, -3dB).

>Impedance: 32Ω±15%(@1kHz).

>Sensitivity: 123dB/Nrms.

>Distortion: <0.15%(@1kHz, AES17 20kHz, A-weighted).

Moondrop Kato-2

Newly Developed ULT Super Linear Dynamic Driver:-

Moondrop Kato adopts a newly-developed 10mm Ultra-Linear Technology Super Linear dynamic driver unit. It includes an efficient composite magnetic circuit with internal & external magnets, a linear air circulation structure, as well as a larger brass acoustic cavity, an extra-fine imported CCAW sound coil, and a high-frequency phase waveguide. This driver has been in development for more than two years in order to achieve a true-to-life sound performance.

3rd Generation DLC Composite Diaphragm:-

The 10mm ULT dynamic driver in Kato adopts a 3rd generation DLC(Diamond-Like Carbon) composite diaphragm coil. This composite diaphragm is made with three materials with different characteristics to form different parts of the diaphragm. It has high rigidity, high damping coefficient, and is extremely lightweight. Its comprehensive acoustic performance even exceeds that of a beryllium diaphragm.

Moondrop Kato-3

Modern, Stunning, Three-Dimensional Look:-

Moondrop has designed Kato with a modern design using MIM Stainless Steel material. The earphone shell is cast by the MIM powder metallurgy process. Every section of the surface is made smooth by a manual grinding process. Kato’s surface reflects light and shadow in such a manner that it looks three-dimensional effect.

Delicate Cavity Structure For Balanced Tuning:-

The front acoustic cavity of Kato is designed with the help of volume and structure simulated by FEA(Finite Element Analysis simulation). It’s designed in such a manner to maintain a balanced tuning profile with sound that will complement different genres well. Combined with the high-frequency phase guide components on the driver, the front cavity arrangement in Kato is superior to other so-called special tuning components. The pair is tuned by professional acoustic engineers following the VDSF target response.

Moondrop Kato-4

Replaceable Ear Nozzle:-

Moondrop Kato has a replaceable sound nozzle design. The nozzle can easily be replaced by a quick-release structure with a screw. Moondrop has included two pairs of sound nozzles, made with different materials (Steel & Brass). Both the Steel and Brass have different sound characteristics that can be switched as per one’s requirement.

3rd Generation Patented Acoustic Filter:-

Moondrop Kato has a brand-new third-generation patented anti-blocking filter integrated on the ear nozzle. It prevents oily ear wax from blocking the filters and is more conducive to mid and high-frequency sound.

Newly Developed Spring Silicone Ear Tips:-

Moondrop has designed new spring silicone ear tips that suppress weak resonance through a special diffusion structure. It also helps in lowering high-frequency linear distortion caused by nozzle resonance making the output more natural and pleasing. These new ear tips also help in providing a better fit for its users.

High-Purity Bundled Cable:-

Moondrop packs the brand new Kato with a 4-core high-purity copper thick silver-plated cable. It is coated with high-permeability mixed material which provides an ultra-low dielectric coefficient. The cable provides smooth signal transmission with low internal resistance ensuring a pure sound output for the users. The cable has standard 0.78mm 2-pin connectors.

Price & Availability:-

Moondrop Kato is currently available on pre-order for 189$. The pre-order period is live starting today till 16th September. For a pre-order bonus, users get a free high-quality upgrade cable by Moondrop, the latest Line “K”, available in 3.5mm SE and 2.5mm/4.4mm Bal termination options. So, what are you waiting for pre-order the Moondrop Kato today!!
