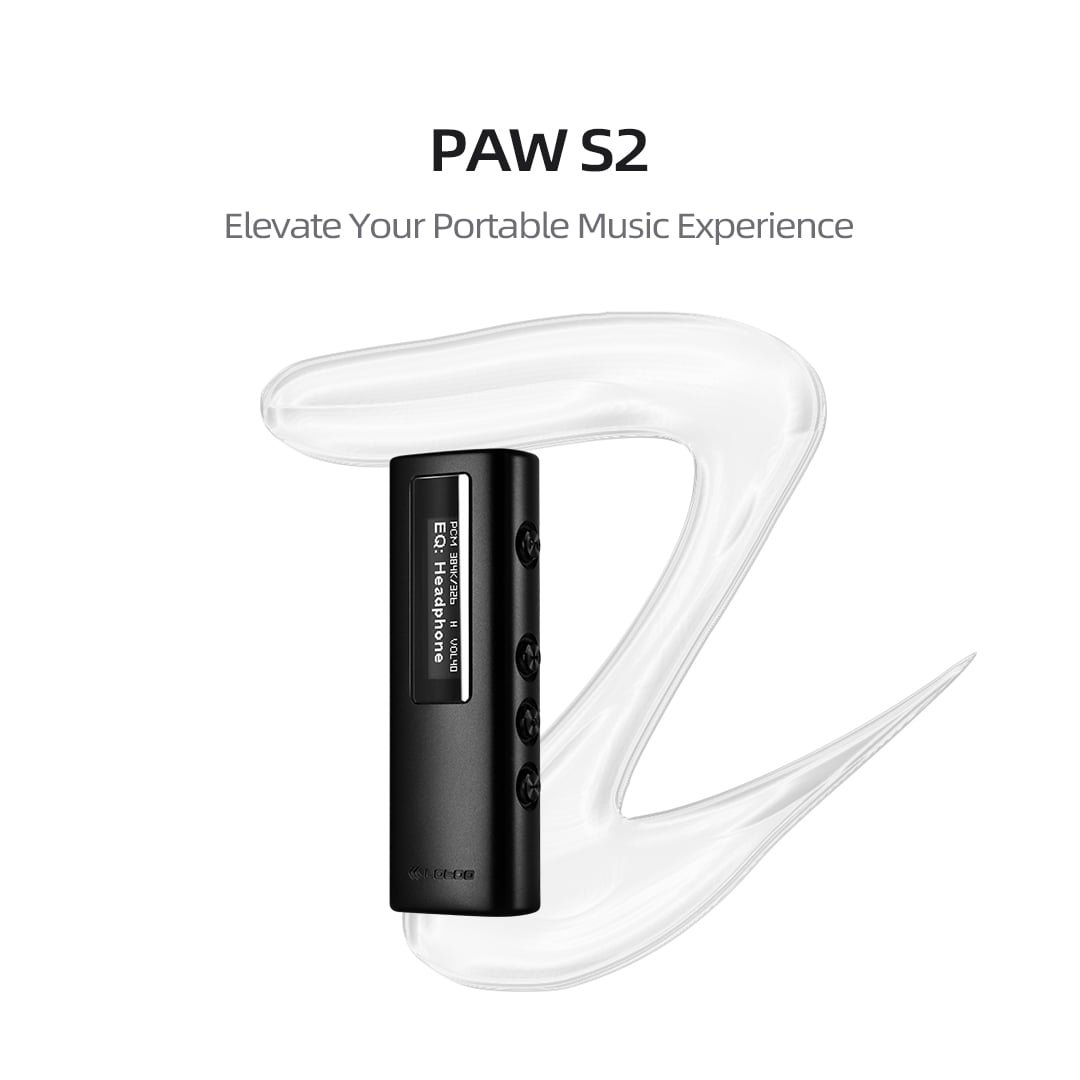

Lotoo Paw S2 Portable MQA USB DAC/AMP: Step Up Your High-Resolution Music

Lotoo Paw S2 Portable MQA USB DAC/AMP: Step Up Your High-Resolution Music

If you are following the HiFi audio scene, you must be familiar with Lotoo. Lotoo is among the top-tier brands dedicated to manufacturing best sounding products. They have a wide range of products including many successful digital audio players such as Lotoo Paw 6000, Paw Gold, and more. Last year, Lotoo released its debutant USB Type-C portable DAC/AMP, the Paw S1 that became an instant success for with its impeccable performance. Today, Lotoo has announced an upgrade to the highly successful Paw S1, meet the brand new Lotoo Paw S2. Lotoo Paw S2 features a legendary AKM4377 DAC chip at its core coupled with the full suite of Lotoo’s advanced audio architecture. Paw S2 features Lotoo’s self-developed PMEQ and ATE equalizer presets that are crafted to enhance the user experience. Along with high-resolution PCM and DSD signals, the Lotoo Paw S2 also supports full 4x MQA signal decoding. Similar to the former model, the Paw S2 boasts a hi-res digital audio player level audio chipset to deliver industry-leading performance with its compact size. Lotoo Paw S2 is available to purchase for just 249$, Elevate your portable music listening experience with the Lotoo Paw S2 today.

Lotoo Paw S2-1

Features:-

>High-Performance AKM DAC chip.

>Standalone amplifier chip for powerful output.

>Ultra-low noise floor.

>3.5mm single-ended+4.4mm balanced headphone output.

>ORiginal Pentaconn 4.4mm socket.

>Media control keys.

>Built-in studio-quality EQ presets.

>MQA Support.

>Two-level gain mode(High/Low).

>CNC machined chassis.

>OLED Display.

>Multi-core OTG cable.

>Top-of-the-line audio performance in a compact size.

Technical Specifications:-

>PCM up to 32-Bit/384kHz decoding support.

>DSD up to DSD128 native decoding.

>4x MQA decoding.

>THD+N: -109dB(0.0003%).

>SNR: 123dB.

>Max output: 150mW(4.4mm), 125mW(3.5mm).

>Frequency response range: 20Hz-20kHz.

>Line out level(3.5mm): 2.34Vrms.

>Line out level(4.4mm): 2.55Vrms.

>Noise Level(3.5mm): -121dBu.

>Noise Level(4.4mm): -119dBu.

>OS: LTOS.

Lotoo Paw S2-2

Professionally Implemented AKM DAC Chip:-

Lotoo Paw S2 extracts every single bit of performance of the legendary AKM4377 DAC chip leaving nothing wasted. It brings the best out of our connected earphones/headphones by providing them a clean, high-resolution output signal with ultra-low distortion and high SNR ratings. The minutest of the details will pop out in your favorite music over a dark noise-free background with the PAW S2.

High-End DAP Architecture:-

Lotoo has designed the Paw S2 like they design their high-end digital audio player systems. The Paw S2 features Blackfin DSP, advanced 2x8 layers of HDI PCB design. The analog board here employs a low-noise, low-temperature drift metal film resistor of millesimal accuracy.

Lotoo Paw S2-3

Highly-Accurate Phase-Locked Loop:-

Lotoo Paw S2 uses AK8142, a programmable clock generator IC with an integrated fractional N PLL. They had previously implemented the same clock in their high-end digital audio players. It is a highly accurate jitter clock that effectively reduces USB and SRC interface jitter ensuring a high-end performance with the device.

Powerful Output With Standalone Headphone Amplifier:-

Lotoo Paw S2 features a standalone headphone amplifier that provides a powerful output of up to 150mW @ 32Ω through the 4.4mm balanced headphone output. With the 3.5mm single-ended headphone output port, the Paw S2 outputs up to 125mW @ 32Ω of load. The Paw S2 has extra output power in comparison to the former model. The Paw S2 has two gain levels, high-gain and low-gain. Users can easily switch between the two gain modes by using the “fn” key on the side.

Lotoo Paw S2-3

Media Control Keys:-

Right below the “fn” key on the side, Paw S2 also has three media control keys. While two are just for volume and menu navigation, the center key can be used to play/pause the music playback.

Built-In Studio Quality PMEQ/ATE Presets:-

Lotoo’s PMEQ and ATE Equaliser presets were some of the best things with the Paw S1. The Lotoo Paw S2 brings more additions to the PMEQ and ATE presets, The PMEQ has ACG-1, while ATE has added Vinyl LP and Cassette presets.

Lotoo Paw S2-4

New OTG Cables:-

Lotoo Paw S2 has new OTG cables available in two different length options(65mm and 800mm).  These are high-purity cables made with pure OFC copper with copper shielding net and aluminum foil. They have black TPE shielding that give the cable both flexibility and strength.

Pricing & Availability:-

Lotoo Paw S2 starts at 249$ for the Type-C cable variant, the lightning edition is priced at 279$. check out more details here.
