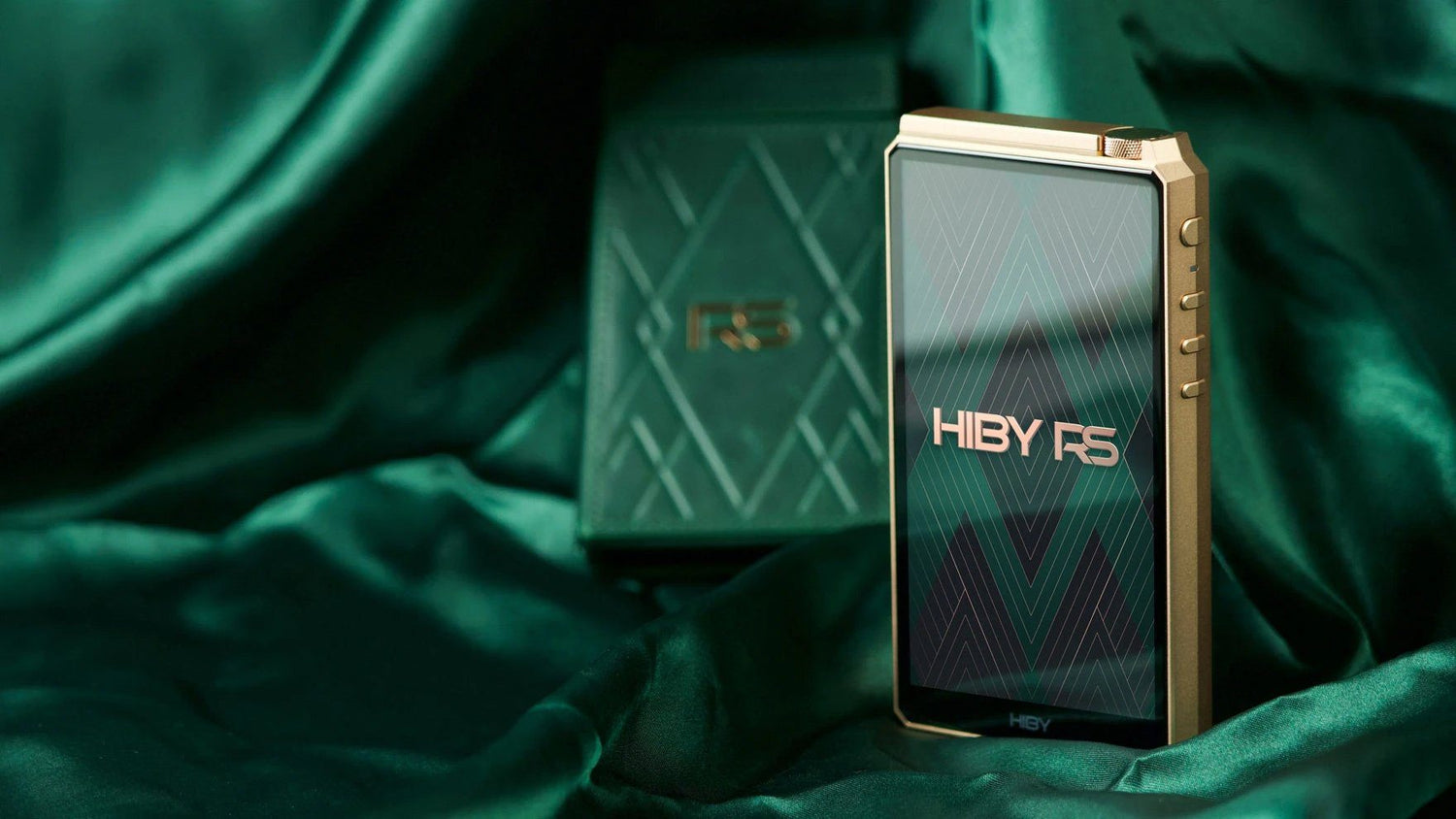

HiBy RS6 Latest Hi-Res Music Player With R-2R DAC Architecture

HiBy RS6 Latest Hi-Res Music Player With R-2R DAC Architecture

HiBy’s latest Android music player is here, meet the brand new HiBy RS6. Following the success of their R6 2020, HiBy has designed the RS6 based on their self-developed Darwin Architecture using the classic R2R ladder array DAC. The latest RS6 has brought several high-tech functions such as R-2R ladder DAC array,  Linear FIR Filter, Non-linear Harmonics Control, Switchable Oversampling/NOS bypass on a portable device. HiBy RS6 has an open Android 9 OS with full 16x MQA decoding support. It has systemwide bit-perfect audio with HiBy’s Direct Transport Architecture. HiBy has designed it with four output ports, two headphones out with one 3.5mm single-ended and another 4.4mm balanced, and same both separate line-out ports. The user interface is buttery smooth with a snapdragon 660 SoC chip. Looks and aesthetics are similar to the R6 2020 with a large 5” full HD 1080P display for a crisp image. Though the chassis is now full copper while the OG R6 2020 had aluminum chassis. The latest HiBy RS6 is available for just 1399$, check out more details here.

HiBy RS6-1


>Works on HiBy’s self-developed Darwin Architecture.

>R-2R Ladder Array DAC Technology.

>256-Tap adjustable FIR Filter.

>Adjustable FIR Filter.

>R2R Linearity compensation.

>Dedicated dual independent crystal oscillators.

>Optional oversampling filter/NOS.

>Full 16x MQA decoding.

>Native DSD decoding.

>Independent Headphone and Line-Out ports.

>Open Android 9 OS.

>Direct Transfer Architecture(Systemwide bit-perfect audio).

>Bluetooth V5.0 connectivity.

>HiBy Link.

>HiBy OS.

>USB DTA(Bitperfect USB Audio).

>2.4 & 5GHz Dual-band WiFi.

Technical Specifications:-

>SoC: Qualcomm Snapdragon 660.

>CPU: 8-Core Kryo 260, 2.2GHz.

>GPU: Adreno 512.

>DAC: Darwin Architecture.

>5” Full HD 1080P display.

>RAM: 4GB.

>ROM: 64GB.

>MicroSD Support: <2TB.

>Pure Copper body.

>Battery Capacity: 4500mAh.

>Battery Life: Up to 8.5 hours.

HiBy RS6-2

The Darwin Architecture:-

For the latest RS6, HiBy has designed a brand new digital signal processing architecture, known as the Darwin Architecture. They have designed this based on traditional R-2R ladder array architecture. The system includes resistor ladder linearity compensation. For the first time, an R-2R system is combined with advanced functions such as Linear FIR filter, Non-linear harmonics control, switchable Oversampling/NOS filters, and DSD bypass on a portable device. It is fully configurable, creating endless possibilities for future upgrades on the system.

256-Tap Adjustable FIR Filter:-

To preserve the linear phase and reproduce the original sound as the recording artist intended, The Darwin architecture supports up to 16x oversampling filer as well as a NOS filter. The R-2R algorithm is highly adjustable and adapts to different earphone configurations to provide a perfect pairing. You get to enjoy your earphones/headphones to their full potential with the RS6. The NOS mode bypasses oversampling and antialiasing providing a raw and direct signal conversion, while the oversampling mode removes aliasing artifacts and enables all functions of the Darwin architecture. Oversampling mode also allows personalized adjustments to the sound signature.

HiBy RS6-3

Complete R-2R Based Amplification Stage:-

HiBy has designed the amplification stage for the RS6 completely on the R-2R ladder network. It brings the true potential out of connected earphones with full musicality, energetic, and pure sound signal amplification. It has a discrete component current-mode amplification scheme designed with 1xOPA1642 and 2xOPA1612 op-amps for the current stage. Then the almighty RS6 is equipped with 4 flagship-grade OPA1622 opamps for eight independent channels in a 2x2 parallel arrangement.

DSD Bypass:-

HiBy has equipped separate Low-pass filters for PCM and DSD signals. The DSD-specific LPF effectively reduces HF noise caused by the delta-sigma modulation process and provides you with exceptional performance. Now enjoy full native DSD decoding on the R-2R system.

HiBy RS6-4

Dual Independent Crystal Oscillators:-

HiBy RS6 features dual independent crystal oscillators clocked at 45.158MHz and 49.152MHz providing proper synchronization between the RS6 components. These ensure the player produces quality output signals with great precision and clarity.

Full 16X MQA Unfolding:-

HiBy RS6 has full 16x unfolding support for high-resolution MQA files. It retains the maximum amount of data from an MQA stream and presents the users with true-to-life sound reproduction.

Blazing Fast User Interface With HiBy OS:-

HiBy has chosen Qualcomm’s 8-core Snapdragon 660 SoC chip as the core of the RS6. It is combined with 4 gigabytes of ram providing ultimate performance with a snappy user interface. RS6 is loaded with  HiBy OS designed around an open Android 9 operating system. It has support for countless music and media application on the play store.

HiBy RS6-5

Direct Transfer Architecture, A System-Wide Bit-perfect Audio Architecture:-

HiBy has featured DTA, a system-wide bit-perfect audio architecture on the RS6. It provides you with bit-perfect audio across different applications on the device. Enjoy high-resolution lossless music with Apple Music, Tidal, Qobuz, UAPP, and several other applications that support bit-perfect audio.

High-Resolution Wireless Connectivity:-

RS6 supports high-resolution wireless Bluetooth connectivity. It has the latest Bluetooth V5.0 connectivity with high-resolution UAT, LDAC, AptX HD, AptX, AAC, SBC, wireless codec support. It also has 2.4GHz and 5GHz WiFi connectivity for a reliable and stable wireless internet connection. It also has DLNA, Airplay, and WiFi audio transfer functions.

Price & Availability:-

HiBy RS6 is available to order with us at 1399.99$, check out more details here.
