Specifications:
Original CSR Bluetooth chip
FEIXIANG HIFI Bluetooth Audio Receiver

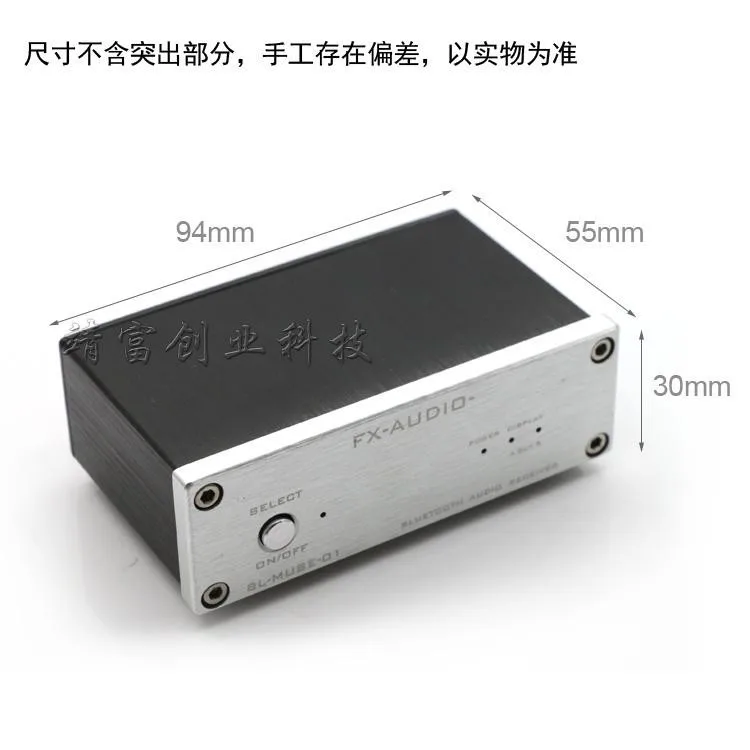

Aluminium alloy shell
Can be connected with the headphone amplifier, the amplifer with analog input interface and digital interface
Interface: 2RCA- 2RCA
With external antenna that can be disassembled and the signal is more stable
Chip: CSR 57E6
Colorful LED indicator
Rubber mat
With 12V 1A power supply
Adopt ”CSR“, true digital signal output, support 5.1.
Supports lossless music playback, you can directly with pure digital amplifier / DAC / etc.
Bluetooth version 3.0, does not support APTX format.


TB2nO9RdFXXXXbMXpXXXXXXXXXX-276303774

Connected with different power amps diagram below

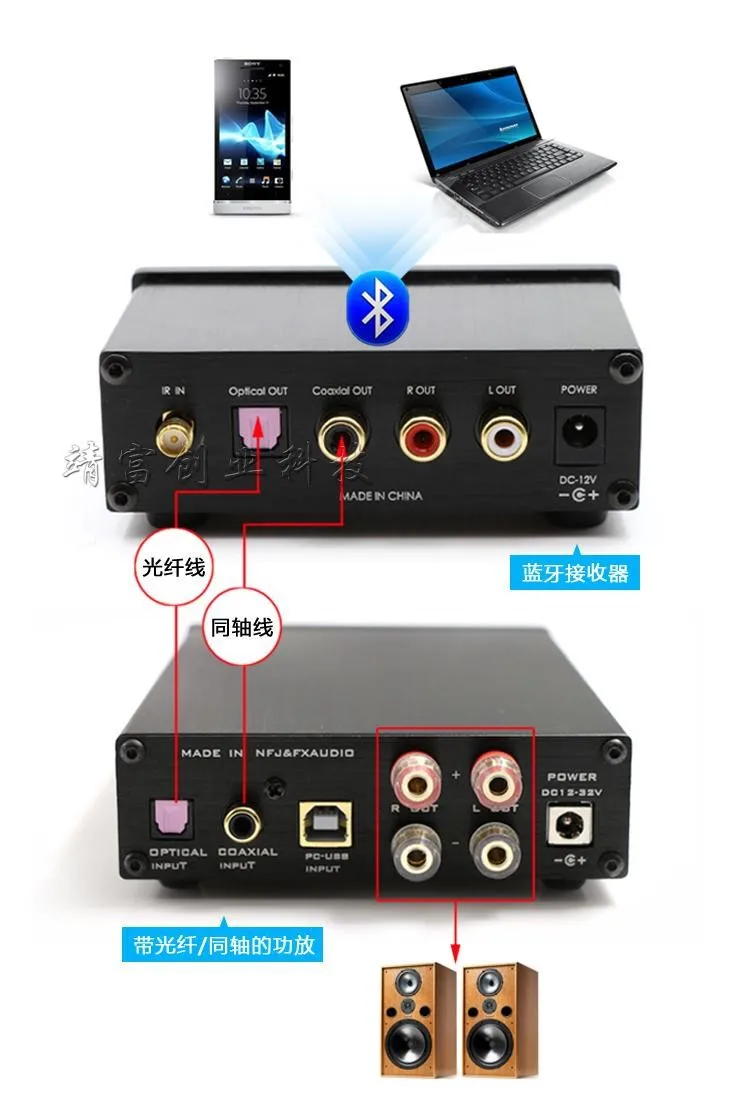

1. Amplifier with optical / coaxial connection diagram is as follows:

TB2ss81XXXXXXX2apXXXXXXXXXX-276303774


2. Amplifier with RCA input schematic

3333333
