With Hi-Fi TPA6120 headphone amplifier; BC-05 bluetooth Hi-Fi module; Analog signal input sensitivity: RMS 1-2V; Bluetooth transmission distance: 20m; Version: V2.1 + EDR; With SBC, MP3, AA audion decoding function; WIth A2DP, AVRCP stereo sound transmission function; Headphone amplifier: 32ohm:1.25W, 600ohm: 80MW; Amplifier output: 4ohm: 160W, 8ohm: 100W; Bluetooth instruction: switch on amplifier, push signal choose switch upward, red light flash, open cellphone or other device to search bluetooth of FX-AUDIO-1602S

Features:
Material:Aluminum alloy components
Total Power:160W +160W
Signal to Noise Ratio(SNR):90db
Power Supply:24-36V

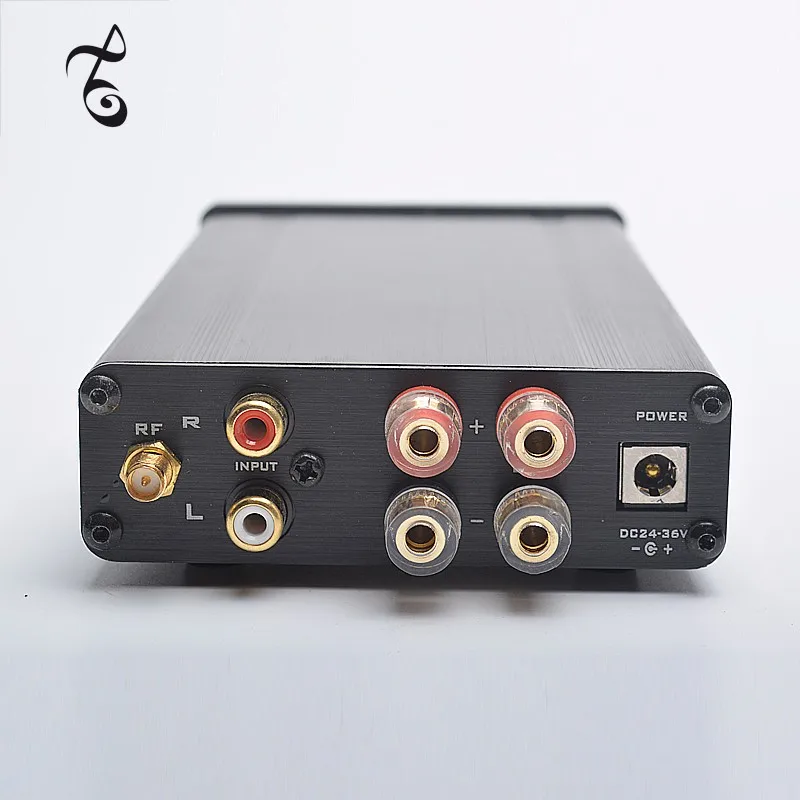

Inter face:DC external diameter :505mm, internal diameter:2.5mm

How to use bluetooth ?
the power amplifier , the signal selector switch toggle up
this time to see the switch following the fast flashing red light , Bluetooth into the search state ( remember to connect the Bluetooth antenna )
 open the phone or other Bluetooth device into the search condition, the search to FX-AUDIO-1602S Machine Model
 click the connection after a good ability to play music , following A pple's five mobile phone connections can refer to

Specifications:
analog input sensitivity RMS 1-2V
Bluetooth transmission distance of 20 m linear distance no obstructions
follow BLUETOOTH V2.1 + EDR Bluetooth specification
with SBC, MP3, AAC audio decoding
with A2DP, AVRCP high-quality stereo audio transmission
European amp output power of 1.25W 600 32 can promote common European 80MW headphones
the output of the amplifier 4 ohms 160W 8 can promote common European 100W speakers
amplifier SNR 90DB
the supply voltage 24-32V 4A above current recommendations


1-11-21-61-31-7
IMG_5937
HTB1_ngvGVXXXXcNXFXXq6xXFXXXT
Switch on the bluetooth of FX1602S and your device, easy connected directly.

HTB1KMgxGVXXXXcoXpXXq6xXFXXX9

1-9

1-101-11

1-15

1-8
